Maintenance
9-32
Fuses
Blade type
B9005601Cartridge type
B9005602Multi type
B9005603
A vehicle’s electrical system is protected
from electrical overload damage by fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the vehicle compartment.
If any of your vehicle’s lights, accessories,
or controls do not work, check the
appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be
melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
vehicle and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized HYUNDAI dealer.
WARNING NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse may cause
damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the proper fuse - even as a
temporary repair. It may cause
extensive wiring damage and possibly a
fire.

NOTICE'RQRWXVHDVFUHZGULYHURUDQ\RWKHU
PHWDOREMHFWWRUHPRYHIXVHVEHFDXVHLW
PD\FDXVHDVKRUWFLUFXLWDQGGDPDJHWKH
V\VWHP

Hyundai_CE_en_US.book Page 32

9
9-33

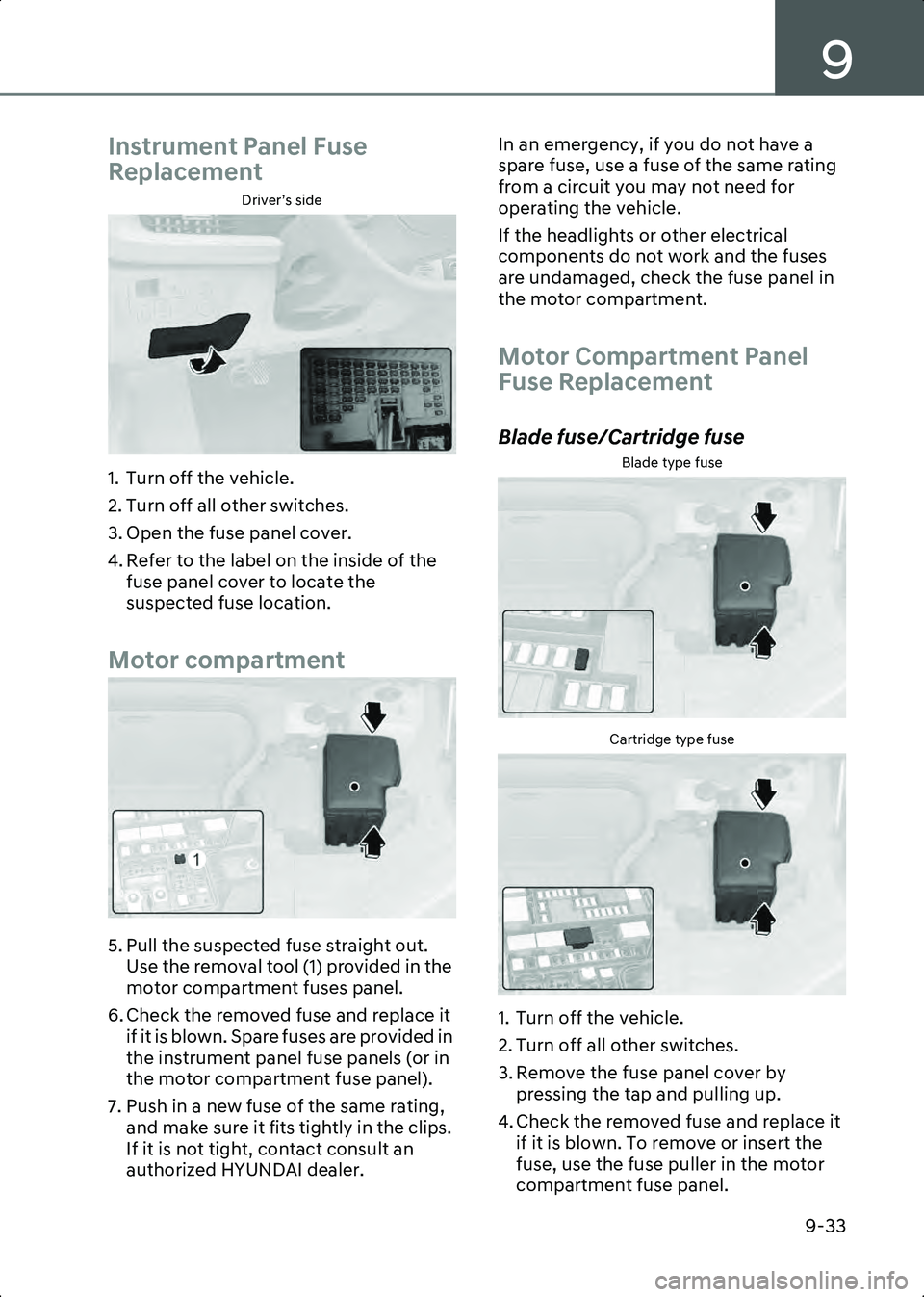

Instrument Panel Fuse
Replacement
Driver’s side
B9005701
1. Turn off the vehicle.
2. Turn off all other switches.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the
suspected fuse location.
Motor compartment
B9005702
5. Pull the suspected fuse straight out. Use the removal tool (1) provided in the
motor compartment fuses panel.
6. Check the removed fuse and replace it if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the motor compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it is not tight, contact consult an
authorized HYUNDAI dealer. In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel in
the motor compartment.
Motor Compartment Panel
Fuse Replacement
Blade fuse/Cartridge fuse
Blade type fuse
B9005901Cartridge type fuse
B9005902
1. Turn off the vehicle.
2. Turn off all other switches.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse and replace it if it is blown. To remove or insert the
fuse, use the fuse puller in the motor
compartment fuse panel.
Hyundai_CE_en_US.book Page 33

Maintenance
9-34
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it is not tight, contact consult an
authorized HYUNDAI dealer.
NOTICE$OZD\VVHFXUHO\LQVWDOOWKHIXVHSDQHO
FRYHU:DWHUPD\FRQWDFWWKHIXVHDQG
FDXVHDQHOHFWULFDOIDLOXUH

Multi fuse
Multi type
B9005903
If the multi fuse is blown, contact an
authorized HYUNDAI dealer.
Hyundai_CE_en_US.book Page 34

9
9-35
Fuse/Relay Panel Description
Instrument panel fuse panel
B9006001
Inside the fuse panel cover, you can find the fuse label describing fuse names and ratings.
Information Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect
the fuse panel on your vehicle, refer to the fuse panel label.

ONE1091046N
Hyundai_CE_en_US.book Page 35

Maintenance
9-36
Instrument panel fuse panel
Fuse NameFuse RatingCircuit Protected
AFCU 10 A Driver/Passenger Door Outside Handle
EPCU3 10 A Rear Inverter
START 7.5 A IBU, VCU
IG3 8 10 AIn-car Temperature Sensor, A/C Control Module, A/C
PTC Heater, Instrument Cluster, CCU, AVNT Head Unit
MEMORY 2 10 A Instrument Cluster, ADAS Unit (Parking)
MULTIMEDIA 15 A AVNT Head Unit
AIRBAG2 10 A SRS Control Module
P/SEAT PASS 30 A Passenger Power Seat Switch, Passenger Seat Unit ADAS DRV 10 A Not Used
CLUSTER 7.5 A Instrument Cluster, Head-Up Display
MODULE5 10 A Data Link Connector, Electro Chromic Mirror, AVNT
Head Unit, IFS Unit, Wireless Charger Unit, Head Light LH/RH, AMP, Driver IMS Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Passenger Seat Unit, Rear Seat Warmer
Control Module, ADP Unit (Acoustic Design Processor)
IG3 11 10 A Electronic A/C Compressor
IG3 9 10 A Rear Inverter, BMU
wireless DCU1 10 A Not Used
CCU 10 A CCU
MODULE1 10 A Data Link Connector, Hazard Switch, Multifunction
Switch, Rain Sensor, Driver Power Window Switch,
Dashboard Mood Light, A/C Control Module, Outside
Mirror Switch, UIP Sensor, UIP Siren, Power Trunk Unit, Driver/Passenger Door Mood Light #1/#2, Rear Door Mood Light LH/RH #1/#2
SBCM DRV 20 A Driver Side Body Control Module
S/HEATER FRT 25 A Front Air Ventilation Seat Control Module,Front Seat
Warmer Control Module
Hyundai_CE_en_US.book Page 36

9
9-37
MODULE4 10 AFront/Rear Corner Radar LH/RH, Rear Inverter
(System), Front View Camera, IBU, ADAS Unit
(Parking/Driving), Dashboard Switch, VESS Unit, Front Radar
AIRBAG1 15 A SRS Control Module
MODULE2 10 A ADP Unit (Acoustic Design Processor), AMP, IBU, CCU,
DCU, P/R Junction Block (RLY. 5), AVNT Head Unit, AVNT Keyboard, ADAS Unit (Parking), IAU (Identity Authentication Unit)
WASHER 15 A Multifunction Switch
MODULE6 7.5 A IBU
IG3 10 10 A SCU, Rear Electronic Oil Pump, VCMS, V2L Unit, ICCU
MEMORY1 10 A DCU, A/C Control Module, Head-Up Display, ADP Unit
(Acoustic Design Processor), Mood Lamp Unit
IAU 10 A IAU (Identity Authentication Unit)
IBU1 15 A IBU
AMP 30 A AMP
S/HEATER RR 20 A Rear Seat Warmer Control Module
A/BAG IND 7.5 A Overhead Console Assembly
E-SHIFTER3 10 A Electronic Shift Switch
RR USB
CHARGER 25 A
Console/Rear USB Charger Connector
MODULE7 7.5 A Rear Seat Warmer Control Module
A/CON 7.5 A A/C Control Module
MODULE8 15 A Driver IMS Module, Passenger Seat Unit
DOOR LOCK 20 A Door Lock/Unlock Relay, Dead Lock Relay
SBCM PASS 20 A Passenger Side Body Control Module
P/WINDOW LH 25 A Rear Power Window Switch LH, Rear Safety Power
Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module
Fuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 37

Maintenance
9-38
MODULE3 7.5 AStop Light Switch, Driver Power Window Switch, IAU
(Identity Authentication Unit)
CCU2 10 A CCU, DCU
SUNROOF 25 A Sunroof Glass Motor, Sunroof Blind Motor
CHARGER 10 A VCMS, ICCU, Charger Connector Lock/Unlock Relay
MODULE9 10 A CCU
TRUNK OPEN 15 A Not Used
PTL 30 A Power trunk Unit
P/WINDOW RH 25 A Rear Power Window Switch LH, Rear Safety Power
Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module
IBU2 7.5 A IBU
BMS 10 A BMU
BRAKE
SWITCH 10 A
Stop Light Switch, IBU
P/SEAT DRV 30 A Driver Power Seat Switch, Driver IMS Module
Fuse NameFuse RatingCircuit Protected
