Information • When the V2L connector is connected to the charging inlet of the vehicle, all doors and connectors will be automatically locked to prevent theft and separation. To disconnect the V2L
connector, unlock the door and pull the connector with the open switch pressed.
• Before using the V2L function, deactivate the scheduled climate setting referring to the “Setting Scheduled Charging and Climate”. The V2L function may be cut off depending on the
scheduled climate setting.
• To check and change the V2L setting, refer to the “Setting a Battery Discharging Limit When Using Vehicle to Load (V2L)”.
• If an electric device that exceeds the maximum power capacity is connected, a warning message appears on the instrument cluster and the power supply shuts off immediately.

Using Electricity Inside the Vehicle
You can connect home appliances or electric devices to the power outlet inside the
vehicle.
WARNING Do not use an electric heating appliances like electric kettle, toaster, or iron in the vehicle.
It may cause a fire or injury.

1. Press the Start/Stop button to the ON position or activate the utility mode. • For more information about the utility mode, refer to the “Setting Utility Mode” section in this chapter.
2. Use the smart key to unlock the power outlet cover.
B0002501
Hyundai_CE_en_US.book Page 49

Introduction/Getting Started with Your Electric Vehicle
1-50
B0002502
3. Open the power outlet cover by sliding it to the left, and connect the power plug of the electric device to the power socket.
Information • The indicator on the power outlet indicates the operation status.
B0002503
• V2L discharging mode shuts off if the vehicle turns off while using indoor V2L when the vehicle is ON.
• Opening the charging door or connecting the V2L connector to the charging inlet, the V2L discharging mode shuts off.
• If you want to use the indoor and outdoor V2L simultaneously, first connect the V2L connector to the charging inlet and then use the indoor V2L.
• When the high voltage battery charge level reaches the set discharging limit (%), the operation stops, and a warning message appears on the instrument cluster. If you want V2L operation, set
the discharging limit (%) lower than the current battery charge.
Indicator StatusDescription
Blue Standby
Red The power outlet is connected but no power is supplied.
Green The power outlet is connected, and the power is
supplied normally.
Hyundai_CE_en_US.book Page 50

1
1-51
- For more information about the discharging limit, refer to the “Setting a Battery Discharging Limit When Using Vehicle to Load (V2L)” section in this chapter.
- For more information about warnings, refer to the “Checking the warning and indicator lights” section in this chapter.

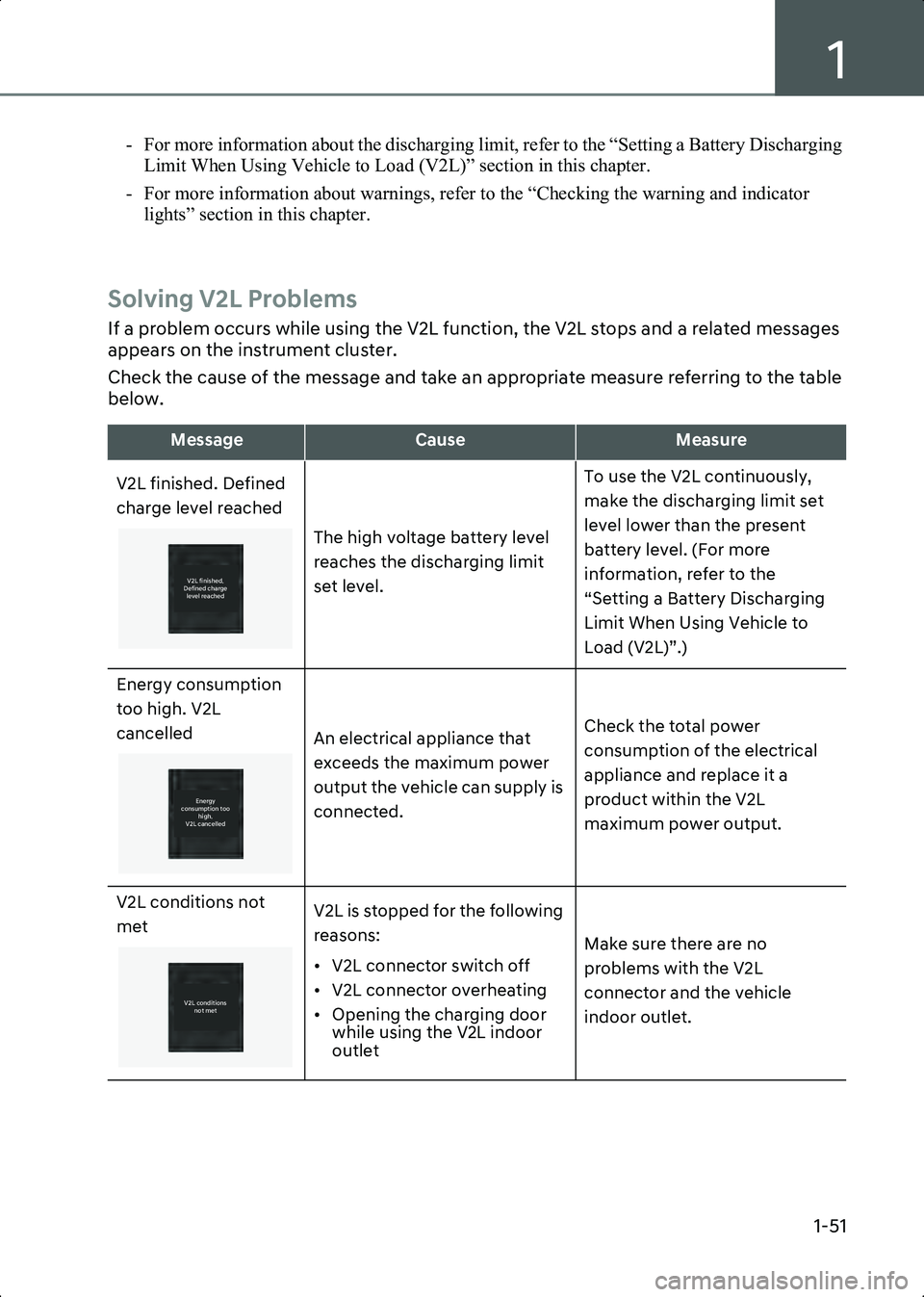

Solving V2L Problems
If a problem occurs while using the V2L function, the V2L stops and a related messages
appears on the instrument cluster.
Check the cause of the message and take an appropriate measure referring to the table
below.
MessageCauseMeasure
V2L finished. Defined
charge level reached The high voltage battery level
reaches the discharging limit
set level. To use the V2L continuously,
make the discharging limit set
level lower than the present
battery level. (For more
information, refer to the
“Setting a Battery Discharging
Limit When Using Vehicle to
Load (V2L)”.)
Energy consumption
too high. V2L
cancelled An electrical appliance that
exceeds the maximum power
output the vehicle can supply is
connected. Check the total power
consumption of the electrical
appliance and replace it a
product within the V2L
maximum power output.
V2L conditions not
met V2L is stopped for the following
reasons:
• V2L connector switch off
• V2L connector overheating
• Opening the charging door
while using the V2L indoor
outlet Make sure there are no
problems with the V2L
connector and the vehicle
indoor outlet.
7-
GJOJTIFE
%FGJOFE
DIBSHF MFWFM
SFBDIFE
&OFSHZ
DPOTVNQUJPO
UPP IJHI
7-
DBODFMMFE
7-
DPOEJUJPOT OPU
NFU
Hyundai_CE_en_US.book Page 51

1
1-53
Driving Your Electric Vehicle
Check how to use the devices inside the vehicle that you must know for driving, such as
starting, braking, and shifting the electric vehicle.
Starting and Stopping the Vehicle
Follow the instructions below to start or stop the vehicle.
CAUTION • Always fasten the seat belt before starting the vehicle for safety.
• Check if the EBP is applied before starting the vehicle.

Starting the vehicle
1. Holding the smart key, sit in the driver’s seat.
2. Press the Start/Stop button while pressing the brake pedal.• On the instrument cluster, (ready indicator) is displayed.
Information While the (ready indicator) is displayed, press the brake pedal, shift to D (Drive) or R
(Reverse), and release the EBP and the brake pedal to start moving the vehicle forward or
backward. You can start driving by pressing the accelerator pedal slowly and decelerate or stop by
pressing the brake pedal.

Stopping the vehicle
1. Stop the vehicle completely by pressing the brake pedal.
2. Apply the EPB while pressing the brake pedal, and press the gear’s P button to shift to P (Park).
3. Press the Start/Stop button. • The (ready indicator) on the instrument cluster turns off.
Information There are other Start/Stop button positions besides the ON/OFF. Use it appropriately paying
attention to the discharging of the 12 V battery.
•ACC : The 12 V battery power is turned on, allowing some devices, such as infotainment system
and air conditioning system to operate. Press the Start/Stop button when it is in the OFF position
to turn on ACC.
• ON : The 12 V battery power is turned on, allowing to check the instrument cluster and use all
the electric devices inside the vehicle. Press the Start/Stop button when it is in the ACC position
to turn it ON.

Hyundai_CE_en_US.book Page 53

Introduction/Getting Started with Your Electric Vehicle
1-54
Understanding virtual engine sound system
Electric vehicles do not use an internal combustion engine, so there is no engine noise
while driving. The Virtual Engine Sound System (VESS) generates engine sound to make
pedestrians aware of the approaching vehicle when driving.
• If the vehicle is in the ready ( ) mode and the gear is not in P (Park), the VESS is operated.
• When the gear is shifted to R (Reverse), an additional warning sound will be heard.
CAUTION • Be aware that the vehicle does not make engine noise while driving.
• Pay attention to the surrounding environment and drive carefully.
• After parking or waiting for a traffic light, please check around for children, or other obstacles before departure.
• When reversing, check directly behind you before driving. Pedestrians may not be able to recognize vehicle sounds.

Checking Electric Vehicle Driving Information
During vehicle operation, the instrument cluster displays the main information, such as
distance to empty, real-time energy status, battery charge level, and warning messages,
via the user interface and indicators.
Factors affecting the distance to empty
The distance to empty refers to the distance that can be driven by the current charged
battery level and is displayed on the bottom of the instrument cluster while driving the
electric vehicle.
B0002901
The distance to empty vary depending on many factors such as driving habits, power
usage, driving conditions, and high voltage battery. The distance to empty may be
increased or decreased from the certified figures as it reflects all the factors
comprehensively. Check the distance to empty considering the following:
Hyundai_CE_en_US.book Page 54

1
1-55
• The driving habits: The driving speed and tendency of accelerating and decelerating. High speed driving or frequent accelerating and decelerating reduces the distance to
empty.
• The power usage: Additional power use, such as the air conditioner, heater, lights, etc. As the power usage increases, the distance to empty reduces.
• The driving conditions: The weather, temperature, and terrain. If you drive in snow/rain/strong wind or low temperature, the distance to empty will be reduced. The
distance to empty will also be reduced when driving uphill or on slippery or rough
roads.
• The high voltage battery energy: Proportional to the State of Charge (SOC), but may vary depending on the battery temperature and the State of Health (SOH) of a battery.
Change in the distance to empty when 100 % charged
In case the distance to empty has been reduced due to learning of the driving habit or the
driving conditions, you can increase the distance to empty again by continuously driving
following the “Tips for enhancing the distance to empty”.
• Resetting the previously learned driving patterns at the service center may increase the distance to empty displayed on the bottom of the instrument cluster, but it does
not increase the actual distance to empty. The distance to empty may not be accurate
until the learning proceeds.
• If the high voltage battery temperature is low in winter, the distance to empty reduces but it is not a permanent change. The distance to empty will increase again once the
temperature rises.
• If you reduce the power usage, the distance to empty will increase.
• Natural degradation may occur with the high voltage battery depending on the number of years the vehicle is used. This may reduce the distance to empty.
When setting a destination
When the destination is set, the distance to empty may change because the distance to
empty is recalculated using the information of the destination instead of the learned
electric energy economy history.
Information The distance to empty may vary significantly based on traffic conditions or driving speed.

Hyundai_CE_en_US.book Page 55

Introduction/Getting Started with Your Electric Vehicle
1-58
B0002904
• When the remaining battery of the high voltage battery is lower than 10 %, the warning light will be displayed.
• When the warning light is displayed, charge the vehicle.
Information • To find a nearby charging station, refer to the “Searching for nearby charging stations” in this chapter.
• Check if the SOC is enough before driving on highways.
• After the warning light is displayed, immediately charge the vehicle at a nearby charging station. The vehicle may not operate properly depending on the driving speed, weather, and
other driving conditions.

Checking the warning and indicator lights
The warning and indicator lights are displayed in the middle of the instrument cluster
before or while driving, depending on the status of the electric vehicle. Understand the
meaning of the warning and indicator lights referring to the instructions below and drive
safely.
CAUTION If the warning light illuminates while driving or does not go off, have the vehicle
inspected by an authorized HYUNDAI dealer.

Hyundai_CE_en_US.book Page 58

1
1-61
Checking warning messages
Check the meaning of the warning messages referring to the table below and take
appropriate measures.
WARNING • Do not drive with a warning message displayed.
• If a warning message does not go off after taking measures, have the vehicle immediately inspected and repaired by an authorized HYUNDAI dealer.

Warning MessageCauseMeasure
Low EV battery The high voltage battery level
reaches below 20 %.
• The warning light on the instrument cluster turns on
simultaneously. Charge the vehicle
immediately.
Charge immediately.
Power limited The high voltage battery level
reaches below 10 %.
• The warning light on the
instrument cluster turns on
simultaneously.
• The vehicle’s power may be reduced to minimize the
energy consumption of the
high voltage battery. Charge the battery
immediately.
Check electric vehicle
system There is a problem with the
electric vehicle control system. • Do not drive when the warning
message is displayed.
• Have the vehicle inspected by an authorized HYUNDAI
dealer.
-PX
CBUUFSZ
$IBSHF

JNNFEJBUFMZ
1PXFS
MJNJUFE
$IFDL
FMFDUSJD
WFIJDMF
TZTUFN
