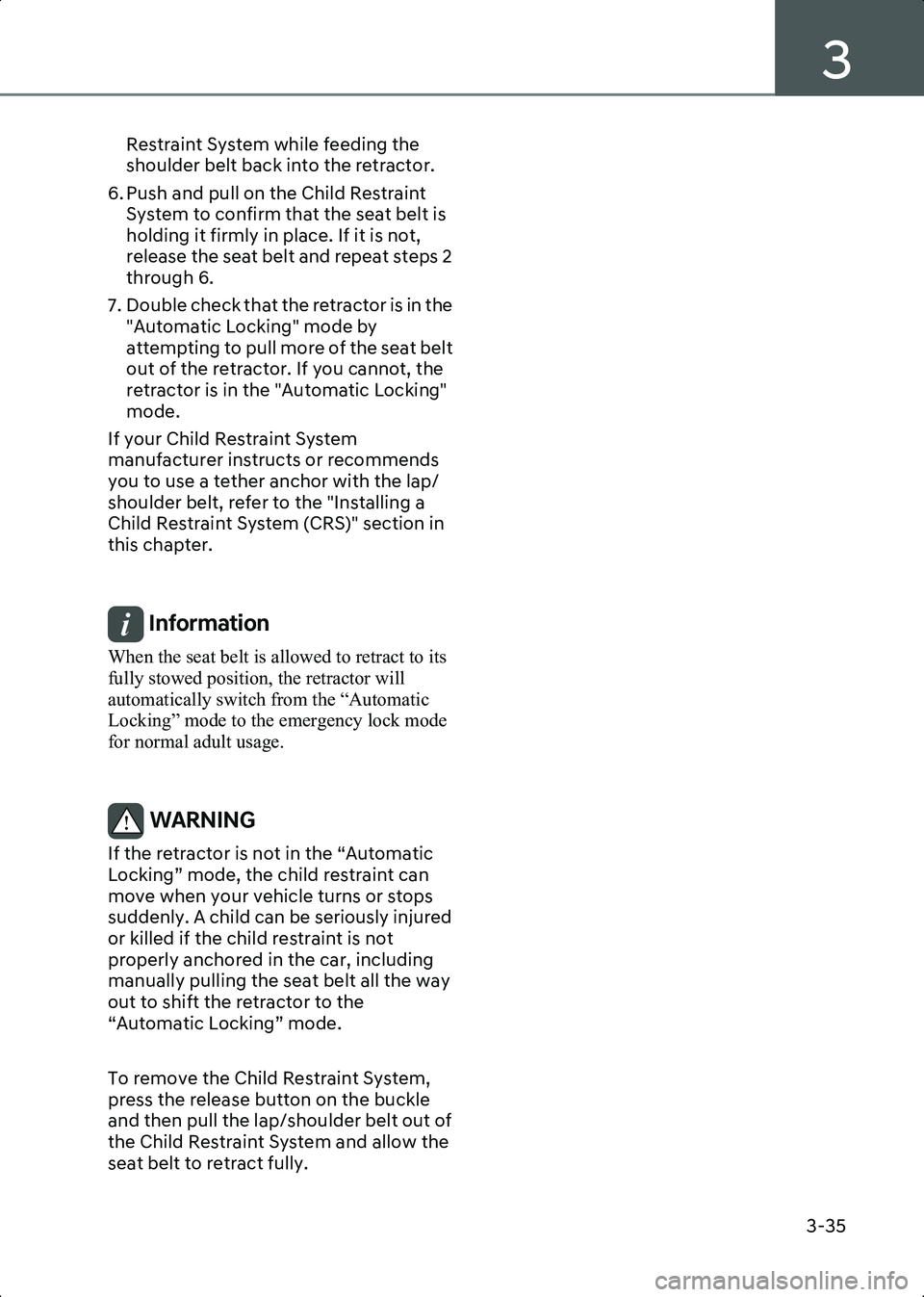

Restraint System while feeding the
shoulder belt back into the retractor.
6. Push and pull on the Child Restraint System to confirm that the seat belt is
holding it firmly in place. If it is not,
release the seat belt and repeat steps 2
through 6.
7. Double check that the retractor is in the "Automatic Locking" mode by
attempting to pull more of the seat belt
out of the retractor. If you cannot, the
retractor is in the "Automatic Locking"
mode.
If your Child Restraint System
manufacturer instructs or recommends
you to use a tether anchor with the lap/
shoulder belt, refer to the "Installing a
Child Restraint System (CRS)" section in
this chapter.
Information When the seat belt is allowed to retract to its
fully stowed position, the retractor will
automatically switch from the “Automatic
Locking” mode to the emergency lock mode
for normal adult usage.
WARNING If the retractor is not in the “Automatic
Locking” mode, the child restraint can
move when your vehicle turns or stops
suddenly. A child can be seriously injured
or killed if the child restraint is not
properly anchored in the car, including
manually pulling the seat belt all the way
out to shift the retractor to the
“Automatic Locking” mode.
To remove the Child Restraint System,
press the release button on the buckle
and then pull the lap/shoulder belt out of
the Child Restraint System and allow the
seat belt to retract fully.
Hyundai_CE_en_US.book Page 35
Seats & Safety System
3-38
ability to control the SRS deployment
based on whether or not the seat belts are
fastened, and how severe the impact is.
The advanced SRS offers the ability to
control the airbag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, and
seat belt usage, the SRS Control Module
(SRSCM) controls the airbag inflation.
Failure to properly wear seat belts can
increase the risk or severity of injury in an
accident.
WARNING To reduce the risk of serious injury or
death from inflating front airbags, take
the following precautions:
• Seat belts must be worn at all times to help keep occupants positioned
properly.
• Move your seat as far back as possible from front airbags, while still
maintaining control of the vehicle.
• Never lean against the door or center console.
• Do not allow the front passenger to place their feet or legs on the
dashboard.
• Never place any objects (such as dashboard cover, mobile phone holder,
cup holder, perfume or stickers) over or
near the airbag modules on the steering
wheel, instrument panel, windshield
glass, and the front passenger’s panel
above the glove box. Such objects may
cause harm if the vehicle is in a collision
severe enough to cause the airbags to
deploy.
• Do not attach any objects on the front windshield and inside mirror.
Side airbags
Side airbag
B3003202
B3003203
Your vehicle is equipped with a side
airbag in each front seat. The purpose of
the airbag is to provide the vehicle’s
driver and the front passenger with
additional protection than that offered by
the seat belt alone.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity, angle,
speed and point of impact.
The side airbags on both sides of the
vehicle are designed to deploy when a
rollover is detected by a rollover sensor.
(if equipped with rollover sensor)
The side airbags are not designed to
deploy in all side impact or rollover
situations.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
Hyundai_CE_en_US.book Page 38
3
3-41
SRS warning light
B3002501
The SRS (Supplemental Restraint System)
airbag warning light on the instrument
cluster the airbag symbol depicted in the
illustration. The system checks the airbag
electrical system for malfunctions. The
light indicates that there is a potential
problem with your airbag system, which
could include your side and/or curtain
airbags used for rollover protection.
WARNING If your SRS malfunctions, the airbag may
not inflate properly during an accident
increasing the risk of serious injury or
death.
If any of the following conditions occur,
your SRS is malfunctioning:
• The light does not turn on for about 3-6 seconds when the Start/Stop button is
in the ON position.
• The light stays on after illuminating for about three to 6 seconds.
• The light comes on while the vehicle is in motion.
• The light blinks when the (ready indicator) is displayed on the
instrument cluster.
Have an authorized HYUNDAI dealer
inspect the SRS as soon as possible if any
of these conditions occur.
During a moderate to severe frontal
collision, sensors will detect the vehicle’s
rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front airbags, at the
time and with the force needed.
The front airbags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side airbags help provide
protection in the event of a side impact or
rollover by supporting the side upper
body area.
• Airbags are activated (able to inflate if
necessary) only when the Start/Stop
button is in the ON or START position,
and it can be activated within about 3
minutes after the vehicle is turned off.
• Airbags inflate in the event of certain frontal or side collisions to help protect
the occupants from serious physical
injury.
• Generally, airbags are designed to inflate based upon the severity of a
collision, its direction, or etc. These two
factors determine whether the sensors
produce an electronic
deployment/inflation signal.
• The front airbags will completely inflate and deflate in an instant. It is virtually
impossible for you to see the airbags
inflate during an accident. It is much
more likely that you will simply see the
deflated airbags hanging out of their
storage compartments after the
collision.
• In addition to inflating in serious side collisions, vehicles equipped with a
rollover sensor, side and/or curtain
airbags will inflate if the sensing system
detects a rollover.
When a rollover is detected, curtain
airbags will remain inflated longer to
help provide protection from ejection,
especially when used in conjunction
with the seat belts. (if equipped with a
rollover sensor)
Hyundai_CE_en_US.book Page 41
Instrument Cluster
4-2
Instrument Cluster
A4000101The actual cluster in the vehicle may differ from the illustration. For more information, refer to the “Gauges and Meters” section in this chapter.
(1) Speedometer
(2) Power/Charge gauge
(3) Distance to empty
(4) Warning and indicator lights
(5) Cluster display
(6) Battery SOC (State of Charge) gauge
Information SNOW/NORMAL/ECO/SPORT mode by pressing the drive mode button will change the main
theme of the instrument cluster.
. 1 )
N J L 8 I
Š '201 N J N J
324 N J1
4
6
4
4
52
3
Hyundai_CE_en_US.book Page 2
4
4-23
Cluster Display
Cluster Display Control
B4000701
The cluster display modes can be changed by using the control switches.
View Modes
The information provided may differ depending on which features are available to your
vehicle.
SwitchOperationFunction
Press MODE button for changing View modes
, Press UP, DOWN switch for changing items in Utility view and
Option menu
OK Press SELECT/RESET switch for entering Option menu
Press and hold SELECT/RESET switch for retrieving assist information or
resetting the selected item
View modesExplanation
Driving Assist Driving Assist view displays the status of the vehicle’s Driver
Assistance systems.
Turn by Turn Turn By Turn view displays the state of the navigation.
Utility Utility view displays driving information such as the trip distance,
electric energy economy and etc.
Hyundai_CE_en_US.book Page 23
Instrument Cluster
4-24
ONE1041019L
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center of the
instrument cluster.
Driving Assist view
B4000902
The status of Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc., is displayed when Driving Assist view
is selected.
For more information, refer to each
function information section in chapter 7.
Turn By Turn (TBT) view
B4000903
Turn-by-turn navigation, distance/time to
destination information is displayed when
Turn by Turn view is selected.
Utility view
In the Utility view, using the , (UP, DOWN) switch, you may change through
items in the following order.
Drive info
ONE1041047L_1
Trip distance, average electric energy
economy and total driving time are
displayed.
The driver’s door is opened after turning
off the vehicle or the vehicle is turned on
after 3 minutes have passed, the Drive
Info screen will reset.
N J
I
N J L 8 I
N J
I
N J L 8 I
Hyundai_CE_en_US.book Page 24
4
4-25
After Recharging
ONE1041062L
Trip distance, total driving time and
average energy consumption after the
vehicle has been recharged are displayed.
To reset manually, press the OK button on
the steering wheel for more than 1 second
when ‘After Recharging’ is displayed.
Accumulated info
ONE1041046L
This display shows the accumulated trip
distance (1), the average energy
consumption (2), and the total driving
time (3).
The information is accumulated starting
from the last reset.
To manually reset the information, press
and hold the OK button when viewing the
Accumulated driving info. The trip
distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information will
continue to be counted while the vehicle
is on ( indicator is on) (for example, when the vehicle is in traffic or stopped at
a stop light).
Information The vehicle must be driven for a minimum of
0.19 mi. (300 m) since the last ignition key
cycle before the accumulated driving
information is recalculated.
Tire pressure
ONE1041010L
The tire pressure of each tire is displayed.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
if equipped
Energy flow/Driving force distribution
B4000909
• The electric vehicle system informs the
drivers its energy flow in various
operating modes.
• The distribution status of the driving power of the front and rear wheels are
N J
I
N J L 8 I
1
2
3
N J
I
N J L 8 I
5 J S F 1 S F T T V S F
Hyundai_CE_en_US.book Page 25
Instrument Cluster
4-26
displayed when Auto AWD mode is
activated.
For more information, refer to the "All
Wheel Drive (AWD)" section in chapter 6.
Additional information display
Drive info
ONE1041047L_1
Drive information is displayed for 4
seconds after the vehicle is turned off.
Driving assist information
B4000911
The current operation conditions of Smart
Cruise Control, Lane Following Assist,
Highway Driving Assist, etc., is displayed.
Vehicle Settings
(Infotainment System)
Vehicle Settings in the infotainment
system provides user options for the
settings including door lock/unlock
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
• Driver Assistance
• Drive Mode
• EV
• Head-Up Display
• Cluster
• Climate
• Seat
• Lights
• Door
• Convenience
The information provided may differ
depending on which functions are
available to your vehicle.
WARNING Do not adjust the Vehicle Settings while
driving. You may be distracted from the
driving task and could crash.
N J
I
N J L 8 I
80 N Q I
Hyundai_CE_en_US.book Page 26
