2023 HYUNDAI IONIQ 6 ECO mode
[x] Cancel search: ECO modePage 185 of 582

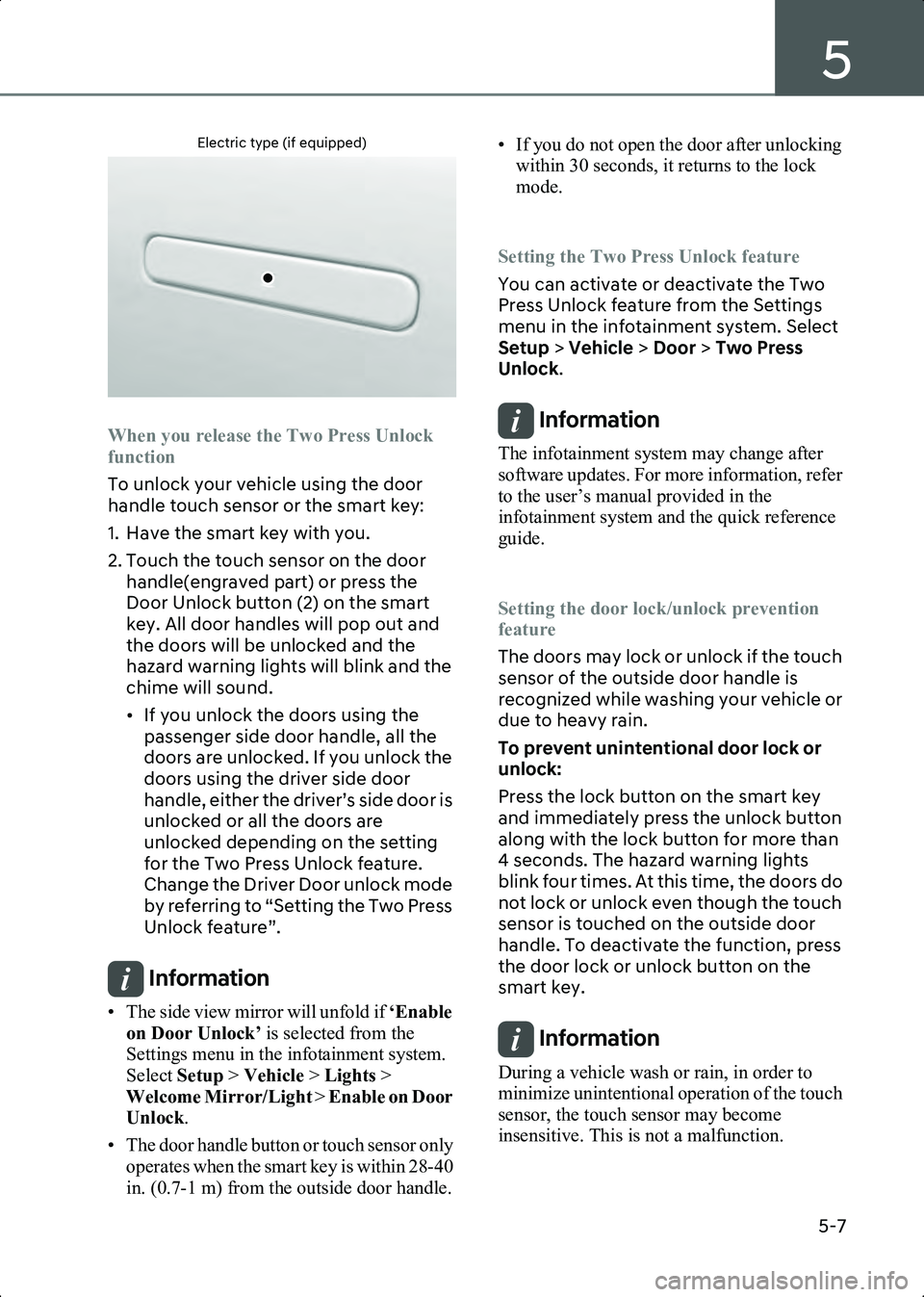

5
5-7
Electric type (if equipped)
B5002804
When you release the Two Press Unlock
function
To unlock your vehicle using the door
handle touch sensor or the smart key:
1. Have the smart key with you.
2. Touch the touch sensor on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and the
chime will sound.
• If you unlock the doors using the passenger side door handle, all the
doors are unlocked. If you unlock the
doors using the driver side door
handle, either the driver’s side door is
unlocked or all the doors are
unlocked depending on the setting
for the Two Press Unlock feature.
Change the Driver Door unlock mode
by referring to “Setting the Two Press
Unlock feature”.
Information • The side view mirror will unfold if ‘Enable
on Door Unlock’ is selected from the
Settings menu in the infotainment system.
Select Setup > Vehicle > Lights >
Welcome Mirror/Light > Enable on Door
Unlock .
• The door handle button or touch sensor only operates when the smart key is within 28-40
in. (0.7-1 m) from the outside door handle. • If you do not open the door after unlocking
within 30 seconds, it returns to the lock
mode.
Setting the Two Press Unlock feature
You can activate or deactivate the Two
Press Unlock feature from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Door > Two Press
Unlock .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.
Setting the door lock/unlock prevention
feature
The doors may lock or unlock if the touch
sensor of the outside door handle is
recognized while washing your vehicle or
due to heavy rain.
To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immediately press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights
blink four times. At this time, the doors do
not lock or unlock even though the touch
sensor is touched on the outside door
handle. To deactivate the function, press
the door lock or unlock button on the
smart key.
Information During a vehicle wash or rain, in order to
minimize unintentional operation of the touch
sensor, the touch sensor may become
insensitive. This is not a malfunction.
Hyundai_CE_en_US.book Page 7
Page 186 of 582
Convenience Features
5-8
Opening the trunk
To open the trunk:
1. Have the smart key with you.
2. Press the trunk handle switch on the vehicle or press and hold smart key
button(3) on the smart key for more
than one second. The hazard warning
lights blink twice and the trunk is
opened. If you release the button while
the trunk is being closed, it will stop
working and the chime will sound for
about 5 seconds.
Information The trunk open button only operates when the
smart key is within 28 in. (0.7 m) from the
trunk.
Remotely starting vehicle
1. Press the door lock button on the smart key. You must be within about 32 ft. (10
m) from the vehicle.
2. Press and hold the Remote Start button (5) on your smart key. You must press
the button within 4 seconds from when
you have pressed the door lock button.
The hazard warning lights blink and the
vehicle starts ( indicator on).
3. To turn off the vehicle, press the Remote Start button (5) once.
Information • The vehicle must be in P (Park) for the remote start function to start.
• The vehicle turns off ( indicator off) if you get inside the vehicle without a
registered smart key.
• The vehicle turns off if you do not get on the vehicle within 10 minutes after remotely
starting the vehicle.
• The Remote Start button may not operate if the smart key is not within 32 ft. (10 m)
from the vehicle. • The vehicle does not remotely start if the
hood or trunk is open.
Remotely moving vehicle forward or
if equipped
backward
Some models are equipped with the
Remote Smart Parking Assist feature.
With the smart key, the vehicle can be
moved forward or backward remotely to
enter or exit a tight parking space.
For more information, refer to the
“Remote Smart Parking Assist 2 (RSPA 2)”
section in chapter 7.
Using panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button (4) is pressed for more than 1
second. To stop the horn and lights, press
any button on the smart key.
Starting the vehicle
Your vehicle is equipped with a Start/Stop
button instead of a key cylinder. You can
leave your smart key in your pocket or
purse when you start your vehicle.
For more information, refer to the
“Start/Stop Button” section in chapter 6.
Information If the smart key is not moved for some time,
the detection function for smart key operation
will pause. Lift the smart key to activate the
detection again.
NOTICE 7 R S U H Y H Q W G D P D J L Q J W K H V P D U W N H \
[ . H H S W K H V P D U W N H \ L Q D F R R O G U \ S O D F H W R D Y R L G G D P D J H R U P D O I X Q F W L R Q
( [ S R V X U H W R P R L V W X U H R U K L J K
W H P S H U D W X U H P D \ F D X V H W K H L Q W H U Q D O
Hyundai_CE_en_US.book Page 8
Page 189 of 582
5
5-11
If the system repeatedly does not
recognize the coding of the key, contact
an authorized HYUNDAI dealer.
Do not attempt to alter this system or add
other devices to it. Electrical problems
could result that may make your vehicle
inoperable.
WARNING In order to prevent theft of your vehicle,
do not leave spare keys anywhere in your
vehicle. Your immobilizer password is a
customer unique password and should be
kept confidential.
NOTICE 7 K H W U D Q V S R Q G H U L Q \ R X U N H \ L V D Q
L P S R U W D Q W S D U W R I W K H L P P R E L O L ] H U V \ V W H P
, W L V G H V L J Q H G W R J L Y H \ H D U V R I W U R X E O H I U H H
V H U Y L F H K R Z H Y H U \ R X V K R X O G D Y R L G
H [ S R V X U H W R P R L V W X U H V W D W L F H O H F W U L F L W \
D Q G U R X J K K D Q G O L Q J , P P R E L O L ] H U V \ V W H P
P D O I X Q F W L R Q F R X O G R F F X U
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device
if equipped
Hyundai Digital Key
Digital Key Application
To use HYUNDAI Digital Key mobile app,
install the HYUNDAI Digital Key app on
your smartphone.
Refer to the instructions in the digital key
app:
Menu > Application Info > Tutorial
Available smartphone models can be
found on smartphone manufactures'
website or HYUNDAI website.
How To Save/Delete The
Digital Key (Smartphone Key)
Setting digital key(smartphone key)
If the Near Field Communication (NFC)
setting is enabled on your phone and your
smartphone screen is unlocked, you can
use the Digital Key feature.
Saving digital key(smartphone key)
B5026401
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Register your digital key (smartphone key) in the infotainment system. From
the Settings menu, go to Setup >
Hyundai_CE_en_US.book Page 11
Page 193 of 582
![HYUNDAI IONIQ 6 2023 Owners Manual 5
5-15
Locking/Unlocking the doors
B5026503[A] Door handle authentication pad
[B] Card key NFC Antenna
To unlock:
Place the digital key (card key) near the
door handle authentication pad of the
driv](/manual-img/35/58885/w960_58885-192.png "HYUNDAI IONIQ 6 2023 Owners Manual 5
5-15
Locking/Unlocking the doors
B5026503[A] Door handle authentication pad
[B] Card key NFC Antenna
To unlock:
Place the digital key (card key) near the
door handle authentication pad of the
driv")
5
5-15
Locking/Unlocking the doors
B5026503[A] Door handle authentication pad
[B] Card key NFC Antenna
To unlock:
Place the digital key (card key) near the
door handle authentication pad of the
driver or passenger side door for about 2
seconds.
If you unlock your vehicle from the
passenger side door handle, all the doors
are unlocked. If you unlock your vehicle
from the driver side door handle,the
driver door only or all the doors are
unlocked depending on the setting of the
Two Press Unlock feature. Refer to User
Settings to change the Driver Door unlock
mode.
To lock:
Place the digital key (card key) near the
door handle authentication pad of the
driver or passenger side door.
Before you leave your vehicle, check that
your vehicle is locked. When using your
Hyundai digital key on the front door
handle, listen for the door lock to actuate,
and then pull the handle within3 seconds
to confirm the doors are locked.
Information • Always take the digital key (card key) out of your wallet or purse. If the card key does
not touch the door handle authentication
pad or is near other NFC-enabled cards, it
may not work properly.
• You cannot lock your vehicle if: - The Smart Key is in the vehicle.
- The Start/Stop button is in the ACC or ON position.
- Any door is open (except for the trunk).
• When the doors have been unlocked using the HYUNDAI Digital Key, and you
attempt to lock the doors using the driver
door lock switch, the doors are locked and
then immediately unlocked when you close
the door.
NOTICE [ , I W K H G L J L W D O N H \ F D U G N H \ \f L V G D P D J H G R U E H Q W W K H V H Q V R U P D \ Q R W G H W H F W W K H
G L J L W D O N H \ F D U G N H \ \f , I W K L V R F F X U V
F R Q W D F W \ R X U D X W K R U L ] H G + < 8 1 ' $ ,
G H D O H U I R U D G L J L W D O N H \ F D U G N H \ \f
U H S O D F H P H Q W
[ % H F D U H I X O Q R W W R G D P D J H W K H G L J L W D O N H \ F D U G N H \ \f R U H [ S R V H W K H G L J L W D O N H \
F D U G N H \ \f W R H [ W U H P H W H P S H U D W X U H V R U
G L U H F W V X Q O L J K W I R U D O R Q J W L P H
Starting the vehicle
B5026502
A
B
A
Hyundai_CE_en_US.book Page 15
Page 215 of 582
5
5-37
Automatic-Dimming Night Vision Safety™
if equipped
(NVS®) Mirror
The NVS® Mirror automatically reduces
glare by monitoring light levels in the
front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS®
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim upon
detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink® Wireless Control
System
The HomeLink® Wireless Control System
provides a convenient way to replace up
to three hand-held radio-frequency
transmitters used to activate compatible
devices such as gate operators, garage
door openers, entry door locks, security
systems, and home lighting.
NOTICE + R P H / L Q N p R S H U D W H V Z K L O H W K H 6 W D U W 6 W R S
E X W W R Q L V L Q W K H $ & & R U 2 1 S R V L W L R Q I R U
V D I H W \ U H D V R Q V , W L V W R S U H Y H Q W
X Q L Q W H Q W L R Q D O V H F X U L W \ S U R E O H P V I U R P
K D S S H Q L Q J Z K H Q W K H Y H K L F O H L V S D U N H G
R X W V L G H W K H J D U D J H
WARNING Before programming HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out of
the way of the device to prevent potential
harm or damage. Do not use the
HomeLink® with any garage door opener
that lacks the safety stop and reverse features required by U.S. federal safety
standards (this includes any garage door
opener model manufactured before April
1, 1982). A garage door that cannot detect
an object-signaling the door to stop and
reverse-does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
For more information, contact
HomeLink® at www.homelink.com, or call
Home-Link customer support at
1-800-355-3515.
It is also recommended that a new battery
be replaced in the hand-held transmitter
of the device being trained to HomeLink®
for quicker training and accurate
transmission of the radio frequency.
1. Programming HomeLink®
The following steps show how to program
HomeLink. If you have any questions or
are having difficulty programming your
HomeLink buttons, refer to the HomeLink
website or call the HomeLink customer
support toll-free number. Do this, before
going back to the dealer who sold you the
vehicle.
• Visit the HomeLink website at:
www.homelink.com. Then at the top of
the page, choose your vehicle make.
Then watch the You Tube video, and/or
access additional website information.
• If you choose to access the website via your cell phone, scan the QR code.
• Or, call HomeLink customer support at 1-800-355-3515 (Please have the
vehicle make/model AND the opener
device make/model readily available.)
Hyundai_CE_en_US.book Page 37
Page 251 of 582
5
5-73
with the drive mode. In the case of the
rear seat, if the 'Link to Drive Mode'
function is selected while the
speed-linked interior lighting is not
selected, the rear seat mood lamp
changes color in conjunction with the
drive mode.
• When you select Setup > Vehicle >
Lights > Ambient Light > Link to Speed
Alert in the infotainment system, the
driver's and front passenger's mood
lamps change to red and blink when the
vehicle speed exceeds the speed limit.
In the case of the rear seat, when the
'Sync Lighting with Speed' function is
set, the mood lamp does not turn on
even if the Link to Speed Alert function
is set, but the mood lamp changes to
red and blink when the vehicle speed
exceeds the speed limit.
• When you select Setup > Vehicle >
Lights > Ambient Light > Sync Lighting
with Speed in the infotainment system,
the brightness of the driver's and front
passenger's mood lamps changes
according to the speed. In the case of
the rear seat, when the 'Sync Lighting
with Speed' function is selected, the
mood lamp is turned on only in the ‘P’
(park). However, if the 'Link to Speed
Alert' function is selected, the rear seat
mood lamp will also blink in red when
the vehicle speed exceeds the speed
limit.
• After selecting Setup > Vehicle > Lights
> Ambient Light > Link to Voice
Recognition in the infotainment
system, when the voice recognition
button on the steering wheel is
pressed, the length of the dashboard's
mood lamp lighting changes according
to the volume of the user's voice and
the pitch of the vehicle guidance voice.
• When the driver gets into the vehicle, the mood lamp on the dashboard turns
on in sequence in conjunction with the
welcome animation on the instrument
panel. When getting off, the mood lamp
on the dashboard turns off one after another in conjunction with the
good-bye animation on the instrument
panel.
• When the vehicle is drivable (the instrument panel indicator is on),
the dashboard mood lamp turns on.
However, the mood lamp does not turn
on when using the utility mode.
Front Trunk Lamp
The lamp illuminates when the hood
opens. The lamp keeps coming on when
the hood is not completely closed.
B5019401
NOTICE 0 D N H V X U H L W L V I X O O \ F O R V H G D I W H U F O R V L Q J
W K H K R R G , I L W L V O H I W R S H Q Z L W K R X W V W D U W L Q J
Y H K L F O H W K H O D P S F R P H V R Q D Q G W K H
E D W W H U \ P D \ E H G L V F K D U J H G
Hyundai_CE_en_US.book Page 73
Page 266 of 582
Convenience Features
5-88
SYNC
B5020008
Adjusting the temperature and air flow
direction equally
Press 'SYNC' (indicator light ON), the
passenger’s temperature and air flow
direction will be adjusted same as the
driver’s control.
Adjusting the temperature and air flow
direction individually
Press 'SYNC' (indicator light OFF), all
seats temperature and air flow direction
will be adjusted individually.
Air intake control
B5020009
Air intake control is used to select either
Fresh mode (outside air) or Recirculation
mode (cabin air). Recirculation mode
B5020010
When Recirculation mode is selected, air
from the passenger compartment will be
recirculated through the system and
heated or cooled according to the
function selected.
Fresh mode
B5020011
When Fresh mode is selected, air enters
the vehicle from outside and is heated or
cooled according to the function selected.
Information Operating the system primarily in Fresh mode
is recommended. Use Recirculation mode
temporarily only when needed. Prolonged
operation of the heater in Recirculation mode
and without the air conditioning ON can cause
fogging of the windshield. In addition,
prolonged use of the air conditioning ON in
Recirculation mode may result in excessively
dry, dehumidified air in the cabin and may
promote formation of musty vent odor due to
stagnant air.
Hyundai_CE_en_US.book Page 88
Page 267 of 582
5
5-89
WARNING • Continued use of the climate control system operation in Recirculation
mode for a prolonged period of time
may cause drowsiness to the
occupants in the cabin. This may lead to
loss of vehicle control which may lead
to an accident.
• Continued use of the climate control system operation in Recirculation
mode with the air conditioning OFF
may allow humidity to increase inside
the cabin. This may cause
condensation to accumulate on the
windshield and obscure visibility.
• Do not sleep in your vehicle or remain parked in your vehicle with the
windows up and either the heater or the
air conditioning ON for prolonged
periods of time. Doing so may increase
the levels of carbon dioxide in the cabin
which may lead to serious injury or
death.
Fan speed control
Climate control panel
B5020012Infotainment system
B5020013
The fan speed can be set to the desired
speed by adjusting the icon in the
climate control panel.
More air is delivered with higher fan
speeds.
Pressing and holding the icon turns off
the fan.
Information To help improve microphone voice input
sound, fan speed may automatically slow
down for a couple of minutes when you
activate voice recognition or hands free.
NOTICE 2 S H U D W L Q J W K H I D Q Z K H Q W K H 6 W D U W 6 W R S
E X W W R Q L V L Q W K H 2 ) ) S R V L W L R Q F R X O G F D X V H
W K H E D W W H U \ W R G L V F K D U J H 2 S H U D W H W K H I D Q
Z K H Q W K H Y H K L F O H L V U X Q Q L Q J
Hyundai_CE_en_US.book Page 89
