2023 HYUNDAI I20 ESP

8-12
Emergency situations
Tyre pressure monitoring
system
WARNING
Over-inflation or under-inflation can
reduce tyre life, adversely affect
vehicle handling, and lead to sudden
tyre failure that may cause loss of
vehicle control resulting in an accident.
Each tyre, including the spare (if
provided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tyre inflation pressure label. (If your
vehicle has tyres of a different size
than the size indicated on the vehicle
placard or tyre inflation pressure label,
you should determine the proper tyre
inflation pressure for those tyres.)
As an added safety feature, your
vehicle has been equipped with a tyre
pressure monitoring system (TPMS)
that illuminates a low tyre pressure
telltale when one or more of your
tyres is significantly under-inflated.
Accordingly, when the low tyre pressure
telltale illuminates, you should stop and
check your tyres as soon as possible,
and inflate them to the proper pressure.
Driving on a significantly under-inflated
tyre causes the tyre to overheat and can
lead to tyre failure.
Under-inflation also reduces fuel
efficiency and tyre tread life, and
may affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tyre maintenance,
and it is the driver’s responsibility to
maintain correct tyre pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low
tyre pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator
to indicate when the system is
not operating properly. The TPMS
malfunction indicator is combined with
the low tyre pressure telltale. When
the system detects a malfunction, the
telltale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as
long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tyre pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tyres or wheels on the vehicle that
prevent the TPMS from functioning
properly.
Always check the TPMS malfunction
telltale after replacing one or more tyres
or wheels on your vehicle to ensure that
the replacement or alternate tyres and
wheels allow the TPMS to continue to
function properly.
NOTICE
If any of the below happens, we
recommend that you have the system
checked by a HYUNDAI authorised
repairer.
1. The Low Tyre Pressure Telltale/
TPMS Malfunction Indicator does not
illuminate for 3 seconds when the
Engine Start/Stop button is pressed
to the ON position or when the
engine is running.
2. The TPMS Malfunction Indicator
remains illuminated after blinking for
approximately 1 minute.
3. The Low Tyre Pressure Position
Telltale remains illuminated.

8-13
08
Low tyre pressure
warning light
Low tyre pressure position and
tyre pressure telltale
ONX4E040019
When the tyre pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tyres is significantly
under-inflated. The Low Tyre Pressure
Position Telltale will indicate which
tyre is significantly underinflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tyres as soon as possible. Inflate the
tyres to the proper pressure as indicated
on the vehicle’s placard or tyre inflation
pressure label located on the driver’s
side centre pillar outer panel.If you cannot reach a service station or
if the tyre cannot hold the newly added
air, replace the low pressure tyre with
the spare tyre.
The Low Tyre Pressure Telltale will
remain on and the TPMS Malfunction
Indicator may blink for one minute
and then remain illuminated (when
the vehicle is driven approximately 10
minutes at speed above 15.5 mph (25
km/h)) until you have the low pressure
tyre repaired and replaced on the
vehicle.
CAUTION
In winter or cold weather, the Low Tyre
Pressure Telltale may be illuminated if
the tyre pressure was adjusted to the
recommended tyre inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning because
the decreased temperature leads to a
proportional lowering of tyre pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside
temperature is greatly higher or lower,
you should check the tyre inflation
pressure and adjust the tyres to the
recommended tyre inflation pressure.
WARNING
Low pressure damage
Significantly low tyre pressure makes
the vehicle unstable and can contribute
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure
tyres can cause the tyres to overheat
and fail.

8-20
Emergency situations
When driving with the compact spare
tyre mounted to your vehicle:

[ &KHFNWKHW\UHSUHVVXUHDIWHULQVWDOOLQJ
the compact spare tyre. The compact
spare tyre should be inflated to 420
kPa (60 psi).

[ 'RQRWWDNHWKLVYHKLFOHWKURXJK
an automatic car wash whilst the
compact spare tyre is installed.

[ 'RQRWXVHWKHFRPSDFWVSDUHW\UHRQ
any other vehicle because this tyre
has been designed especially for your
vehicle.

[ 7KHFRPSDFWVSDUHW\UH
TVWUHDGOLIH
is shorter than a regular tyre. Inspect
your compact spare tyre regularly and
replace worn compact spare tyres with
the same size and design, mounted on
the same wheel.

[ 'RQRWXVHPRUHWKDQRQHFRPSDFW
spare tyre at a time.

[ 'RQRWWRZDWUDLOHUZKLOVWWKH
compact spare tyre is installed.
NOTICE
When the original tyre and wheel
are repaired and reinstalled on the
vehicle, the lug nut torque must be
set correctly. The correct lug nut
tightening torque is 11~13kgf.m (79~94
lbf.ft, 107~127N.m).
CAUTION
To prevent damaging the compact
spare tyre and your vehicle:

[Drive slowly enough for the road
conditions to avoid all hazards, such
as a potholes or debris.

[Avoid driving over obstacles. The
compact spare tyre diameter is
smaller than the diameter of a
conventional tyre and reduces the
ground clearance approximately 25
mm (1 inch).

[Do not use tyre chains on the
compact spare tyre. Because of the
smaller size, a tyre chain will not fit
properly.

[Do not use the compact spare tyre
on any other wheels, nor should
standard tyres, snow tyres, wheel
covers or trim rings be used with the
compact spare wheel.

8-36
Emergency situations
Your vehicle is equipped with
emergency commodities to help you
respond to emergency situation.
Fire extinguisher
If there is small fire and you know how
to use the fire extinguisher, follow these
steps carefully.
1. Pull out the safety pin at the top of
the extinguisher that keeps the handle
from being accidentally pressed.
2. Aim the nozzle towards the base of
the fire.
3. Stand approximately 2.5 m (8 ft) away
from the fire and squeeze the handle
to discharge the extinguisher. If you
release the handle, the discharge will
stop.
4. Sweep the nozzle back and forth at
the base of the fire. After the fire
appears to be out, watch carefully
since it may re-ignite.
First aid kit
Supplies for use in giving first aid such
as scissors, bandage and adhesive tape,
etc. are provided.
Triangle reflector
Place the triangle reflector on the road
to warn oncoming vehicles during
emergencies, when the vehicle is parked
by the roadside due to problems.
Tyre pressure gauge
Tyres normally lose some air in day-to-
day use, and you may have to add a air
periodically and usually it is not a sign
of a leaking tyre, but of normal wear.
Always check tyre pressure when the
tyres are cold because tyre pressure
increases with temperature.
To check the tyre pressure, take the
following steps:
1. Unscrew the inflation valve cap that is
located on the rim of the tyre.
2. Press and hold the gauge against the
tyre valve. Some air will leak as you
begin and more will leak if you don’t
press the gauge firmly.
3. A firm non-leaking push will activate
the gauge.
4. Read the tyre pressure on the gauge
to see whether the tyre pressure is
low or high.
5. Adjust the tyre pressure to the
specified pressure. Refer to “Tyres and
Wheels” in chapter 2.
6. Reinstall the inflation valve cap.
(0(5*(1&<&2002',7<

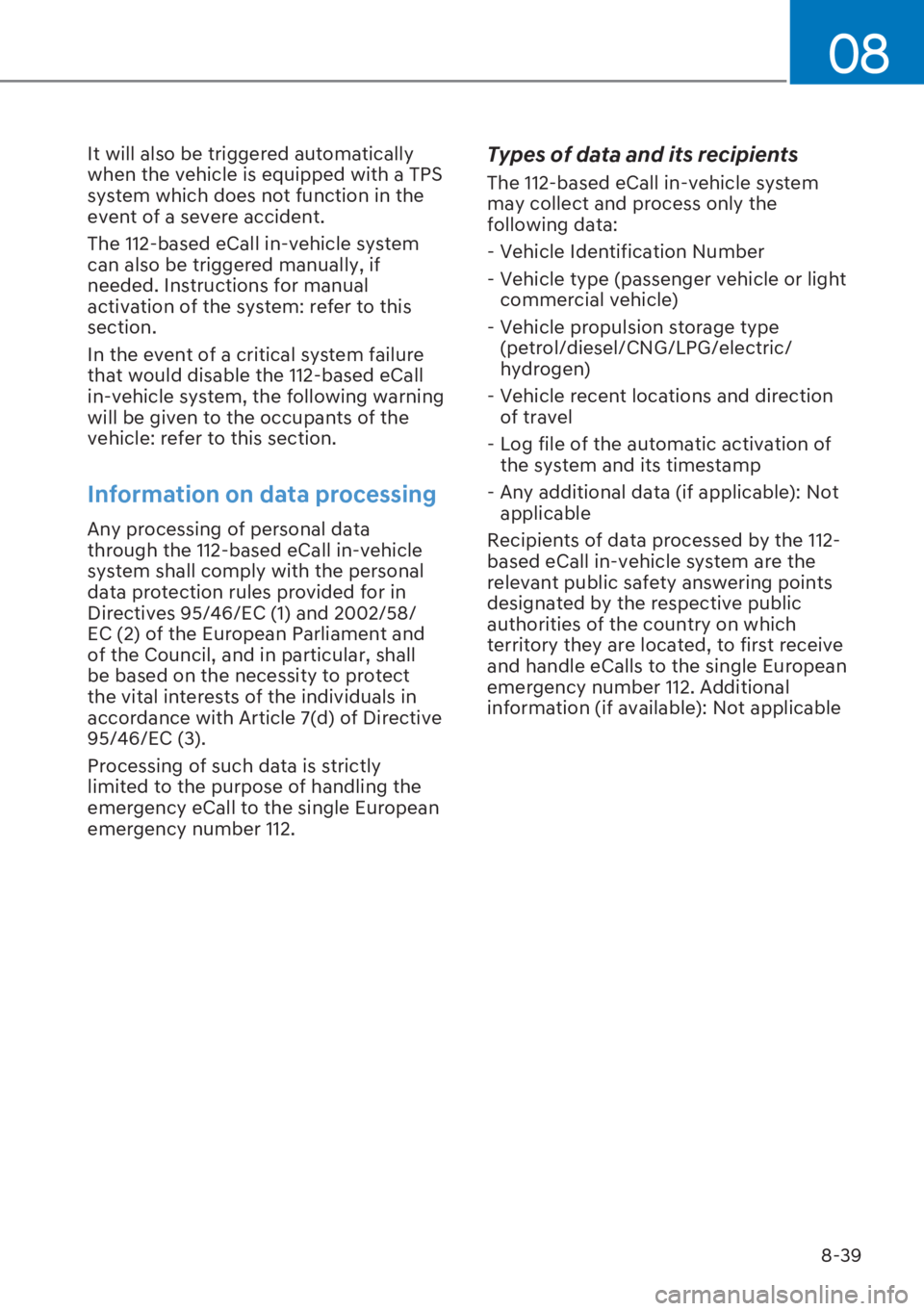

8-39
08
It will also be triggered automatically
when the vehicle is equipped with a TPS
system which does not function in the
event of a severe accident.
The 112-based eCall in-vehicle system
can also be triggered manually, if
needed. Instructions for manual
activation of the system: refer to this
section.
In the event of a critical system failure
that would disable the 112-based eCall
in-vehicle system, the following warning
will be given to the occupants of the
vehicle: refer to this section.
Information on data processing
Any processing of personal data
through the 112-based eCall in-vehicle
system shall comply with the personal
data protection rules provided for in
Directives 95/46/EC (1) and 2002/58/
EC (2) of the European Parliament and
of the Council, and in particular, shall
be based on the necessity to protect
the vital interests of the individuals in
accordance with Article 7(d) of Directive
95/46/EC (3).
Processing of such data is strictly
limited to the purpose of handling the
emergency eCall to the single European
emergency number 112.
Types of data and its recipients
The 112-based eCall in-vehicle system
may collect and process only the
following data:
- Vehicle Identification Number
- Vehicle type (passenger vehicle or light
commercial vehicle)
- Vehicle propulsion storage type
(petrol/diesel/CNG/LPG/electric/
hydrogen)
- Vehicle recent locations and direction
of travel
- Log file of the automatic activation of
the system and its timestamp
- Any additional data (if applicable): Not
applicable
Recipients of data processed by the 112-
based eCall in-vehicle system are the
relevant public safety answering points
designated by the respective public
authorities of the country on which
territory they are located, to first receive
and handle eCalls to the single European
emergency number 112. Additional
information (if available): Not applicable

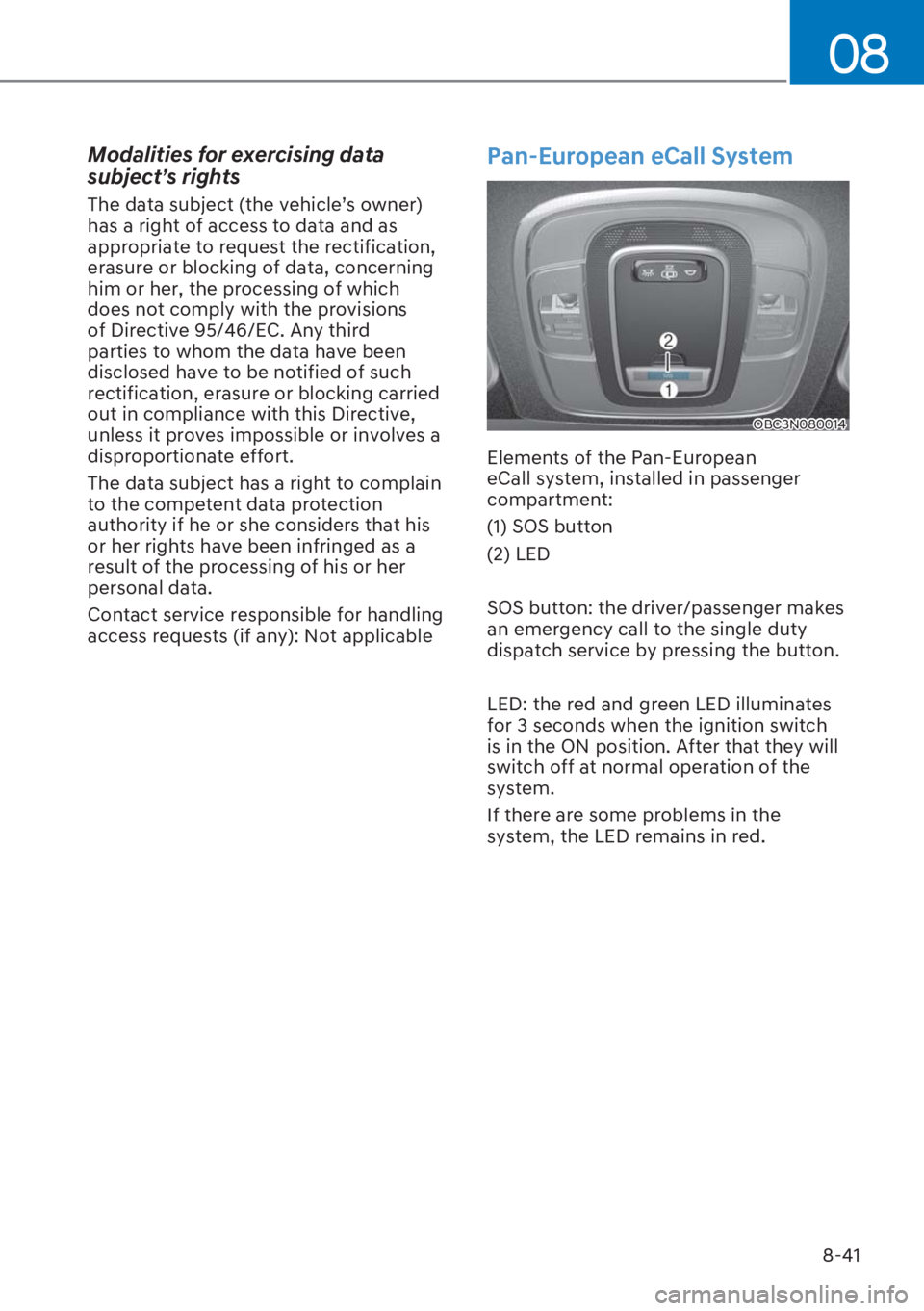

8-41
08
Modalities for exercising data
subject’s rights
The data subject (the vehicle’s owner)
has a right of access to data and as
appropriate to request the rectification,
erasure or blocking of data, concerning
him or her, the processing of which
does not comply with the provisions
of Directive 95/46/EC. Any third
parties to whom the data have been
disclosed have to be notified of such
rectification, erasure or blocking carried
out in compliance with this Directive,
unless it proves impossible or involves a
disproportionate effort.
The data subject has a right to complain
to the competent data protection
authority if he or she considers that his
or her rights have been infringed as a
result of the processing of his or her
personal data.
Contact service responsible for handling
access requests (if any): Not applicable
Pan-European eCall System
OBC3N080014
Elements of the Pan-European
eCall system, installed in passenger
compartment:
(1) SOS button
(2) LED
SOS button: the driver/passenger makes
an emergency call to the single duty
dispatch service by pressing the button.
LED: the red and green LED illuminates
for 3 seconds when the ignition switch
is in the ON position. After that they will
switch off at normal operation of the
system.
If there are some problems in the
system, the LED remains in red.

Engine compartment ...................................................................................... 9-3
Maintenance services .....................................................................................9-6
Owner’s responsibility .............................................................................................. 9-6
Owner maintenance precautions............................................................................. 9-6
Owner maintenance ....................................................................................... 9-7Owner maintenance schedule ..................................................................................9-7
Scheduled maintenance services ..................................................................9-9
Explanation of scheduled maintenance items ........................................... 9-10
Engine oil ........................................................................................................9-13
Checking the engine oil level .................................................................................. 9-13
Checking the engine oil and filter ........................................................................... 9-15
Engine coolant ...............................................................................................9-16Checking the coolant level ...................................................................................... 9-16
Changing the engine coolant .................................................................................. 9-19
Brake/clutch fluid ......................................................................................... 9-20Checking the brake/clutch fluid level .................................................................... 9-20
Intelligent Manual Transmission (iMT) System actuator fluid ................... 9-22Checking the IMT system actuator fluid level ....................................................... 9-22
Washer fluid .................................................................................................. 9-23Checking the washer fluid level ............................................................................. 9-23
Checking the parking brake ................................................................................... 9-23
Parking brake ................................................................................................ 9-23
Air cleaner ..................................................................................................... 9-24
Filter replacement ................................................................................................... 9-24
Climate control air filter................................................................................ 9-26Filter inspection ....................................................................................................... 9-26
Filter replacement ................................................................................................... 9-26
Wiper blades ................................................................................................. 9-27Blade inspection .......................................................................................................9-27
Blade replacement ...................................................................................................9-27
9. Maintenance
9

9-6
Maintenance
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
We recommend you have your vehicle
maintained and repaired by a HYUNDAI
authorised repairer. A HYUNDAI
authorised repairer meets HYUNDAI’s
high service quality standards and
receives technical support from
HYUNDAI in order to provide you with a
high level of service satisfaction.
Owner’s responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Service Passport.
Repairs and adjustments required as
a result of improper maintenance or a
lack of required maintenance are not
covered.
Owner maintenance
precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read
the separate Service Passport provided
with the vehicle. If you’re unsure
about any servicing or maintenance
procedure, we recommend that the
system be serviced by a HYUNDAI
authorised repairer.
MAINTENANCE SERVICES
