![HYUNDAI I20 2023 Owners Manual 9-39
09
: K H H O V L ] H G H V L J Q D W L R Q
Wheels are also marked with important
information that you need if you ever
have to replace one. The following
explains what the letters and](/manual-img/35/56129/w960_56129-597.png "HYUNDAI I20 2023 Owners Manual 9-39
09
: K H H O V L ] H G H V L J Q D W L R Q
Wheels are also marked with important
information that you need if you ever
have to replace one. The following
explains what the letters and")
9-39
09
: K H H O V L ] H G H V L J Q D W L R Q
Wheels are also marked with important
information that you need if you ever
have to replace one. The following
explains what the letters and numbers in
the wheel size designation mean.
Example wheel size designation:
6.0J X 15
6.0 - Rim width in inches.
J - Rim contour designation.
15 - Rim diameter in inches.
7 \ U H V S H H G U D W L Q J V
The chart below lists many of the
different speed ratings currently being
used for passenger vehicle tyres. The
speed rating is part of the tyre size
designation on the sidewall of the tyre.
This symbol corresponds to that tyre’s
designed maximum safe operating
speed.
Speed Rating
SymbolMaximum Speed
S112 mph (180 km/h)
T118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y 186 mph (300 km/h)
3. Checking tyre life (TIN : Tyre
Identification Number)
Any tyres that are over six years old,
based on the manufacturing date,
(including the spare tyre) should be
replaced by new ones. You can find
the manufacturing date on the tyre
sidewall (possibly on the inside of
the wheel), displaying the DOT Code.
The DOT Code is a series of numbers
on a tyre consisting of numbers and
English letters. The manufacturing date
is designated by the last four digits
(characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT shows a plant
code number, tyre size and tread pattern
and the last four numbers indicate week
and year manufactured.
For example:
DOT XXXX XXXX 1521 represents that the
tyre was produced in the 15th week of
2021.
4. Tyre ply composition and
material
The number of layers or plies of
rubber-coated fabric in the tyre. Tyre
manufacturers also must indicate the
materials in the tyre, which include steel,
nylon, polyester, and others. The letter
“R” means radial ply construction; the
letter “D“ means diagonal or bias ply
construction; and the letter “B” means
belted-bias ply construction.
Page 599 of 649
9-40
Maintenance
5. Maximum permissible inflation
pressure
This number is the greatest amount
of air pressure that should be put in
the tyre. Do not exceed the maximum
permissible inflation pressure. Refer to
the Tyre and Loading Information label
for recommended inflation pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tyre. When replacing
the tyres on the vehicle, always use a
tyre that has the same load rating as the
factory installed tyre.
7. Uniform tyre quality grading
Quality grades can be found where
applicable on the tyre sidewall between
tread shoulder and maximum section
width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A
7 U H D G Z H D U
The tread wear grade is a comparative
rating based on the wear rate of the tyre
when tested under controlled conditions
on a specified government test course.
For example, a tyre graded 150 would
wear one-and-a-half times (1½) as well
on the government course as a tyre
graded 100. The relative performance of tyres
depends upon the actual conditions
of their use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.
These grades are molded on the
sidewalls of passenger vehicle tyres. The
tyres available as standard or optional
equipment on your vehicle may vary
with respect to grade.
7 U D F W L R Q $ $ $ % &
The traction grades, from highest to
lowest, are AA, A, B and C. Those grades
represent the tyre’s ability to stop on wet
pavement as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete. A
tyre marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tyre
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
Page 611 of 649
9-52
Maintenance
Fuse Name Symbol (A) Circuit Protected
IGN COIL15A Ignition Coil #1/#2/#3
ECU5
20A ECM
ECU6
15A ECM
SENSOR 1
10AE/R Junction Block (RLY.2/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve, RCV Control, V_Oil
Pump Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ESP Control Module
BLOWER
40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/T Junction Block (RLY. 4), Front Wiper Motor, IBU
SENSOR3
15A E/T Junction Block (RLY. 5)
MHSG
10A Mild Hybrid Starter & Generator Motor
BATTERY
C/FAN
10A BMS Cooling Fan, E/R Junction Block (Fuse - F8)
WIPER 1
25AE/T Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch
BATTERY
MANAGEMENT2
10ABMS Control Module, E/R Junction Block (Fuse -
F8)
6 P D U W V W U H D P * 7 * ' L 6 P D U W V W U H D P * 7 * ' L + ( 9
Page 613 of 649
![HYUNDAI I20 2023 Owners Manual 9-54
Maintenance
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[Wit](/manual-img/35/56129/w960_56129-612.png "HYUNDAI I20 2023 Owners Manual 9-54
Maintenance
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[Wit")
9-54
Maintenance
Fuse Name Symbol (A) Circuit Protected
ALT(125A)
[150A]Alternator, Multi Fuse - F2, Fuse - F31/F32/F33/F34/
F35/F36
MDPS
80A MDPS Unit
ECU1
30A E/R Junction Block (RLY.1)
IG1
30A[With Smart Key] PDM Relay Box (IG1, ACC Relay)
[W/O Smart Key] Ignition Switch
FUEL PUMP
20A E/R Junction Block (RLY.5)
ECU3
15A ECM, Clutch Switch
ECU2
15A ECM
A/CON 1
10A E/R Junction Block (RLY.8)
IG2
30A[With Smart Key] PDM Relay Box (IG2 Relay)
[W/O Smart Key] Ignition Switch, START MTR RLY
BATT1
50AICU Junction Block (IPS1, IPS3, IPS5, IPS7, IPS8,
IPS11)
BATT3
50AICU Junction Block (Fuse - F8/F15/F21/F25/F29,
Long Term Load Latch Relay-F16/F9/F22)
HORN
15A E/R Junction Block (RLY.11, RLY.12)
AMS
10A Battery Sensor
BATT2
50A ICU Junction Block (IPS2, IPS4, IPS6, IPS9, IPS10)
BATT4
50AICU Junction Block (Power Window Relay-F5/F12,
Fuse - F3/F4/F10/F11)
C/FAN
40A E/R Junction Block (RLY.9/10)
IGN COIL
20A Ignition Coil #1/#2/#3/#4
ECU5
20A ECM
ECU6
15A ECM
SENSOR 1
10AE/R Junction Block (RLY.8/9/10),
Oil Control Valve #1/#2 (Intake/Exhaust),
Purge Control Solenoid Valve
SENSOR 2
10A Oxygen Sensor (Up/Down)
RR DEFOG
40A ICU Junction Block (Rear Defogger Relay)
ABS 1
40A ESP Control Module
6 P D U W V W U H D P *
Page 614 of 649
9-55
09
6 P D U W V W U H D P *
Fuse Name Symbol (A) Circuit Protected
BLOWER40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/R Junction Block (RLY. 4), Front Wiper Motor, IBU
INJECTOR1
15AE/R Junction Block (RLY. 5), Injector #1-1/#2-1/#3-
1/#4-1
INJECTOR2
15A Injector #1-2/#2-2/#3-2/#4-2
WIPER 1
25AE/T Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch
Page 617 of 649
9-58
Maintenance
3 H W U R O
Fuse Name Symbol (A) Circuit Protected
ABS 140A ESP Control Module
BLOWER
40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/R Junction Block (RLY. 4), Front Wiper Motor, IBU
INJECTOR
15A E/R Junction Block (RLY. 5), Injector #1/#2/#3/#4
WIPER 1
25AE/R Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch
Page 618 of 649
9-59
09
We recommend that you consult with a
HYUNDAI authorised repairer to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlight assembly to get to the bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
WARNING
Prior to replacing a light, depress the
foot brake, move the shift lever into the
N (Neutral, for automatic transmission
vehicle) or neutral (for manual
transmission vehicle), apply the parking
brake, place the ignition switch in the
LOCK/OFF position, and take the key
with you when leaving the vehicle to
avoid sudden movement of the vehicle
and to prevent possible electric shock.
% H D Z D U H W K H E X O E V P D \ E H K R W D Q G P D \
burn your fingers.
NOTICE
% H V X U H W R U H S O D F H W K H E X U Q H G R X W E X O E
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electric wiring system.
i Information
7 K H K H D G O L J K W D Q G W D L O O D P S O H Q V H V F R X O G
D S S H D U I U R V W \ L I W K H Y H K L F O H L V Z D V K H G D I W H U
G U L Y L Q J R U W K H Y H K L F O H L V G U L Y H Q D W Q L J K W
L Q Z H W Z H D W K H U 7 K L V F R Q G L W L R Q L V F D X V H G
E \ W H P S H U D W X U H G L I I H U H Q F H E H W Z H H Q W K H
O D P S L Q V L G H D Q G R X W V L G H D Q G L W G R H V Q R W
L Q G L F D W H D S U R E O H P Z L W K \ R X U Y H K L F O H
: K H Q P R L V W X U H F R Q G H Q V H V L Q W K H O D P S
L W Z L O O E H U H P R Y H G D I W H U G U L Y L Q J Z L W K W K H
K H D G O L J K W R Q 7 K H U H P R Y D E O H O H Y H O P D \
G L I I H U G H S H Q G L Q J R Q O D P S V L ] H O D P S
S R V L W L R Q D Q G H Q Y L U R Q P H Q W D O F R Q G L W L R Q
+ R Z H Y H U L I P R L V W X U H L V Q R W U H P R Y H G Z H
U H F R P P H Q G W K D W \ R X U Y H K L F O H L V L Q V S H F W H G
E \ D + < 8 1 ' $ , D X W K R U L V H G U H S D L U H U
i Information (For Europe)
7 U D I I L F & K D Q J H
7 K H O R Z E H D P O L J K W G L V W U L E X W L R Q L V
D V \ P P H W U L F , I \ R X J R D E U R D G W R D F R X Q W U \
Z L W K R S S R V L W H W U D I I L F G L U H F W L R Q W K L V
D V \ P P H W U L F S D U W Z L O O G D ] ] O H R Q F R P L Q J F D U
G U L Y H U 7 R S U H Y H Q W G D ] ] O H ( & ( U H J X O D W L R Q
G H P D Q G V V H Y H U D O W H F K Q L F D O V R O X W L R Q V H [
D X W R P D W L F F K D Q J H V \ V W H P D G K H V L Y H V K H H W
G R Z Q D L P L Q J 7 K H V H K H D G O L J K W V D U H
G H V L J Q H G Q R W W R G D ] ] O H R S S R V L W H G U L Y H U V
6 R \ R X Q H H G Q R W F K D Q J H \ R X U K H D G O L J K W V
L Q D F R X Q W U \ Z L W K W K H R S S R V L W H W U D I I L F
G L U H F W L R Q
LIGHT BULBS
Page 625 of 649
9-66
Maintenance

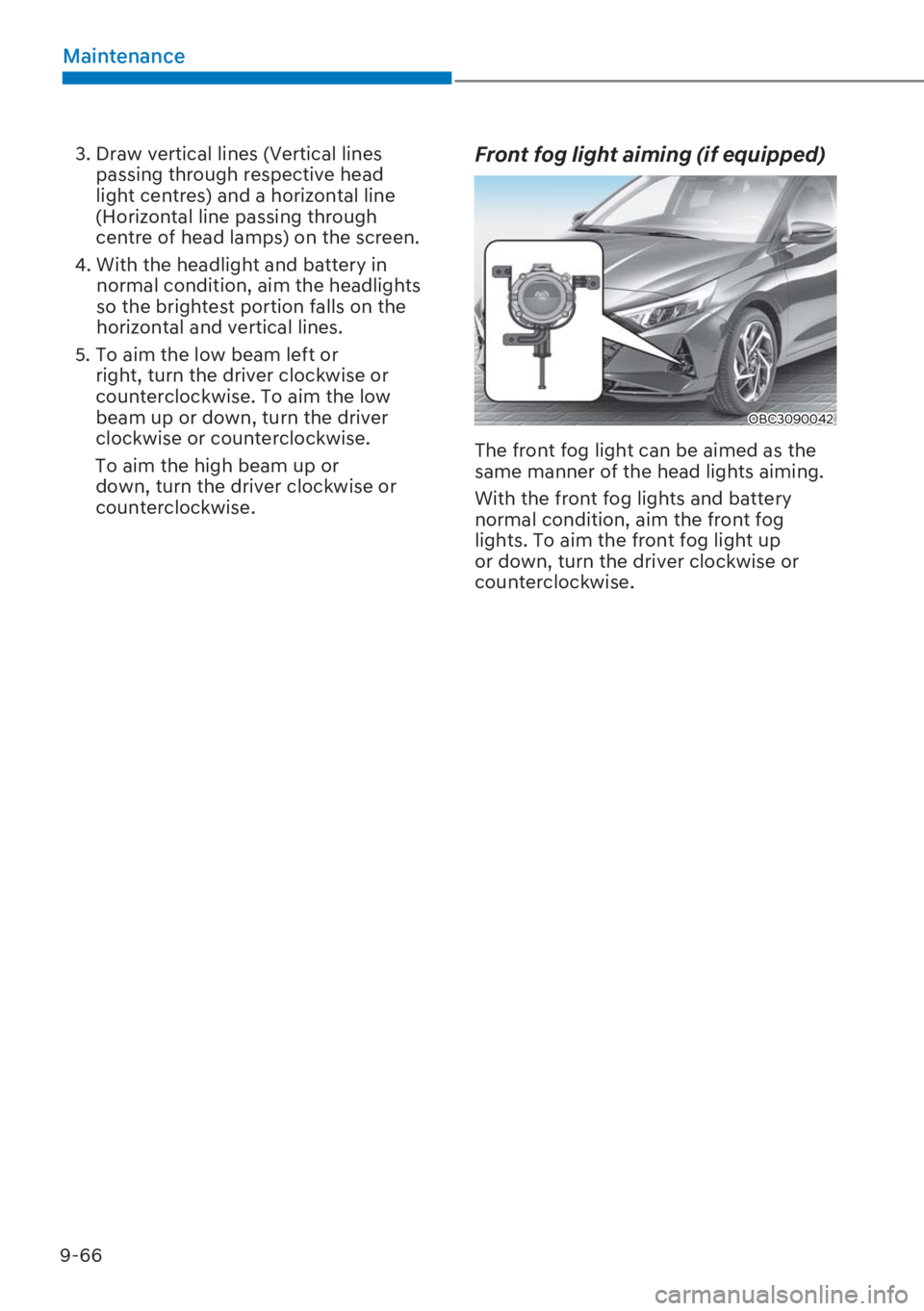

3. Draw vertical lines (Vertical lines
passing through respective head
light centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the screen.
4. With the headlight and battery in
normal condition, aim the headlights
so the brightest portion falls on the
horizontal and vertical lines.
5. To aim the low beam left or
right, turn the driver clockwise or
counterclockwise. To aim the low
beam up or down, turn the driver
clockwise or counterclockwise.
To aim the high beam up or
down, turn the driver clockwise or
counterclockwise.Front fog light aiming (if equipped)
OBC3090042
The front fog light can be aimed as the
same manner of the head lights aiming.
With the front fog lights and battery
normal condition, aim the front fog
lights. To aim the front fog light up
or down, turn the driver clockwise or
counterclockwise.
