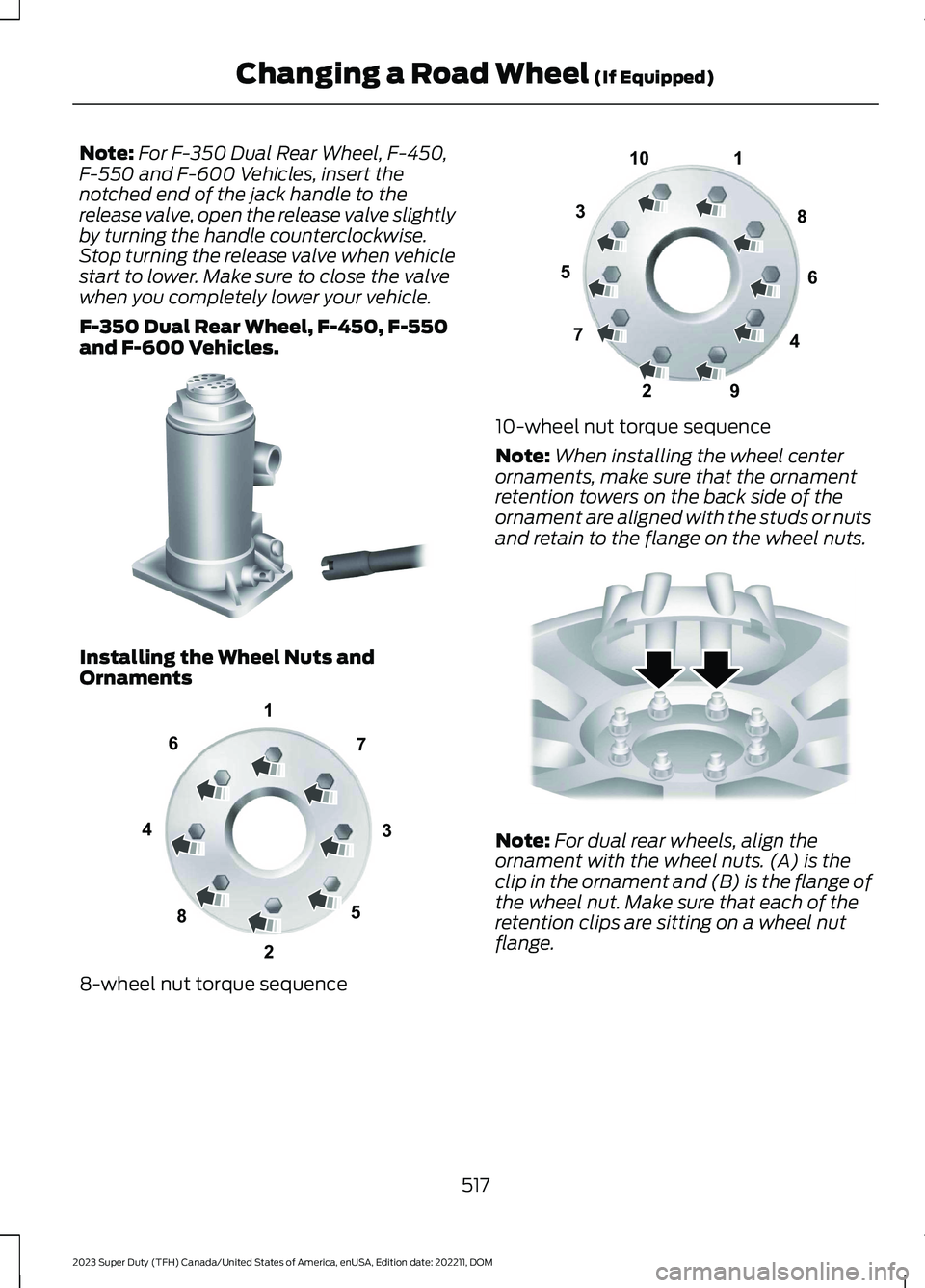

Note:For F-350 Dual Rear Wheel, F-450,F-550 and F-600 Vehicles, insert thenotched end of the jack handle to therelease valve, open the release valve slightlyby turning the handle counterclockwise.Stop turning the release valve when vehiclestart to lower. Make sure to close the valvewhen you completely lower your vehicle.
F-350 Dual Rear Wheel, F-450, F-550and F-600 Vehicles.
Installing the Wheel Nuts andOrnaments
8-wheel nut torque sequence
10-wheel nut torque sequence
Note:When installing the wheel centerornaments, make sure that the ornamentretention towers on the back side of theornament are aligned with the studs or nutsand retain to the flange on the wheel nuts.
Note:For dual rear wheels, align theornament with the wheel nuts. (A) is theclip in the ornament and (B) is the flange ofthe wheel nut. Make sure that each of theretention clips are sitting on a wheel nutflange.
517
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMChanging a Road Wheel (If Equipped)E162812 13427658E161441 12345678910E169375 E162820

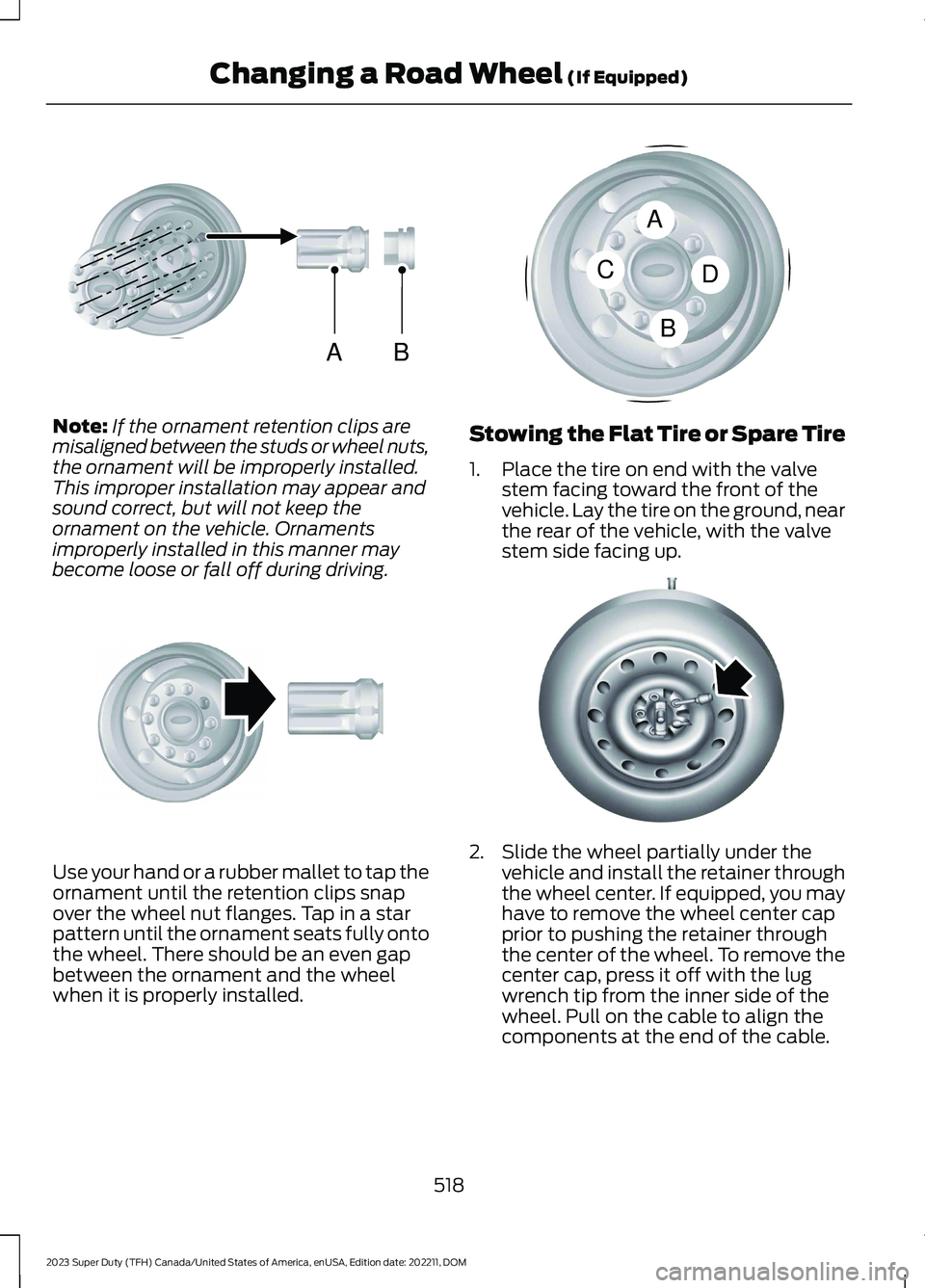

Note:If the ornament retention clips aremisaligned between the studs or wheel nuts,the ornament will be improperly installed.This improper installation may appear andsound correct, but will not keep theornament on the vehicle. Ornamentsimproperly installed in this manner maybecome loose or fall off during driving.
Use your hand or a rubber mallet to tap theornament until the retention clips snapover the wheel nut flanges. Tap in a starpattern until the ornament seats fully ontothe wheel. There should be an even gapbetween the ornament and the wheelwhen it is properly installed.
Stowing the Flat Tire or Spare Tire
1.Place the tire on end with the valvestem facing toward the front of thevehicle. Lay the tire on the ground, nearthe rear of the vehicle, with the valvestem side facing up.
2.Slide the wheel partially under thevehicle and install the retainer throughthe wheel center. If equipped, you mayhave to remove the wheel center capprior to pushing the retainer throughthe center of the wheel. To remove thecenter cap, press it off with the lugwrench tip from the inner side of thewheel. Pull on the cable to align thecomponents at the end of the cable.
518
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMChanging a Road Wheel (If Equipped)ABE162822 E162823 ACBDE162824 E162800

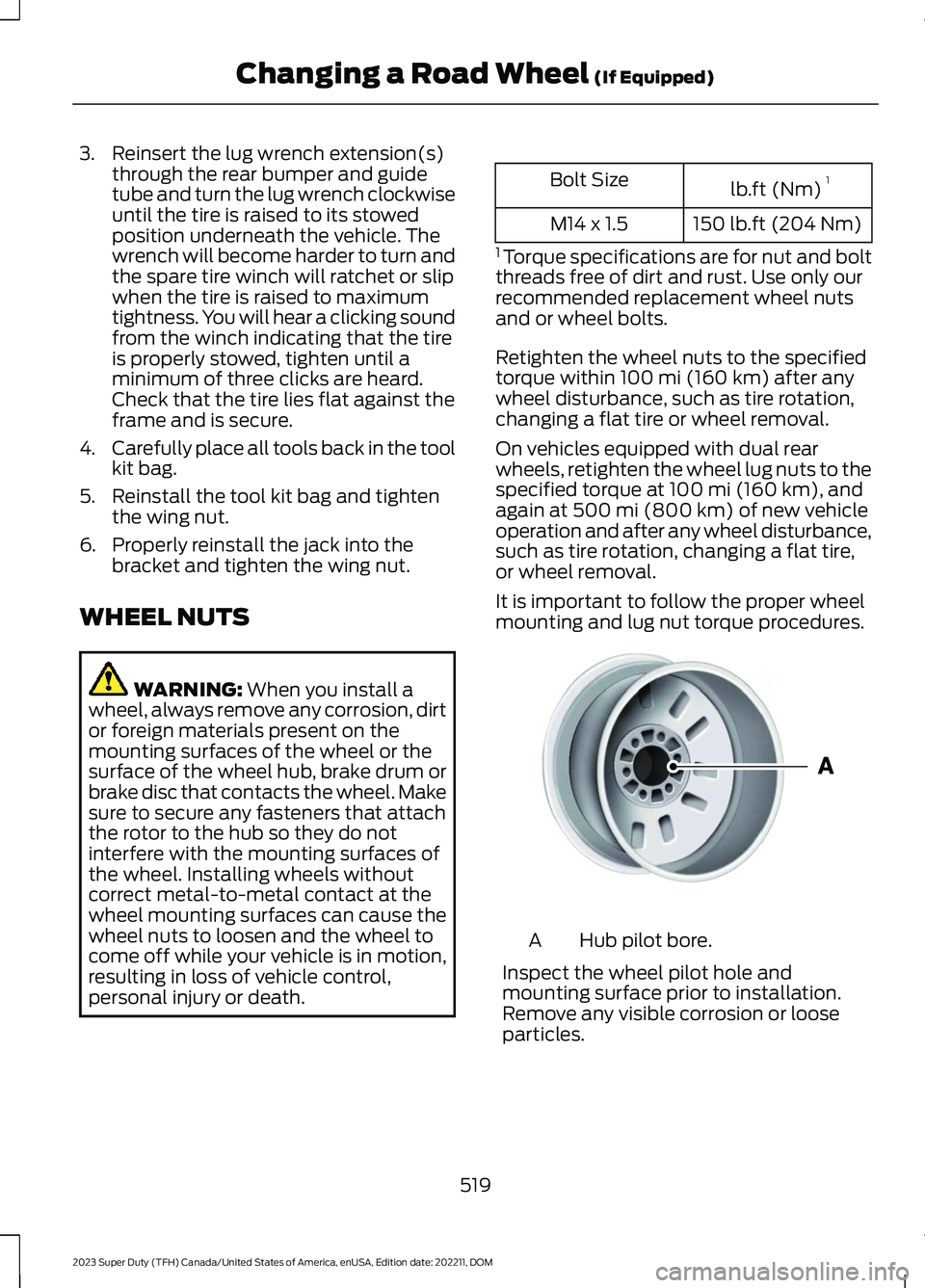

3.Reinsert the lug wrench extension(s)through the rear bumper and guidetube and turn the lug wrench clockwiseuntil the tire is raised to its stowedposition underneath the vehicle. Thewrench will become harder to turn andthe spare tire winch will ratchet or slipwhen the tire is raised to maximumtightness. You will hear a clicking soundfrom the winch indicating that the tireis properly stowed, tighten until aminimum of three clicks are heard.Check that the tire lies flat against theframe and is secure.
4.Carefully place all tools back in the toolkit bag.
5.Reinstall the tool kit bag and tightenthe wing nut.
6.Properly reinstall the jack into thebracket and tighten the wing nut.
WHEEL NUTS
WARNING: When you install awheel, always remove any corrosion, dirtor foreign materials present on themounting surfaces of the wheel or thesurface of the wheel hub, brake drum orbrake disc that contacts the wheel. Makesure to secure any fasteners that attachthe rotor to the hub so they do notinterfere with the mounting surfaces ofthe wheel. Installing wheels withoutcorrect metal-to-metal contact at thewheel mounting surfaces can cause thewheel nuts to loosen and the wheel tocome off while your vehicle is in motion,resulting in loss of vehicle control,personal injury or death.
lb.ft (Nm)1Bolt Size
150 lb.ft (204 Nm)M14 x 1.5
1 Torque specifications are for nut and boltthreads free of dirt and rust. Use only ourrecommended replacement wheel nutsand or wheel bolts.
Retighten the wheel nuts to the specifiedtorque within 100 mi (160 km) after anywheel disturbance, such as tire rotation,changing a flat tire or wheel removal.
On vehicles equipped with dual rearwheels, retighten the wheel lug nuts to thespecified torque at 100 mi (160 km), andagain at 500 mi (800 km) of new vehicleoperation and after any wheel disturbance,such as tire rotation, changing a flat tire,or wheel removal.
It is important to follow the proper wheelmounting and lug nut torque procedures.
Hub pilot bore.A
Inspect the wheel pilot hole andmounting surface prior to installation.Remove any visible corrosion or looseparticles.
519
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMChanging a Road Wheel (If Equipped)E145950

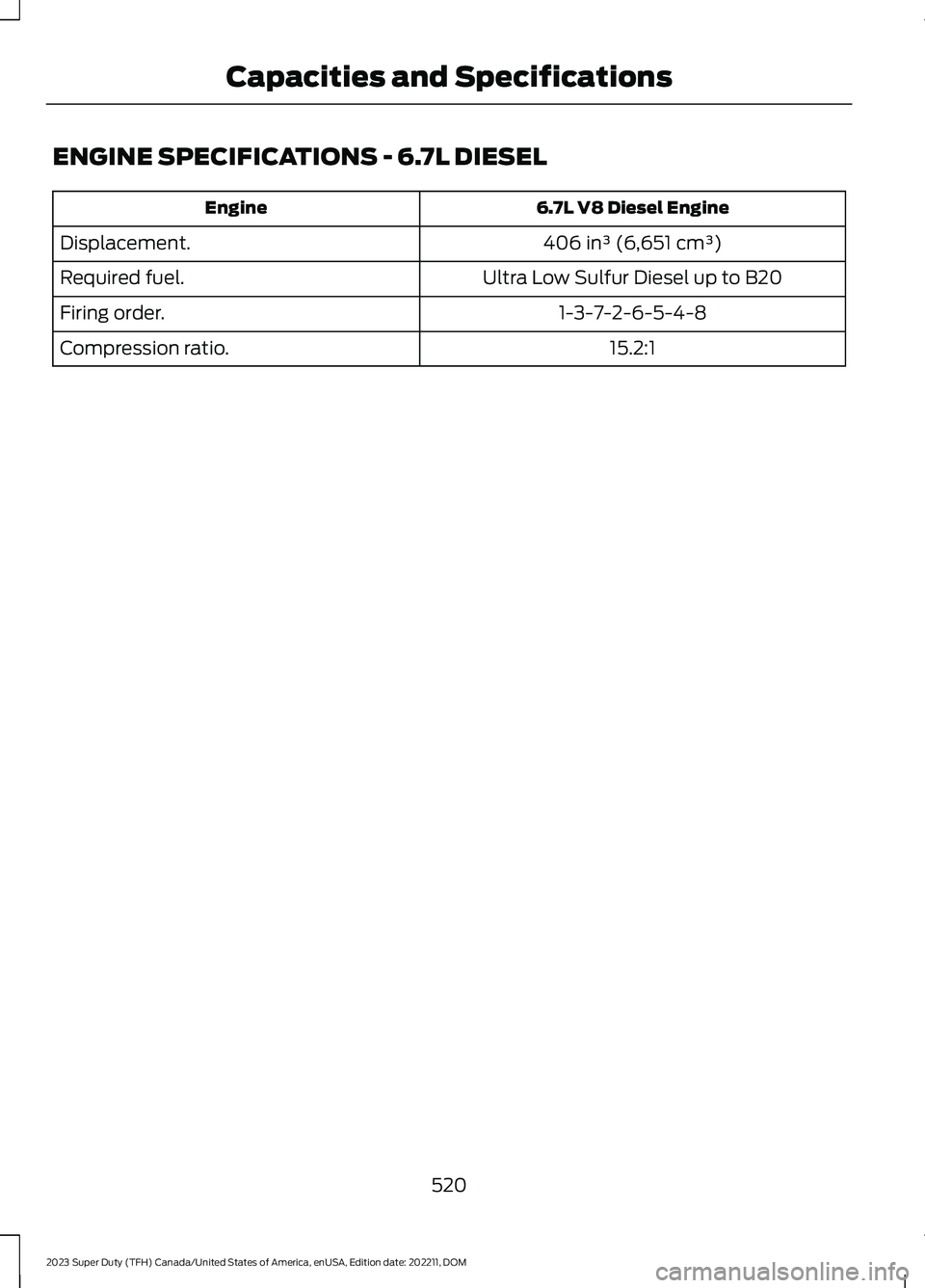

ENGINE SPECIFICATIONS - 6.7L DIESEL
6.7L V8 Diesel EngineEngine
406 in³ (6,651 cm³)Displacement.
Ultra Low Sulfur Diesel up to B20Required fuel.
1-3-7-2-6-5-4-8Firing order.
15.2:1Compression ratio.
520
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMCapacities and Specifications

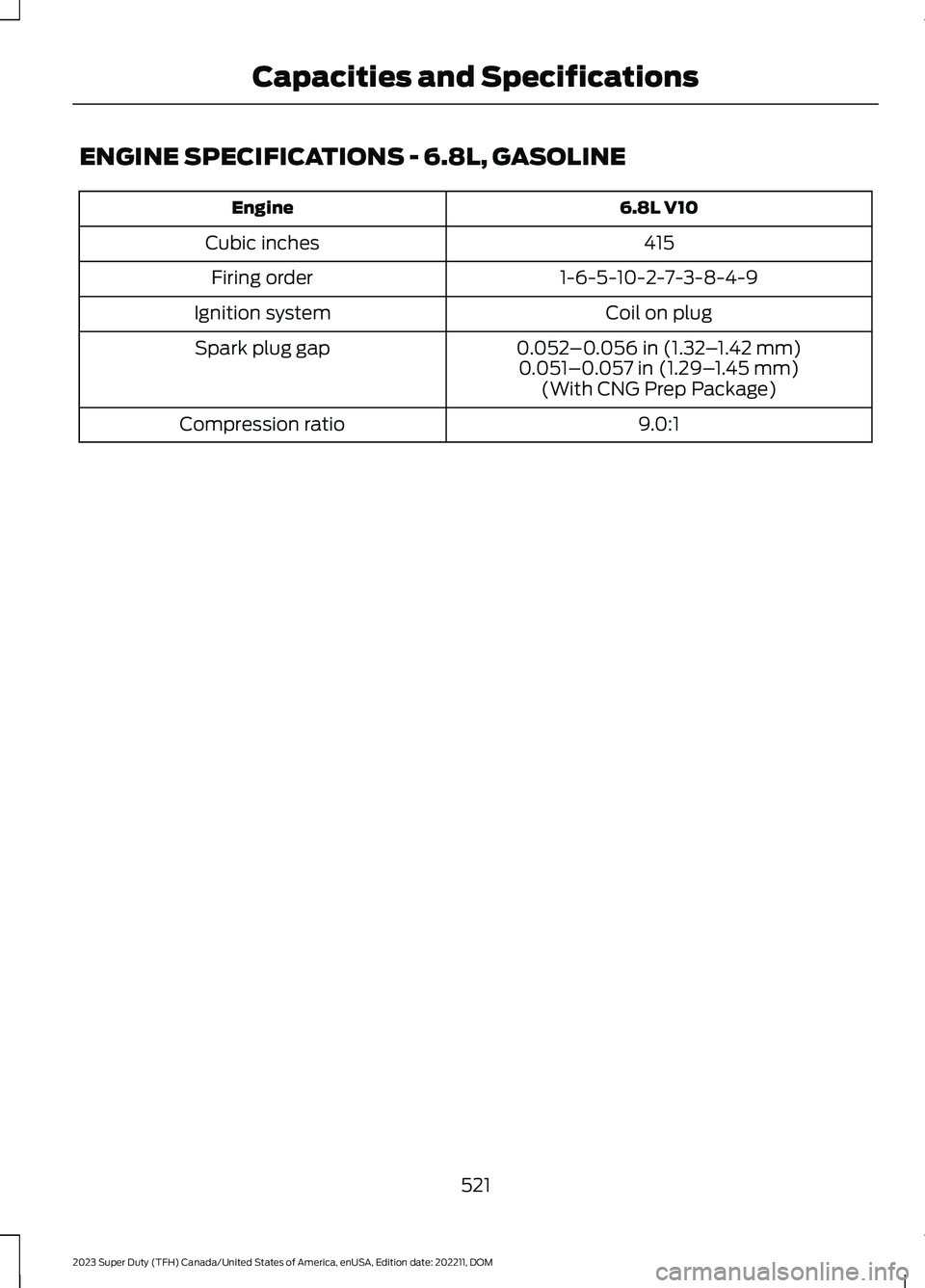

ENGINE SPECIFICATIONS - 6.8L, GASOLINE
6.8L V10Engine
415Cubic inches
1-6-5-10-2-7-3-8-4-9Firing order
Coil on plugIgnition system
0.052–0.056 in (1.32–1.42 mm)Spark plug gap0.051–0.057 in (1.29–1.45 mm)(With CNG Prep Package)
9.0:1Compression ratio
521
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMCapacities and Specifications

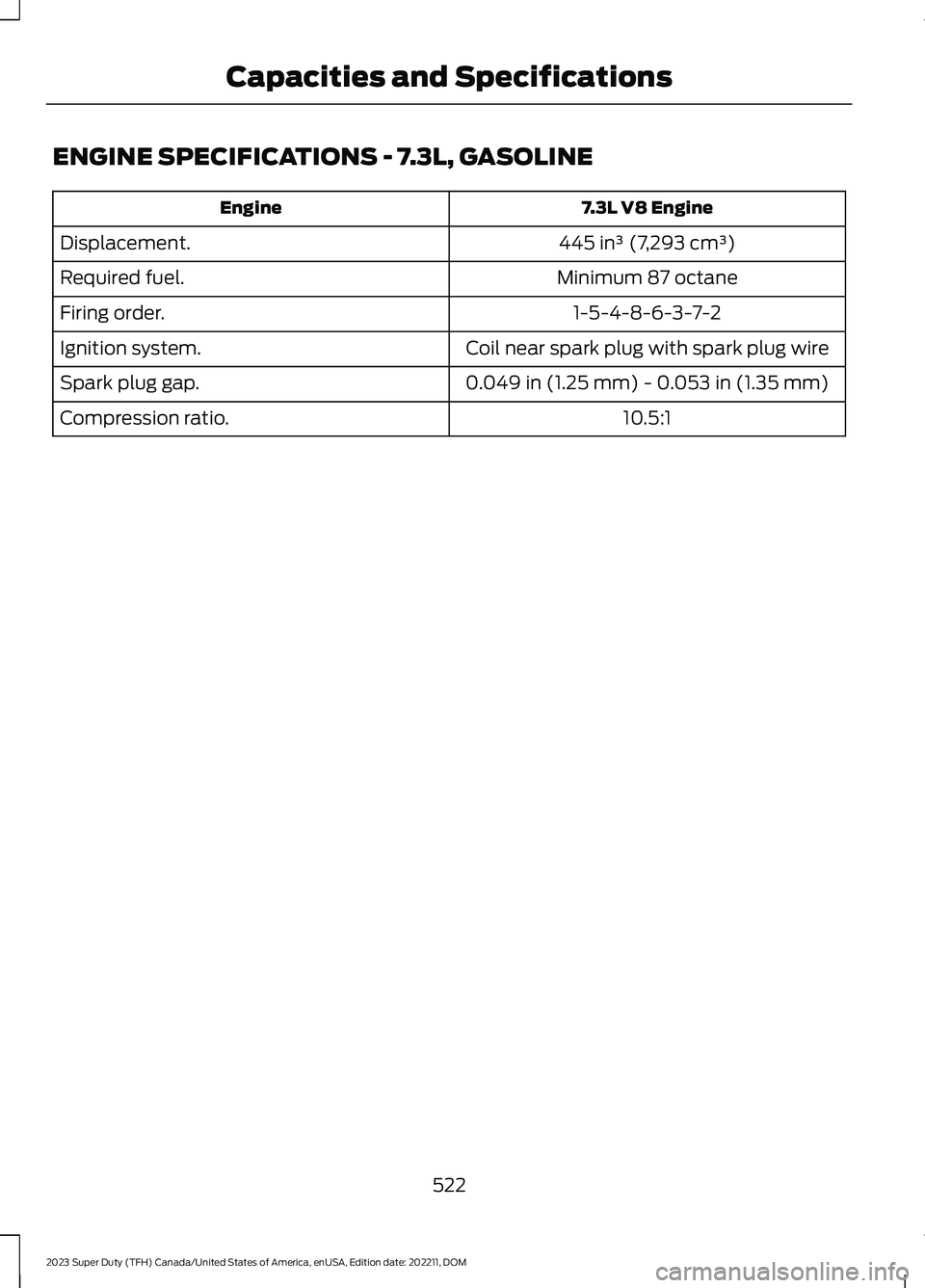

ENGINE SPECIFICATIONS - 7.3L, GASOLINE
7.3L V8 EngineEngine
445 in³ (7,293 cm³)Displacement.
Minimum 87 octaneRequired fuel.
1-5-4-8-6-3-7-2Firing order.
Coil near spark plug with spark plug wireIgnition system.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)Spark plug gap.
10.5:1Compression ratio.
522
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMCapacities and Specifications

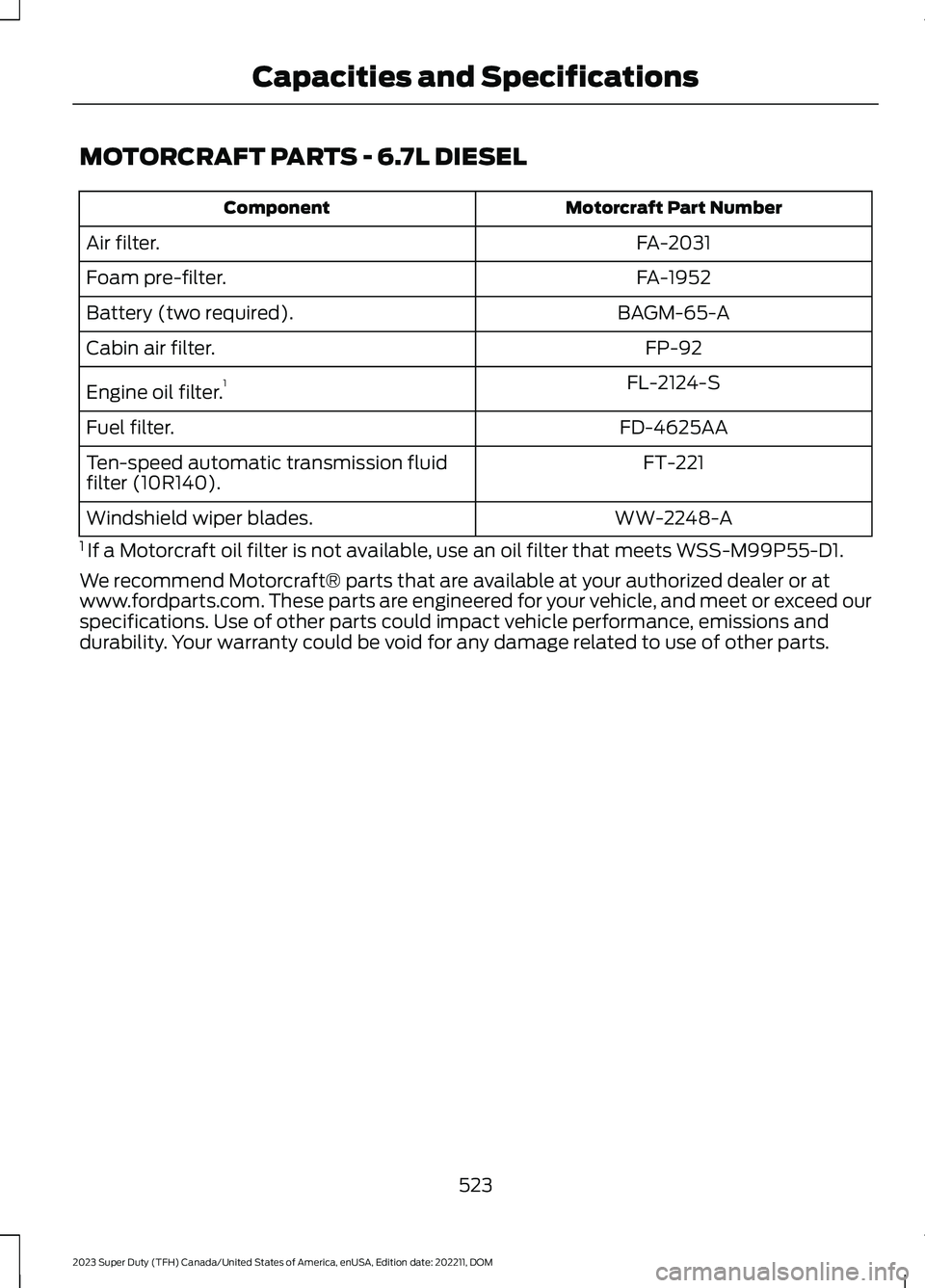

MOTORCRAFT PARTS - 6.7L DIESEL
Motorcraft Part NumberComponent
FA-2031Air filter.
FA-1952Foam pre-filter.
BAGM-65-ABattery (two required).
FP-92Cabin air filter.
FL-2124-SEngine oil filter.1
FD-4625AAFuel filter.
FT-221Ten-speed automatic transmission fluidfilter (10R140).
WW-2248-AWindshield wiper blades.
1 If a Motorcraft oil filter is not available, use an oil filter that meets WSS-M99P55-D1.
We recommend Motorcraft® parts that are available at your authorized dealer or atwww.fordparts.com. These parts are engineered for your vehicle, and meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
523
2023 Super Duty (TFH) Canada/United States of America, enUSA, Edition date: 202211, DOMCapacities and Specifications

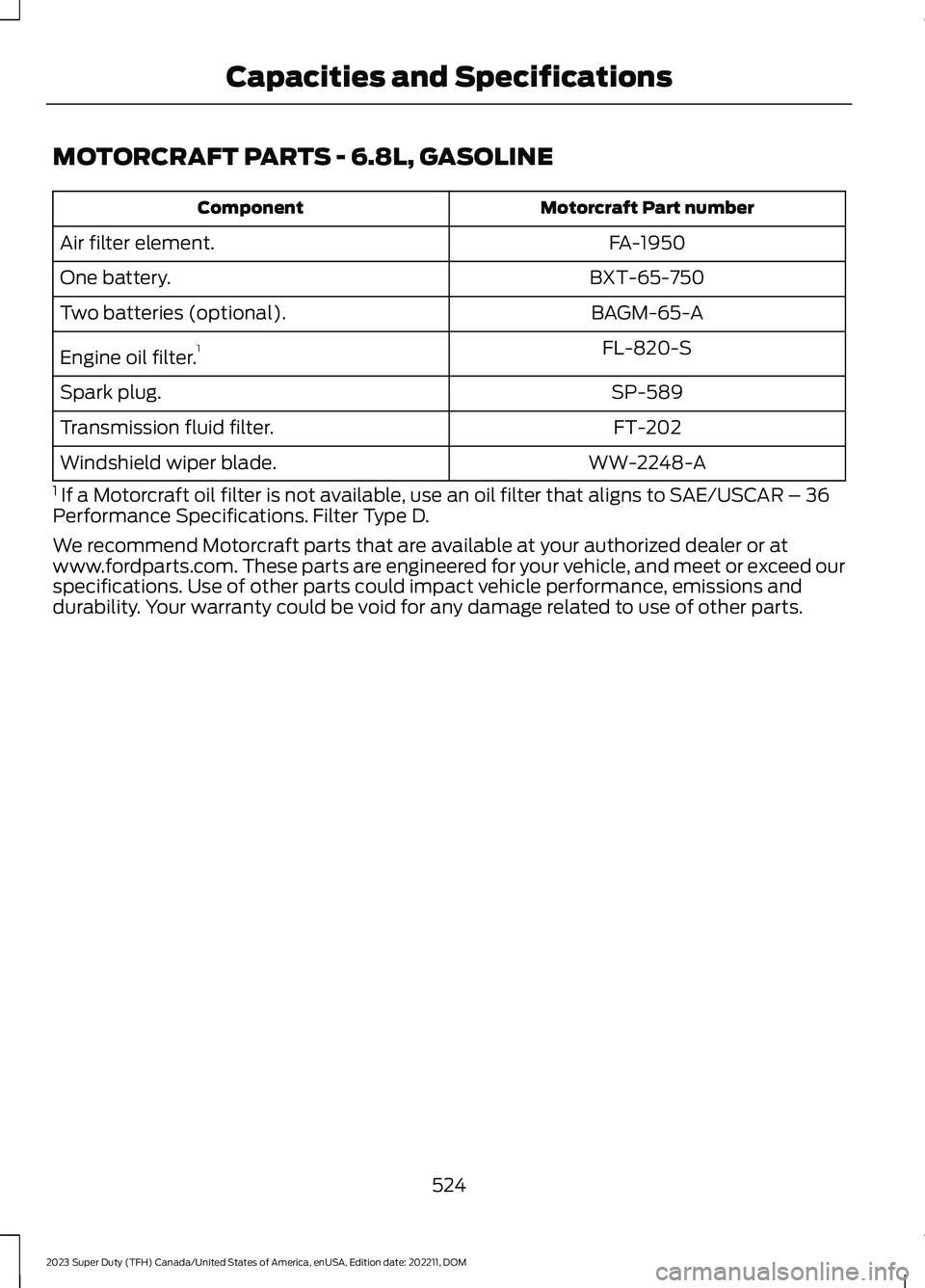

MOTORCRAFT PARTS - 6.8L, GASOLINE
Motorcraft Part numberComponent
FA-1950Air filter element.
BXT-65-750One battery.
BAGM-65-ATwo batteries (optional).
FL-820-SEngine oil filter.1
SP-589Spark plug.
FT-202Transmission fluid filter.
WW-2248-AWindshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36Performance Specifications. Filter Type D.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.fordparts.com. These parts are engineered for your vehicle, and meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
524
