2023 FORD MAVERICK fuse box

Integrated Trailer Brake Controller –Troubleshooting......................................275
Trailer Sway Control
How Does Trailer Sway Control Work.........................................................................277
Trailer Sway Control Precautions..........277
Switching Trailer Sway Control On andOff.................................................................277
Driving Hints
Cold Weather Precautions......................278
Driving on Snow and Ice...........................278
Breaking-In....................................................278
Driving Economically.................................278
Driving in Special Conditions..................279
Driving Through Shallow Water............280
Floor Mats.....................................................280
Crash and BreakdownInformation
Roadside Assistance.................................282
High Voltage Battery Vehicle Precautions- Hybrid Electric Vehicle (HEV).........283
Switching the Hazard Flashers On andOff................................................................284
Jump Starting the Vehicle.......................284
Post-Crash Alert System.........................287
Post Impact Braking..................................288
Automatic Crash Shutoff........................288
Recovery Towing.........................................289
Transporting the Vehicle.........................290
Towing Your Vehicle
Towing Your Vehicle Precautions.........292
Recreationally Towing Your Vehicle -Gasoline, FWD.........................................292
Recreationally Towing Your Vehicle -Gasoline, AWD.........................................292
Recreationally Towing Your Vehicle -Hybrid Electric Vehicle (HEV)............292
Emergency Towing - Gasoline...............293
Emergency Towing - Hybrid ElectricVehicle (HEV)..........................................293
Towing Your Vehicle – Troubleshooting- Hybrid Electric Vehicle (HEV).........294
Fuses
Fuse Precautions........................................295
Under Hood Fuse Box...............................295
Body Control Module Fuse Box.............301
Identifying Fuse Types..............................303
Fuses – Troubleshooting.........................303
Maintenance
Maintenance Precautions.......................304
Opening and Closing the Hood............304
Under Hood Overview - 2.5L.................306
Under Hood Overview - 2.0L EcoBoost™........................................................................307
Engine Oil......................................................308
Checking the Coolant...............................309
Changing the Engine Air Filter - 2.0LEcoBoost™................................................313
Changing the Engine Air Filter - 2.5L,Hybrid Electric Vehicle (HEV).............314
Changing the Fuel Filter............................315
Drive Belt Routing Overview - 2.0LEcoBoost™................................................315
Changing the 12V Battery.........................315
Changing the 12V Battery - HybridElectric Vehicle (HEV)...........................318
Adjusting the Headlamps.......................320
Exterior Bulbs................................................321
Interior Bulbs................................................326
Vehicle Care
Cleaning Products.......................................327
Cleaning the Exterior.................................328
Cleaning the Interior..................................329
Repairing Minor Paint Damage..............332
Waxing Your Vehicle..................................332
10
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingTable of Contents

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
1.Pull the latch toward you and removethe top cover.
2.Pull the connector lever upward.
3.Pull the connector upward to removeit.
295
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFusesE334436 E253688 E25368923

4.Pull both latches toward you andremove the fuse box.
5.Turn the fuse box over and open thelid.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
296
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFusesE253693 89 E351223

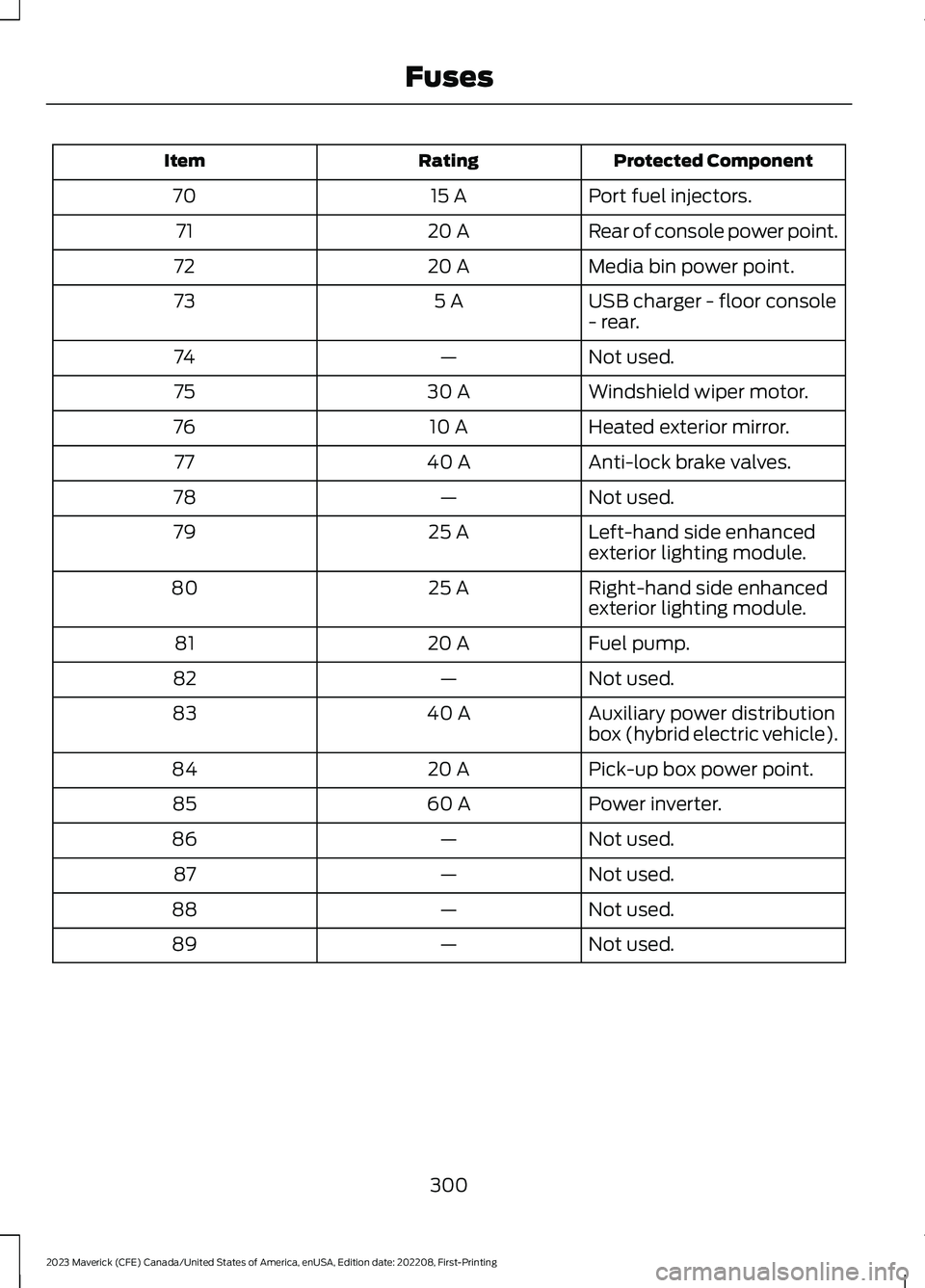

Protected ComponentRatingItem
Port fuel injectors.15 A70
Rear of console power point.20 A71
Media bin power point.20 A72
USB charger - floor console- rear.5 A73
Not used.—74
Windshield wiper motor.30 A75
Heated exterior mirror.10 A76
Anti-lock brake valves.40 A77
Not used.—78
Left-hand side enhancedexterior lighting module.25 A79
Right-hand side enhancedexterior lighting module.25 A80
Fuel pump.20 A81
Not used.—82
Auxiliary power distributionbox (hybrid electric vehicle).40 A83
Pick-up box power point.20 A84
Power inverter.60 A85
Not used.—86
Not used.—87
Not used.—88
Not used.—89
300
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFuses

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentRatingItem
Not used (spare).5 A1
Not used (spare).5 A2
Auto-dimming interiormirror.10 A3
301
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingFusesE329070 E329071 E293328

UNDER HOOD OVERVIEW - 2.5L
Windshield washer fluid reservoir: See Adding Washer Fluid (page 91).A
Low temp coolant cap: See Checking the Coolant (page 309).B
High temp coolant cap: See Checking the Coolant (page 309).C
Engine oil filler cap: See Checking the Engine Oil Level (page 308).D
Engine oil dipstick: See Engine Oil Dipstick Overview (page 308).E
Brake fluid reservoir: See Checking the Brake Fluid (page 192).F
Power distribution box: See Accessing the Under Hood Fuse Box (page 295).G
Air filter assembly: See Changing the Engine Air Filter (page 314).H
306
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingMaintenanceCADEFGBHE385830

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Windshield washer fluid reservoir. See Adding Washer Fluid (page 91).A
Engine coolant reservoir. See Checking the Coolant (page 309).B
Engine oil dipstick. See Engine Oil Dipstick Overview (page 308).C
Engine oil filler cap. See Adding Engine Oil (page 308).D
Brake fluid reservoir. See Locating the Brake Fluid Reservoir (page 191).E
Battery. See Changing the 12V Battery (page 315).F
Engine compartment fuse box. See Fuses (page 295).G
Air filter assembly. See Changing the Engine Air Filter (page 313).H
307
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingMaintenanceE354447

What Is Automatic Return to Park(P).......................................................................184Automatic Transmission AudibleWarnings.......................................................187Automatic Transmission............................182Automatic Return to Park (P).......................184Automatic Transmission Positions..............182Automatic Transmission –Troubleshooting.............................................188Grade Assist - Hybrid Electric Vehicle(HEV).................................................................185Manual Park Release - Gasoline...................185Temporary Neutral Mode................................183Automatic Transmission PositionIndicators......................................................183Automatic Transmission Positions........182Drive (D).................................................................183Low (L)...................................................................183Neutral (N)............................................................182Park (P)..................................................................182Reverse (R)...........................................................182Automatic TransmissionPrecautions..................................................182Automatic Transmission –Troubleshooting........................................188Automatic Transmission – InformationMessages..........................................................188Auto Mode.......................................................126Auto Mode Indicators........................................126Switching Auto Mode On and Off................126Switching Dual Mode On and Off................128Auto-Start-Stop...........................................168Auto-Start-Stop – Troubleshooting...........169Auto-Start-Stop Indicators......................168Auto-Start-Stop Precautions..................168Auto-Start-Stop –Troubleshooting.........................................169Auto-Start-Stop – Frequently AskedQuestions..........................................................170Auto-Start-Stop – InformationMessages..........................................................169Autounlock........................................................73Autounlock Requirements................................73Switching Autounlock On and Off.................73What Is Autounlock.............................................73AWDSee: All-Wheel Drive.........................................189
B
BatterySee: Changing the 12V Battery......................315See: Changing the 12V Battery - Hybrid ElectricVehicle (HEV).................................................318Blind Spot Information System...............241Blind Spot Information System –Troubleshooting............................................243Blind Spot Information SystemIndicators.....................................................242Blind Spot Information SystemLimitations...................................................241Blind Spot Information SystemPrecautions..................................................241Blind Spot Information SystemRequirements..............................................241Blind Spot Information System –Troubleshooting........................................243Blind Spot Information System –Information Messages................................243Body Control Module Fuse Box..............301Accessing the Body Control Module FuseBox......................................................................301Identifying the Fuses in the Body ControlModule Fuse Box...........................................301Locating the Body Control Module FuseBox......................................................................301Bonnet LockSee: Opening and Closing the Hood..........304Booster Seats..................................................39Brake Coach - Hybrid Electric Vehicle(HEV)..............................................................119Brake Fluid Specification...........................192Brake Over Accelerator................................191Brake Precautions.........................................191Brakes................................................................191Anti-Lock Braking System................................191Brakes – Troubleshooting...............................193Brakes – Troubleshooting.........................193Brakes – Frequently AskedQuestions.........................................................193Brakes – Warning Lamps................................193Breaking-In.....................................................278
C
Calculating Payload....................................259
537
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingIndex
