2022 TOYOTA TUNDRA HYBRID Owners Manual

5879-1. For owners
Owners Manual_USA_M0C031_en
9
For owners
■Cargo weight rating
*: The model code is indicated on the Certification Label. (P.541)
Secure loose items to prevent w eight shifts that could affect the bal-
ance of your vehicle. When the truck camper is loaded, drive to a
scale and weigh on the front and on the rear wheels separately to
determine axle loads. Individual axle loads should not exceed either
of the Gross Axle Weight Ratings (GAWR). The total of the axle
loads should not exceed the Gross Vehicle Weight Rating (GVWR).
No.Model code*CabDriveBedGrade
Pas-
sen- gerCargo Weight Rating
lbskg
1VXKH70L-PSVLZA
CrewMax
2WD
Short
Lim-ited
5
640290
2VXKH70L- PSVZZAPlati-num620280
3VXKH71L- PRVLZA
Stan-dard
Lim-ited665300
4VXKH71L- PRVZZAPlati-num640290
5VXKH75L- PSVLZA
4WD
Short
Lim-ited605275
6VXKH75L- PSVUZACap-
stone580265
7VXKH75L- PSVZZAPlati-num555250
8VXKH76L- PRVLZA
Stan-dard
Lim-ited655295
9VXKH76L- PRVZZAPlati-num590270
WARNING
■Overloading
Be careful — overloading can cause dangerous braking and handli ng
problems, and can damage your vehicle and its tires.
Gross axle and vehicle weight ratings

5889-1. For owners
Owners Manual_USA_M0C031_en
These ratings are given on the vehicle certification label which is
located on the door latch post on the left side of the vehicle.
( P.541) If weight ratings are exce eded, move or remove items to
bring all weights below the ratings.
Gross axle weight rating
Front GAWR
Rear GAWR
Gross vehicle weight rating
Not exceed GVWR

5899-1. For owners
Owners Manual_USA_M0C031_en
9
For owners

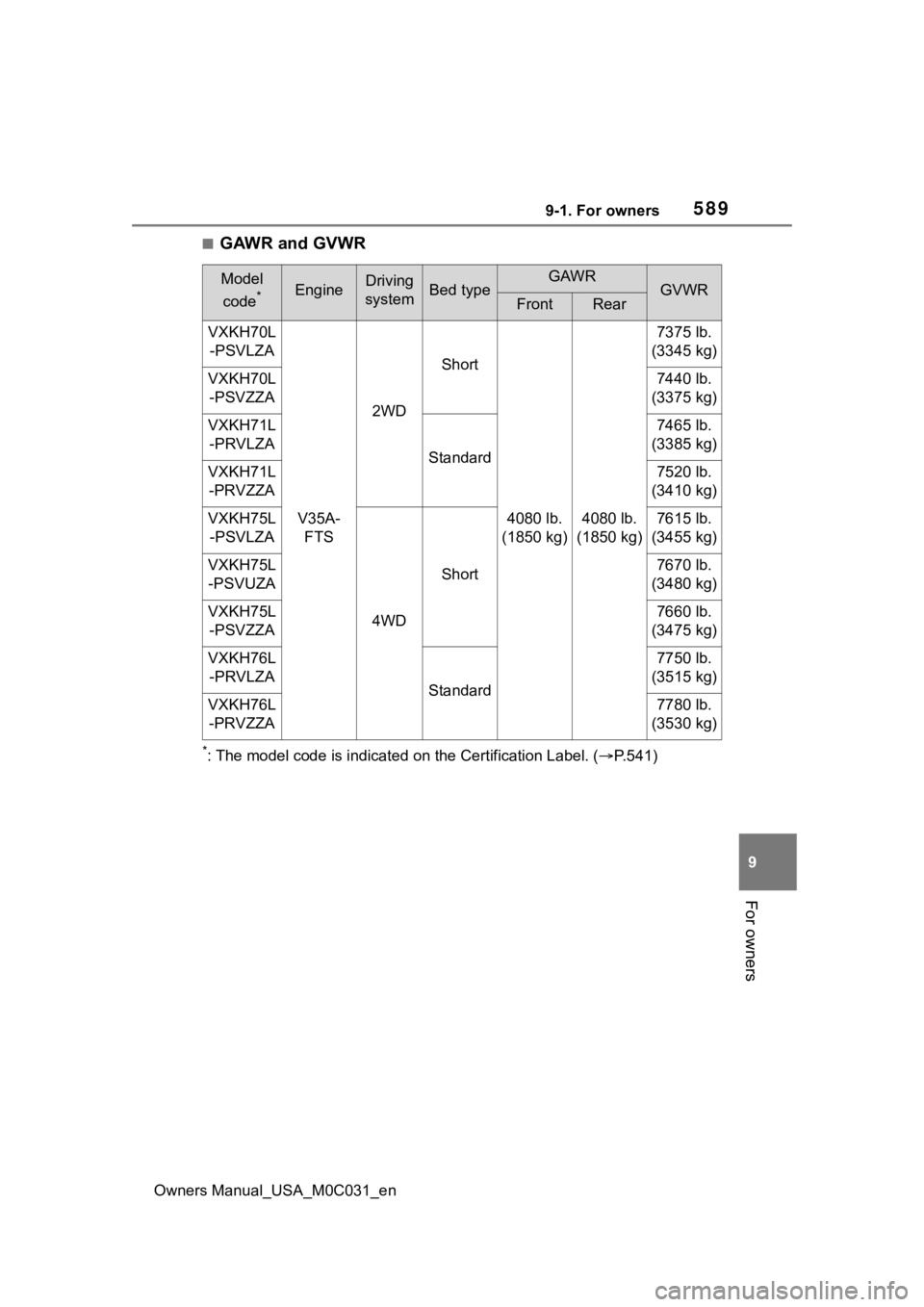

■GAWR and GVWR
*: The model code is indicated on the Certification Label. (P.541)
Model
code
*EngineDriving
systemBed typeGAWRGVWRFrontRear
VXKH70L -PSVLZA
V35A- FTS
2WD
Short
4080 lb.
(1850 kg)4080 lb.
(1850 kg)
7375 lb.
(3345 kg)
VXKH70L -PSVZZA7440 lb.
(3375 kg)
VXKH71L -PRVLZA
Standard
7465 lb.
(3385 kg)
VXKH71L -PRVZZA7520 lb.
(3410 kg)
VXKH75L -PSVLZA
4WD
Short
7615 lb.
(3455 kg)
VXKH75L -PSVUZA7670 lb.
(3480 kg)
VXKH75L -PSVZZA7660 lb.
(3475 kg)
VXKH76L -PRVLZA
Standard
7750 lb.
(3515 kg)
VXKH76L -PRVZZA7780 lb.
(3530 kg)

5909-1. For owners
Owners Manual_USA_M0C031_en

591
Owners Manual_USA_M0C031_en
Index
What to do if... (Trouble-shooting) ................... 592
Alphabetical Index....... 595

592What to do if... (Troubleshooting)
Owners Manual_USA_M0C031_en
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
 If you lose your keys, new
keys can be made by your
Toyota dealer. ( P.526)
 If you lose your electronic
keys, the risk of vehicle theft
increases significantly. Con-
tact your Toyota dealer imme-
diately. ( P.526)
 Is the electronic key battery
weak or depleted? ( P.485)
 Is the power switch in ON?
When locking the doors, turn the
power switch off. ( P.198)
 Is the electronic key left inside
the vehicle?
When locking the doors, make sure
that you have the electronic key on your person.

The function may not operate
properly due to the condition
of the radio wave. ( P.130)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door from
outside and then unlock the child-
protector lock. ( P. 1 1 6 )
 Did you press the power
switch while firmly depress-
ing the brake pedal?
( P.195)
 Is the shift lever in P?
( P.195)
 Is the electronic key any-
where detectable inside the
vehicle? ( P.128)
 Is the electronic key battery
weak or depleted?
In this case, the h ybrid system can
be started in a temporary way.
(  P.528)
 Is the 12-volt battery dis-
charged? ( P.529)
If you have a problem,
check the following before
contacting your Toyota
dealer.
The doors cannot be
locked, unlocked, opened
or closed
You lose your keys
The electronic key does
not operate properly
The doors cannot be
locked or unlocked
The rear door cannot be
opened
If you think something is
wrong
The hybrid system does
not start

Owners Manual_USA_M0C031_en
593What to do if... (Troubleshooting)
Is the power switch in ON?
If you cannot release the shift lever
by depressing the brake pedal with
the power switch in ON. ( P.201)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot be
operated if the win dow lock switch
is pressed. ( P.162)
 The auto power off function
will be operated if the vehicle
is left in ACC or ON (the
hybrid system is not operat-
ing) for a period of time.
( P.198)
 The seat belt reminder light is
flashing
Are the driver and the front passen-
ger wearing the seat belts?
( P.507)
 The parking brake indicator is
on
Is the parking br ake released?
(  P.205)
Depending on the situation,
other types of warning buzzer
may also sound. ( P.501, 511)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 8 2 )
Do one of the following to deac-
tivate or stop the alarms:
 Unlock the doors using the
entry function or wireless
remote control.
 Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)
 Is the message displayed on
the multi-information display?
Check the message on the multi-
information display. ( P.501)
 When a warning light turns on
or a warning message is dis-
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The windows do not open
or close by operating the
power window switches
The power switch is
turned off automatically
A warning buzzer sounds
during driving
An alarm is a ctivated and
the horn sounds
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed

594What to do if... (Troubleshooting)
Owners Manual_USA_M0C031_en
played, refer to P.501, 511.
 Stop the vehicle in a safe
place and replace the flat tire
with the spare tire. ( P.515)
 Try the procedure for when
the vehicle becomes stuck in
mud, dirt, or snow. ( P.538)
When a problem has
occurred
If you have a flat tire
The vehicle becomes
stuck
