2022 TOYOTA HILUX display

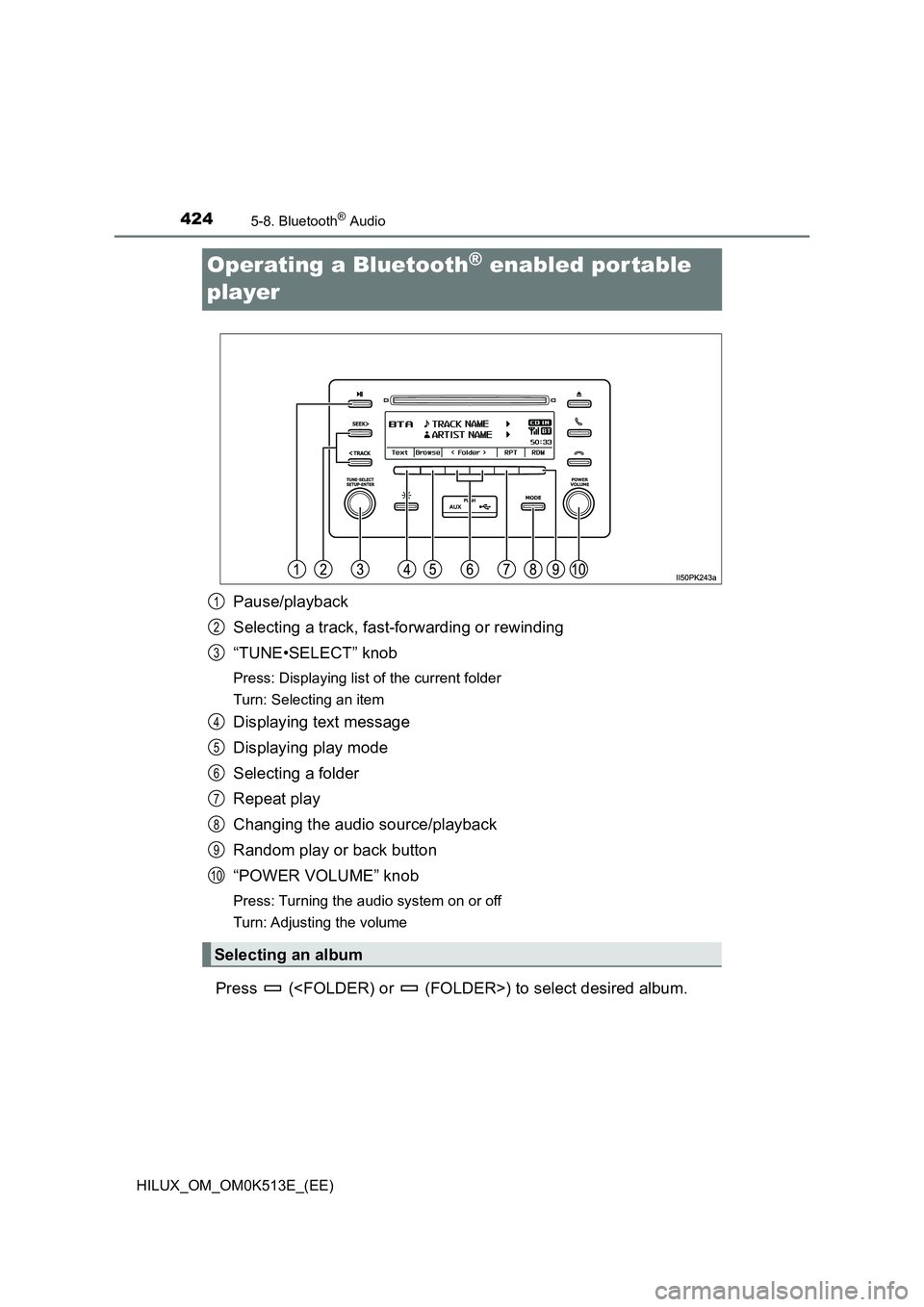

4245-8. Bluetooth® Audio
HILUX_OM_OM0K513E_(EE)
Operating a Bluetooth® enabled por table
player
Pause/playback
Selecting a track, fast-forwarding or rewinding
“TUNE•SELECT” knob
Press: Displaying list of the current folder
Turn: Selecting an item
Displaying text message
Displaying play mode
Selecting a folder
Repeat play
Changing the audio source/playback
Random play or back button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Press () to select desired album.
Selecting an album
1
2
3
4
5
6
7
8
9
10

4255-8. Bluetooth® Audio
5
Audio system
HILUX_OM_OM0K513E_(EE)
Turn the “TUNE•SELECT” knob or press the “SEEK >” or “< TRACK”
button to move up or down.
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
Pressing (RPT) changes modes in the following order: Track
repeat Album repeatOff.
Pressing (RDM) changes modes in the following order: Album ran-
dom All track randomOff.
Press (“BROWSE”). The playlist will be displayed.
Turn the “TUNE•SELECT” knob to display the folder/file list.
Press the knob to select the desired item.
Repeat the same procedure to select the desired file.
To return to the previous display, press (BACK).
Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold (TEXT) until you hear a beep to display the remaining
texts.
Q Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Q Display
 P. 390
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
Selecting a play mode
Switching the display
1
2
3
4

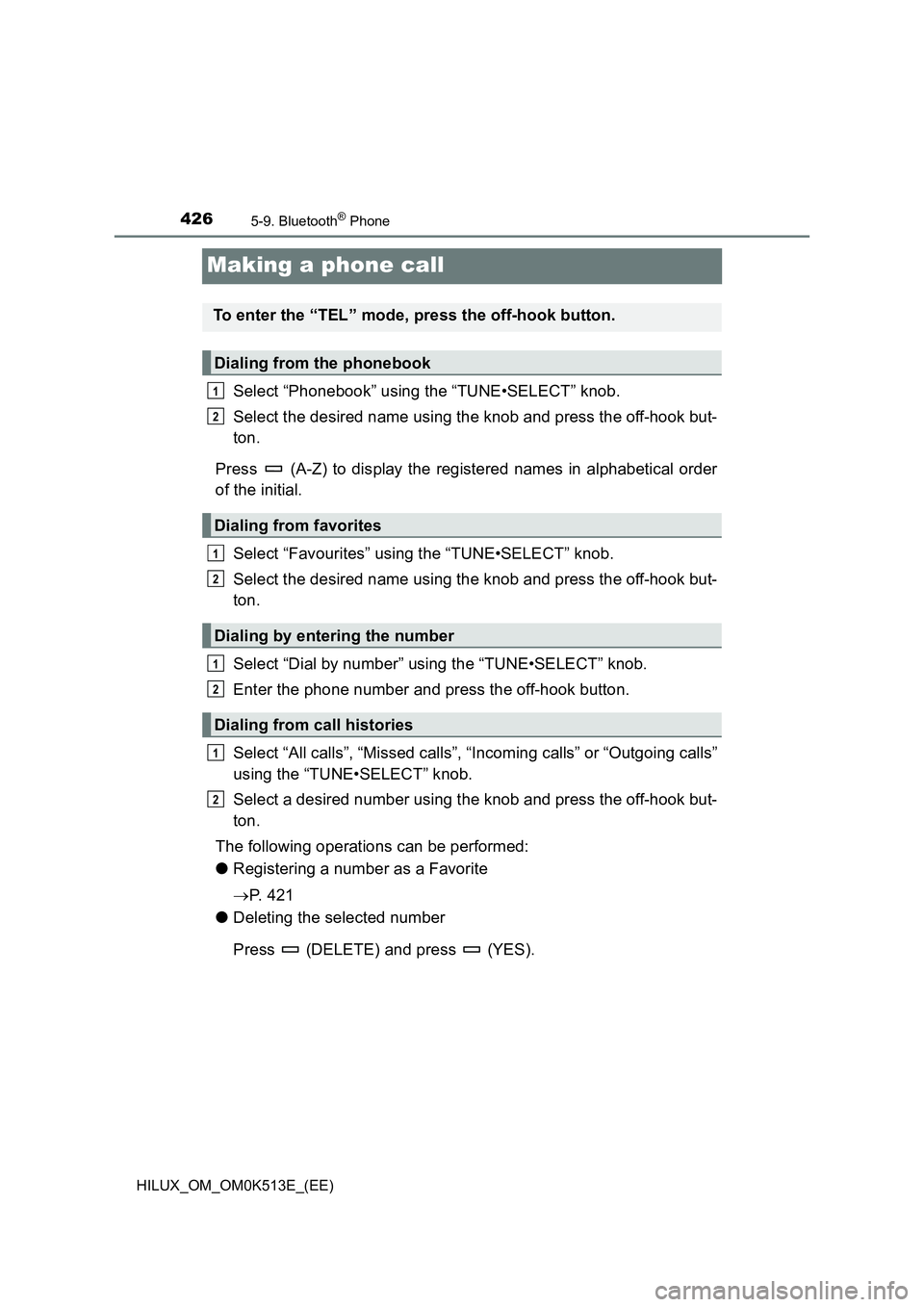

4265-9. Bluetooth® Phone
HILUX_OM_OM0K513E_(EE)
Making a phone call
Select “Phonebook” using the “TUNE•SELECT” knob.
Select the desired name using the knob and press the off-hook but-
ton.
Press (A-Z) to display the registered names in alphabetical order
of the initial.
Select “Favourites” using the “TUNE•SELECT” knob.
Select the desired name using the knob and press the off-hook but-
ton.
Select “Dial by number” using the “TUNE•SELECT” knob.
Enter the phone number and press the off-hook button.
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “TUNE•SELECT” knob.
Select a desired number using the knob and press the off-hook but-
ton.
The following operations can be performed:
O Registering a number as a Favorite
 P. 4 2 1
O Deleting the selected number
Press (DELETE) and press (YES).
To enter the “TEL” mode, press the off-hook button.
Dialing from the phonebook
Dialing from favorites
Dialing by entering the number
Dialing from call histories
1
2
1
2
1
2
1
2

4656-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)
6
Interior features
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
OThe clock is displayed when:
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
O When disconnecting and reconnecting battery terminals:
The time display will automatically be set to 1:00.
Clock
1
2
3

4917-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
QAfter changing the engine oil (models for model code destination W*)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter A ( P. 132) when the engine switch is
in the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
Turn the engine switch to the “LOCK” position (vehicles without smart entry
& start system) or off (vehicles with smart entry & start system).
While pressing the odometer/trip meter display change button ( P. 132),
turn the engine switch to the “ON” position (vehicles without smart entry &
start system) or IGNITION ON mode (vehicles with smart entry & start sys-
tem). (Do not start the engine because reset mode will be canceled.) Con-
tinue to press and hold the button for more than one second after the trip
meter displays “000000”.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
WARNING
QUsed engine oil
O Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
O Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota reta iler or Toyota authorized repairer,
or any reliable repairer, service station or auto parts store for information
concerning recycling or disposal.
O Do not leave used engine oil within the reach of children.
NOTICE
QTo prevent serious engine damage
Check the oil level on a regular basis.
Q When replacing the engine oil
O Be careful not to spill engine oil on the vehicle components.
O Avoid overfilling, or the engine could be damaged.
O Check the oil level on the dipstick every time you refill the vehicle.
O Be sure the engine oil filler cap is properly tightened.
1
2
3

4967-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
QBefore recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
O If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
O Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
Q After recharging/reconnecting the battery (vehicles with smart entry &
start system)
The engine may not start. Follow the procedure below to initialize the system.
Shift the shift lever to P (automat ic transmission) or depress the brake
pedal with the shift lever in N (manual transmission).
Open and close any of the doors.
Restart the engine.
O Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
O Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
O The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Q If a symbol of a battery is shown on the multi-information display
There is a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and contact any authorized
Toyota retailer or Toyota authorized repai rer, or any reliable repairer. Continu-
ing to drive the vehicle may be dangerous.
1
2
3

4987-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Add washer fluid in the following
situations:
O A washer does not work.
O The warning message appears
on the multi-information display
(if equipped).
NOTICE
Q When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
Q When adding distilled water (vehicles with maintenance type battery)
Avoid overfilling. Water spilled duri ng battery recharging may cause corro-
sion.
Washer fluid
WARNING
Q When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fi re if spilled on the engine etc.
NOTICE
QDo not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces as well as
damaging the pump leading to problems of the washer fluid not spraying.
Q Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.

4997-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
You may drain the fuel filter yourself. However, as the operation is dif-
ficult, we recommend having it drained by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer. Even if
you decide to drain it yourself, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
The water in the fuel filter needs to be drained if one of the following
symptoms occurs:
Vehicles without multi-information display
When the fuel system warning light flashes and a buzzer sounds.
( P. 569)
Vehicles with multi-information display
When “Water accumulation in fuel filter See owner’s manual” is
shown on the multi-information display and a buzzer sounds*1.
Vehicles without smart entry & start system: Turn the engine switch
to the “LOCK” position.
Vehicles with smart entry & start system: Turn the engine switch off.
Place a small tray under the drain plug or drain hose to catch the
water and any fuel that comes out.
Perform the draining as shown in the illustration.
Turn the drain plug counter-
clockwise about 2 to 2 1/2
turns.
Loosening more than this will
cause water oozing from around
the drain plug.
Operate the priming pump
until fuel begins to run out.
After draining, tighten the drain plug by hand.
*1: Models for model code destination Blank*2
*2: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
Fuel filter (diesel engine only)
1
2
3
1
2
4
