2484-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)

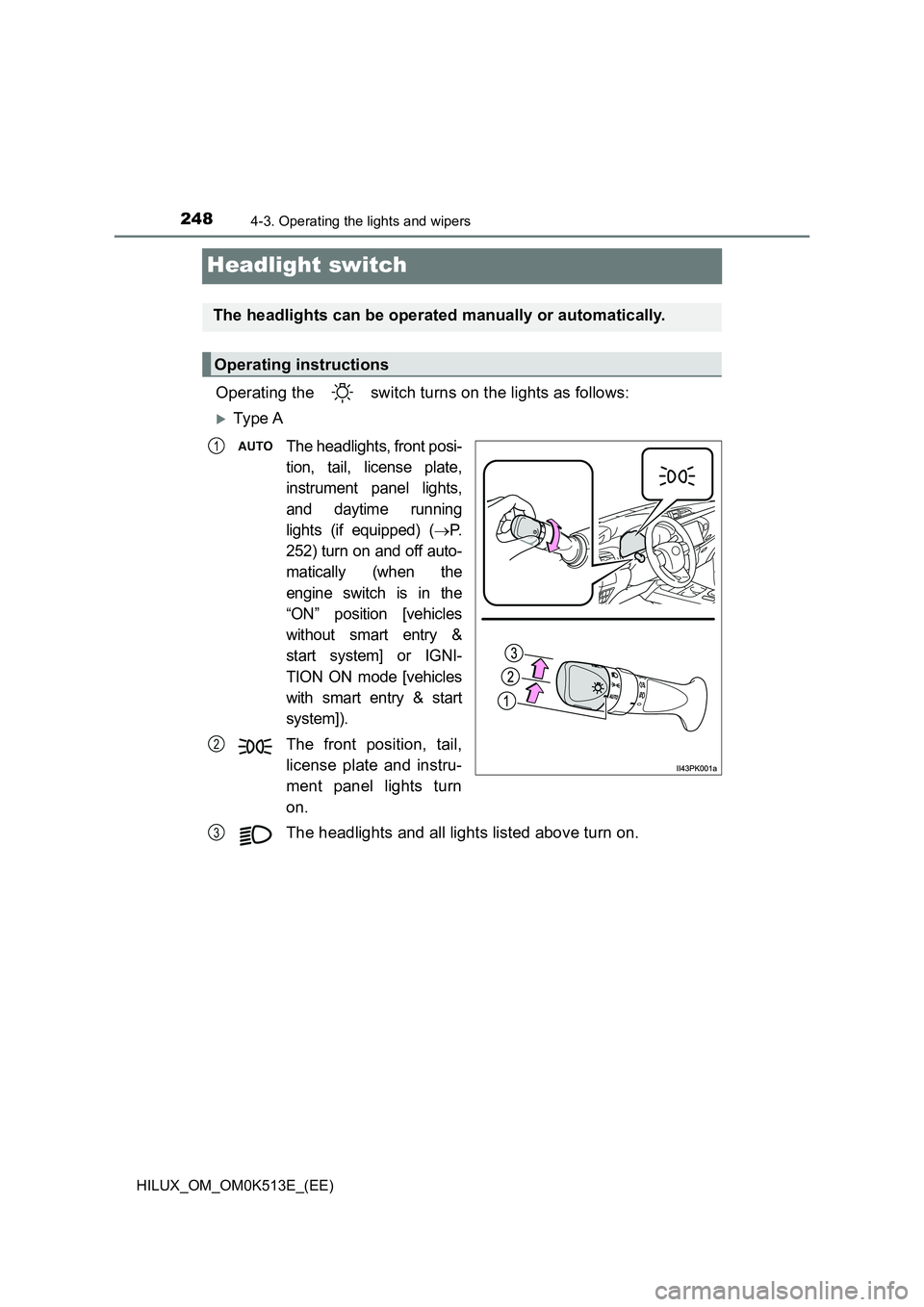

Headlight switch
Operating the switch turns on the lights as follows:
Ty pe A
The headlights, front posi-
tion, tail, license plate,
instrument panel lights,
and daytime running
lights (if equipped) (P.
252) turn on and off auto-
matically (when the
engine switch is in the
“ON” position [vehicles
without smart entry &
start system] or IGNI-
TION ON mode [vehicles
with smart entry & start
system]).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all lights listed above turn on.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3

2494-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K513E_(EE)

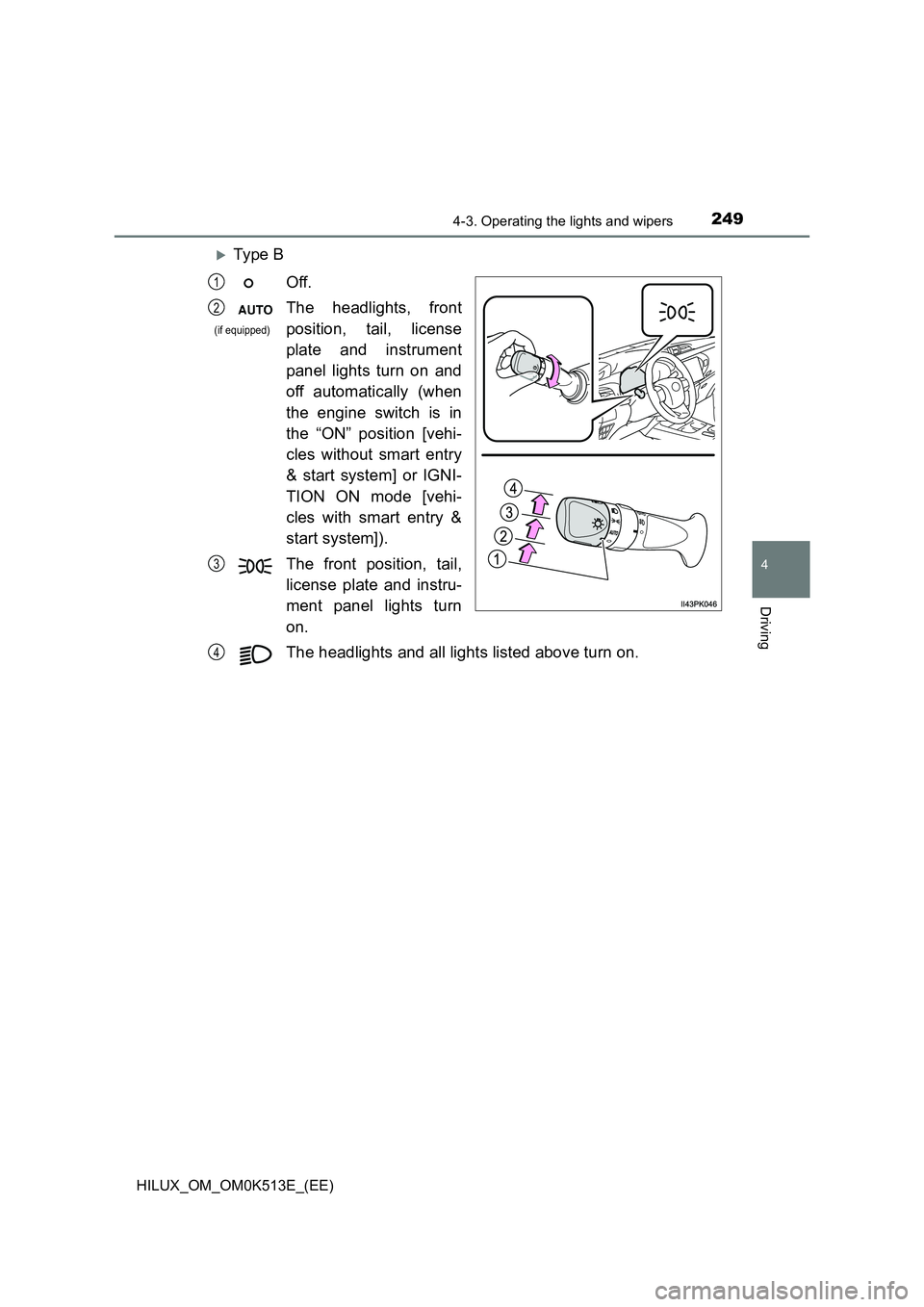

Ty pe B
Off.
The headlights, front
position, tail, license
plate and instrument
panel lights turn on and
off automatically (when
the engine switch is in
the “ON” position [vehi-
cles without smart entry
& start system] or IGNI-
TION ON mode [vehi-
cles with smart entry &
start system]).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all lights listed above turn on.
1
2
(if equipped)
3
4

2504-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
Turning on the high beam headlights
1
2
Manual headlight leveling dial (if equipped)
1
2

2514-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K513E_(EE)

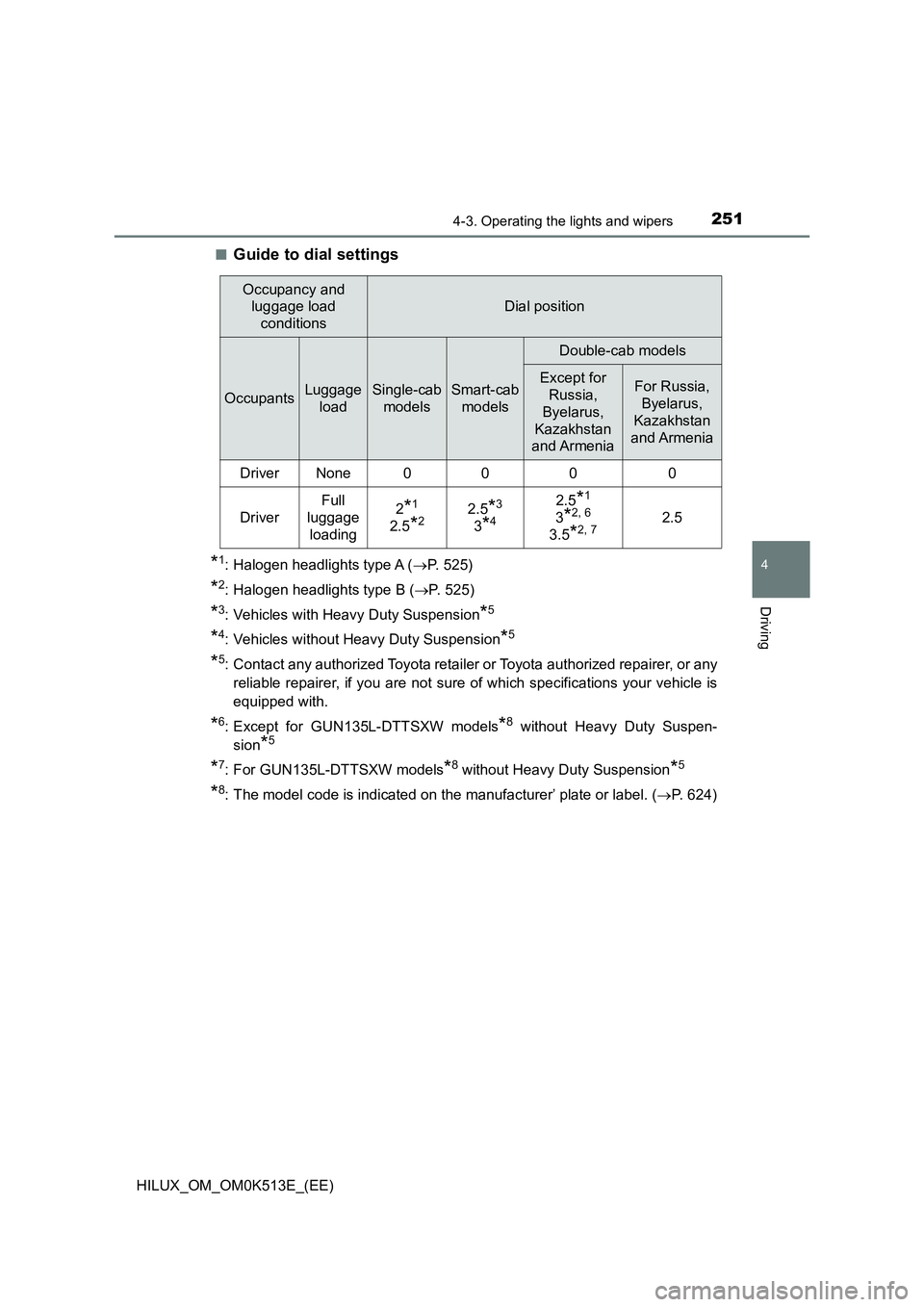

QGuide to dial settings
*1: Halogen headlights type A ( P. 525)
*2: Halogen headlights type B (P. 525)
*3: Vehicles with Heavy Duty Suspension*5
*4: Vehicles without Heavy Duty Suspension*5
*5: Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer, if you are not sure of which specifications your vehicle is
equipped with.
*6: Except for GUN135L-DTTSXW models*8 without Heavy Duty Suspen-
sion*5
*7: For GUN135L-DTTSXW models*8 without Heavy Duty Suspension*5
*8: The model code is indicated on the manufacturer’ plate or label. ( P. 624)
Occupancy and
luggage load
conditions
Dial position
OccupantsLuggage
load
Single-cab
models
Smart-cab
models
Double-cab models
Except for
Russia,
Byelarus,
Kazakhstan
and Armenia
For Russia,
Byelarus,
Kazakhstan
and Armenia
Driver None 0 0 0 0
Driver
Full
luggage
loading
2*1
2.5*22.5*3
3*4
2.5*1
3*2, 6
3.5*2, 72.5

2524-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)
This system allows the headlights and front position lights to be turned
on for 30 seconds when the engine switch is turned to the “LOCK”
position (vehicles without smart entry & start system) or off (vehicles
with smart entry & start system).
Pull the lever toward you and
release it with the light switch is in
or after turning the
engine switch to the “LOCK” posi-
tion (vehicles without smart entry
& start system) or off (vehicles
with smart entry & start system).
Pull the lever toward you and
release it again to turn off the
lights.
Q Daytime running light system (if equipped)
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch in . (Illuminate
brighter than the front position lights.) The daytime running light system is not
designed for use at night.
Q Headlight control sensor (if equipped)
Extended Headlight Lighting system (if equipped)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
