2022 TOYOTA HILUX child restraint

TABLE OF CONTENTS2
HILUX_OM_OM0K513E_(EE)
For your information .......................8
Reading this manual.....................14
How to search ..............................15
Pictorial index ...............................16
1-1. For safe use
Before driving.......................36
For safe driving ....................38
Seat belts .............................40
SRS airbags.........................45
Exhaust gas precautions .....56
1-2. Child safety
Front passenger occupant
classification system ..........57
Airbag manual on-off
system ...............................62
Riding with children..............64
Child restraint systems ........65
1-3. Emergency assistance
eCall.....................................98
ERA-GLONASS/EVAK ......110
1-4. Theft deterrent system
Engine immobilizer
system .............................115
Alarm .................................117
2. Instrument cluster
Warning lights
and indicators.................. 122
Gauges and meters........... 130
Multi-information display ... 135
Fuel consumption
information ...................... 144
3-1. Key information
Keys .................................. 148
3-2. Opening, closing and
locking the doors
Side doors ......................... 153
Access panels (smart-cab
models only).................... 159
Tailgate ............................. 160
Smart entry & start
system............................. 163
3-3. Adjusting the seats
Front seats ........................ 170
Rear seats ......................... 172
Head restraints .................. 175
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 178
Inside rear view mirror....... 180
Outside rear view
mirrors ............................. 182
1For safety and security
2Instrument cluster
3Operation of
each component

25Pictorial index
HILUX_OM_OM0K513E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Vanity mirror*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Interior lights*1, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 454
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
“SOS” button*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98, 110
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 70)
*3: The illustration shows the front, but they are also equipped in the rear.

33Pictorial index
HILUX_OM_OM0K513E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Vanity mirror*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Interior lights*1, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 454
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
“SOS” button*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 70)
*3: The illustration shows the front, but they are also equipped in the rear.

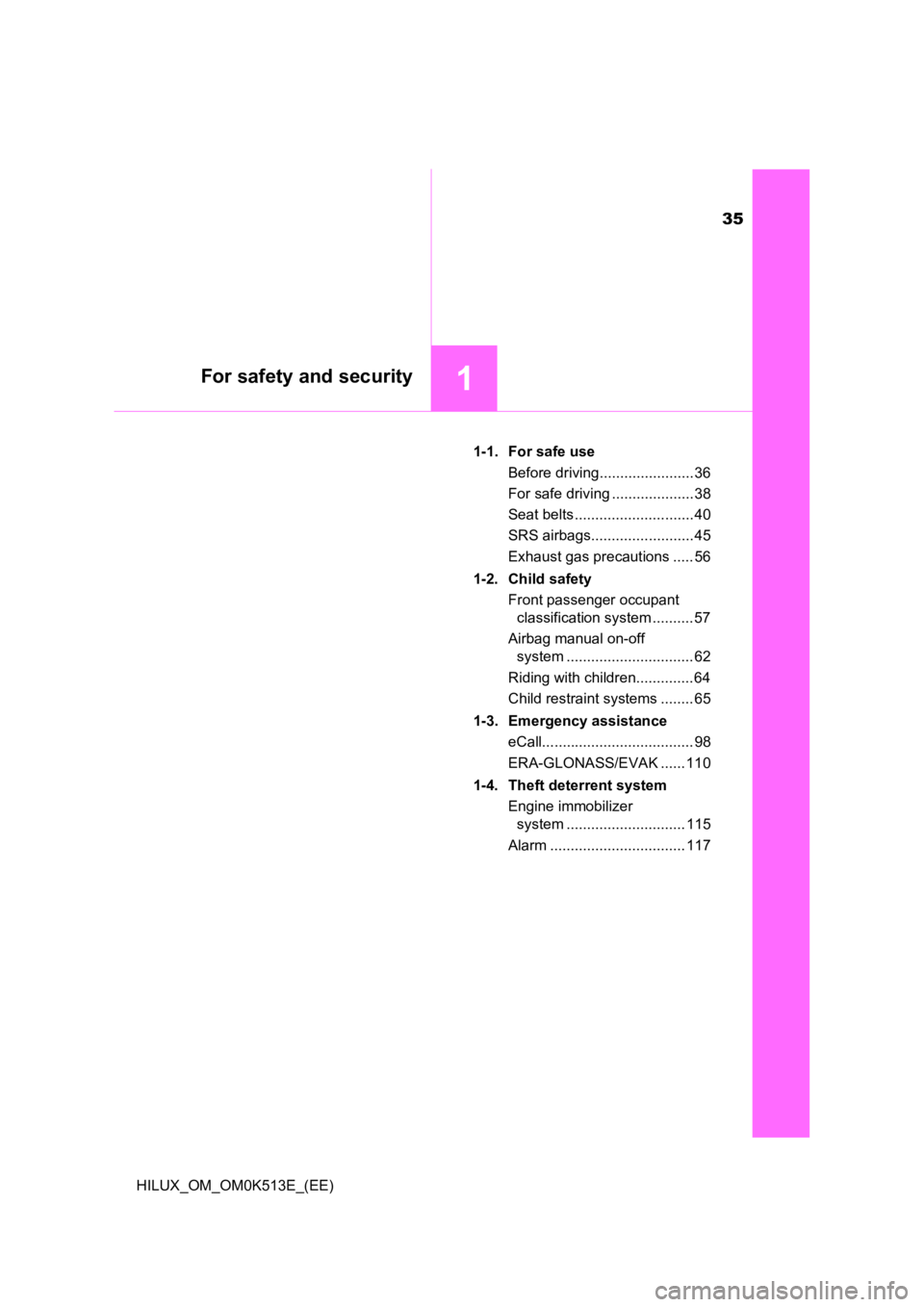

35
1For safety and security
HILUX_OM_OM0K513E_(EE)
1-1. For safe use
Before driving....................... 36
For safe driving .................... 38
Seat belts ............................. 40
SRS airbags......................... 45
Exhaust gas precautions ..... 56
1-2. Child safety
Front passenger occupant
classification system .......... 57
Airbag manual on-off
system ............................... 62
Riding with children.............. 64
Child restraint systems ........ 65
1-3. Emergency assistance
eCall..................................... 98
ERA-GLONASS/EVAK ...... 110
1-4. Theft deterrent system
Engine immobilizer
system ............................. 115
Alarm ................................. 117

381-1. For safe use
HILUX_OM_OM0K513E_(EE)
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 170)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 170)
Vehicles with adjustable type head restraint: Lock the head restraint
in place with the center of the head restraint closest to the top of
your ears. ( P. 175)
Wear the seat belt correctly. ( P. 4 0 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 4 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 5 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

421-1. For safe use
HILUX_OM_OM0K513E_(EE)
Vehicles without SRS side and curtain shield airbags
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal col-
lision.
The pretensioners do not activate
in the event of a minor frontal
impact, a side impact, a rear
impact or a vehicle rollover.
Vehicles with SRS side and curtain shield airbags
The pretensioners help the seat belts to quickly restrain the occupants
by retracting the seat belts when the vehicle is subjected to certain
types of severe frontal or side collision.
The pretensioners do not activate in t he event of a minor frontal impact, a
minor side impact, a rear impact or a vehicle rollover.
Q Emergency locking retractor (ELR) (3-point type seat belt)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Q Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
O Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (  P. 6 5 )
O When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( P. 40)
Q Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
Q Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for seat belt repl acement or installation.
Seat belt pretensioners (if equipped)

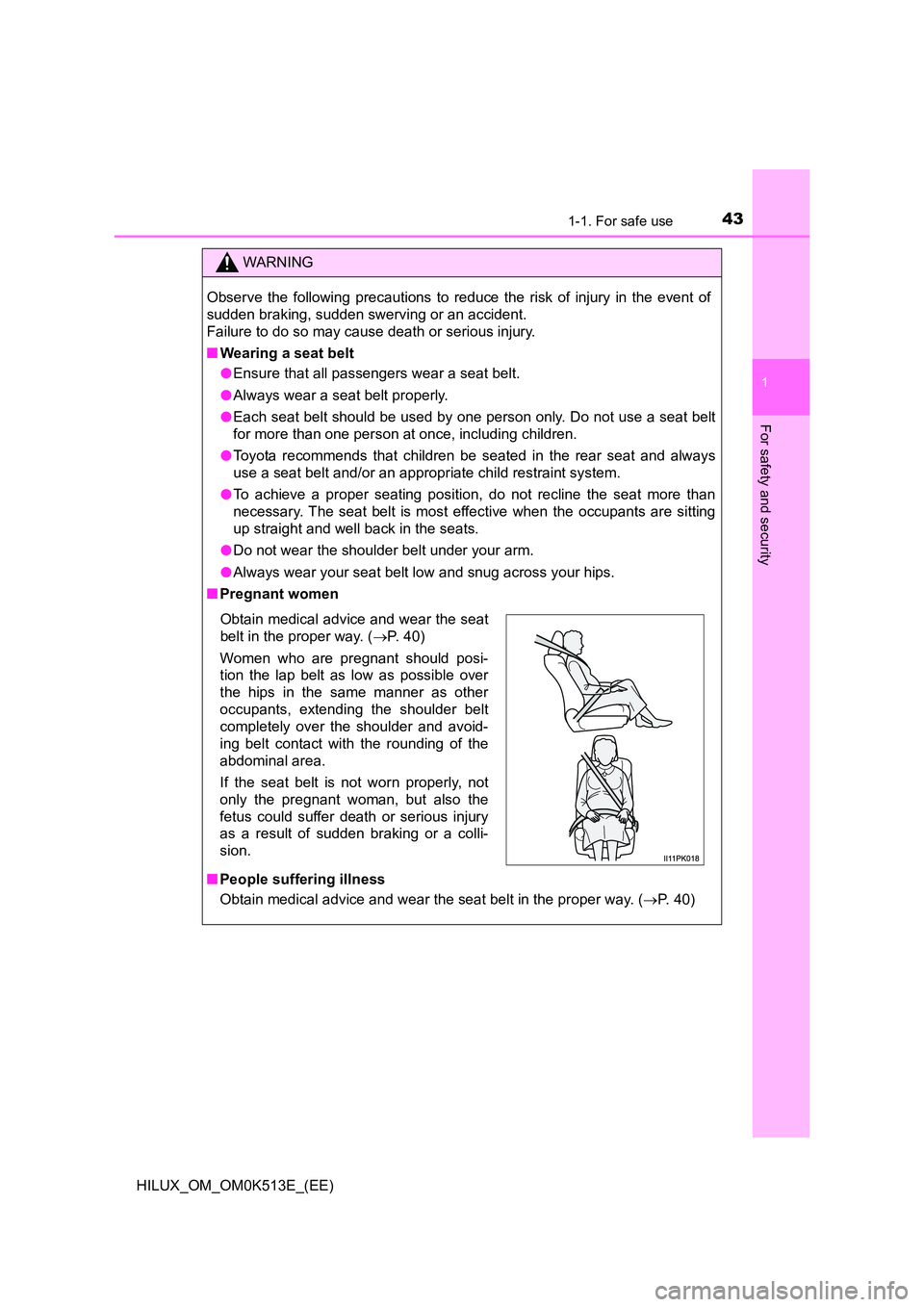

431-1. For safe use
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
Q Wearing a seat belt
O Ensure that all passengers wear a seat belt.
O Always wear a seat belt properly.
O Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
O Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
O To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
O Do not wear the shoulder belt under your arm.
O Always wear your seat belt low and snug across your hips.
Q Pregnant women
Q People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( P. 40)
Obtain medical advice and wear the seat
belt in the proper way. ( P. 40)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

481-1. For safe use
HILUX_OM_OM0K513E_(EE)
WARNING
QSRS airbag precautions
O The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
O Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats (if equipped) of the vehi cle and properly restrained. The rear
seats (if equipped) are safer for infants and children than the front passen-
ger seat. ( P. 65)
ODo not sit on the edge of the seat or
lean against the dashboard.
O Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
O Do not allow the front seat occupants to
hold items on their knees.
