2022 TOYOTA HILUX child restraint

751-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when “ON” of the “PASSEN-
GER AIR BAG” indicator is illuminated.

761-2. Child safety
HILUX_OM_OM0K513E_(EE)
Smart-cab models with rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3

*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

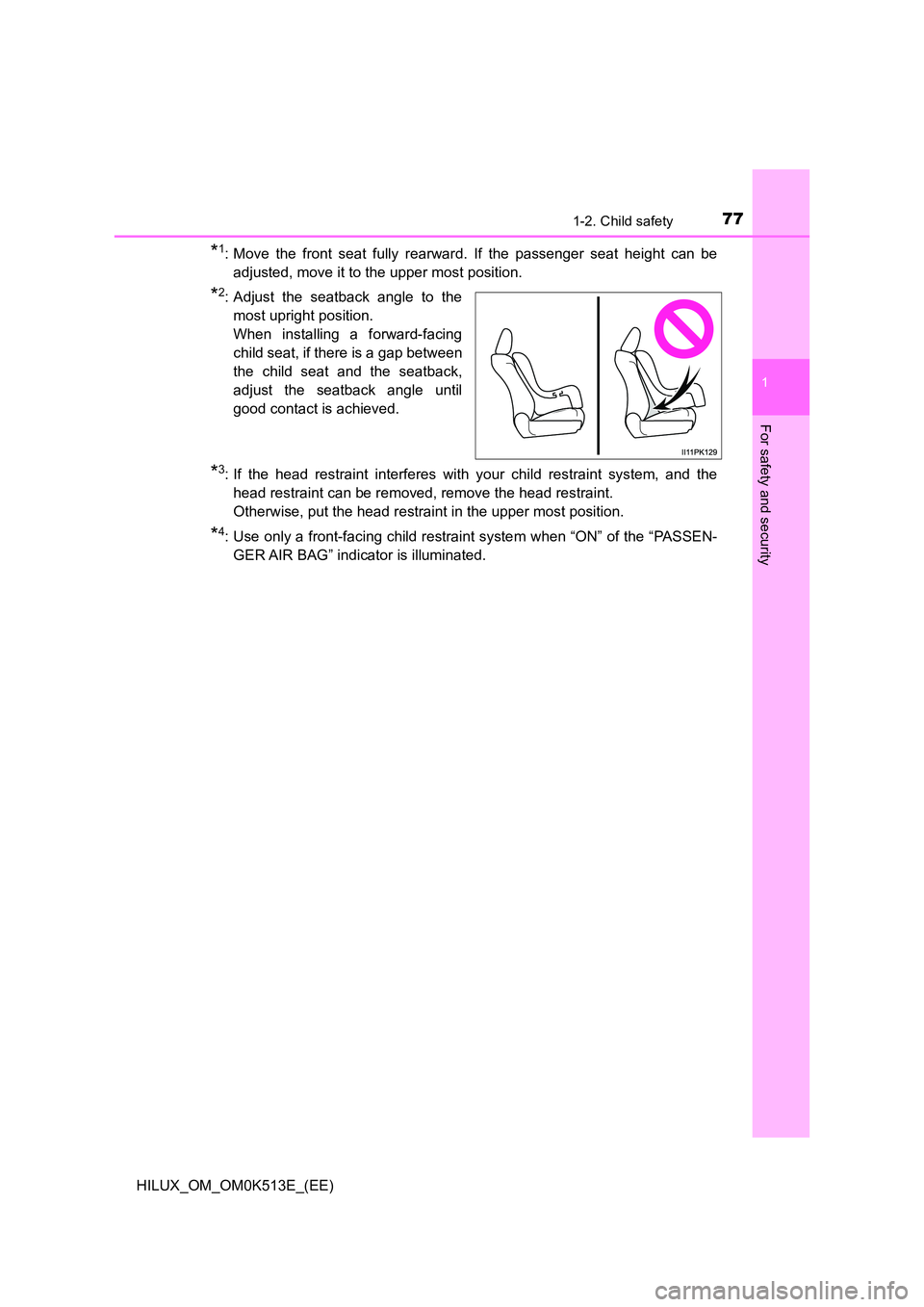

771-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when “ON” of the “PASSEN-
GER AIR BAG” indicator is illuminated.

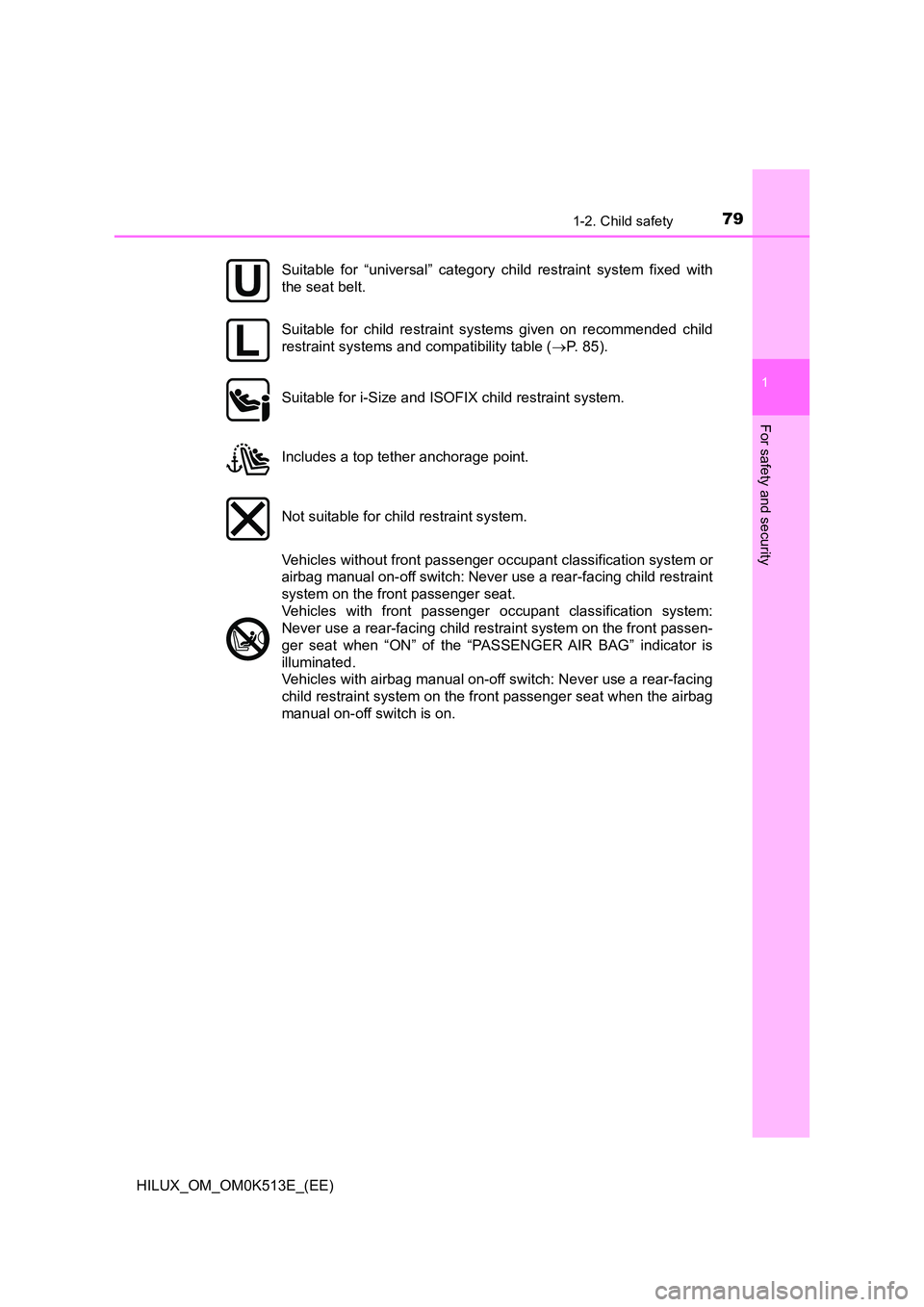

791-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Vehicles without front passenger occupant classification system or
airbag manual on-off switch: Never use a rear-facing child restraint
system on the front passenger seat.
Vehicles with front passenger occupant classification system:
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.
Vehicles with airbag manual on-off switch: Never use a rear-facing
child restraint system on the front passenger seat when the airbag
manual on-off switch is on.

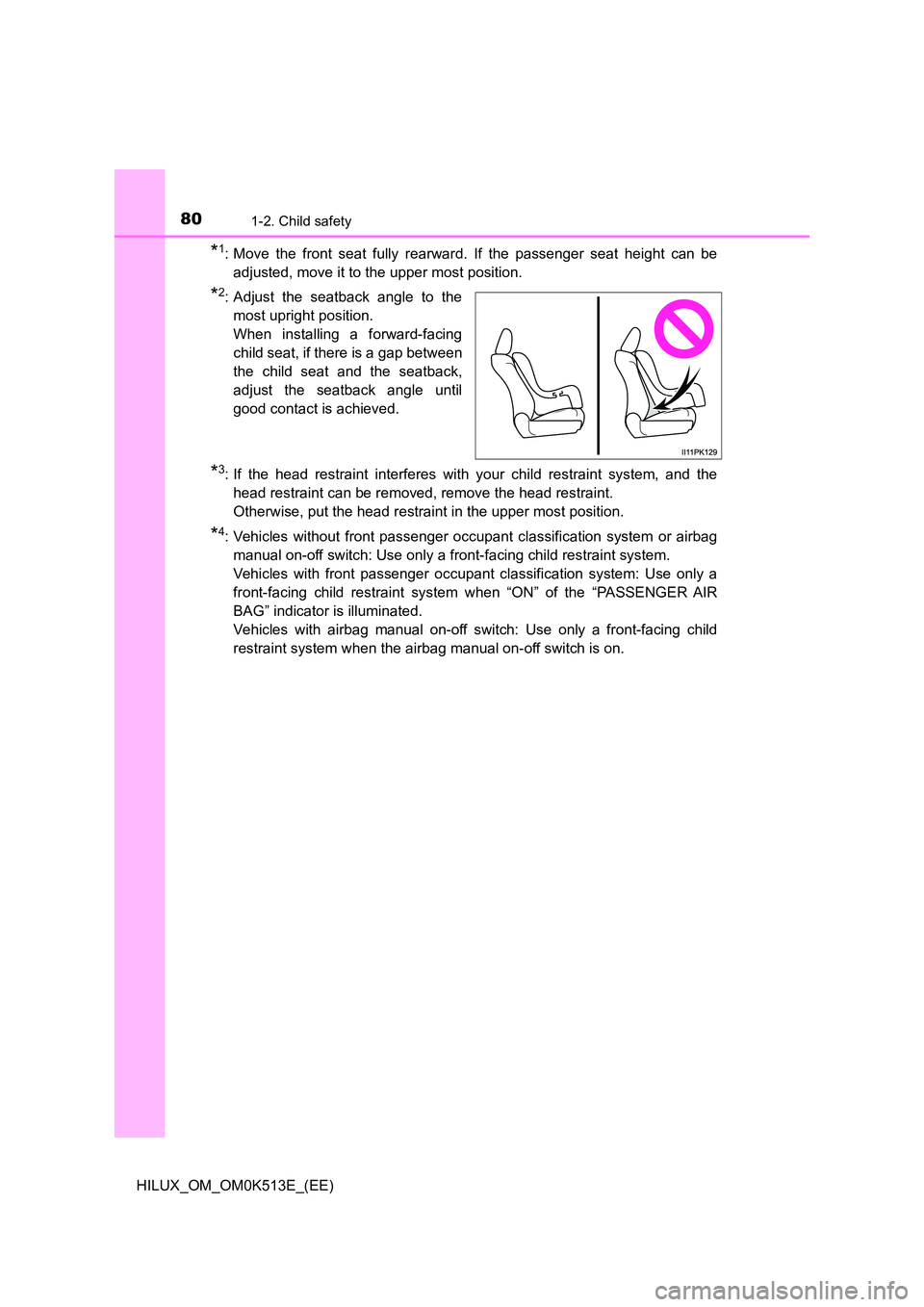

801-2. Child safety
HILUX_OM_OM0K513E_(EE)
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Vehicles without front passenger occupant classification system or airbag
manual on-off switch: Use only a front-facing child restraint system.
Vehicles with front passenger occupant classification system: Use only a
front-facing child restraint system when “ON” of the “PASSENGER AIR
BAG” indicator is illuminated.
Vehicles with airbag manual on-off switch: Use only a front-facing child
restraint system when the airbag manual on-off switch is on.

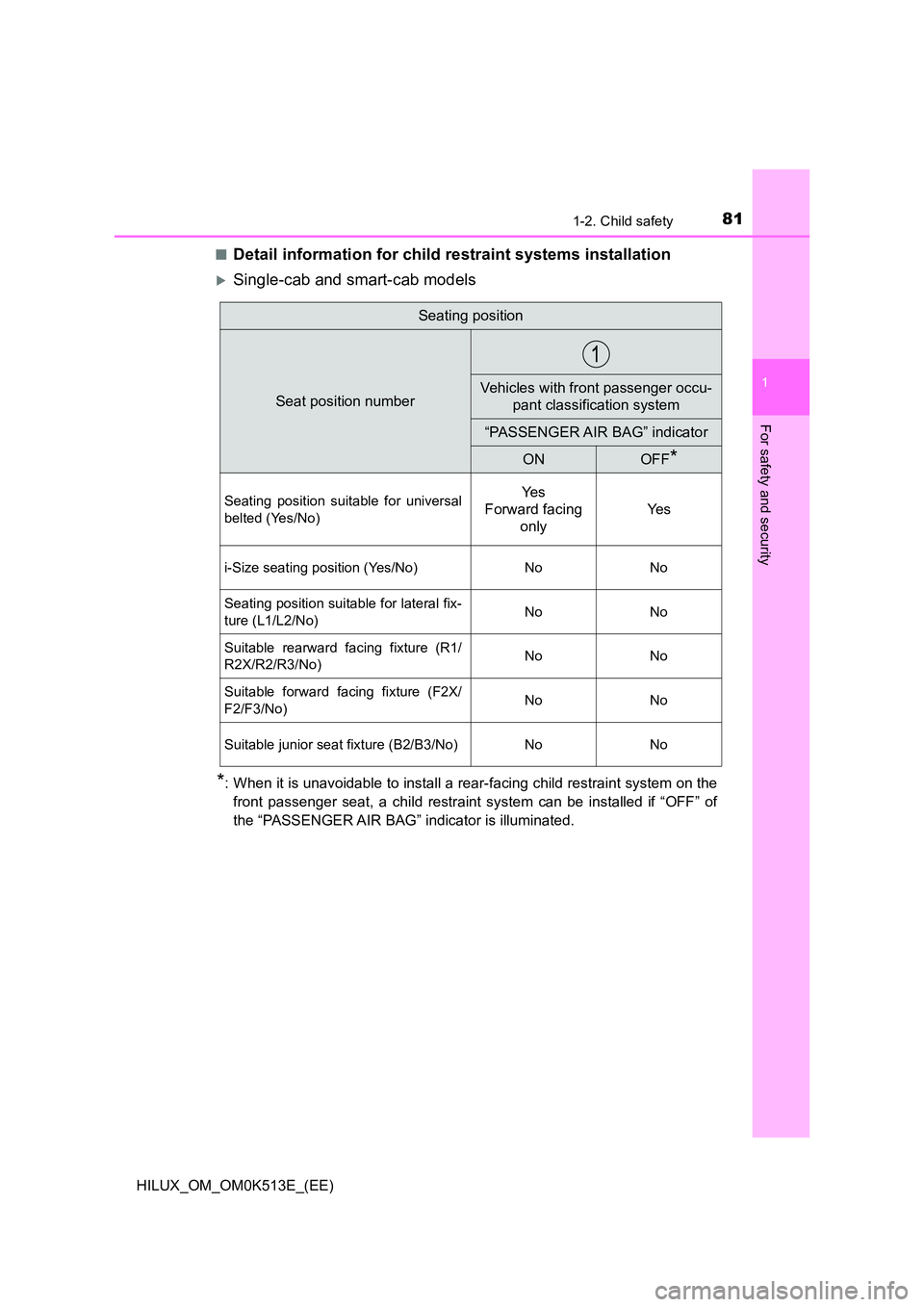

811-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
QDetail information for child restraint systems installation
Single-cab and smart-cab models
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
Seating position
Seat position numberVehicles with front passenger occu-
pant classification system
“PASSENGER AIR BAG” indicator
ONOFF*
Seating position suitable for universal
belted (Yes/No)
Ye s
Forward facing
only
Ye s
i-Size seating position (Yes/No) No No
Seating position suitable for lateral fix-
ture (L1/L2/No) No No
Suitable rearward facing fixture (R1/
R2X/R2/R3/No) No No
Suitable forward facing fixture (F2X/
F2/F3/No) No No
Suitable junior seat fixture (B2/B3/No) No No

821-2. Child safety
HILUX_OM_OM0K513E_(EE)
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

841-2. Child safety
HILUX_OM_OM0K513E_(EE)
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat
