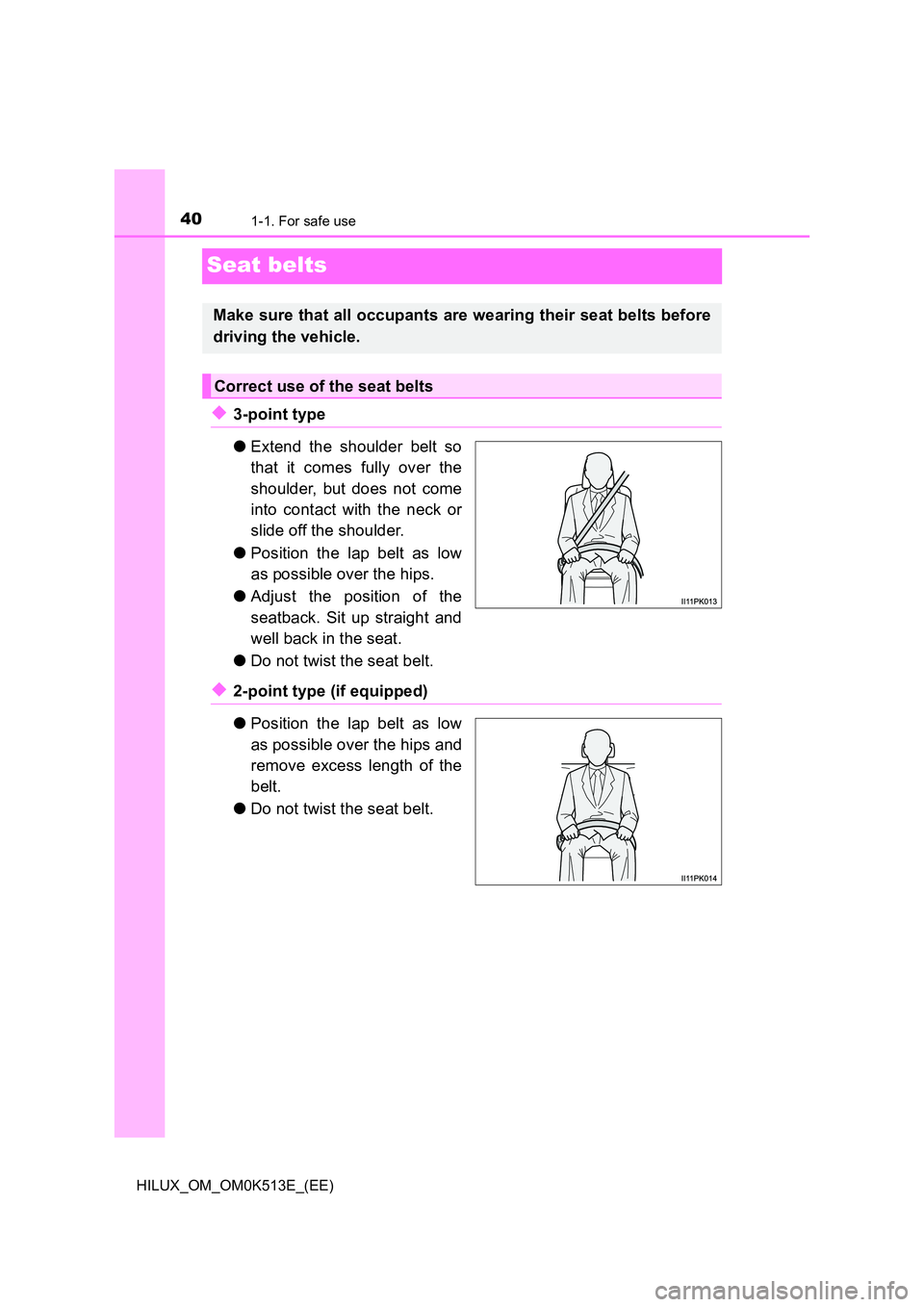

401-1. For safe use
HILUX_OM_OM0K513E_(EE)
Seat belts
X3-point type
O Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
O Position the lap belt as low
as possible over the hips.
O Adjust the position of the
seatback. Sit up straight and
well back in the seat.
O Do not twist the seat belt.
X2-point type (if equipped)
O Position the lap belt as low
as possible over the hips and
remove excess length of the
belt.
O Do not twist the seat belt.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts

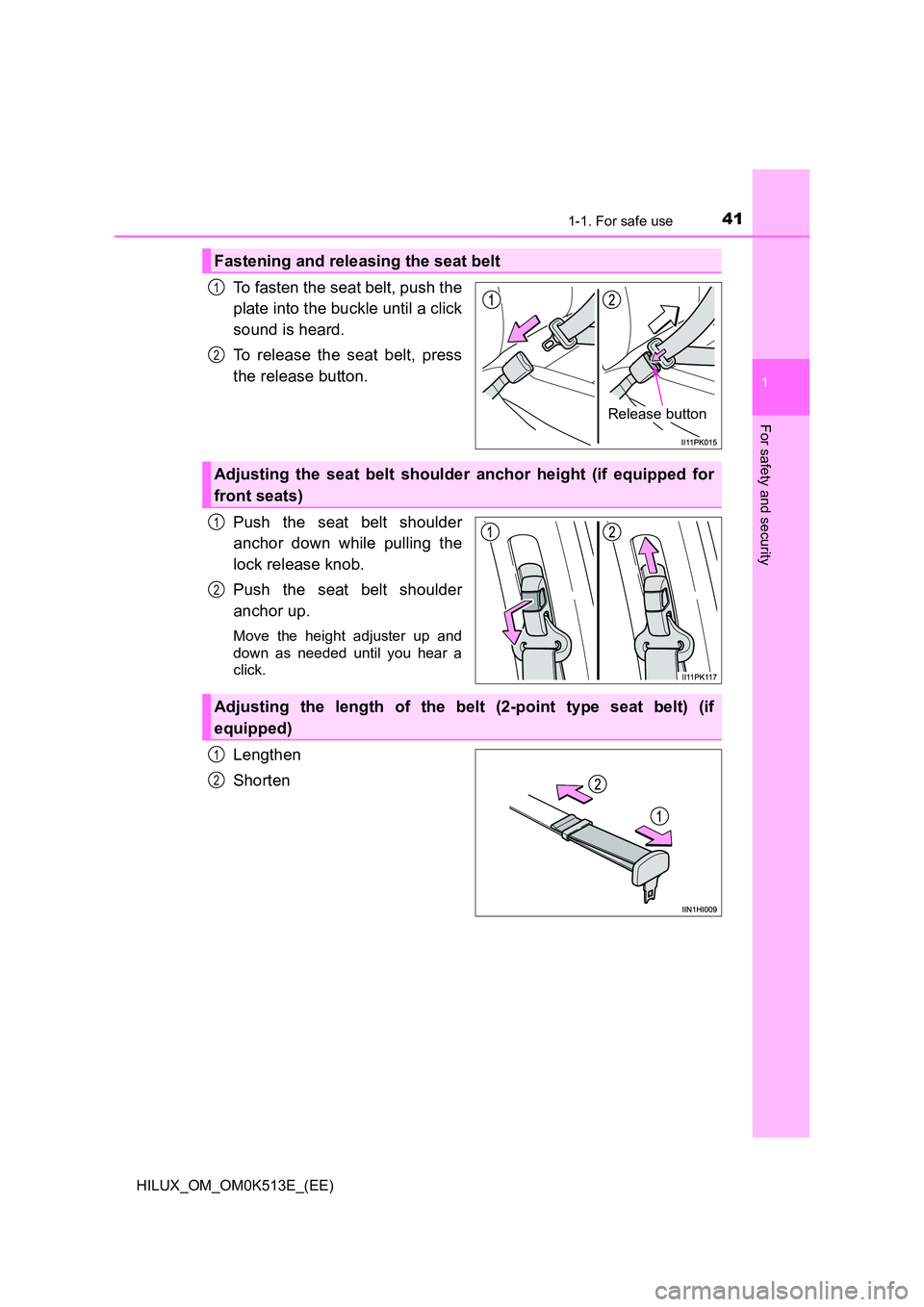

411-1. For safe use
1
HILUX_OM_OM0K513E_(EE)
For safety and security
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Push the seat belt shoulder
anchor down while pulling the
lock release knob.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
Lengthen
Shorten
Fastening and releasing the seat belt
Release button
1
2
Adjusting the seat belt shoulder anchor height (if equipped for
front seats)
1
2
Adjusting the length of the belt (2-point type seat belt) (if
equipped)
1
2

2094-1. Before driving
4
Driving
HILUX_OM_OM0K513E_(EE)
Your vehicle will handle differently when towing a trailer. In order to
avoid accident death or serious injury, keep the following in mind
when towing:
QChecking connections between trailer and lights
Stop the vehicle and check the operation of the connection between
the trailer and lights after driving for a brief period as well as before
starting off.
QPracticing driving with a coupled trailer
O Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
O When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn it right. Always rotate a little
at a time to prevent steering error. Have someone guide you
when reversing to lessen the risk of accident.
QIncreasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control. This
is especially true when driving on wet or slippery road surfaces.
QSudden acceleration/steering input/cornering
Executing sharp turns when towing may result in the trailer colliding
with your vehicle. Decelerate well in advance when approaching
turns and take them slowly and carefully to avoid sudden braking.
QImportant points regarding turning
The wheels of the trailer will travel closer to the inside of the curve
than the wheels of the vehicle. To make allowance for this, take the
turns wider than you would normally do.
Guidance

2104-1. Before driving
HILUX_OM_OM0K513E_(EE)
QImportant points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly applying
the brakes. Always steer the vehicle straight ahead while braking.
QPassing other vehicles
Consider the total combined length of your vehicle and trailer and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
QTransmission information
Vehicles with manual transmission: To maintain engine braking effi-
ciency when using engine braking, do not use 5th gear and 6th
gear.
Vehicles with automatic transmission: To maintain engine braking
efficiency when using engine braking, do not use the transmission
in D. Transmission shift range position must be in 4 or lower, in S
mode.
QIf the engine overheats
Towing a loaded trailer up a long, steep incline in temperatures
exceeding 30 C (85F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is over-
heating, turn the air conditioning off immediately, leave the road and
stop the vehicle in a safe place. ( P. 610)
QWhen parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to P
for automatic transmissions, and 1 or R for manual transmissions.

3504-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Q Air conditioning system operation while the engine is stopped by the
Stop & Start system
Vehicles with an automati c air conditioning system: When the air conditioning
is in automatic mode and the engine is stopped by the Stop & Start system,
the fan may operate at a low speed in order to prevent the temperature in the
cabin from increasing or decreasing or may be stopped.
To prioritize air conditioning system performance when the vehicle is stopped,
disable the Stop & Start system by pressing the Stop & Start cancel switch.
O If the windshield is fogged up
Turn on. (P. 443)
If the windshield fogs up frequently, press the Stop & Start cancel switch to
disable the Stop & Start system.
O If an odor is emitted from the air conditioning system
• Vehicles with manual air conditioning system:
If the idling stop time setting is set to “Extended” change it to “Standard”.
If an odor is emitted when the idling stop time setting is set to “Standard”,
press the Stop & Start cancel switch to deactivate the Stop & Start sys-
tem.
• Vehicles with automatic air conditioning system:
Press the Stop & Start cancel switch to deactivate the Stop & Start sys-
tem.
Q Changing the idling stop time with the air conditioning system on
The length of time the Stop & Start system will operate when the air condition-
ing system is on can be changed in of the multi-information display
( P. 646). (The length of time the Stop & Start system will operate when the
air conditioning system is off cannot be changed.)
Q Displaying the Stop & Start system status
 P. 141

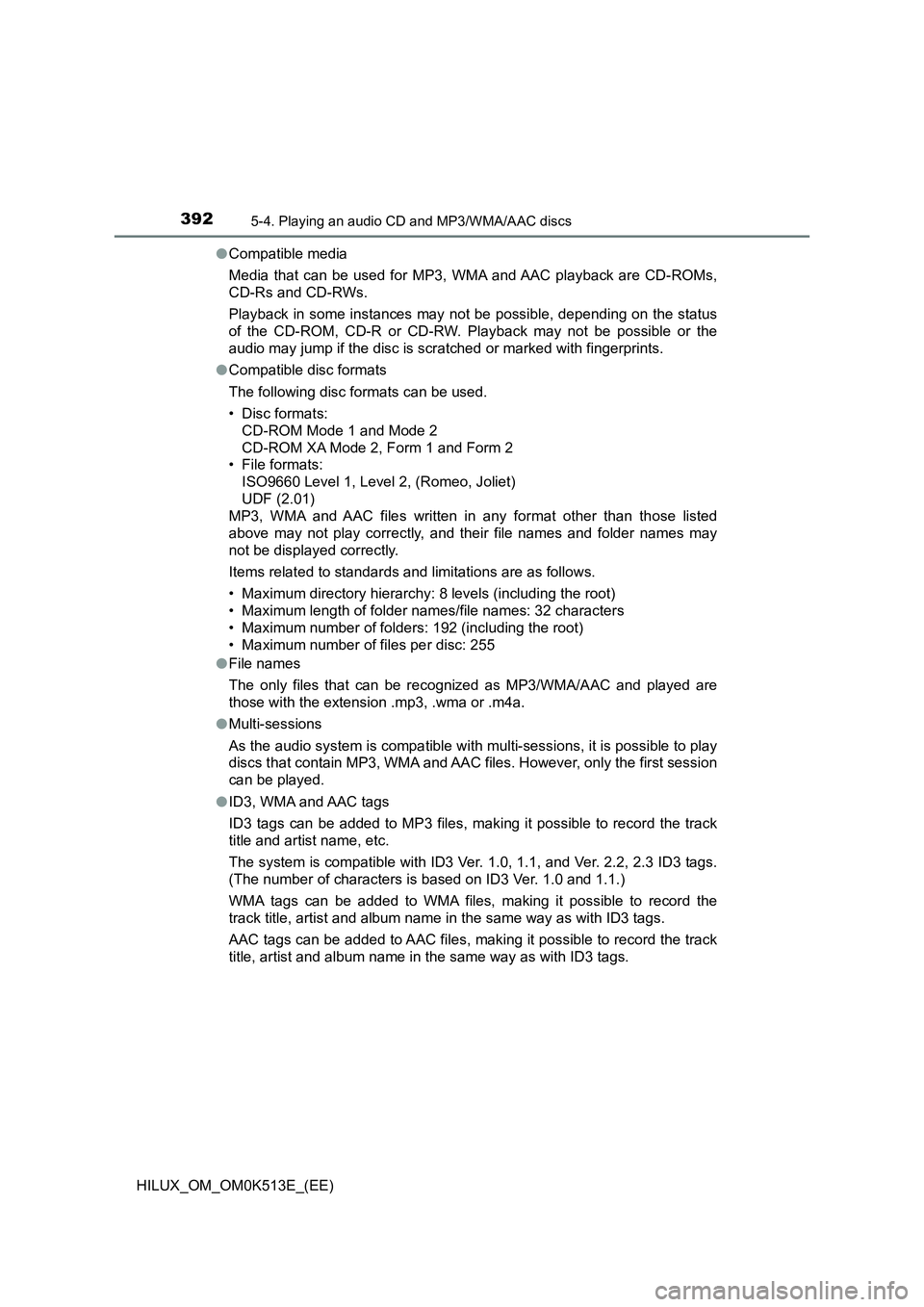

3925-4. Playing an audio CD and MP3/WMA/AAC discs
HILUX_OM_OM0K513E_(EE)
O Compatible media
Media that can be used for MP3, WMA and AAC playback are CD-ROMs,
CD-Rs and CD-RWs.
Playback in some instances may not be possible, depending on the status
of the CD-ROM, CD-R or CD-RW. Playback may not be possible or the
audio may jump if the disc is scratched or marked with fingerprints.
O Compatible disc formats
The following disc formats can be used.
• Disc formats:
CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats:
ISO9660 Level 1, Level 2, (Romeo, Joliet)
UDF (2.01)
MP3, WMA and AAC files written in any format other than those listed
above may not play correctly, and their file names and folder names may
not be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
O File names
The only files that can be recognized as MP3/WMA/AAC and played are
those with the extension .mp3, .wma or .m4a.
O Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3, WMA and AAC files. However, only the first session
can be played.
O ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title, artist and album name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track
title, artist and album name in t he same way as with ID3 tags.

6209-1. Specifications
HILUX_OM_OM0K513E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: With tailgate type A (P. 160)
*3: With tailgate type B (P. 160)
*4: Without side step
*5: With side step
*6: With exterior type A*9
*7: With exterior type B*9
*8: With exterior type C*9
Dimensions
Overall length
Without
over fender
Without rear bumper 5265 mm (207.3 in.)*2
5285 mm (208.1 in.)*3
With rear bumper 5335 mm (210.0 in.)
With
over fender
Without rear bumper 5255 mm (206.9 in.)*2
5275 mm (207.7 in.)*3
With rear bumper 5325 mm (209.6 in.)
Overall width
Without over fender1800 mm (70.9 in.)*4
1815 mm (71.5 in.)*5
With over fender
1855 mm (73.0 in.)*6
1900 mm (74.8 in.)*7
1910 mm (75.2 in.)*8
Overall
height*1
Single-cab models 1855 mm (73.0 in.)*10
1795 mm (70.7 in.)*11
Smart-cab models1860 mm (73.2 in.)*10
1810 mm (71.3 in.)*11
Double-cab models1865 mm (73.4 in.)*10
1815 mm (71.5 in.)*11
Wheelbase 3090 mm (121.7 in.)
Front tread
1505 mm (59.3 in.)*12
1495 mm (58.9 in.)*13
1535 mm (60.4 in.)*14
Rear tread
1520 mm (59.8 in.)*12
1510 mm (59.4 in.)*13
1550 mm (61.0 in.)*14
