3-5. Opening and closing
the windows
Power windows ..................185
Quarter windows
(smart-cab models)..........189
4-1. Before driving
Driving the vehicle .............192
Cargo and luggage ............205
Trailer towing (without
towing hitch) ....................206
Trailer towing (with towing
hitch) ................................207
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........220
Engine (ignition) switch
(vehicles with smart
entry & start system)........223
Automatic transmission......231
Manual transmission ..........239
Turn signal lever ................246
Parking brake.....................247
4-3. Operating the lights
and wipers
Headlight switch.................248
Fog light switch ..................255
Windshield wipers and
washer .............................258
4-4. Refueling
Opening the fuel tank
cap ...................................261
4-5. Using the driving support
systems
Toyota Safety Sense ......... 266
PCS (Pre-Collision
System) ........................... 273
LDA (Lane Departure
Alert With Yaw Assist
Function) ......................... 284
RSA (Road Sign Assist) .... 295
Dynamic radar cruise
control ............................. 301
Cruise control .................... 317
Toyota parking
assist-sensor ................... 321
Four-wheel drive
system............................. 331
Rear differential
lock system ..................... 341
Stop & Start system .......... 345
Driving assist systems....... 355
Downhill assist control
system............................. 364
AUTO LSD ........................ 367
DPF (Diesel Particulate
Filter) system .................. 369
4-6. Driving tips
Winter driving tips.............. 374
5-1. Basic Operations
Audio system types ........... 378
Using the steering wheel
audio switches ................ 379
AUX port/USB port ............ 381
4Driving
5Audio system

12
HILUX_OM_OM0K513E_(EE)
Check the model code to see what type of model your vehicle is.
Basic code
TGN16: Models with 2TR-FE engine
GUN16: Models with 1GD-FTV engine
GUN15: Models with 2GD-FTV engine
Driving system
2: 4WD models
3: Pre Runner (2WD models)
Cab type
B: Single-cab
C: Smart-cab
D: Double-cab
Made in
N: South Africa
T: Thailand
Transmission type
T: Automatic transmission
M: 5-speed manual transmission
F: 6-speed manual transmission
Grade
H: HIGH
S: STD
L: LOW
Destination
W: Models for European countries etc.
Blank: Models for Kazakhstan etc.
The model code appears on the manufacture r’s label or plate with the head-
ing “MODEL”.
Checking your vehicle’s model
G U N 1 2 5 – D T T H W
3
1
42576
1
2
3
4
5
6
7

18Pictorial index
HILUX_OM_OM0K513E_(EE)
QInstrument panel (Left-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220, 223
Starting the engine/changing the positions or modes . . . P. 220, 223
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Warning messages*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 575
Shift lever (Automatic transmission) . . . . . . . . . . . . . . . . . . P. 231
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 237
Shift lever (Manual transmission) . . . . . . . . . . . . . . . . . . . . P. 239
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
1
2

26Pictorial index
HILUX_OM_OM0K513E_(EE)
QInstrument panel (Right-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220, 223
Starting the engine/changing the positions or modes . . . P. 220, 223
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 575
Shift lever (Automatic transmission) . . . . . . . . . . . . . . . . . . P. 231
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 237
Shift lever (Manual transmission) . . . . . . . . . . . . . . . . . . . . P. 239
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
1
2

371-1. For safe use
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
Q When installing the driver’s floor mat
O Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
O Only use floor mats designed for the driver’s seat.
O Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
O Do not use two or more floor mats on top of each other.
O Do not place the floor mat bottom-side up or upside-down.
Q Before driving
OCheck that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
O With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

1282. Instrument cluster
HILUX_OM_OM0K513E_(EE)

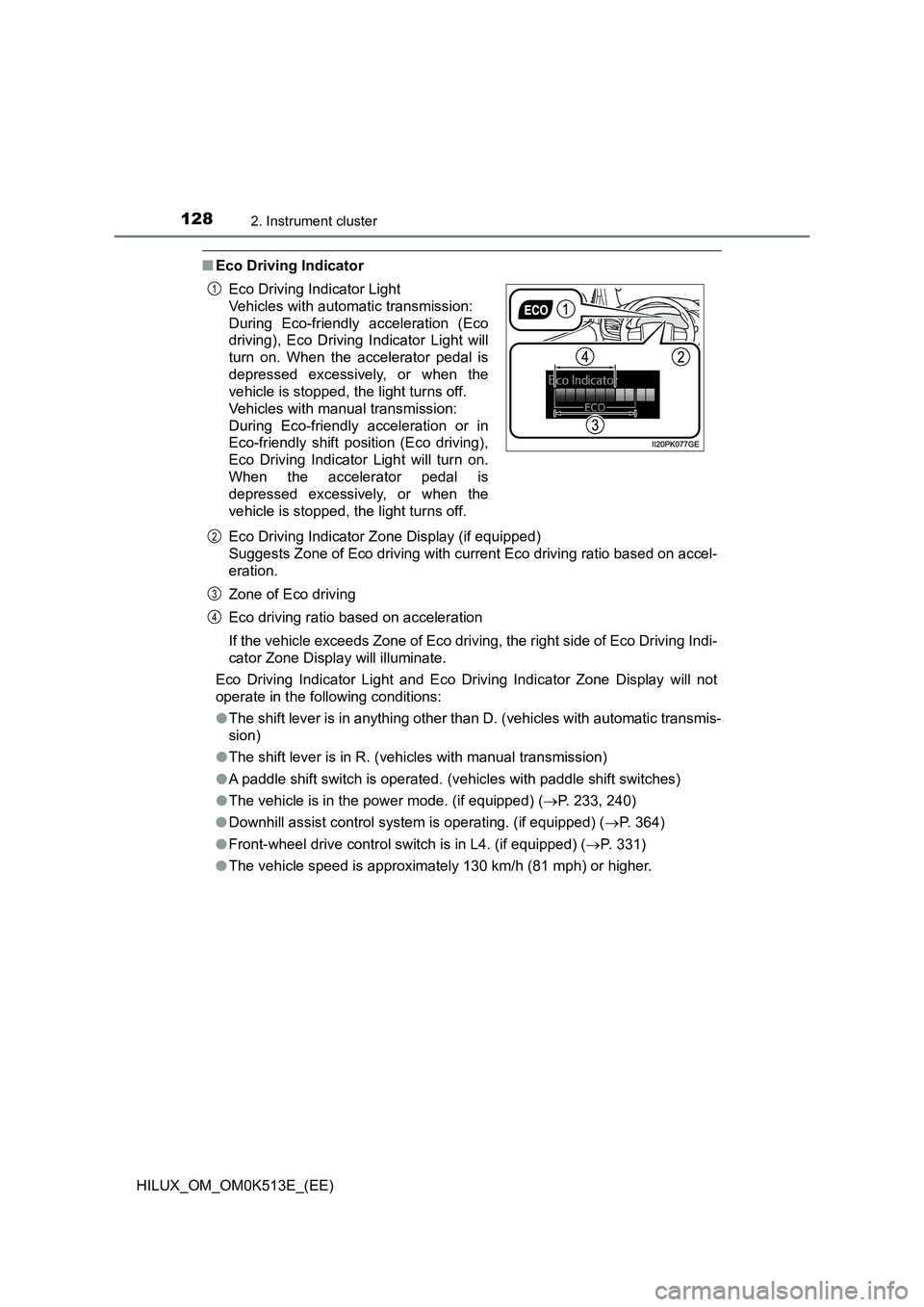

QEco Driving Indicator
Eco Driving Indicator Zone Display (if equipped)
Suggests Zone of Eco driving with current Eco driving ratio based on accel-
eration.
Zone of Eco driving
Eco driving ratio based on acceleration
If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will illuminate.
Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:
O The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)
O The shift lever is in R. (vehicles with manual transmission)
O A paddle shift switch is operated. (vehicles with paddle shift switches)
O The vehicle is in the power mode. (if equipped) (P. 233, 240)
O Downhill assist control system is operating. (if equipped) (P. 364)
O Front-wheel drive control switch is in L4. (if equipped) (P. 331)
O The vehicle speed is approximately 130 km/h (81 mph) or higher.
Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
1
2
3
4

1312. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature. The temperature range that can be dis-
played is from -40 C (-40F) to 50C (122F). The low outside temperature
indicator comes on when the ambient temperature is approximately 3 C
(37 F) or lower, and goes off when approximately 5C (41F) or higher.
( P. 127)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 132
Odometer and trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 1 3 5 )
Shift position and shift range (automatic transmission)
Displays the selected shift position or selected shift range. (P. 231)
Engine coolant temperature gauge
Displays the engine coolant temperature.
1
2
3
4
5
6
7
8
9

1342. Instrument cluster
HILUX_OM_OM0K513E_(EE)
WARNING
QThe information display at low temperatures (vehicles with multi-infor-
mation display)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For vehicles with automatic transmission: For example, there is a lag
between the driver’s shifting and the new gear number appearing on the
display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE
Q To prevent damage to the engine and its components
O Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
O The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 610)
