4115-6. Using Bluetooth® devices
5
Audio system
HILUX_OM_OM0K513E_(EE)
To enter a menu, press the “TUNE•SELECT” knob and navigate
menus by using the knob.
“Bluetooth®” menu
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth”
“Pairing”-
Registering a
Bluetooth® device
( P. 414)
“List phone”-
Listing the registered
cellular phones
( P. 415)
“List audio” -
Listing the registered
portable players
( P. 416)
“Passkey” -Changing the pass-
key ( P. 417)
“BT power” -
Setting automatic
connection of the
device on or off
( P. 417)
“Bluetooth info”“Device name”
“Device address”
Displaying the
device status
( P. 417)
“Display setting” -
Setting the auto-
matic connection
confirmation display
to on or off
( P. 418)
“Reset” -Initializing the set-
tings ( P. 418)

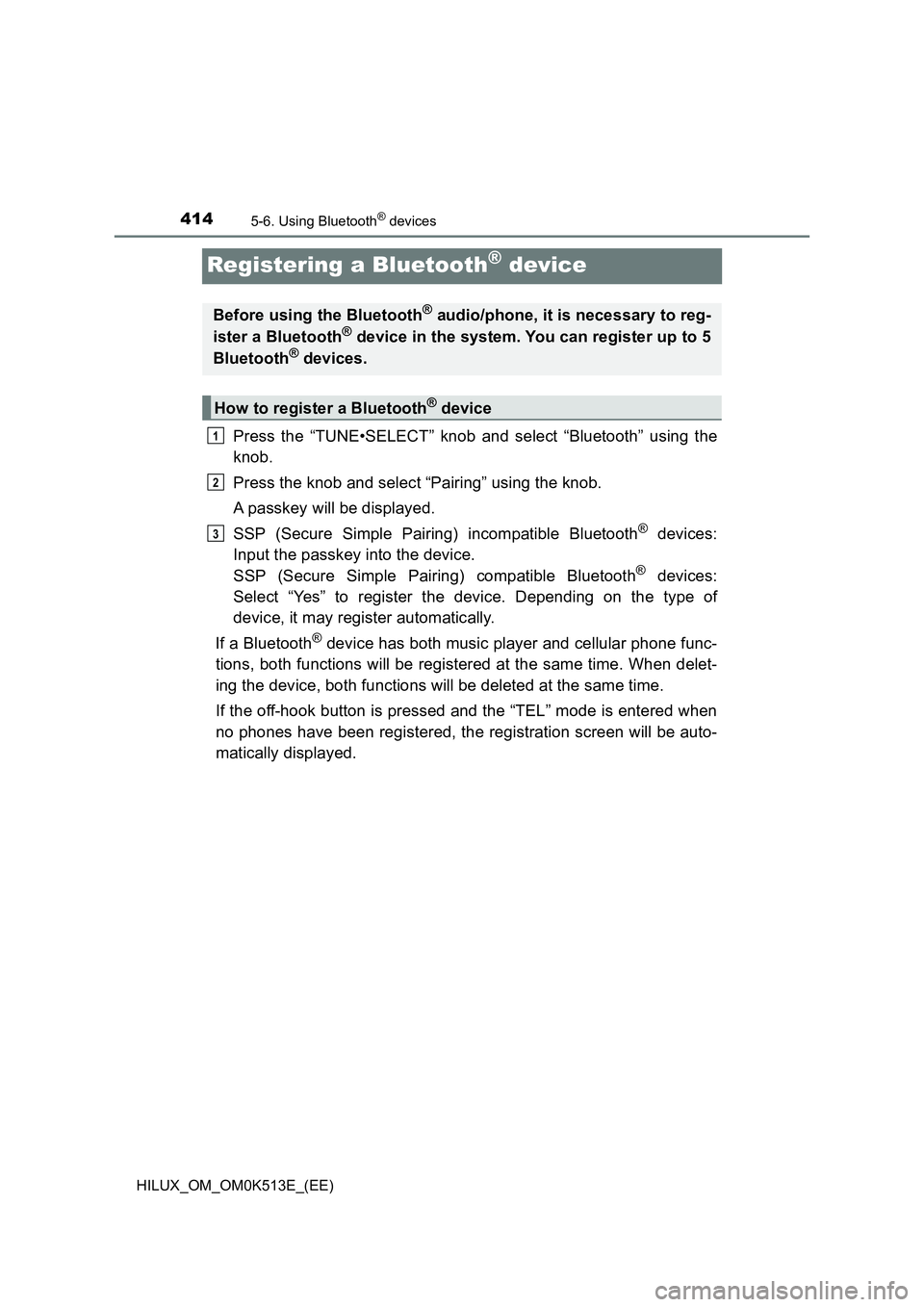

4145-6. Using Bluetooth® devices
HILUX_OM_OM0K513E_(EE)
Registering a Bluetooth® device
Press the “TUNE•SELECT” knob and select “Bluetooth” using the
knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook button is pressed and the “TEL” mode is entered when
no phones have been registered, the registration screen will be auto-
matically displayed.
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3

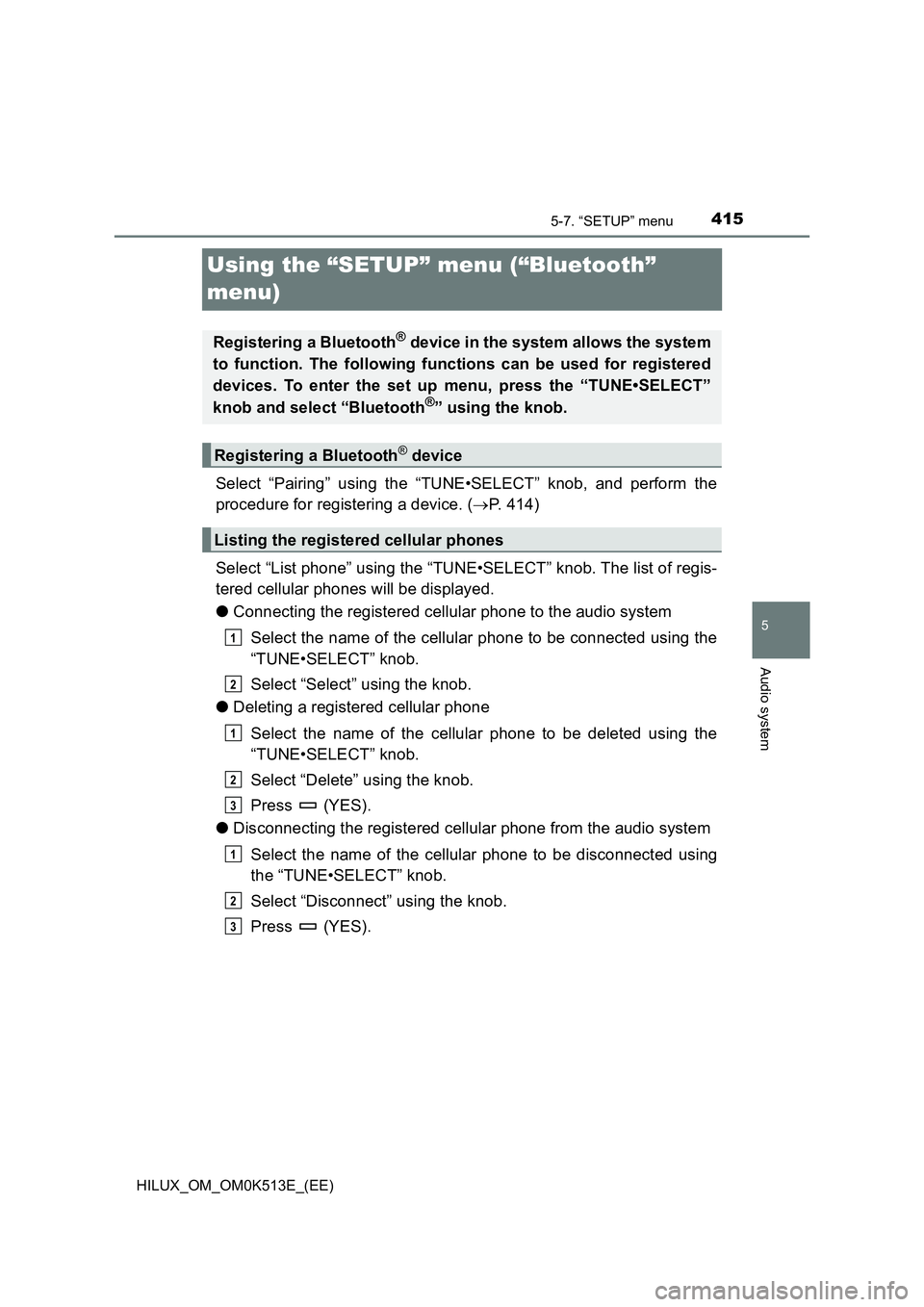

415
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K513E_(EE)
Using the “SETUP” menu (“Bluetooth”
menu)
Select “Pairing” using the “TUNE•SELECT” knob, and perform the
procedure for registering a device. ( P. 414)
Select “List phone” using the “TUNE•SELECT” knob. The list of regis-
tered cellular phones will be displayed.
O Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
O Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
O Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices. To enter the set up menu, press the “TUNE•SELECT”
knob and select “Bluetooth®” using the knob.
Registering a Bluetooth® device
Listing the registered cellular phones
1
2
1
2
3
1
2
3

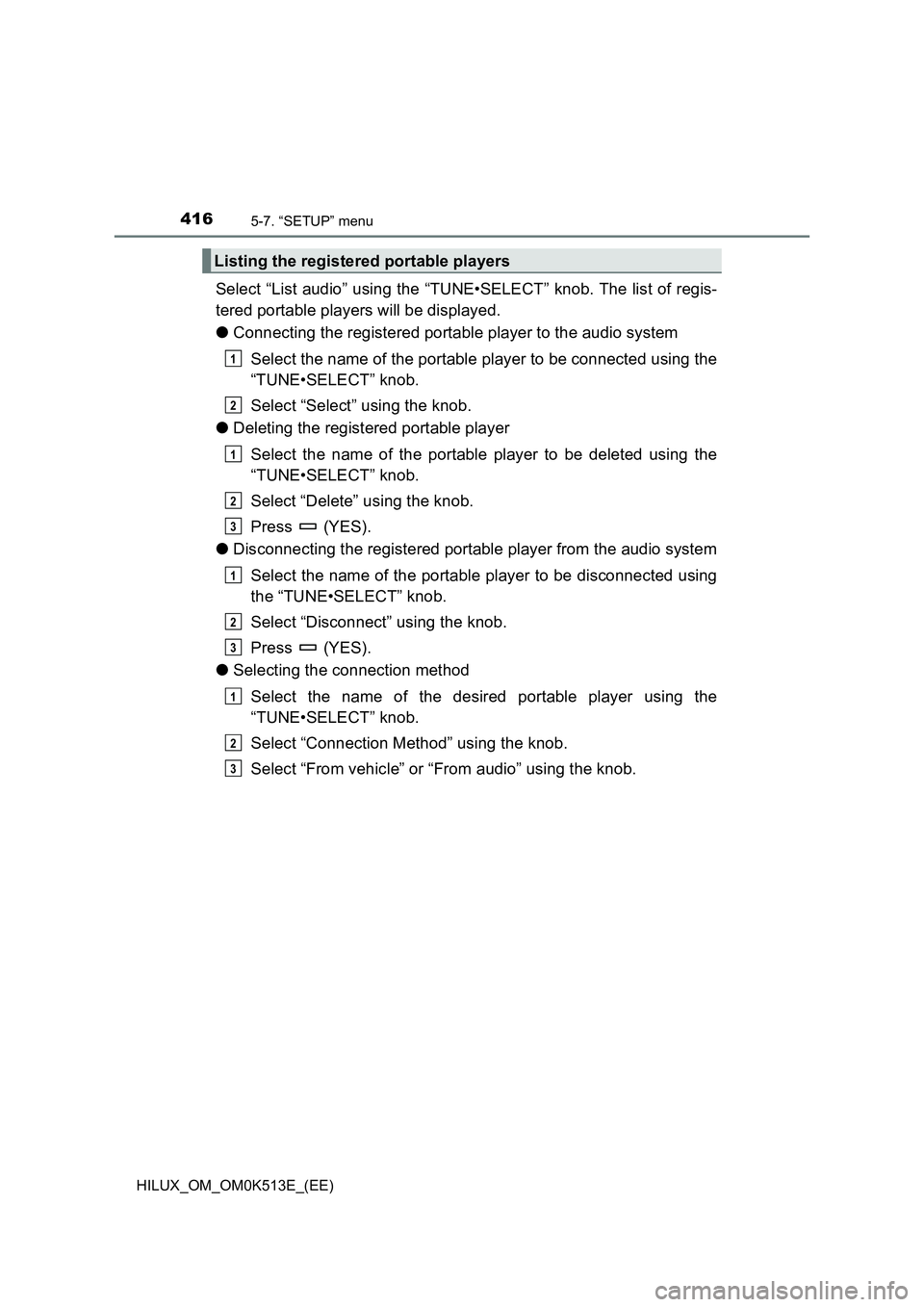

4165-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
Select “List audio” using the “TUNE•SELECT” knob. The list of regis-
tered portable players will be displayed.
O Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
O Deleting the registered portable player
Select the name of the portable player to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
O Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
O Selecting the connection method
Select the name of the desired portable player using the
“TUNE•SELECT” knob.
Select “Connection Method” using the knob.
Select “From vehicle” or “From audio” using the knob.
Listing the registered portable players
1
2
1
2
3
1
2
3
1
2
3

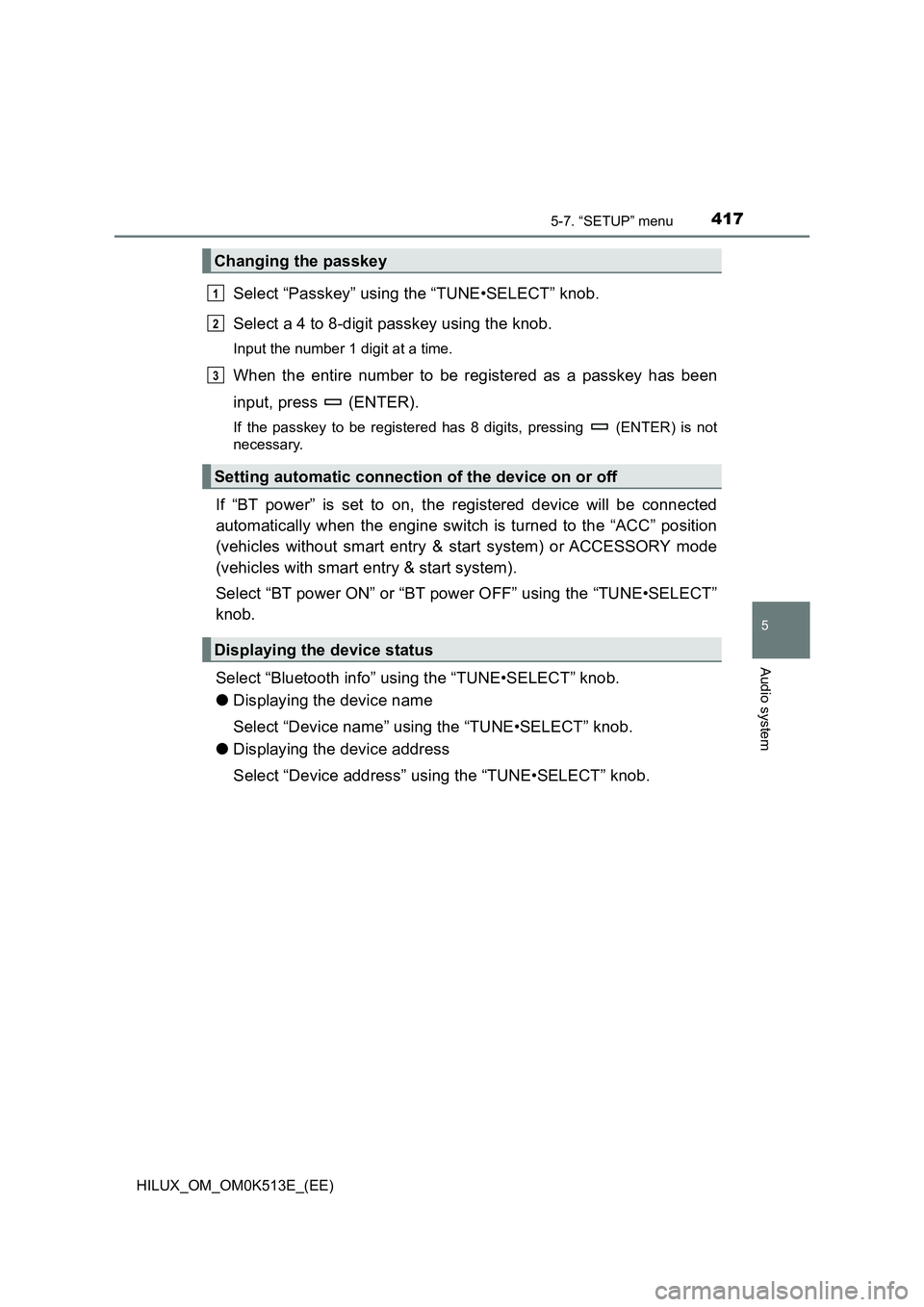

4175-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K513E_(EE)
Select “Passkey” using the “TUNE•SELECT” knob.
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press (ENTER).
If the passkey to be registered has 8 digits, pressing (ENTER) is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without smart entry & start system) or ACCESSORY mode
(vehicles with smart entry & start system).
Select “BT power ON” or “BT power OFF” using the “TUNE•SELECT”
knob.
Select “Bluetooth info” using the “TUNE•SELECT” knob.
O Displaying the device name
Select “Device name” using the “TUNE•SELECT” knob.
O Displaying the device address
Select “Device address” using the “TUNE•SELECT” knob.
Changing the passkey
Setting automatic connection of the device on or off
Displaying the device status
1
2
3

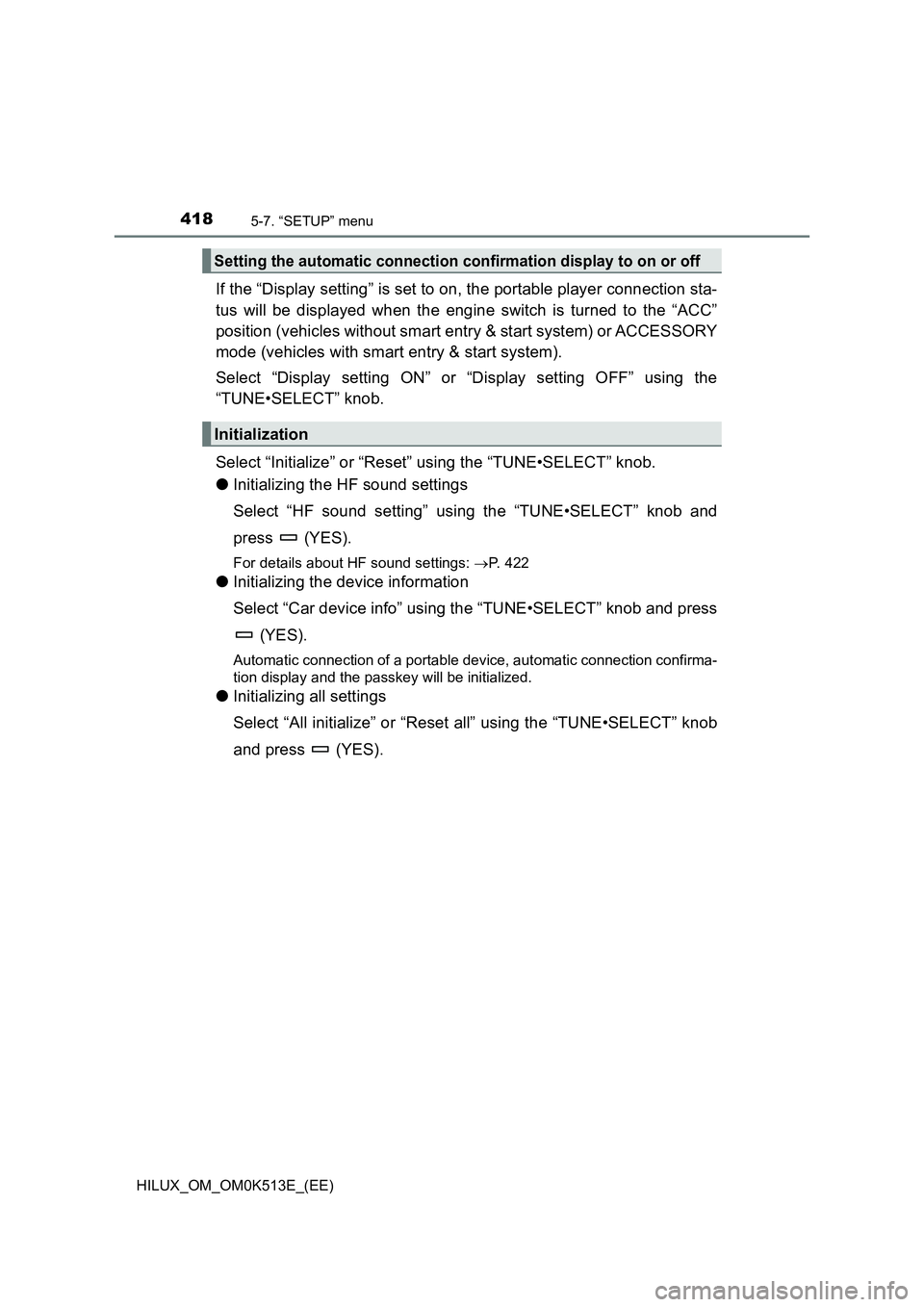

4185-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC”
position (vehicles without smart entry & start system) or ACCESSORY
mode (vehicles with smart entry & start system).
Select “Display setting ON” or “Display setting OFF” using the
“TUNE•SELECT” knob.
Select “Initialize” or “Reset” using the “TUNE•SELECT” knob.
O Initializing the HF sound settings
Select “HF sound setting” using the “TUNE•SELECT” knob and
press (YES).
For details about HF sound settings: P. 4 2 2
OInitializing the device information
Select “Car device info” using the “TUNE•SELECT” knob and press
(YES).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
O Initializing all settings
Select “All initialize” or “Reset all” using the “TUNE•SELECT” knob
and press (YES).
Setting the automatic connection confirmation display to on or off
Initialization

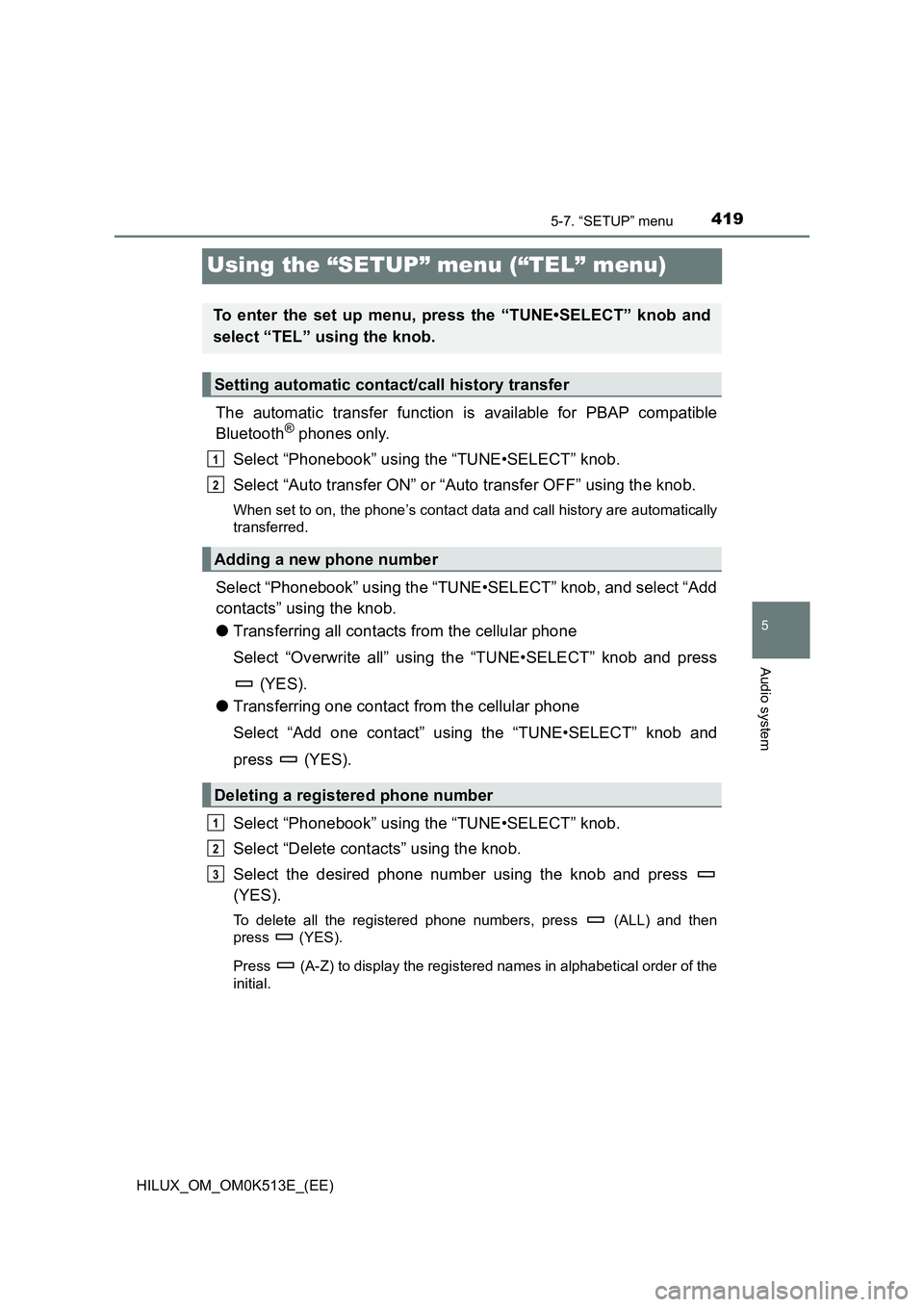

419
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K513E_(EE)
Using the “SETUP” menu (“TEL” menu)
The automatic transfer function is available for PBAP compatible
Bluetooth® phones only.
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Auto transfer ON” or “Auto transfer OFF” using the knob.
When set to on, the phone’s contact data and call history are automatically
transferred.
Select “Phonebook” using the “TUNE•SELECT” knob, and select “Add
contacts” using the knob.
O Transferring all contacts from the cellular phone
Select “Overwrite all” using the “TUNE•SELECT” knob and press
(YES).
O Transferring one contact from the cellular phone
Select “Add one contact” using the “TUNE•SELECT” knob and
press (YES).
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Delete contacts” using the knob.
Select the desired phone number using the knob and press
(YES).
To delete all the registered phone numbers, press (ALL) and then
press (YES).
Press (A-Z) to display the registered names in alphabetical order of the
initial.
To enter the set up menu, press the “TUNE•SELECT” knob and
select “TEL” using the knob.
Setting automatic contact/call history transfer
Adding a new phone number
Deleting a registered phone number
1
2
1
2
3

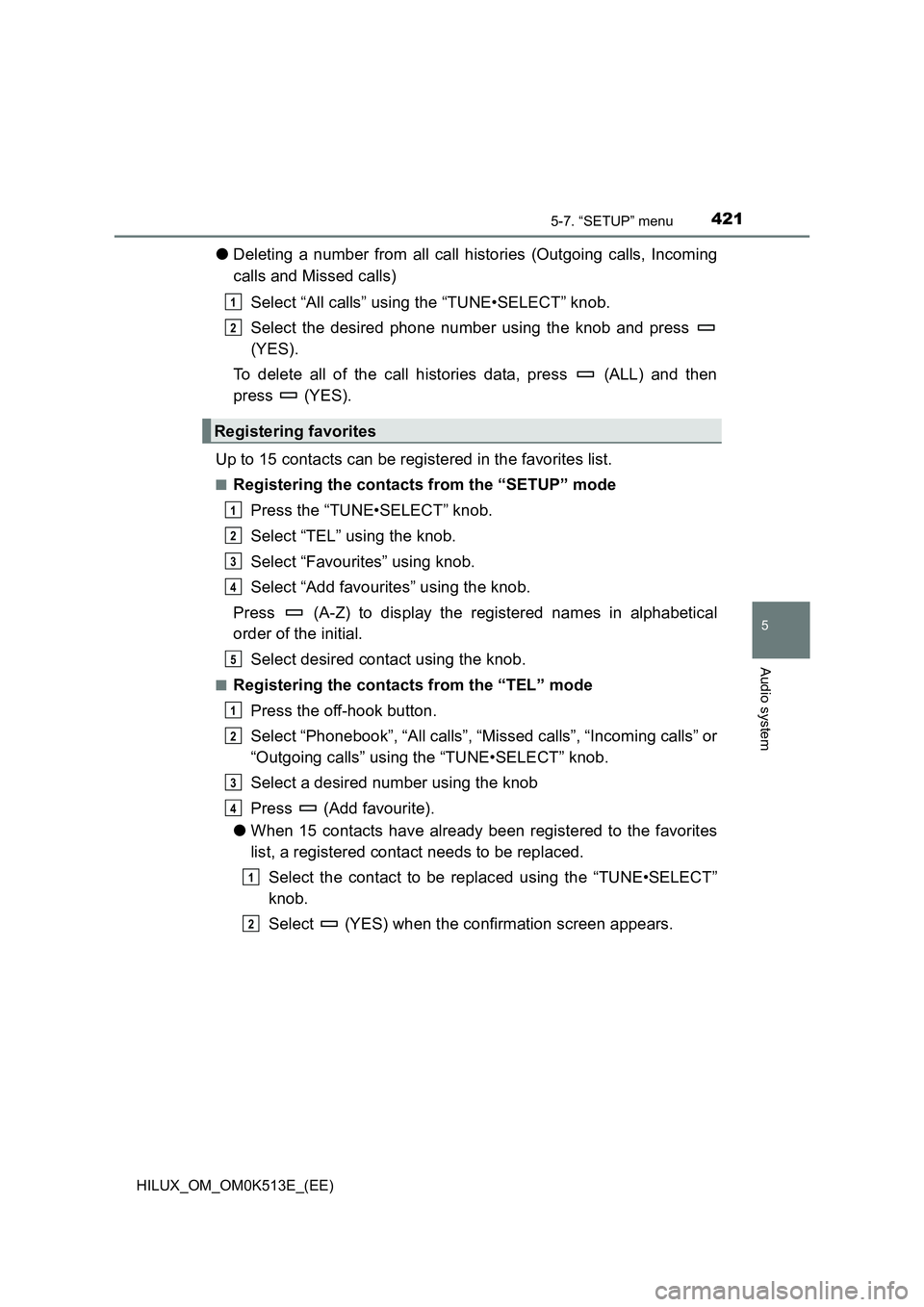

4215-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K513E_(EE)
ODeleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all of the call histories data, press (ALL) and then
press (YES).
Up to 15 contacts can be registered in the favorites list.
QRegistering the contacts from the “SETUP” mode
Press the “TUNE•SELECT” knob.
Select “TEL” using the knob.
Select “Favourites” using knob.
Select “Add favourites” using the knob.
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Select desired contact using the knob.
QRegistering the contacts from the “TEL” mode
Press the off-hook button.
Select “Phonebook”, “All calls”, “Missed calls”, “Incoming calls” or
“Outgoing calls” using the “TUNE•SELECT” knob.
Select a desired number using the knob
Press (Add favourite).
O When 15 contacts have already been registered to the favorites
list, a registered contact needs to be replaced.
Select the contact to be replaced using the “TUNE•SELECT”
knob.
Select (YES) when the confirmation screen appears.
Registering favorites
1
2
1
2
3
4
5
1
2
3
4
1
2
