2022 TOYOTA HILUX display

6178-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
WARNING
QWhen attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
Q When shifting the shift lever
For vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
Q To avoid damage to the transmission and other components
O Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
O If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
O Vehicles with automatic transmission: When a warning message for the
automatic transmission fluid temperature is displayed while attempting to
free a stuck vehicle, immediately remove your foot from the accelerator
pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 238)

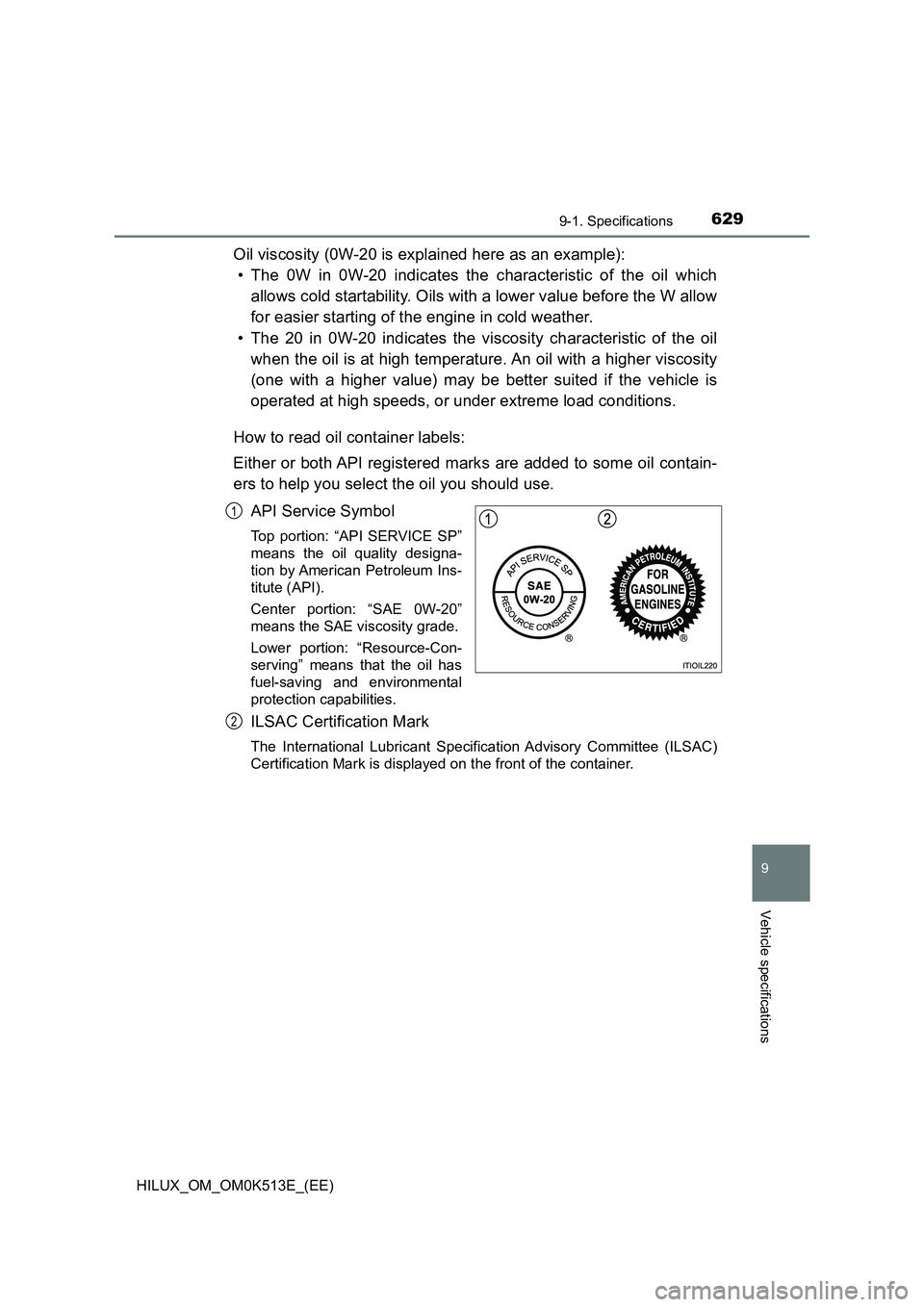

629
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

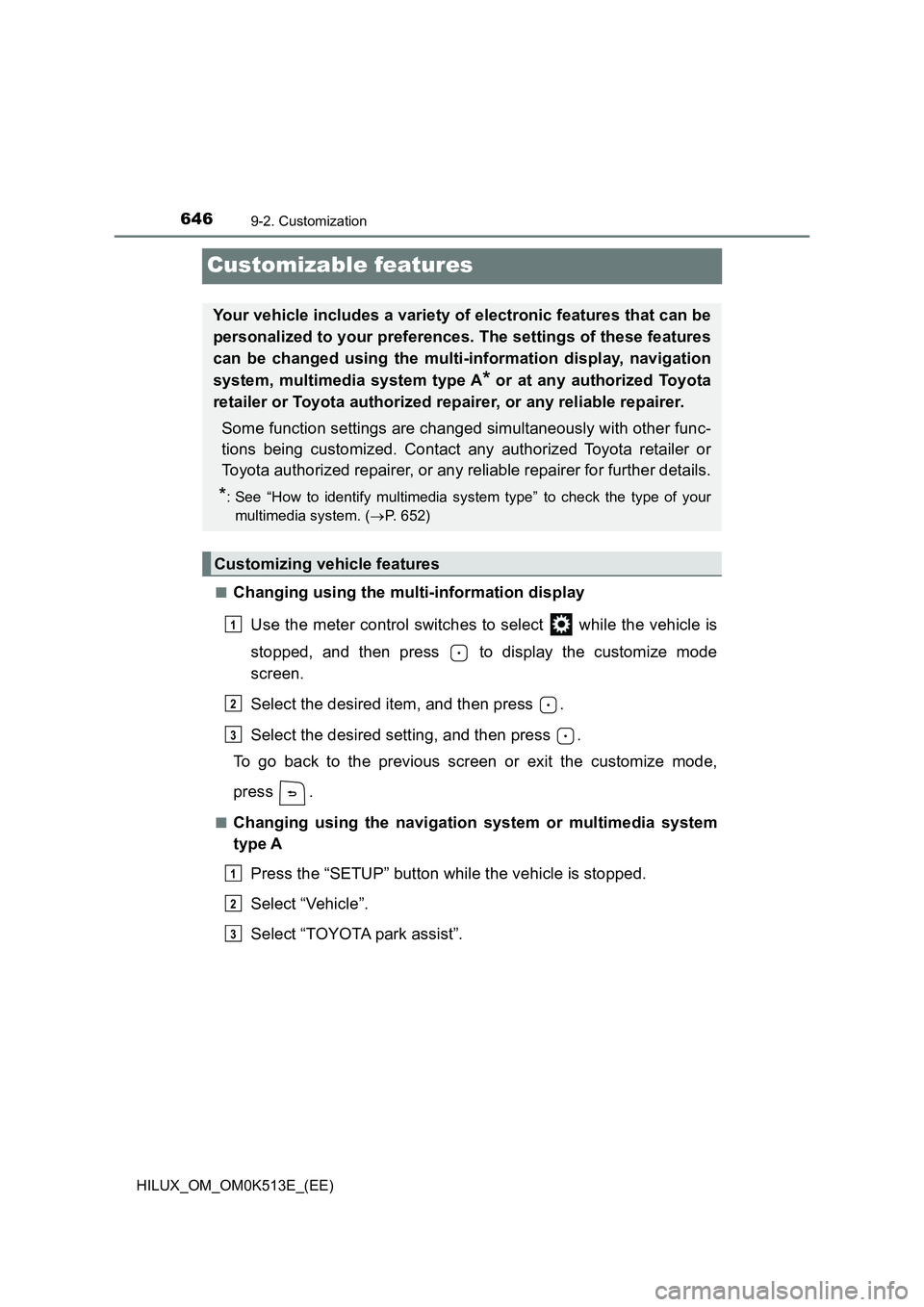

6469-2. Customization
HILUX_OM_OM0K513E_(EE)
Customizable features
QChanging using the multi-information display
Use the meter control switches to select while the vehicle is
stopped, and then press to display the customize mode
screen.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
QChanging using the navigation system or multimedia system
type A
Press the “SETUP” button while the vehicle is stopped.
Select “Vehicle”.
Select “TOYOTA park assist”.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, navigation
system, multimedia system type A* or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
*: See “How to identify multimedia system type” to check the type of your
multimedia system. ( P. 652)
Customizing vehicle features
1
2
3
1
2
3

6479-2. Customization
HILUX_OM_OM0K513E_(EE)
9
Vehicle specifications
Settings that can be changed using navigation system or multime-
dia system type A
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
QGauges, meters and multi-information display*1 ( P. 135)
Customizable features
1
2
3
Function*2Default settingCustomized
setting
Language*3English
German
–O–
French
Spanish
Italian
Russian
Turkish
Ukrainian
Thai
Portuguese
Indonesian
Arabic
Taiwanese
Units*3km (L/100 km) km (km/L) –O– miles (MPG)
Eco Driving Indicator Light On
(Self-lighting) Off – O –
switch settings Drive
information 1
Desired status
screen*4–O–
Drive information 1
Current fuel
economy*5
–O–
Average fuel
economy –O–
123

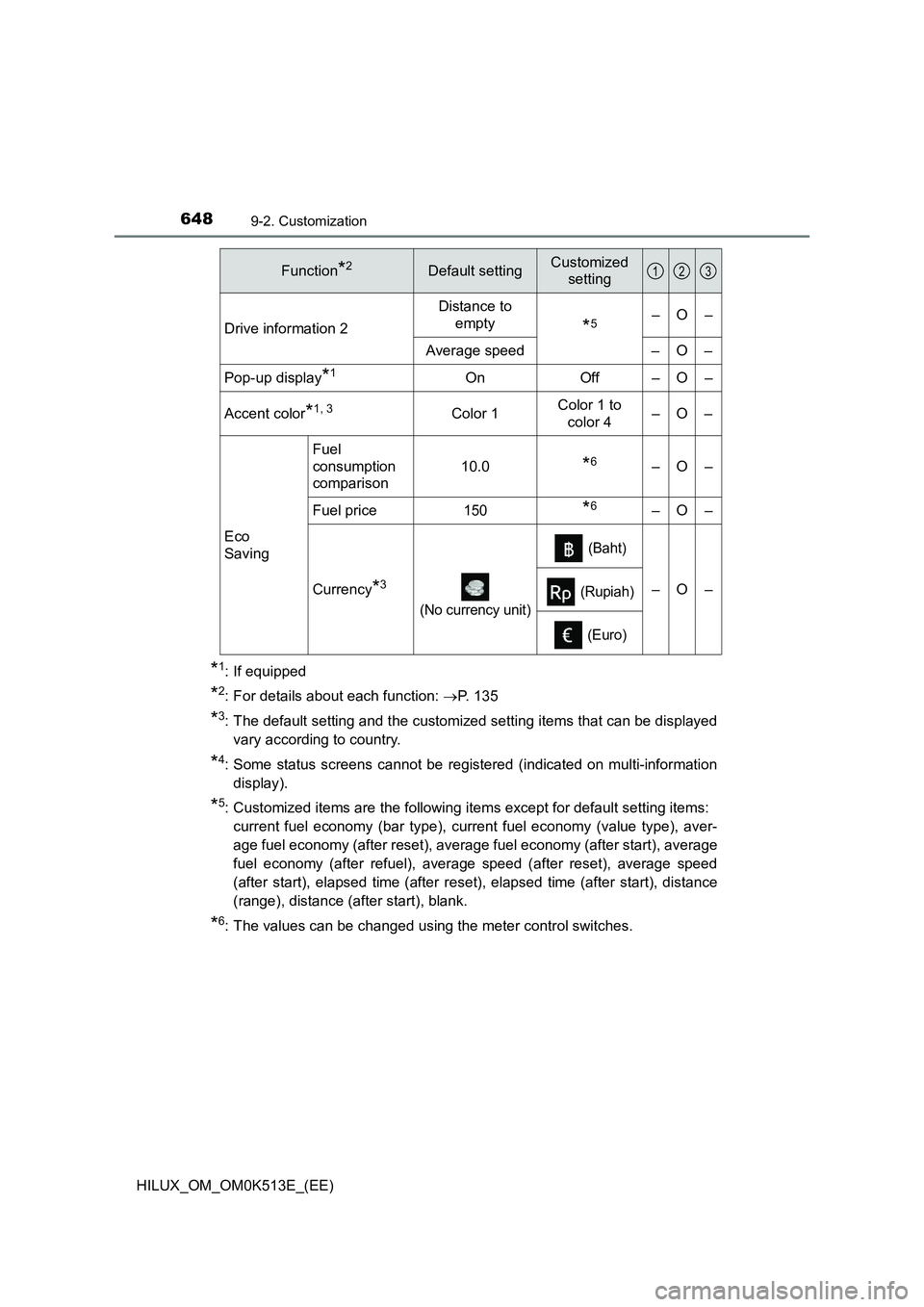

6489-2. Customization
HILUX_OM_OM0K513E_(EE)
*1: If equipped
*2: For details about each function: P. 135
*3: The default setting and the customized setting items that can be displayed
vary according to country.
*4: Some status screens cannot be registered (indicated on multi-information
display).
*5: Customized items are the following items except for default setting items:
current fuel economy (bar type), curr ent fuel economy (value type), aver-
age fuel economy (after reset), average fuel economy (after start), average
fuel economy (after refuel), average speed (after reset), average speed
(after start), elapsed time (after reset), elapsed time (after start), distance
(range), distance (after start), blank.
*6: The values can be changed using the meter control switches.
Drive information 2
Distance to
empty*5–O–
Average speed – O –
Pop-up display*1On Off – O –
Accent color*1, 3Color 1 Color 1 to
color 4 –O–
Eco
Saving
Fuel
consumption
comparison
10.0*6–O–
Fuel price150*6–O–
Currency*3
(No currency unit)
(Baht)
–O– (Rupiah)
(Euro)
Function*2Default settingCustomized
setting123

6509-2. Customization
HILUX_OM_OM0K513E_(EE)
QRSA (Road Sign Assist)*1 ( P. 295)
*1: If equipped
*2: RSA function becomes on when the engine switch is turned to the “ON”
position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system).
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
*4: Vehicles with navigation system
QDynamic Radar Cruise Control with Road Sign Assist*
( P. 312)
*: If equipped
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)*2OnOff–O–
Excess speed notification
method*3Display only
No notification–O–
Display and
buzzer–O–
No overtaking notification
methodDisplay only
No notification–O–
Display and
buzzer–O–
Other notifications method
(No-entry notification)*4Display only
No notification–O–
Display and
buzzer–O–
Excess speed notification
level2 km/h (1 mph)
5 km/h (3
mph)–O–
10 km/h (5
mph)–O–
123
FunctionDefault settingCustomized
setting
Dynamic Radar Cruise
Control with Road Sign
Assist
OnOff–O–
123

659What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
OIs the message displayed on the multi-information display?
Check the message on the multi-information display.
OWhen a warning light turns on or a warning message is displayed, refer to
P. 566, 575.
OStop the vehicle in a safe place and replace the flat tire with the spare tire.
( P. 581)
OTry the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 615)
A warning buzzer sounds when leaving the vehicle
(vehicles with smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

662Alphabetical index
HILUX_OM_OM0K513E_(EE)
Child safety ................................ 64
Airbag precautions .................. 47
Battery precautions ....... 497, 608
Child restraint system ............. 65
How your child should
wear the seat belt ................. 42
Installing child restraints.... 90, 93
Power window lock
switch.................................. 186
Power window precautions ... 188
Rear door child-protectors .... 156
Removed key battery
precautions ......................... 518
Seat belt precautions .............. 44
Seat heater precautions ........ 450
Child-protectors ....................... 156
Cleaning............................ 472, 476
Exterior.................................. 472
Interior ................................... 476
Seat belts .............................. 477
Wheels .................................. 473
Clock ......................................... 465
Clutch........................................ 637
Coat hooks ............................... 469
Condenser ................................ 493
Console box ............................. 457
Cooling system
Engine overheating ............... 610
Cruise control
Cruise control ........................ 317
Dynamic radar cruise
control................................. 301
Cup holders .............................. 458
Curtain shield airbags ............... 45
DAC ........................................... 364
Daytime running light
system .................................... 252
Deck hooks .............................. 463
Defogger
Outside rear view
mirrors ........................ 435, 444
Rear window ................. 435, 444
Windshield .................... 435, 443
Differential
Oil ......................................... 637
Dimension ................................ 620
Display
Cruise control........................ 317
Dynamic radar cruise
control................................. 301
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 290
Multi-information
display ................................ 135
Trip information ..................... 137
Do-it-yourself maintenance .... 482
Doors
Door glasses ......................... 185
Door lock............................... 153
Open door warning light........ 570
Outside rear view mirrors...... 182
Rear door child-protectors .... 156
Side doors............................. 153
Downhill assist control
system .................................... 364
DPF (Diesel Particulate Filter)
system .................................... 369
Warning message ................. 578
Drive-Start Control .................. 195
Driver’s seat belt
reminder light ........................ 570
D
