611-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QFront passenger occupant classification system precautions
O Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause “OFF” of the “PASSENGER AIR BAG” indicator to
be illuminated, which indicates that the SRS airbags for the front passen-
ger will not activate in the event of a severe accident. If the seatback
touches the rear seat, return the seatback to a position where it does not
touch the rear seat. Keep the front passenger seatback as upright as pos-
sible when the vehicle is moving. Reclining the seatback excessively may
lessen the effectiveness of the seat belt system.
O If an adult sits in the front passenger seat, “ON” of the “PASSENGER AIR
BAG” indicator is illuminated. If “OFF ” of the “PASSENGER AIR BAG” indi-
cator is illuminated, ask the passenger to sit up straight, well back in the
seat, feet on the floor, and with the seat belt worn correctly. If “OFF” of the
“PASSENGER AIR BAG” indicator still re mains illuminated, either ask the
passenger to move to the rear seat, or if that is not possible, move the
front passenger seat fully rearward.
O When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. ( P. 6 5 )
O Do not modify or remove the front seats.
O Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
O Child restraint systems installed on the rear seat should not contact the
front seatbacks.
O Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
O Do not modify or replace the upholstery of the front seat.
O When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, do not release the seat belt while the vehicle is mov-
ing. Doing so may cause the airbag system to be on.

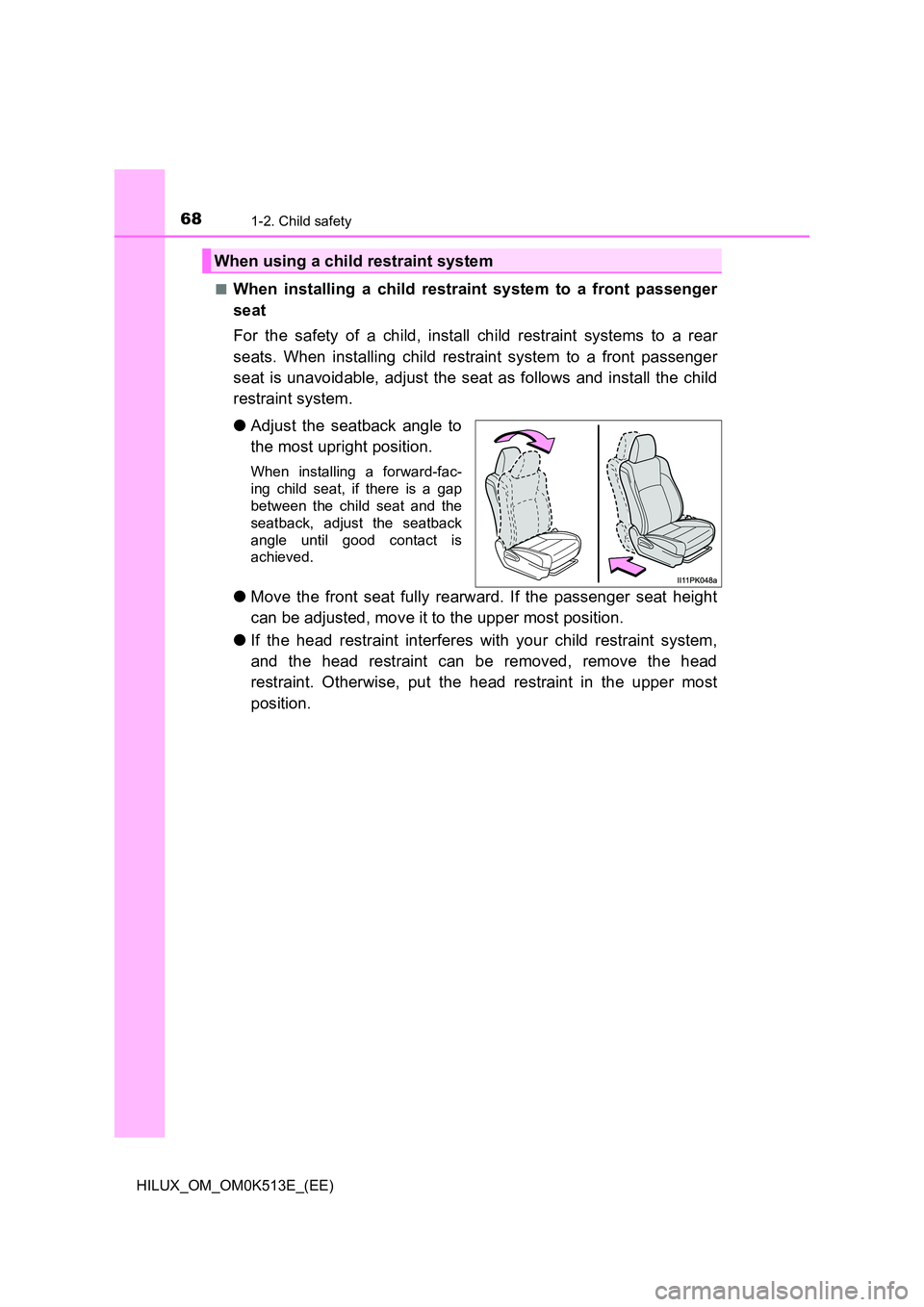

681-2. Child safety
HILUX_OM_OM0K513E_(EE)
QWhen installing a child restraint system to a front passenger
seat
For the safety of a child, install child restraint systems to a rear
seats. When installing child restraint system to a front passenger
seat is unavoidable, adjust the seat as follows and install the child
restraint system.
O Adjust the seatback angle to
the most upright position.
When installing a forward-fac-
ing child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
O Move the front seat fully rearward. If the passenger seat height
can be adjusted, move it to the upper most position.
O If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint. Otherwise, put the head restraint in the upper most
position.
When using a child restraint system

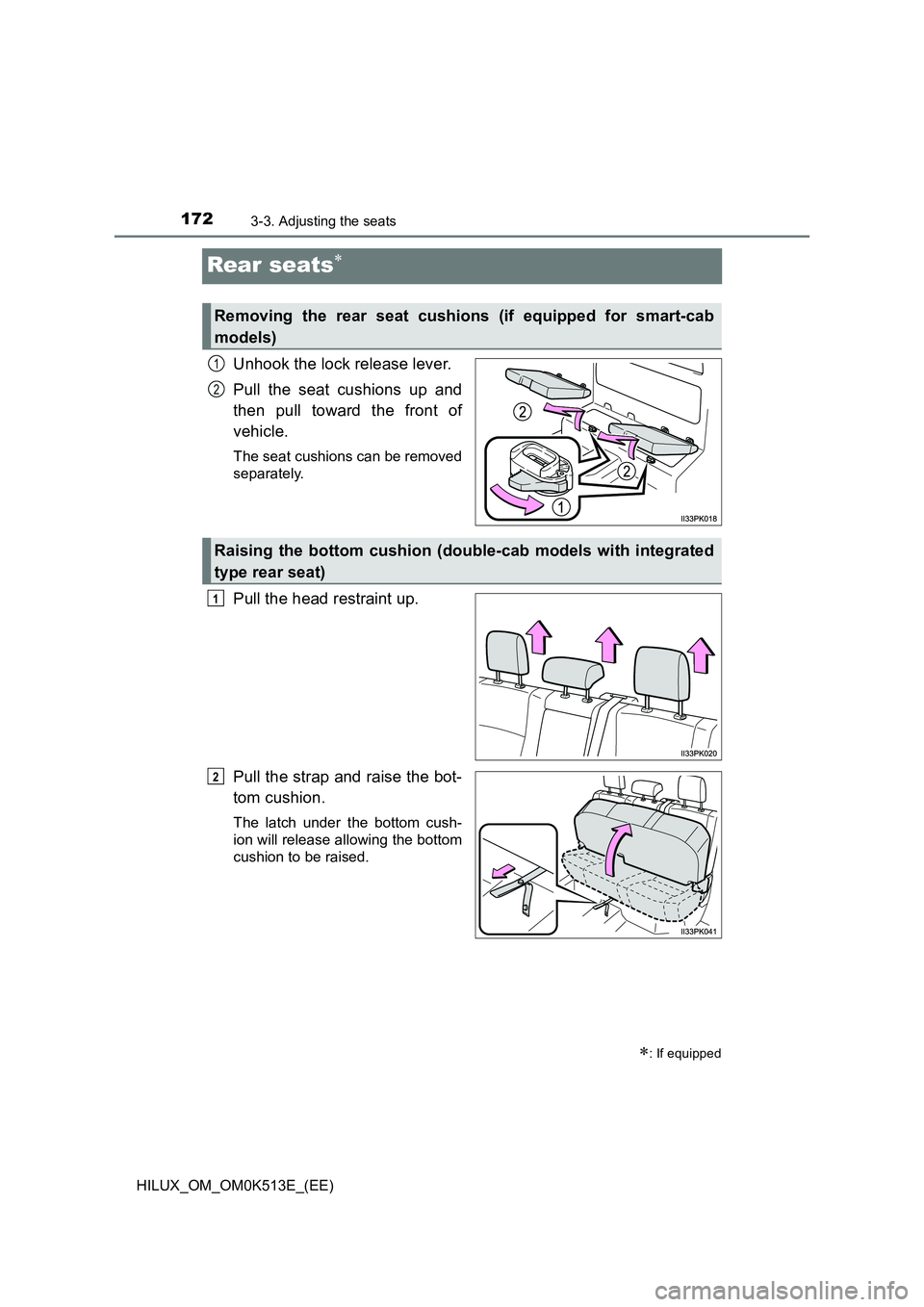

1723-3. Adjusting the seats
HILUX_OM_OM0K513E_(EE)
Rear seats
Unhook the lock release lever.
Pull the seat cushions up and
then pull toward the front of
vehicle.
The seat cushions can be removed
separately.
Pull the head restraint up.
Pull the strap and raise the bot-
tom cushion.
The latch under the bottom cush-
ion will release allowing the bottom
cushion to be raised.
: If equipped
Removing the rear seat cushions (if equipped for smart-cab
models)
1
2
Raising the bottom cushion (double-cab models with integrated
type rear seat)
1
2

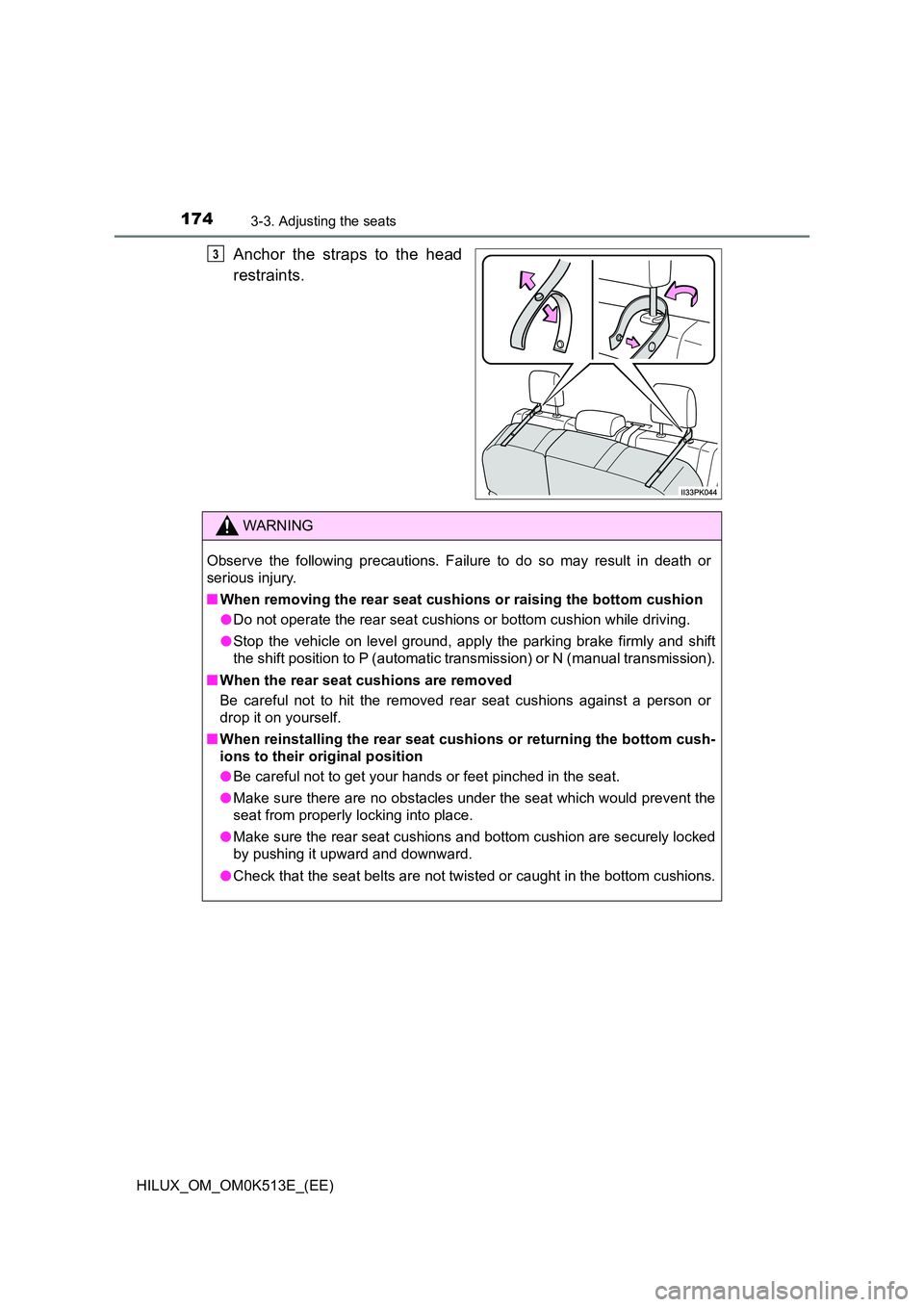

1743-3. Adjusting the seats
HILUX_OM_OM0K513E_(EE)
Anchor the straps to the head
restraints.
3
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
Q When removing the rear seat cushions or raising the bottom cushion
O Do not operate the rear seat cushions or bottom cushion while driving.
O Stop the vehicle on level ground, apply the parking brake firmly and shift
the shift position to P (automatic tr ansmission) or N (manual transmission).
Q When the rear seat cushions are removed
Be careful not to hit the removed rear seat cushions against a person or
drop it on yourself.
Q When reinstalling the rear seat cushions or returning the bottom cush-
ions to their original position
O Be careful not to get your hands or feet pinched in the seat.
O Make sure there are no obstacles under the seat which would prevent the
seat from properly locking into place.
O Make sure the rear seat cushions and bottom cushion are securely locked
by pushing it upward and downward.
O Check that the seat belts are not twisted or caught in the bottom cushions.

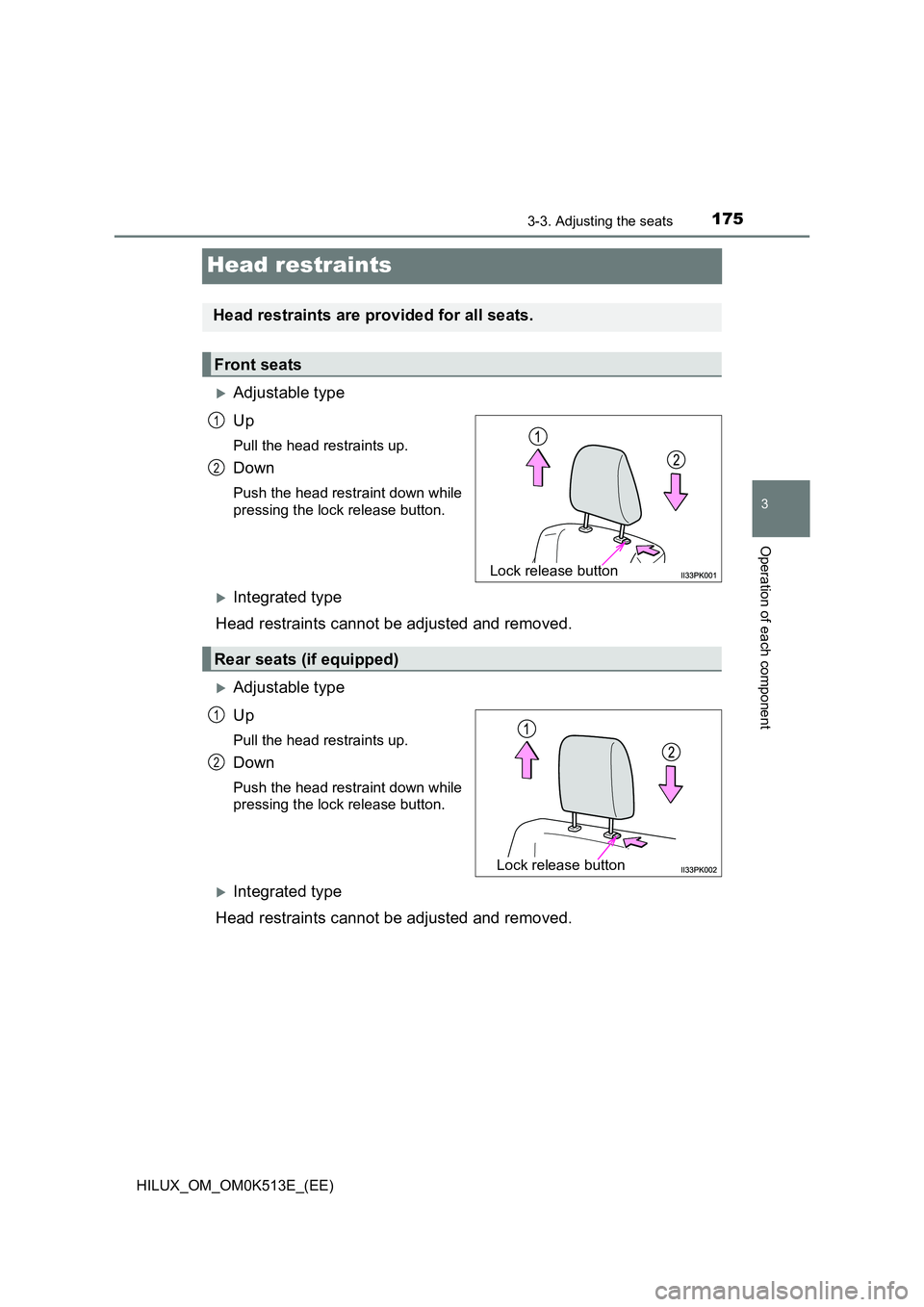

175
3
3-3. Adjusting the seats
Operation of each component
HILUX_OM_OM0K513E_(EE)
Head restraints
Adjustable type
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Integrated type
Head restraints cannot be adjusted and removed.
Adjustable type
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Integrated type
Head restraints cannot be adjusted and removed.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
Rear seats (if equipped)
Lock release button
1
2

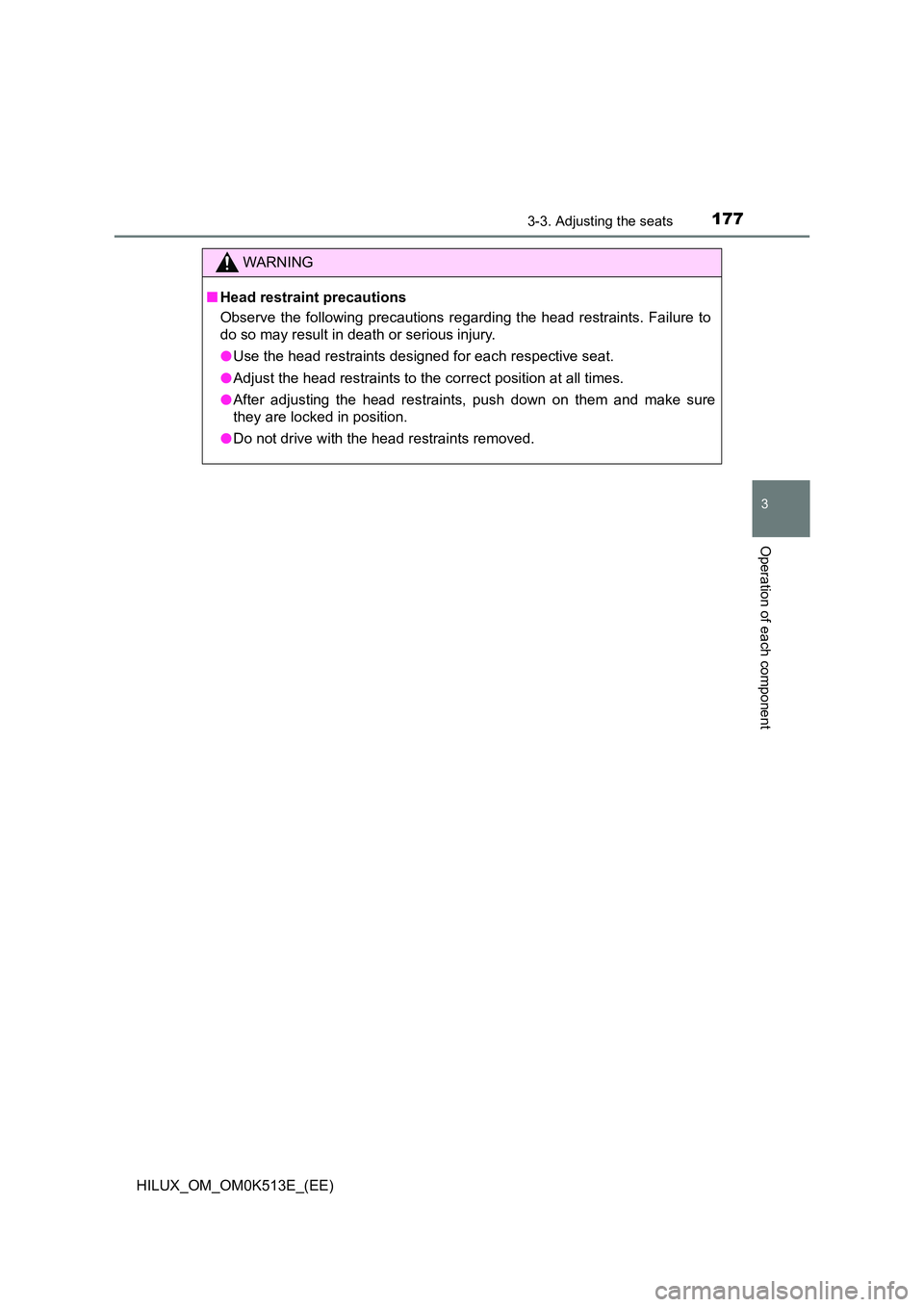

1773-3. Adjusting the seats
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
WARNING
QHead restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
O Use the head restraints designed for each respective seat.
O Adjust the head restraints to the correct position at all times.
O After adjusting the head restraints, push down on them and make sure
they are locked in position.
O Do not drive with the head restraints removed.

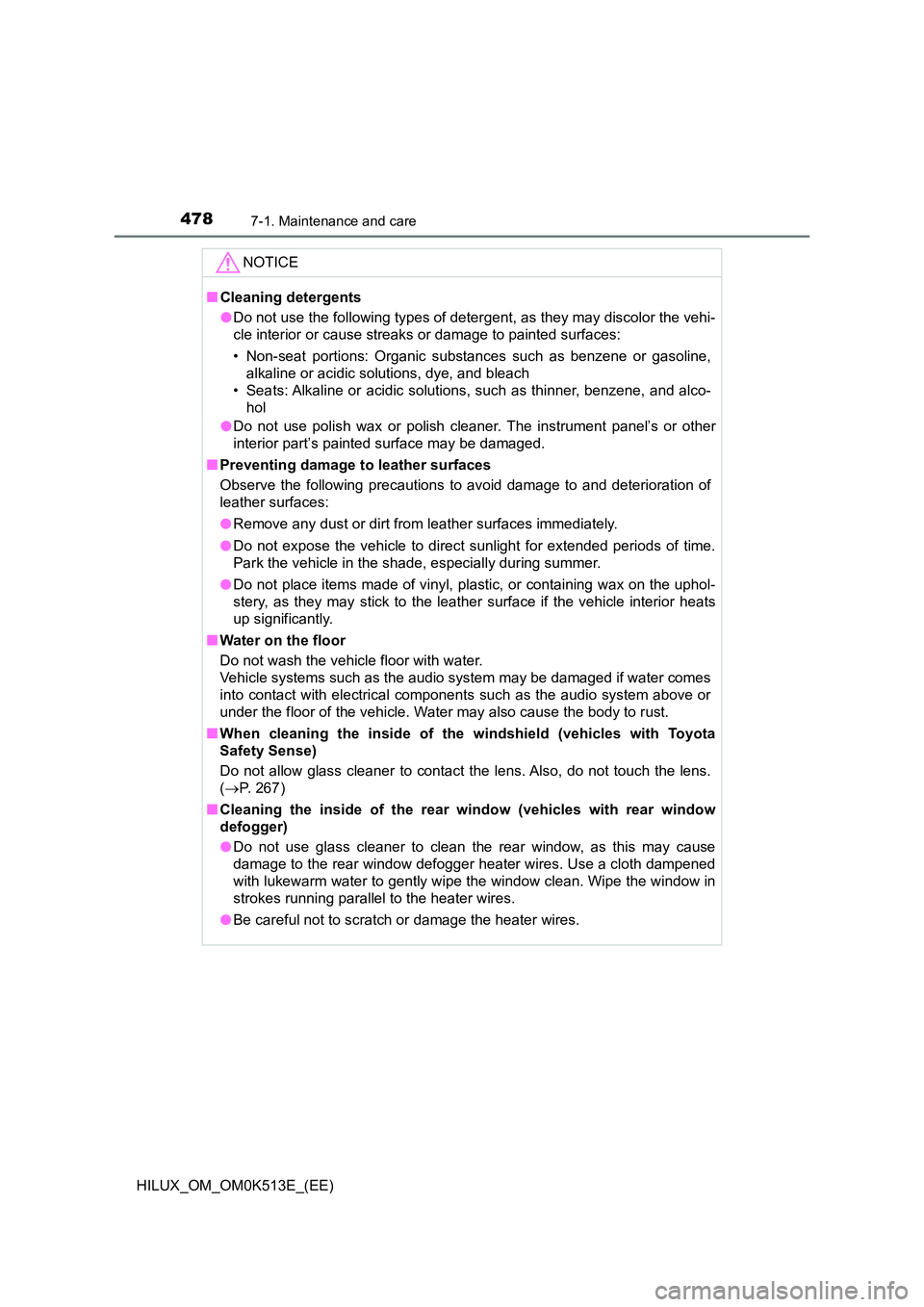

4787-1. Maintenance and care
HILUX_OM_OM0K513E_(EE)
NOTICE
QCleaning detergents
O Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
O Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
Q Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
O Remove any dust or dirt from leather surfaces immediately.
O Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
O Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Q Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
Q When cleaning the inside of the windshield (vehicles with Toyota
Safety Sense)
Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
( P. 2 6 7 )
Q Cleaning the inside of the rear window (vehicles with rear window
defogger)
O Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
O Be careful not to scratch or damage the heater wires.
