HILUX_OM_OM0K513E_(EE)
7
3-5. Opening and closing
the windows
Power windows ..................185
Quarter windows
(smart-cab models)..........189
4-1. Before driving
Driving the vehicle .............192
Cargo and luggage ............205
Trailer towing (without
towing hitch) ....................206
Trailer towing (with towing
hitch) ................................207
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........220
Engine (ignition) switch
(vehicles with smart
entry & start system)........223
Automatic transmission......231
Manual transmission ..........239
Turn signal lever ................246
Parking brake.....................247
4-3. Operating the lights
and wipers
Headlight switch.................248
Fog light switch ..................255
Windshield wipers and
washer .............................258
4-4. Refueling
Opening the fuel tank
cap ...................................261
4-5. Using the driving support
systems
Toyota Safety Sense ......... 266
PCS (Pre-Collision
System) ........................... 273
LDA (Lane Departure
Alert With Yaw Assist
Function) ......................... 284
RSA (Road Sign Assist) .... 295
Dynamic radar cruise
control ............................. 301
Cruise control .................... 317
Toyota parking
assist-sensor ................... 321
Four-wheel drive
system............................. 331
Rear differential
lock system ..................... 341
Stop & Start system .......... 345
Driving assist systems....... 355
Downhill assist control
system............................. 364
AUTO LSD ........................ 367
DPF (Diesel Particulate
Filter) system .................. 369
4-6. Driving tips
Winter driving tips.............. 374
5-1. Basic Operations
Audio system types ........... 378
Using the steering wheel
audio switches ................ 379
AUX port/USB port ............ 381
4Driving
5Audio system

9
HILUX_OM_OM0K513E_(EE)
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
O Multiport fuel injection system/sequential multiport fuel injection system
O Toyota Safety Sense
O Cruise control system
O Anti-lock brake system
O SRS airbag system
O Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures or special
instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Installation of an RF-transmitter system

21Pictorial index
HILUX_OM_OM0K513E_(EE)
Audio remote control switches*1, 2. . . . . . . . . . . . . . . P. 379, 470
Paddle shift switches*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 234, 235
Talk switch*1, 2, 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Meter control switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 136
Vehicle-to-vehicle distance switch*1. . . . . . . . . . . . . . . . . . P. 309
LDA (Lane Departure Alert with Yaw Assist Function)
switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
Cruise control switch*1
Dynamic radar cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . P. 301
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 178
Telephone switches*1, 2 . . . . . . . . . . . . . . . . . . . . P. 136, 413, 470
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: The switch can not be used depending on the type of
audio system or navigation system.
1
2
3
4
5
6
7
8
9

29Pictorial index
HILUX_OM_OM0K513E_(EE)
Audio remote control switches*2 . . . . . . . . . . . . . . . . P. 379, 470
Paddle shift switches*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 234, 235
Talk switch*2, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 136
Vehicle-to-vehicle distance switch*1. . . . . . . . . . . . . . . . . . P. 309
LDA (Lane Departure Alert with Yaw Assist Function)
switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
Cruise control switch*1
Dynamic radar cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . P. 301
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 178
Telephone switches*2. . . . . . . . . . . . . . . . . . . . . . P. 136, 413, 470
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: The switch can not be used depending on the type of
audio system or navigation system.
1
2
3
4
5
6
7
8
9

1242. Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
(Yellow)
(if equipped)
LDA indicator ( P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 570)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 570)(if equipped)
Low AdBlue™ level
warning light ( P. 571)
Low fuel level warning
light ( P. 570)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
(if equipped)
Go to service warning
light ( P. 571)

1262. Instrument cluster
HILUX_OM_OM0K513E_(EE)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 246)(if equipped)
Dynamic radar cruise
control indicator
( P. 301)
Headlight high beam
indicator ( P. 250)(if equipped)
Cruise control “SET”
indicator ( P. 301, 317)
Tail light indicator
( P. 248)
*1
(if equipped)
Downhill assist control
system indicator
( P. 364)
(if equipped)
Front fog light indicator
( P. 255)
*1, 3
(if equipped)
Slip indicator (P. 356)
(if equipped)
Rear fog light indicator
( P. 256)
*1, 2
(if equipped)
VSC OFF indicator
( P. 357)
*1Eco Driving Indicator
Light ( P. 128)
*1, 2
(if equipped)
“TRC OFF” indicator
( P. 357)
*1
(if equipped)
Stop & Start indicator
( P. 345)(4WD models)
Four-wheel drive
indicator ( P. 331)
*1, 2
(if equipped)
Stop & Start cancel
indicator ( P. 346)(4WD models)
Low speed four-wheel
drive indicator light
( P. 331)
(diesel engine)
Engine preheating
indicator ( P. 220, 223)(if equipped)
Rear differential lock
indicator ( P. 341)
*6
(if equipped)
Cruise control indicator
( P. 301, 317)(if equipped)
“ECO” indicator
( P. 233, 240)

135
2
2. Instrument cluster
Instrument cluster
HILUX_OM_OM0K513E_(EE)

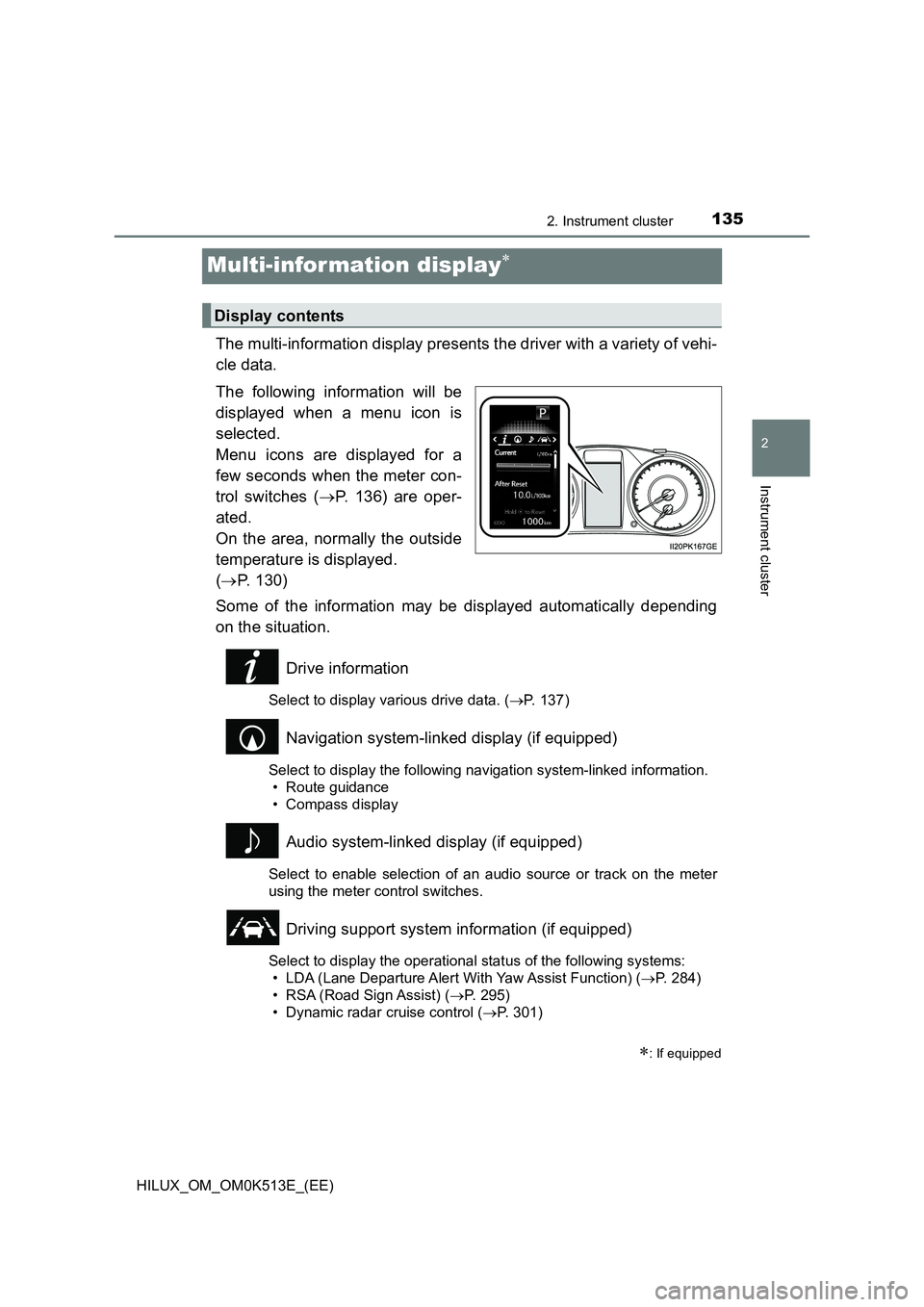

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
The following information will be
displayed when a menu icon is
selected.
Menu icons are displayed for a
few seconds when the meter con-
trol switches ( P. 136) are oper-
ated.
On the area, normally the outside
temperature is displayed.
( P. 130)
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. ( P. 137)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving support system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert With Yaw Assist Function) ( P. 284)
• RSA (Road Sign Assist) ( P. 295)
• Dynamic radar cruise control ( P. 301)
: If equipped
Display contents

1402. Instrument cluster
HILUX_OM_OM0K513E_(EE)
QDRCC(RSA) (if equipped) ( P. 312)
Select to enable/disable the Dynamic Radar Cruise Control with
Road Sign Assist.
QVehicle Setting
Idling stop (if equipped)
Select to change the idling stop time (engine stop time via the
Stop & Start system) when the air conditioning system is on.
QMeter Customization
O Language
Select to change the language on the display.
O Units
Select to change the unit for measure of the fuel consumption.
O Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
(P. 128)
O switch settings
You can register 1 screen as the top screen. To register, press
and hold while the desired screen is displayed.
O Drive information 1 and 2
Select to select up to 2 items that will be displayed on a drive
information screen, up to 2 drive information screens can be set.
O Pop-up display (if equipped)
Select to set the pop-up displays, which may appear in some sit-
uations, on/off.
O Accent color (if equipped)
Select to change the accent colors on the screen, such as the
cursor color.
