2022 TOYOTA HILUX cruise control

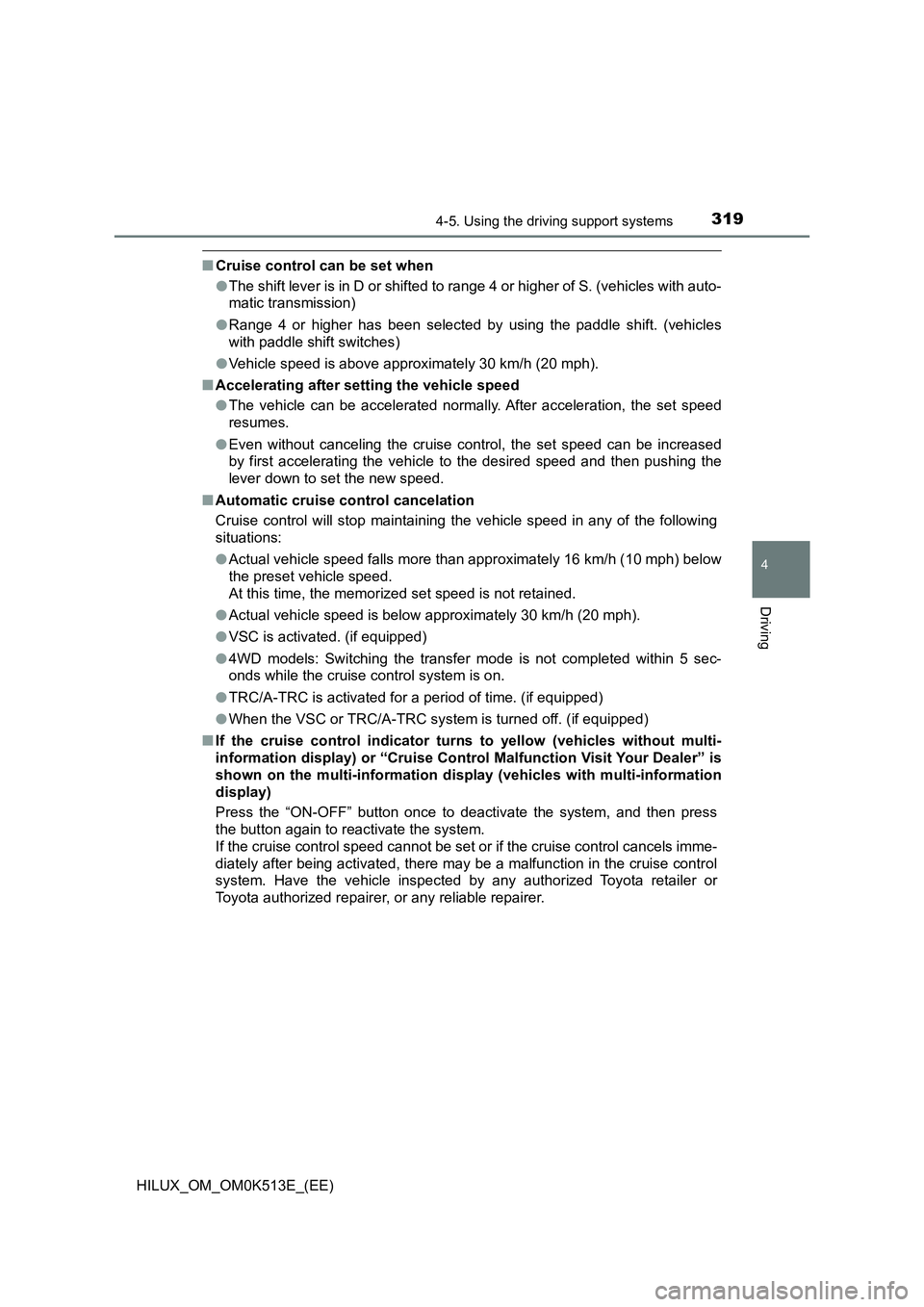

3194-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
QCruise control can be set when
O The shift lever is in D or shifted to range 4 or higher of S. (vehicles with auto-
matic transmission)
O Range 4 or higher has been selected by using the paddle shift. (vehicles
with paddle shift switches)
O Vehicle speed is above approximately 30 km/h (20 mph).
Q Accelerating after setting the vehicle speed
O The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
O Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
Q Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations:
O Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the preset vehicle speed.
At this time, the memorized set speed is not retained.
O Actual vehicle speed is below approximately 30 km/h (20 mph).
O VSC is activated. (if equipped)
O 4WD models: Switching the transfer mode is not completed within 5 sec-
onds while the cruise control system is on.
O TRC/A-TRC is activated for a period of time. (if equipped)
O When the VSC or TRC/A-TRC system is turned off. (if equipped)
Q If the cruise control indicator turns to yellow (vehicles without multi-
information display) or “Cruise Cont rol Malfunction Visit Your Dealer” is
shown on the multi-information displ ay (vehicles with multi-information
display)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

3204-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
WARNING
QTo avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
Q Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
O In heavy traffic
O On roads with sharp bends
O On winding roads
O On slippery roads, such as those covered with rain, ice or snow
O On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
O When your vehicle is towing a trailer (with towing hitch) or during emer-
gency towing

5698-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
(Flashes or illuminates)
Fuel system warning light (warning buzzer)*5 (if
equipped)
The amount of accumulated water in the fuel filter has
reached the specified level if the light flashes.
 P. 499
The fuel filter need to be replaced if the light comes on.
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
(Flashes or illuminates)
Brake Override System warning light*1 (if equipped)
Indicates that the accelerator and brake pedal are being
depressed simultaneously if the warning light comes on
( P. 195)
 Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System if
the warning light flashes
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Cruise control indicator*6 (if equipped)
Indicates a malfunction in the cruise control system
 P. 317
(Flashes or illuminates)
PCS warning light (if equipped)
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Col-
lision System).
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily
unavailable, corrective action may be necessary.
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 271, 575)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 283
Warning lightWarning light/Details/Actions

5798-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
QIf a message that indicates the malfunction of front camera is shown
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 271, 566)
O PCS (Pre-Collision System)*
OLDA (Lane Departure Alert With Yaw Assist Function)*
ORSA (Road Sign Assist)*
ODynamic radar cruise control*
*: If equipped
Q If a message that indicates the malfunction of radar sensor is shown
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 271, 566)
O PCS (Pre-Collision System)*
OLDA (Lane Departure Alert With Yaw Assist Function)*
ODynamic radar cruise control*
*: If equipped
Q If “See owner’s manual” is shown
O If the following messages are shown, follow the instructions accordingly.
• “Engine Coolant Temp High Stop in a Safe Place” ( P. 610)
• “Transmission fluid temp high” ( P. 238)
• “Water accumulation in fuel filter” ( P. 499)
• “AdBlue Level Low Fill up AdBlue in 2400 km” ( P. 502)
• “AdBlue level Low No start in 800 km Top up AdBlue” ( P. 502)
• “AdBlue empty Unable to Restart Engine Fill up AdBlue” ( P. 502)
•“DPF full” ( P. 371)
• “Front Camera Temporarily Unavailable” ( P. 271)
O If “Smart Entry & Start System malfunction” is shown, this may be a mal-
function.
Immediately have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
O If “Low Braking Power Stop in a Safe Place” is shown, there may be a mal-
function. Immediately stop the vehicle in a safe place and contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Continuing to drive the vehicle may be dangerous.
O If the following messages are shown, there may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
• “Charging System Malfunction Stop in a Safe Place”
• “Oil Pressure Low Stop in a Safe Place”

5808-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Q If “Radar Cruise Control Temporarily Unavailable See Owner’s Manual”
is shown
The dynamic radar cruise control system is suspended temporarily or until the
problem shown in the message is resolved. (causes and coping methods:
 P. 271)
Q If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control system cannot be used temporarily. Use the
system when it becomes available again.
Q If “Visit your dealer” is shown
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately.
Q Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.
WARNING
Q If a warning light comes on or a warning buzzer sounds when a warn-
ing message is shown
Check and follow the message shown on the multi-information display. Fail-
ure to do so may result in death or serious injury.
NOTICE
Q While the engine oil level warning is shown
Continued engine operation with lo w engine oil will damage the engine.
Q If “Water accumulation in fuel filter See owner’s manual” is shown
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

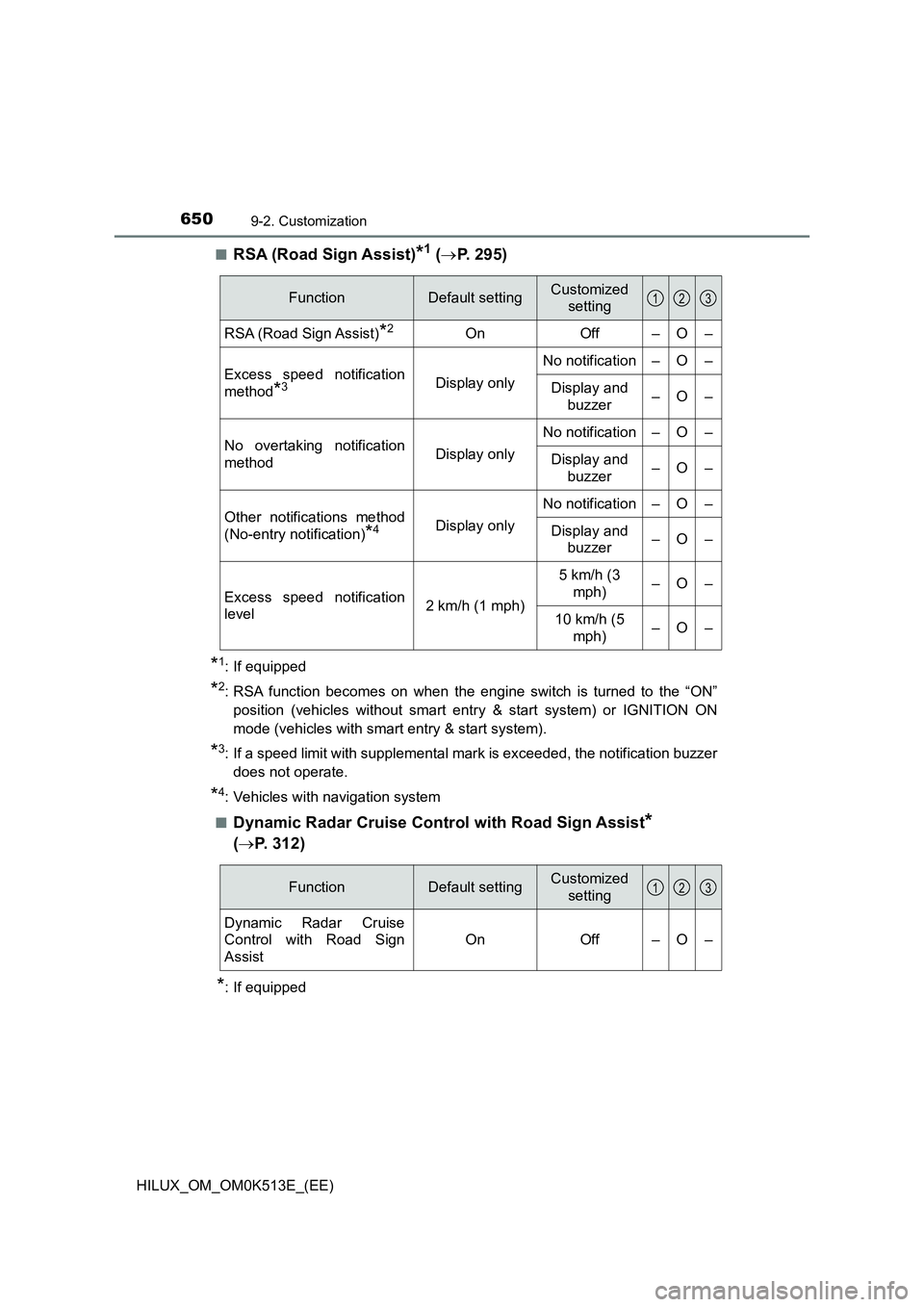

6509-2. Customization
HILUX_OM_OM0K513E_(EE)
QRSA (Road Sign Assist)*1 ( P. 295)
*1: If equipped
*2: RSA function becomes on when the engine switch is turned to the “ON”
position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system).
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
*4: Vehicles with navigation system
QDynamic Radar Cruise Control with Road Sign Assist*
( P. 312)
*: If equipped
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)*2OnOff–O–
Excess speed notification
method*3Display only
No notification–O–
Display and
buzzer–O–
No overtaking notification
methodDisplay only
No notification–O–
Display and
buzzer–O–
Other notifications method
(No-entry notification)*4Display only
No notification–O–
Display and
buzzer–O–
Excess speed notification
level2 km/h (1 mph)
5 km/h (3
mph)–O–
10 km/h (5
mph)–O–
123
FunctionDefault settingCustomized
setting
Dynamic Radar Cruise
Control with Road Sign
Assist
OnOff–O–
123

662Alphabetical index
HILUX_OM_OM0K513E_(EE)
Child safety ................................ 64
Airbag precautions .................. 47
Battery precautions ....... 497, 608
Child restraint system ............. 65
How your child should
wear the seat belt ................. 42
Installing child restraints.... 90, 93
Power window lock
switch.................................. 186
Power window precautions ... 188
Rear door child-protectors .... 156
Removed key battery
precautions ......................... 518
Seat belt precautions .............. 44
Seat heater precautions ........ 450
Child-protectors ....................... 156
Cleaning............................ 472, 476
Exterior.................................. 472
Interior ................................... 476
Seat belts .............................. 477
Wheels .................................. 473
Clock ......................................... 465
Clutch........................................ 637
Coat hooks ............................... 469
Condenser ................................ 493
Console box ............................. 457
Cooling system
Engine overheating ............... 610
Cruise control
Cruise control ........................ 317
Dynamic radar cruise
control................................. 301
Cup holders .............................. 458
Curtain shield airbags ............... 45
DAC ........................................... 364
Daytime running light
system .................................... 252
Deck hooks .............................. 463
Defogger
Outside rear view
mirrors ........................ 435, 444
Rear window ................. 435, 444
Windshield .................... 435, 443
Differential
Oil ......................................... 637
Dimension ................................ 620
Display
Cruise control........................ 317
Dynamic radar cruise
control................................. 301
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 290
Multi-information
display ................................ 135
Trip information ..................... 137
Do-it-yourself maintenance .... 482
Doors
Door glasses ......................... 185
Door lock............................... 153
Open door warning light........ 570
Outside rear view mirrors...... 182
Rear door child-protectors .... 156
Side doors............................. 153
Downhill assist control
system .................................... 364
DPF (Diesel Particulate Filter)
system .................................... 369
Warning message ................. 578
Drive-Start Control .................. 195
Driver’s seat belt
reminder light ........................ 570
D

663Alphabetical index
HILUX_OM_OM0K513E_(EE)
Driving
Break-in tips .......................... 196
Correct posture ....................... 38
Procedures............................ 192
Winter drive tips .................... 374
Dynamic radar cruise
control .................................... 301
Function ................................ 301
Warning message ................. 580
Eco Driving Indicator....... 126, 128
Emergency flashers................. 554
Electronic key
If the electronic key does
not operate properly ........... 600
Replacing the battery ............ 516
Emergency, in case of
If a warning buzzer
sounds ................................ 566
If a warning light turns on ...... 566
If the electronic key does
not operate properly ........... 600
If the engine will not start ...... 598
If the vehicle battery is
discharged .......................... 604
If the vehicle is submerged or
water on the road is
rising ................................... 557
If you have a flat tire.............. 581
If you lose your keys ............. 151
If you run out of fuel and
the engine stalls.................. 614
If you think something is
wrong .................................. 564
If your vehicle becomes
stuck ................................... 615
If your vehicle has to be
stopped in an
emergency.......................... 555
If your vehicle needs to be
towed .................................. 559
If your vehicle overheats ....... 610
Engine
“ACC” position ...................... 221
Compartment ........................ 486
Engine switch................ 220, 223
Hood ..................................... 484
How to start the
engine......................... 220, 223
Identification number ............ 625
If the engine will not start ...... 598
If you run out of fuel and the
engine stalls ....................... 614
If your vehicle has to be
stopped in an
emergency.......................... 555
Ignition switch
(engine switch) ........... 220, 223
Overheating .......................... 610
Engine coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 374
Engine coolant
temperature gauge ................ 131
Engine immobilizer system .... 115
Engine oil
Capacity ................................ 628
Checking ............................... 489
Oil level warning light ............ 570
Oil pressure warning light ..... 566
Preparing and checking
before winter....................... 374
Engine oil maintenance
data ......................................... 491
E
