2022 TOYOTA HILUX cruise control

3044-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
WARNING
QSituations unsuitable for dynamic radar cruise control
Do not use dynamic radar cruise control in any of the following situations.
Doing so may result in inappropriate speed control and could cause an acci-
dent resulting in death or serious injury.
O Roads where there are pedestrians, cyclists, etc.
O In heavy traffic
O On roads with sharp bends
O On winding roads
O On slippery roads, such as those covered with rain, ice or snow
O On steep downhills, or where there are sudden changes between sharp up
and down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
O At entrances to freeways and highways
O When weather conditions are bad enough that they may prevent the sen-
sors from detecting correctly (fog, snow, sandstorm, heavy rain, etc.)
O When there is rain, snow, etc. on the front surface of the radar or front
camera
O In traffic conditions that require frequent repeated acceleration and decel-
eration
O When your vehicle is towing a trailer (with towing hitch) or during emer-
gency towing
O When an approach warning buzzer is heard often

3074-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
Press the “ON-OFF” button to
activate the cruise control.
Dynamic radar cruise control indi-
cator will come on and a message
will be displayed on the multi-infor-
mation display. Press the button
again to deactivate the cruise con-
trol.
If the “ON-OFF” button is pressed
and held for 1.5 seconds or more,
the system turns on in constant
speed control mode. ( P. 3 11 )
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 km/h
[20 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Setting the vehicle speed (vehicle-to-vehicle distance control
mode)
1
2

3104-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Pulling the lever toward you
cancels the speed control.
The speed control is also canceled
when the brake pedal is
depressed.
Pushing the lever up resumes
the cruise control and returns
vehicle speed to the set speed.
However, cruise control does not resume when the vehicle speed is
approximately 25 km/h (16 mph) or less.
When your vehicle is too close to
a vehicle ahead, and sufficient
automatic deceleration via the
cruise control is not possible, the
display will flash and the buzzer
will sound to alert the driver. An
example of this would be if
another driver cuts in front of you
while you are following a vehicle.
Depress the brake pedal to
ensure an appropriate vehicle-to-
vehicle distance.
QWarnings may not occur when
In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.
O When the speed of the preceding vehicle matches or exceeds
your vehicle speed
O When the preceding vehicle is traveling at an extremely slow
speed
O Immediately after the cruise control speed was set
O When depressing the accelerator pedal
Canceling and resuming the speed control
1
2
Approach warning (vehicle-to-vehicle distance control mode)

3114-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)

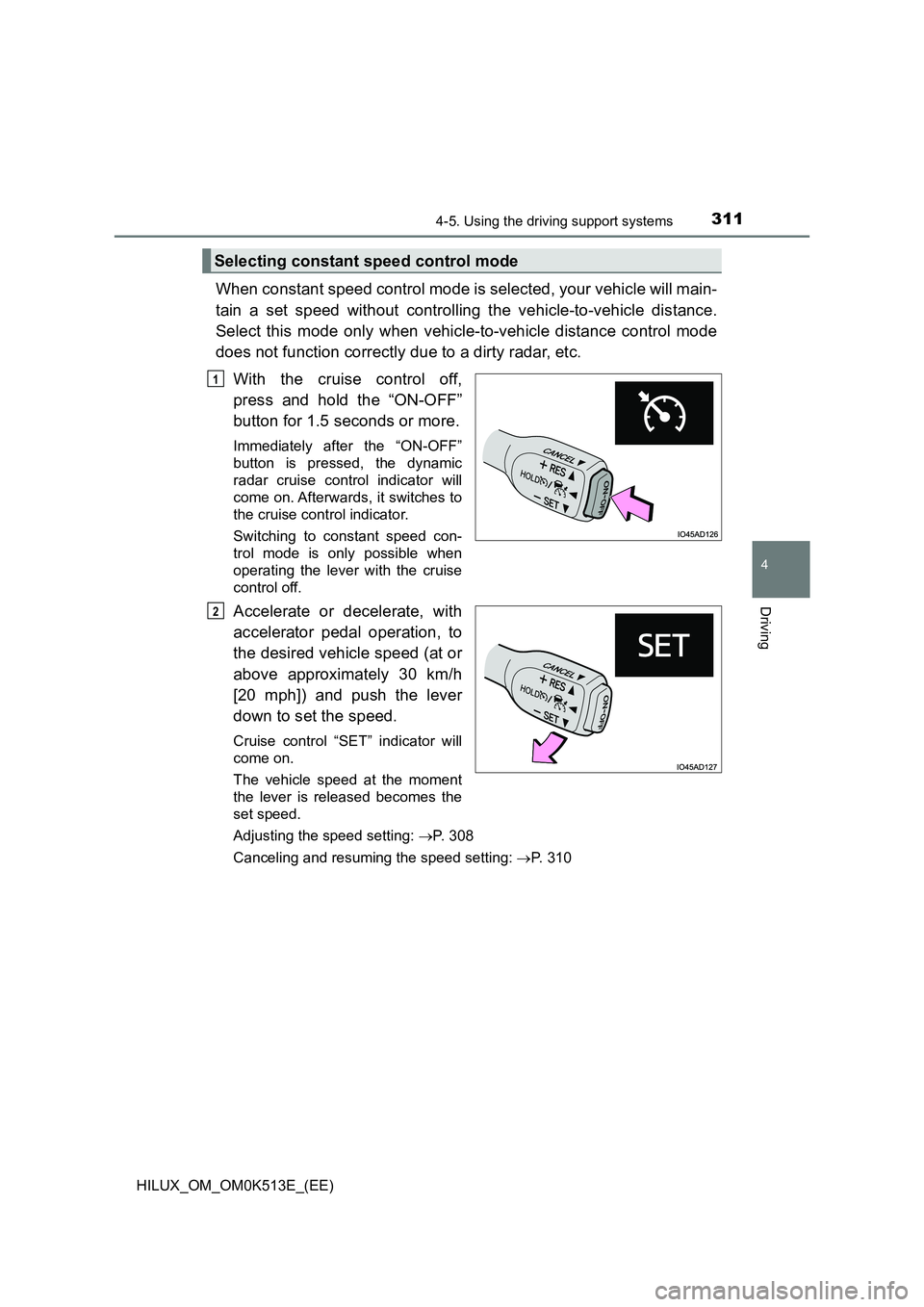

When constant speed control mode is selected, your vehicle will main-
tain a set speed without controlling the vehicle-to-vehicle distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar, etc.
With the cruise control off,
press and hold the “ON-OFF”
button for 1.5 seconds or more.
Immediately after the “ON-OFF”
button is pressed, the dynamic
radar cruise control indicator will
come on. Afterwards, it switches to
the cruise control indicator.
Switching to constant speed con-
trol mode is only possible when
operating the lever with the cruise
control off.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 km/h
[20 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Adjusting the speed setting: P. 308
Canceling and resuming the speed setting: P. 310
Selecting constant speed control mode
1
2

3124-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
When this function is enabled and the system is operating in vehicle-
to-vehicle distance control mode ( P. 305), when a speed limit sign is
detected, the recognized speed limit will be displayed with an up/
down arrow. The set speed can be increased/reduced to the recog-
nized speed limit by pushing the lever up or down.
O When the current set speed is
lower than the recognized
speed limit
Push the lever up
O When the current set speed is
higher than the recognized
speed limit
Push the lever down
Dynamic Radar Cruise Control with Road Sign Assist can be enabled/
disabled in on the multi-information display. ( P. 135)
When the Dynamic Radar Cruise Control with Road Sign Assist is
operating, while driving down a hill, the vehicle speed may exceed the
set speed.
In this case, the displayed set vehicle speed will be highlighted and a
buzzer will sound to alert the driver.
Dynamic Radar Cruise Control with Road Sign Assist
Enabling/Disabling the Dynamic Radar Cruise Control with Road
Sign Assist

3134-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
QDynamic radar cruise control can be set when
O The shift lever is in D. (Vehicles with automatic transmission)
O The shift lever is in range 2nd or higher. (Vehicles with manual transmission)
O Depending on the control mode, this item can be set at the following
speeds.
• Vehicle-to-vehicle distance control mode: Approximately 30 km/h (20
mph) or more
• Constant speed control mode: Approximately 30 km/h (20 mph) or more
Q Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.
Q Shift position selection (vehicles with manual transmission)
Select a shift position according to the vehicle speed. If the engine speed is
too high or too low, control may be automatically canceled.
Q Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations.
O Actual vehicle speed falls below approximately 25 km/h (16 mph).
O VSC is activated.
O TRC/A-TRC is activated for a period of time.
O When the VSC or TRC/A-TRC system is turned off.
O The sensor cannot detect correctly because it is covered in some way.
O When the brake control or output restriction control of a driving support sys-
tem operates. (For example: Pre-Coll ision System, Drive-Start Control)
O When the shift lever is in N or the clutch pedal is depressed for a certain
amount of time or more. (Vehicles with manual transmission)
O 4WD models: Switching the transfer mode is not completed within 5 sec-
onds while the cruise control system is on.
If vehicle-to-vehicle distance control mode is automatically canceled for any
reasons other than the above, there may be a malfunction in the system.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

3144-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Q Automatic cancelation of constant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:
O Actual vehicle speed is more than approximately 16 km/h (10 mph) below
the set vehicle speed.
O Actual vehicle speed falls below approximately 30 km/h (20 mph).
O VSC is activated.
O TRC/A-TRC is activated for a period of time.
O When the VSC or TRC/A-TRC system is turned off.
O When the brake control or output restriction control of a driving support sys-
tem operates. (For example: Pre-Coll ision System, Drive-Start Control)
O When the shift lever is in N or the clutch pedal is depressed for a certain
amount of time or more. (Vehicles with manual transmission)
O 4WD models: Switching the transfer mode is not completed within 5 sec-
onds while the cruise control system is on.
If constant speed control mode is automatically canceled for any reasons
other than the above, there may be a malfunction in the system. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
Q The Dynamic Radar Cruise Control with Road Sign Assist may not oper-
ate properly when
As the Dynamic Radar Cruise Control with Road Sign Assist may not oper-
ate properly in conditions in which RSA may not operate or detect correctly
( P. 299), when using this function, make sure to check the speed limit
sign displayed.
In the following situations, the set speed may not be changed to the recog-
nized speed limit by pushing the lever up or down.
O If speed limit information is not available
O When the recognized speed limit is the same as the set speed
O When the recognized speed limit is outside of the speed range that the
dynamic radar cruise control system can operate
Q Brake operation
A brake operation sound may be heard and the brake pedal response may
change, but these are not malfunctions.
Q Warning messages and buzzers for dynamic radar cruise control
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions. ( P. 271, 575)

317
4
4-5. Using the driving support systems
Driving
HILUX_OM_OM0K513E_(EE)

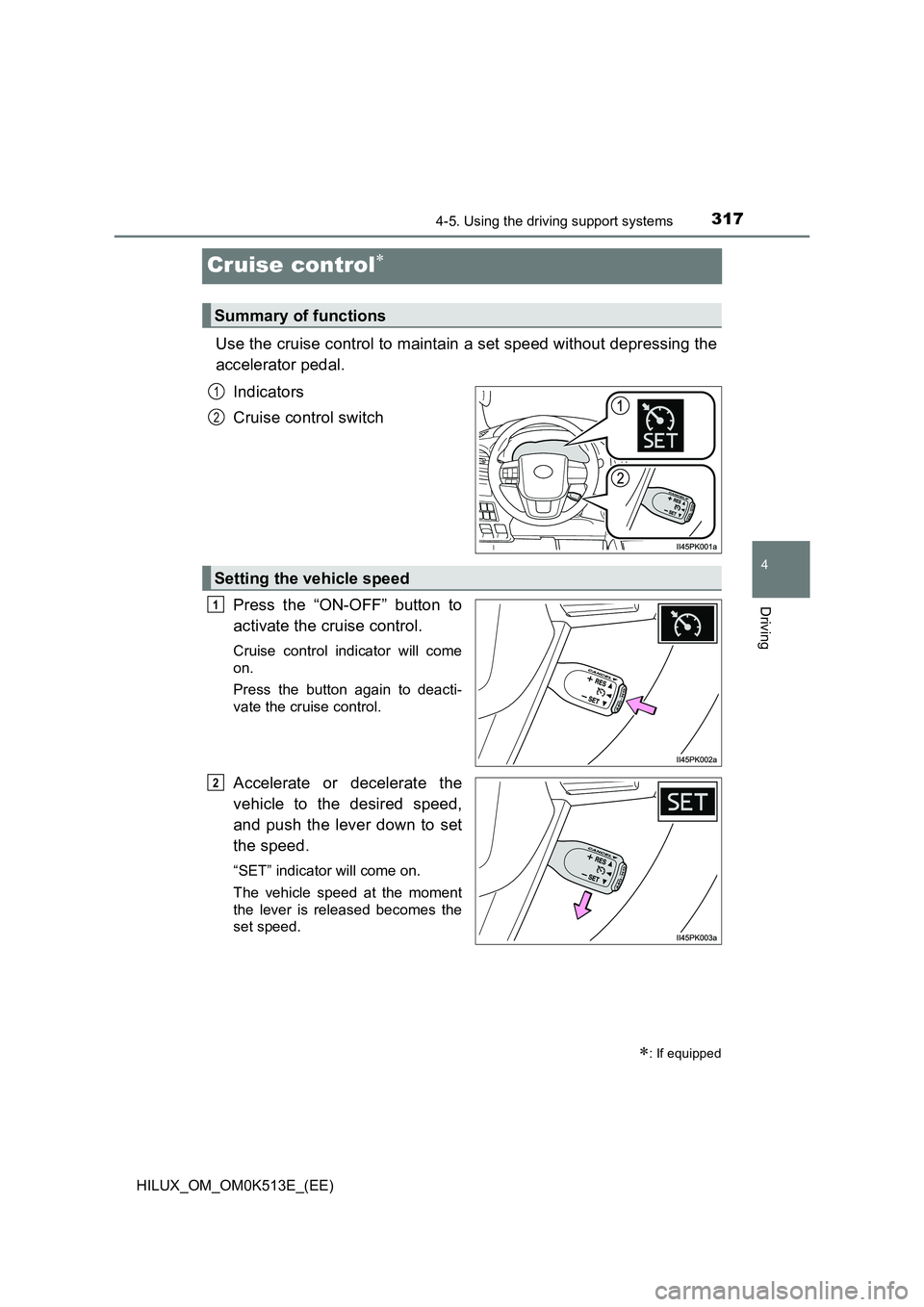

Cruise control
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.
Indicators
Cruise control switch
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2
