2022 TOYOTA HILUX steering wheel

TABLE OF CONTENTS2
HILUX_OM_OM0K513E_(EE)
For your information .......................8
Reading this manual.....................14
How to search ..............................15
Pictorial index ...............................16
1-1. For safe use
Before driving.......................36
For safe driving ....................38
Seat belts .............................40
SRS airbags.........................45
Exhaust gas precautions .....56
1-2. Child safety
Front passenger occupant
classification system ..........57
Airbag manual on-off
system ...............................62
Riding with children..............64
Child restraint systems ........65
1-3. Emergency assistance
eCall.....................................98
ERA-GLONASS/EVAK ......110
1-4. Theft deterrent system
Engine immobilizer
system .............................115
Alarm .................................117
2. Instrument cluster
Warning lights
and indicators.................. 122
Gauges and meters........... 130
Multi-information display ... 135
Fuel consumption
information ...................... 144
3-1. Key information
Keys .................................. 148
3-2. Opening, closing and
locking the doors
Side doors ......................... 153
Access panels (smart-cab
models only).................... 159
Tailgate ............................. 160
Smart entry & start
system............................. 163
3-3. Adjusting the seats
Front seats ........................ 170
Rear seats ......................... 172
Head restraints .................. 175
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 178
Inside rear view mirror....... 180
Outside rear view
mirrors ............................. 182
1For safety and security
2Instrument cluster
3Operation of
each component

3
1
9
8
6
5
4
3
2
HILUX_OM_OM0K513E_(EE)
7
3-5. Opening and closing
the windows
Power windows ..................185
Quarter windows
(smart-cab models)..........189
4-1. Before driving
Driving the vehicle .............192
Cargo and luggage ............205
Trailer towing (without
towing hitch) ....................206
Trailer towing (with towing
hitch) ................................207
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........220
Engine (ignition) switch
(vehicles with smart
entry & start system)........223
Automatic transmission......231
Manual transmission ..........239
Turn signal lever ................246
Parking brake.....................247
4-3. Operating the lights
and wipers
Headlight switch.................248
Fog light switch ..................255
Windshield wipers and
washer .............................258
4-4. Refueling
Opening the fuel tank
cap ...................................261
4-5. Using the driving support
systems
Toyota Safety Sense ......... 266
PCS (Pre-Collision
System) ........................... 273
LDA (Lane Departure
Alert With Yaw Assist
Function) ......................... 284
RSA (Road Sign Assist) .... 295
Dynamic radar cruise
control ............................. 301
Cruise control .................... 317
Toyota parking
assist-sensor ................... 321
Four-wheel drive
system............................. 331
Rear differential
lock system ..................... 341
Stop & Start system .......... 345
Driving assist systems....... 355
Downhill assist control
system............................. 364
AUTO LSD ........................ 367
DPF (Diesel Particulate
Filter) system .................. 369
4-6. Driving tips
Winter driving tips.............. 374
5-1. Basic Operations
Audio system types ........... 378
Using the steering wheel
audio switches ................ 379
AUX port/USB port ............ 381
4Driving
5Audio system

TABLE OF CONTENTS4
HILUX_OM_OM0K513E_(EE)
5-2. Using the audio system
Optimal use of the audio
system .............................382
5-3. Using the radio
Radio operation .................384
5-4. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ...........387
5-5. Using an external device
Listening to an iPod ...........395
Listening USB memory
device ..............................401
Using the AUX port ............407
5-6. Using Bluetooth® devices
Bluetooth® audio/phone .....408
Using the steering
wheel switches ................413
Registering a Bluetooth®
device ..............................414
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth” menu)...........415
Using the “SETUP” menu
(“TEL” menu) ...................419
5-8. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ...............................424
5-9. Bluetooth® Phone
Making a phone call ...........426
When receiving a phone
call ...................................427
Speaking on the phone ......428
5-10. Bluetooth®
Bluetooth®.........................430
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system............................. 434
Automatic air conditioning
system............................. 441
Heated steering wheel/
seat heaters .................... 450
6-2. Using the interior lights
Interior lights list ................ 453
• Personal/interior light
main switch ................... 454
• Personal/interior
lights ............................. 454
• Interior light ................... 454
6-3. Using the storage features
List of storage features...... 456
• Glove box ...................... 457
• Console box .................. 457
• Cup holders .................. 458
• Bottle holders ................ 459
• Auxiliary boxes .............. 460
Luggage compartment
features ........................... 463
6-4. Using the other interior
features
Other interior features ....... 464
• Sun visors ..................... 464
• Vanity mirror ................. 464
• Clock ............................. 465
• Power outlets ................ 466
• Grocery bag hooks ....... 468
• Coat hooks .................... 469
• Armrest ......................... 469
Using the steering wheel
audio switches ................ 470
6Interior features

22Pictorial index
HILUX_OM_OM0K513E_(EE)
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 554
Front-wheel drive control switch*1 . . . . . . . . . . . . . . . . . . . P. 331
Power outlets*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
VSC OFF switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 357
Rear differential lock switch*1. . . . . . . . . . . . . . . . . . . . . . . P. 341
“DAC” (Downhill Assist Control system) switch*1 . . . . . . P. 364
Stop & Start cancel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 346
“iMT” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Heated steering wheel switch*1. . . . . . . . . . . . . . . . . . . . . . P. 450
Seat heater switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
USB port*1, 2
1
2
3
4
5
6
7
8
9
10
11

381-1. For safe use
HILUX_OM_OM0K513E_(EE)
For safe driving

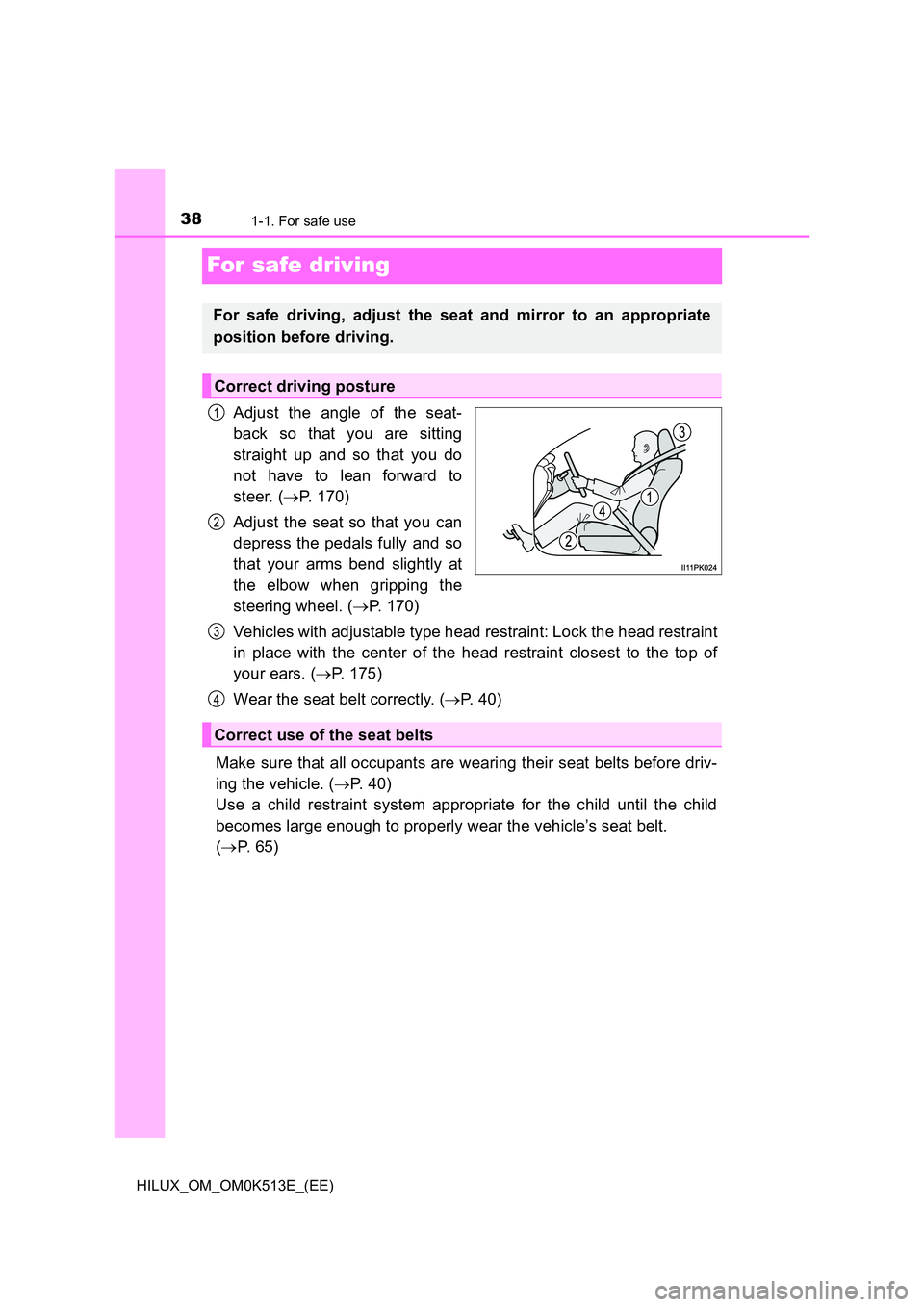

Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 170)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 170)
Vehicles with adjustable type head restraint: Lock the head restraint
in place with the center of the head restraint closest to the top of
your ears. ( P. 175)
Wear the seat belt correctly. ( P. 4 0 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 4 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 5 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

471-1. For safe use
1
HILUX_OM_OM0K513E_(EE)
For safety and security
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
WARNING
Q SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
O The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devic es to be used with the seat belts.
O The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary,
many drivers can achieve the 250 mm (10 in.) distance, even with the
driver seat all the way forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it hard to see the
road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.

491-1. For safe use
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QSRS airbag precautions

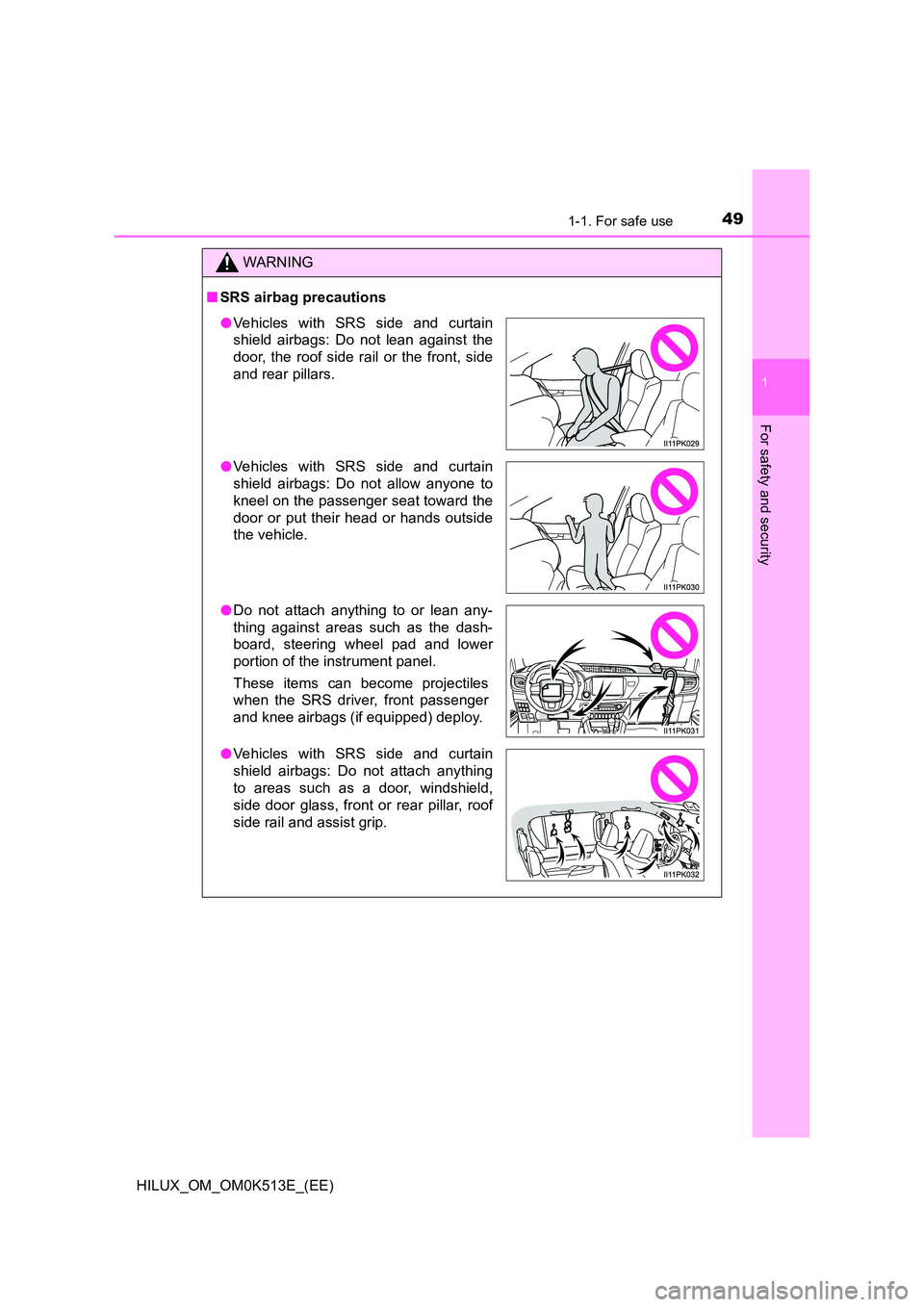

OVehicles with SRS side and curtain
shield airbags: Do not lean against the
door, the roof side rail or the front, side
and rear pillars.
O Vehicles with SRS side and curtain
shield airbags: Do not allow anyone to
kneel on the passenger seat toward the
door or put their head or hands outside
the vehicle.
O Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags (if equipped) deploy.
O Vehicles with SRS side and curtain
shield airbags: Do not attach anything
to areas such as a door, windshield,
side door glass, front or rear pillar, roof
side rail and assist grip.

501-1. For safe use
HILUX_OM_OM0K513E_(EE)
WARNING
QSRS airbag precautions
O Vehicles with SRS side and curtain shield airbags: Do not hang coat hang-
ers or other hard objects on the coat hooks. All of these items could
become projectiles and may cause death or serious injury, should the SRS
curtain shield airbags deploy.
O Vehicles with SRS driver’s knee airbag: If the vinyl cover is put on the area
where the SRS knee airbag will deploy, be sure to remove it.
O Vehicles with SRS side and curtain shield airbags: Do not use seat acces-
sories which cover the parts where the SRS side airbags inflate as they
may interfere with inflation of the SRS airbags. Such accessories may pre-
vent the side airbags from activating co rrectly, disable the system or cause
the side airbags to inflate accidentally, resulting in death or serious injury.
O Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
O Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
O If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
O Vehicles with SRS side and curtain shield airbags: If the areas where the
SRS airbags are stored, such as the steering wheel pad and front and rear
pillar garnishes, are damaged or cr acked, have them replaced by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
O Vehicles without SRS side and curtain shield airbags: If the areas where
the SRS airbags are stored, such as the steering wheel pad, are damaged
or cracked, have them replaced by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
O Vehicles with front passenger occupant classification system: Do not place
anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detect-
ing the passenger’s weight properly. As a result, the SRS front airbags for
the front passenger may not deploy in the event of a collision.
O Vehicles without smart entry & start sys-
tem: Do not attach any heavy, sharp or
hard objects such as keys or accesso-
ries to the key. The objects may restrict
the SRS knee airbag (if equipped) infla-
tion or be thrust into the driver’s seat
area by the force of the deploying air-
bag, thus causing a danger.
