3855-3. Using the radio
5
Audio system
HILUX_OM_OM0K513E_(EE)

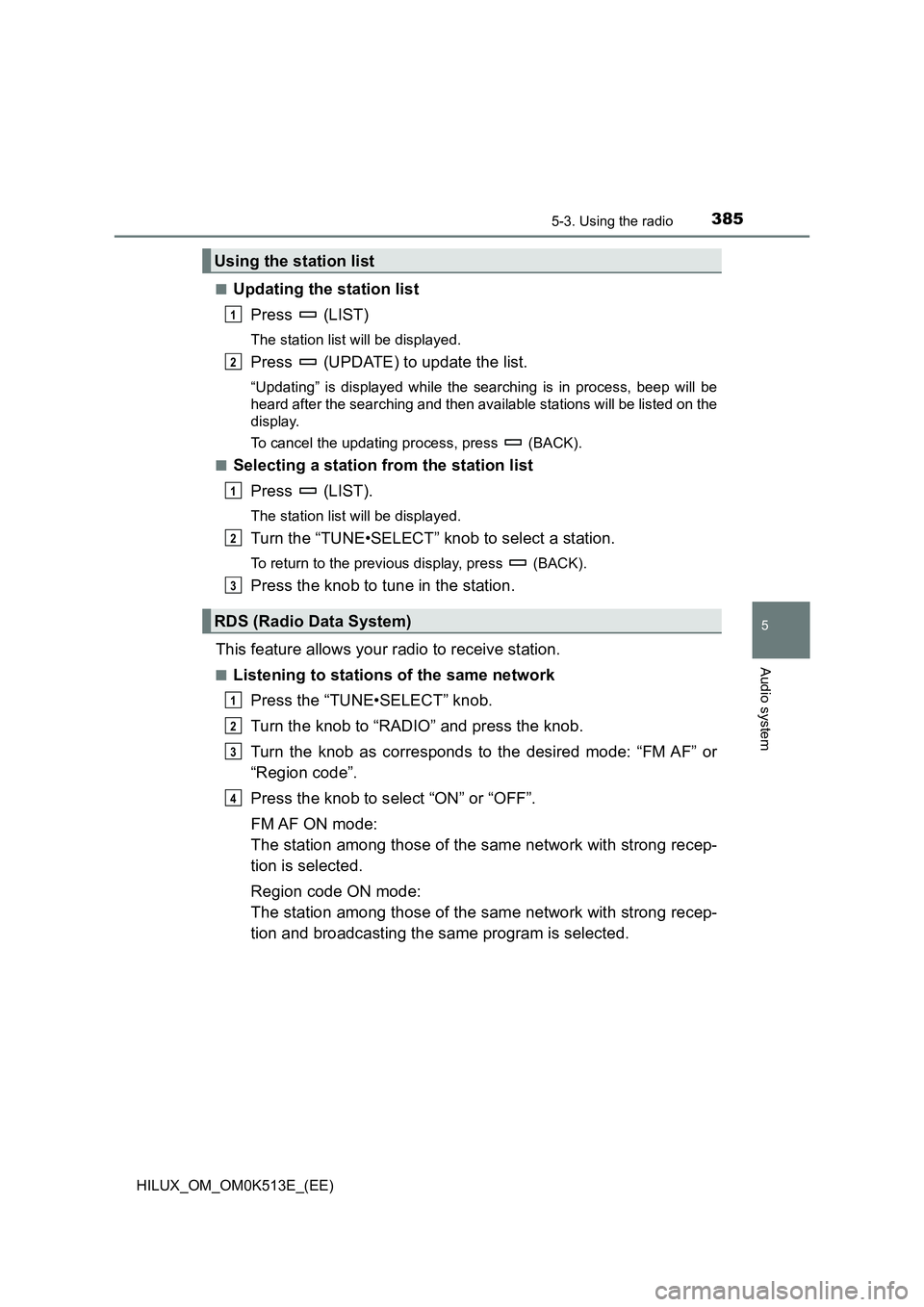

QUpdating the station list
Press (LIST)
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, beep will be
heard after the searching and then available stations will be listed on the
display.
To cancel the updating process, press (BACK).
QSelecting a station from the station list
Press (LIST).
The station list will be displayed.
Turn the “TUNE•SELECT” knob to select a station.
To return to the previous display, press (BACK).
Press the knob to tune in the station.
This feature allows your radio to receive station.
QListening to stations of the same network
Press the “TUNE•SELECT” knob.
Turn the knob to “RADIO” and press the knob.
Turn the knob as corresponds to the desired mode: “FM AF” or
“Region code”.
Press the knob to select “ON” or “OFF”.
FM AF ON mode:
The station among those of the same network with strong recep-
tion is selected.
Region code ON mode:
The station among those of the same network with strong recep-
tion and broadcasting the same program is selected.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3
4

387
5
5-4. Playing an audio CD and MP3/WMA/AAC discs
Audio system
HILUX_OM_OM0K513E_(EE)
CD player operation
Pause/playback
Selecting a track, fast-forwarding or rewinding
“TUNE•SELECT” knob
Selecting a track/file
Displaying text message
Displaying track/folder list
Selecting a folder (MP3/WMA/AAC discs only)
Repeat play
Changing the audio source/playback
Random play or back button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Disc eject
Insert a disc.
Insert a disc or press the “MODE” button (CD is already loaded)
to begin listening to a CD.
Loading a CD or MP3/WMA/AAC disc
1
2
3
4
5
6
7
8
9
10
11

3885-4. Playing an audio CD and MP3/WMA/AAC discs
HILUX_OM_OM0K513E_(EE)
Press the disc eject button and remove the disc.
QSelecting a track
Turn the “TUNE•SELECT” knob or press the “SEEK >” or
“< TRACK” button to move up or down until the desired track num-
ber is displayed.
QSelecting a track from a track list
Press (LIST).
The track list will be displayed.
Turn and press the “TUNE•SELECT” knob to select a track.
To return to the previous display, press (BACK).
QFast-forwarding and rewinding tracks
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
QRandom play
Press (RDM).
To cancel, press (RDM) again.
QRepeat play
Press (RPT).
To cancel, press (RPT) again.
QSwitching the display
Press (TEXT) to display or hide the CD title.
If there are continuing texts, is displayed.
Press and hold (TEXT) until you hear a beep to display the remain-
ing texts.
Ejecting a CD or MP3/WMA/AAC disc
Using the CD player
1
2

3895-4. Playing an audio CD and MP3/WMA/AAC discs
5
Audio system
HILUX_OM_OM0K513E_(EE)

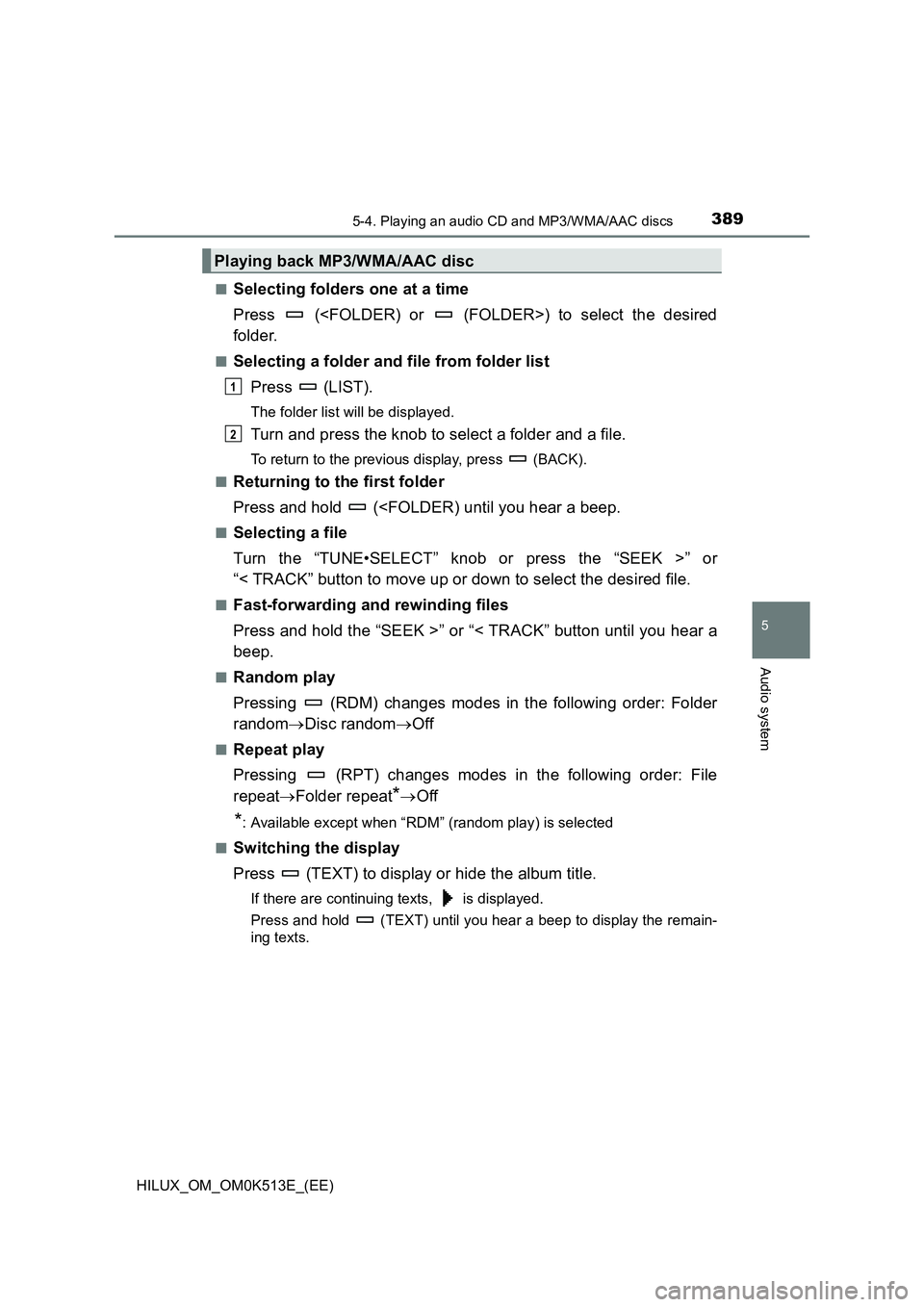

QSelecting folders one at a time
Press () to select the desired
folder.
QSelecting a folder and file from folder list
Press (LIST).
The folder list will be displayed.
Turn and press the knob to select a folder and a file.
To return to the previous display, press (BACK).
QReturning to the first folder
Press and hold ( QSelecting a file
Turn the “TUNE•SELECT” knob or press the “SEEK >” or
“< TRACK” button to move up or down to select the desired file.
QFast-forwarding and rewinding files
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
QRandom play
Pressing (RDM) changes modes in the following order: Folder
random Disc randomOff
QRepeat play
Pressing (RPT) changes modes in the following order: File
repeat Folder repeat*Off
*: Available except when “RDM” (random play) is selected
QSwitching the display
Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold (TEXT) until you hear a beep to display the remain-
ing texts.
Playing back MP3/WMA/AAC disc
1
2

3905-4. Playing an audio CD and MP3/WMA/AAC discs
HILUX_OM_OM0K513E_(EE)
QDisplay
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Q Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
Q Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
Q CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
Q If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
MessageCause/Correction procedures
“CD CHECK”
The disc may be dirty, damaged or inserted
upside-down. Clean the disc or insert it cor-
rectly.
“ERROR 3”There is a trouble inside the system.
Eject the disc.
“ERROR 4”An over current error has occurred.
Turn the engine switch off.
“WAIT”
Operation has stopped due to a high tempera-
ture inside the player. Wait for a while and
then press the “MODE” button. If the CD still
cannot be played back, contact any autho-
rized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
“NO SUPPORT”This indicates that the MP3, WMA or AAC file
is not included in the CD.

3925-4. Playing an audio CD and MP3/WMA/AAC discs
HILUX_OM_OM0K513E_(EE)
O Compatible media
Media that can be used for MP3, WMA and AAC playback are CD-ROMs,
CD-Rs and CD-RWs.
Playback in some instances may not be possible, depending on the status
of the CD-ROM, CD-R or CD-RW. Playback may not be possible or the
audio may jump if the disc is scratched or marked with fingerprints.
O Compatible disc formats
The following disc formats can be used.
• Disc formats:
CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats:
ISO9660 Level 1, Level 2, (Romeo, Joliet)
UDF (2.01)
MP3, WMA and AAC files written in any format other than those listed
above may not play correctly, and their file names and folder names may
not be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
O File names
The only files that can be recognized as MP3/WMA/AAC and played are
those with the extension .mp3, .wma or .m4a.
O Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3, WMA and AAC files. However, only the first session
can be played.
O ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title, artist and album name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track
title, artist and album name in t he same way as with ID3 tags.

395
5
5-5. Using an external device
Audio system
HILUX_OM_OM0K513E_(EE)

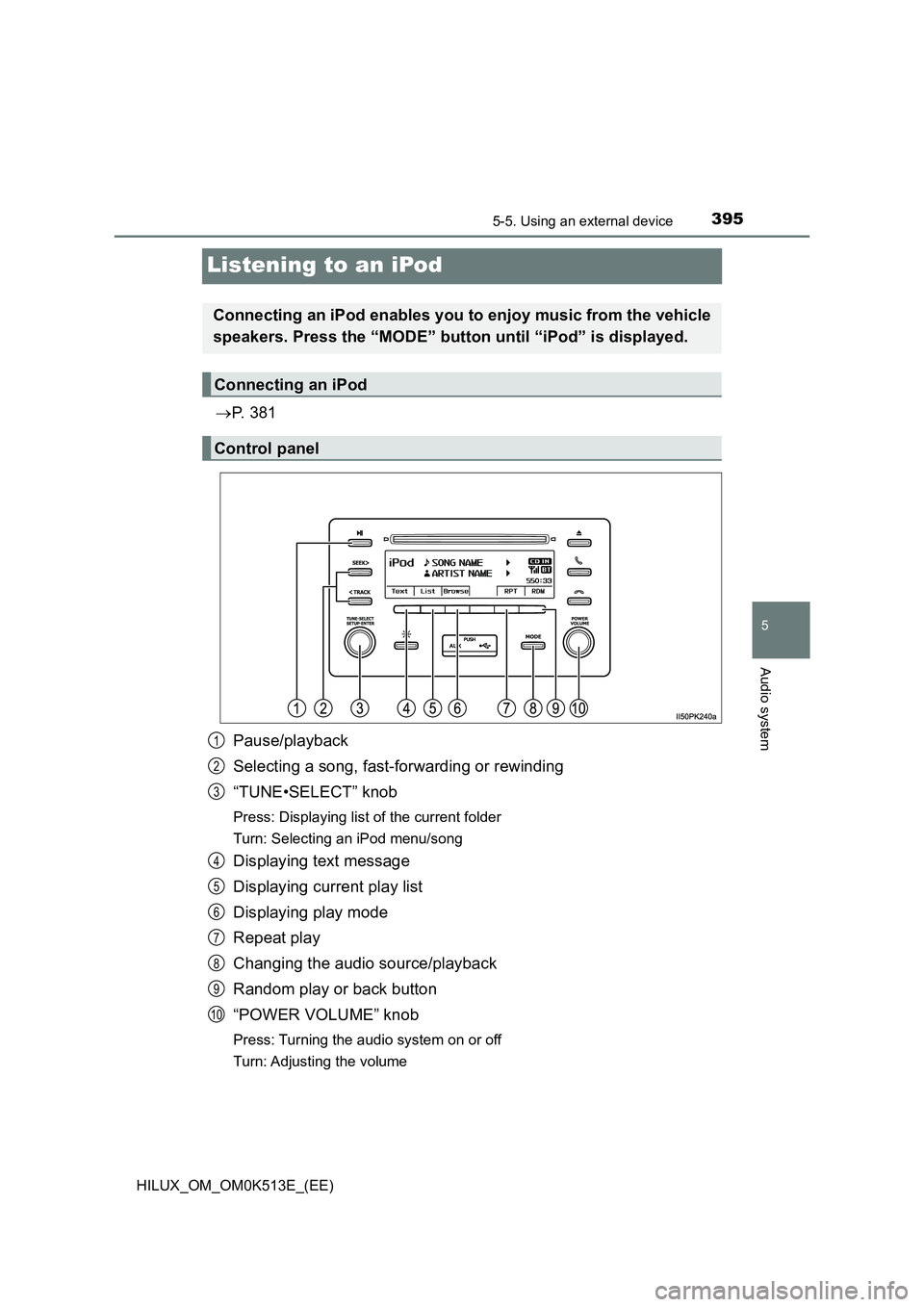

Listening to an iPod
P. 3 8 1
Pause/playback
Selecting a song, fast-forwarding or rewinding
“TUNE•SELECT” knob
Press: Displaying list of the current folder
Turn: Selecting an iPod menu/song
Displaying text message
Displaying current play list
Displaying play mode
Repeat play
Changing the audio source/playback
Random play or back button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Connecting an iPod enables you to enjoy music from the vehicle
speakers. Press the “MODE” button until “iPod” is displayed.
Connecting an iPod
Control panel
1
2
3
4
5
6
7
8
9
10

3975-5. Using an external device
5
Audio system
HILUX_OM_OM0K513E_(EE)

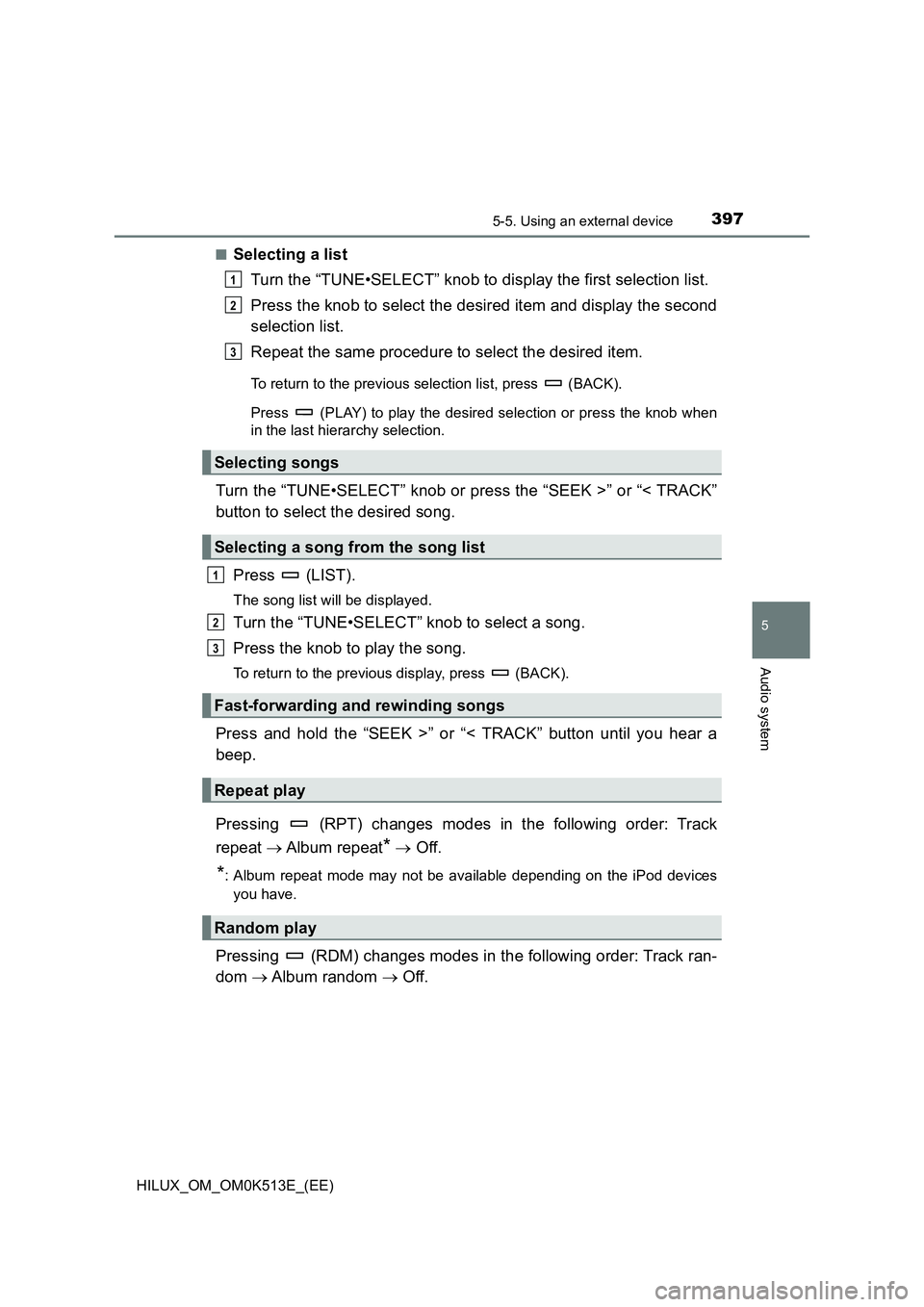

QSelecting a list
Turn the “TUNE•SELECT” knob to display the first selection list.
Press the knob to select the desired item and display the second
selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press (BACK).
Press (PLAY) to play the desired selection or press the knob when
in the last hierarchy selection.
Turn the “TUNE•SELECT” knob or press the “SEEK >” or “< TRACK”
button to select the desired song.
Press (LIST).
The song list will be displayed.
Turn the “TUNE•SELECT” knob to select a song.
Press the knob to play the song.
To return to the previous display, press (BACK).
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
Pressing (RPT) changes modes in the following order: Track
repeat  Album repeat*  Off.
*: Album repeat mode may not be available depending on the iPod devices
you have.
Pressing (RDM) changes modes in the following order: Track ran-
dom  Album random  Off.
Selecting songs
Selecting a song from the song list
Fast-forwarding and rewinding songs
Repeat play
Random play
1
2
3
1
2
3
