TOYOTA AVALON HYBRID 2022  Owners Manual 5378-1. Specifications
8
Vehicle specifications
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 l

Page 538 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5388-1. Specifications
■Typical tire size information
The  illustration  indicates  typical
tire size.
Tire use
(P = Passenger car [some-
times omitted],
T = Temporary use)
Section widt h (millimet

Page 539 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5398-1. Specifications
8
Vehicle specifications
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Tire section names
1
2
3
4
5
6
7
8
9
10
11

Page 540 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5408-1. Specifications
This  information  has  been  prepared  in  accordance  with  regulations
issued  by  the  National  Highway  Tr affic  Safety  Administration  of the
U.S. Department of Transpo

Page 541 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5418-1. Specifications
8
Vehicle specifications
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the ge neration of heat and its abi

Page 542 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5428-1. Specifications

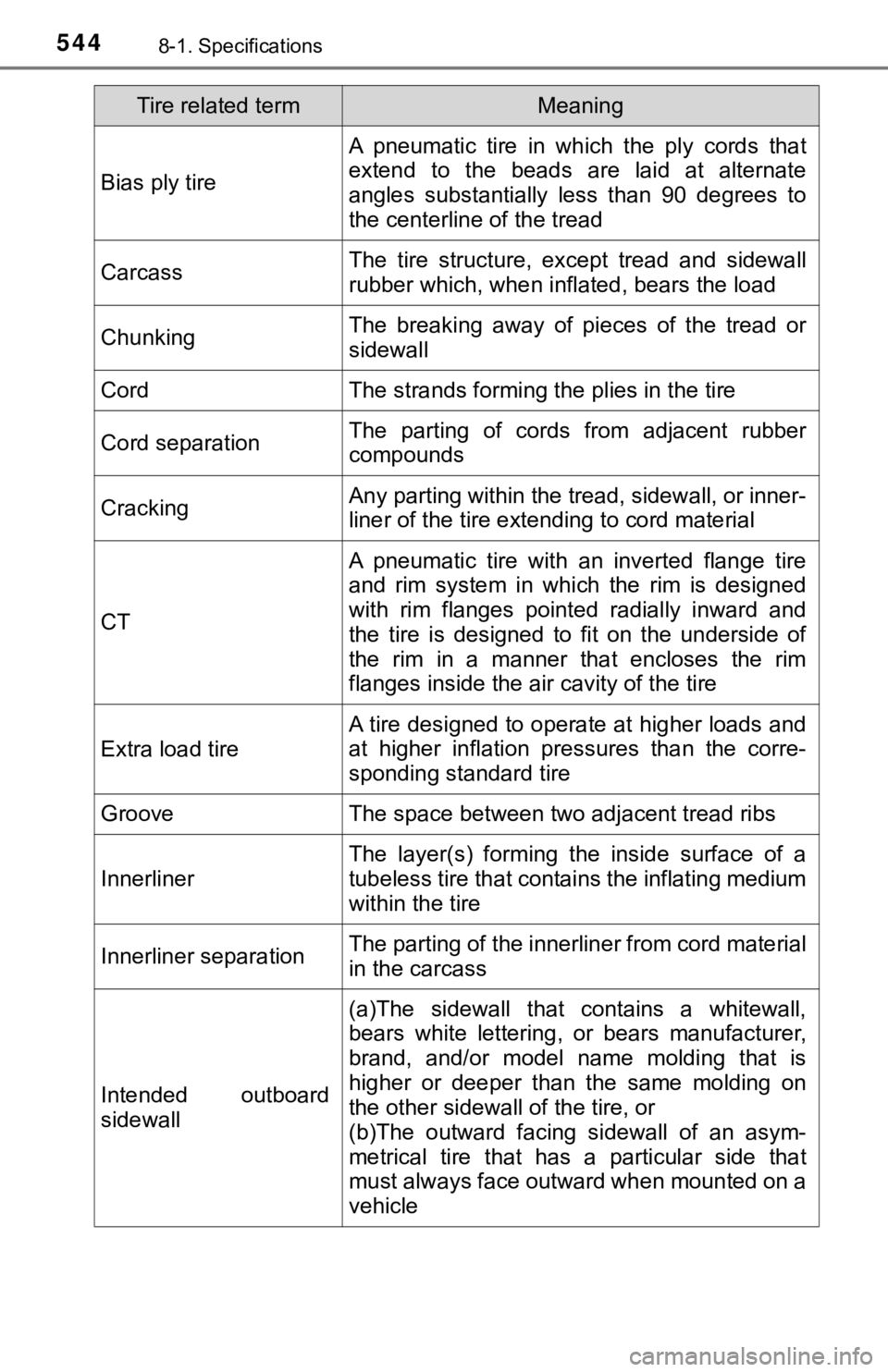

Glossary of tire terminology
Tire related termMeaning
Cold  tire  inflation  pres-
sure
Tire  pressure  when  the  vehicle  has  been
parked  for  three  hours  or  more,  or  h

Page 543 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5438-1. Specifications
8
Vehicle specifications
Production  options
weight
The  combined  weight  of  installed  regular  pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard it

Page 544 of 584

TOYOTA AVALON HYBRID 2022  Owners Manual 5448-1. Specifications
Bias ply tire
A  pneumatic  tire  in  which  the  ply  cords  that
extend  to  the  beads  are  laid  at  alternate
angles  substantially  less  than  90  degrees  to
the center
