2022 TOYOTA AVALON HYBRID Owners Manual

1292. Instrument cluster
2
Instrument cluster

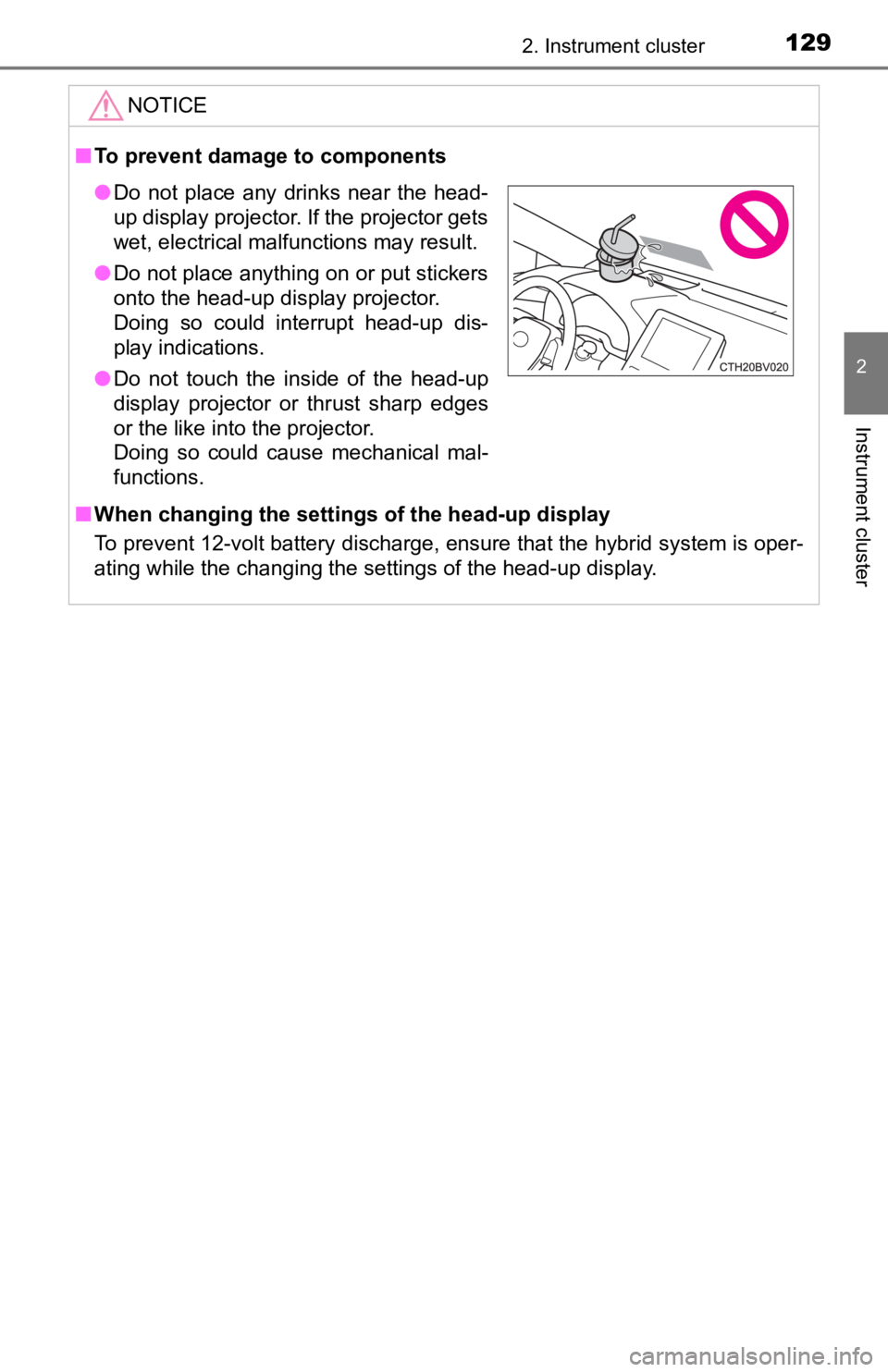

NOTICE
■To prevent damage to components
■ When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid sy stem is oper-
ating while the changing the settings of the head-up display.
● Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.
● Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

1302. Instrument cluster
Audio system screen
Multi-information display
Meter control switches
( P. 103)
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-info r-
mation display and the audio system screen.
The energy monitor and fuel consumption screen can be dis-
played on the “Home” screen of the multimedia system screen.
System components
1
2
3

1312. Instrument cluster
2
Instrument cluster

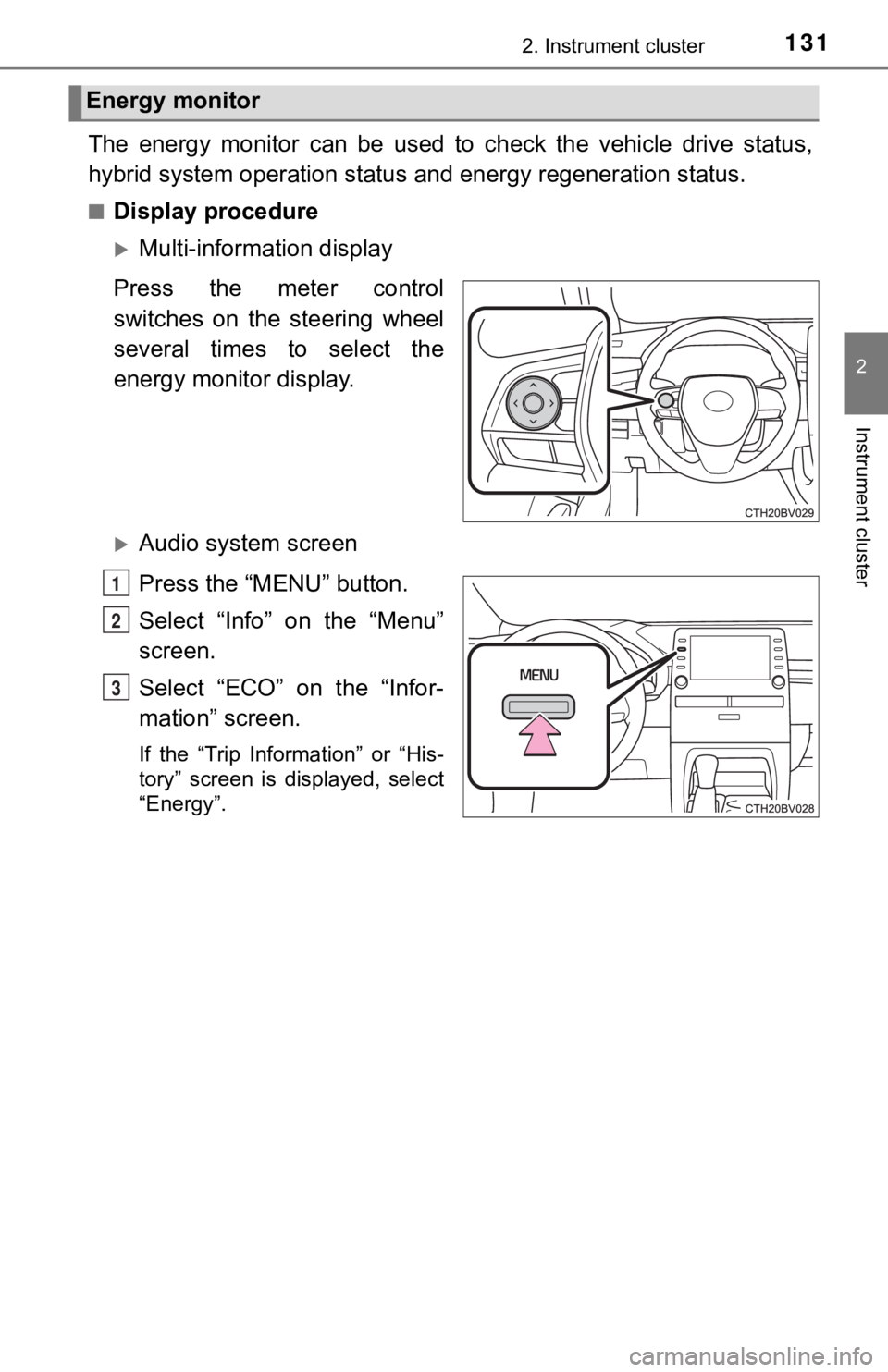

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
■Display procedure
Multi-information display
Press the meter control
switches on the steering wheel
several times to select the
energy monitor display.
Audio system screen
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Infor-
mation” screen.
If the “Trip Information” or “His-
tory” screen is displayed, select
“Energy”.
Energy monitor
1
2
3

1322. Instrument cluster

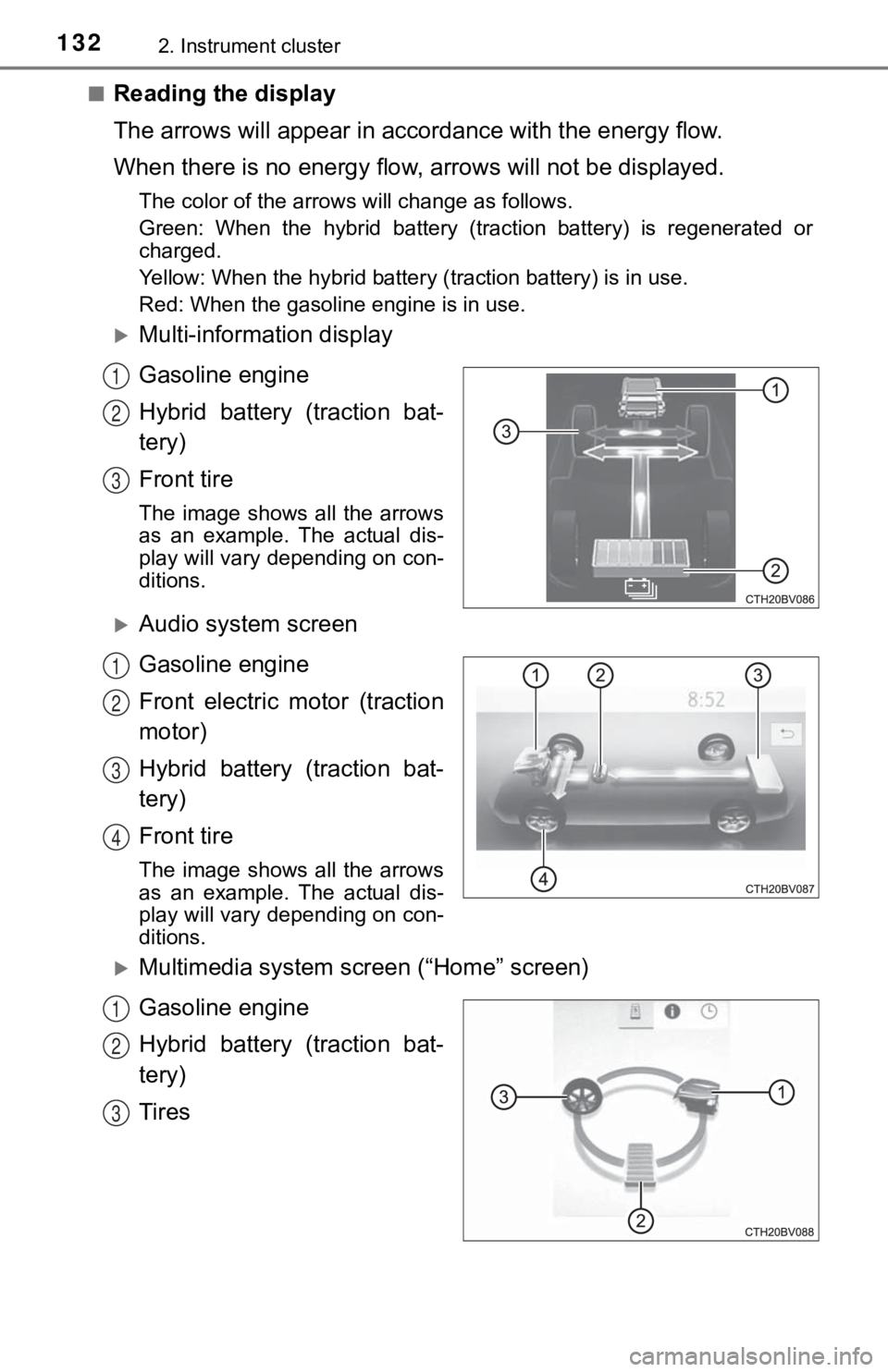

■Reading the display
The arrows will appear in accordance with the energy flow.
When there is no energy flow, a rrows will not be displayed.
The color of the arrows will change as follows.
Green: When the hybrid battery (traction battery) is regenerate d or
charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.
Multi-information display
Gasoline engine
Hybrid battery (traction bat-
tery)
Front tire
The image shows all the arrows
as an example. The actual dis-
play will vary depending on con-
ditions.
Audio system screen
Gasoline engine
Front electric motor (traction
motor)
Hybrid battery (traction bat-
tery)
Front tire
The image shows all the arrows
as an example. The actual dis-
play will vary depending on con-
ditions.
Multimedia system screen (“Home” screen)
Gasoline engine
Hybrid battery (traction bat-
tery)
Tires
1
2
3
1
2
3
4
1
2
3

1332. Instrument cluster
2
Instrument cluster

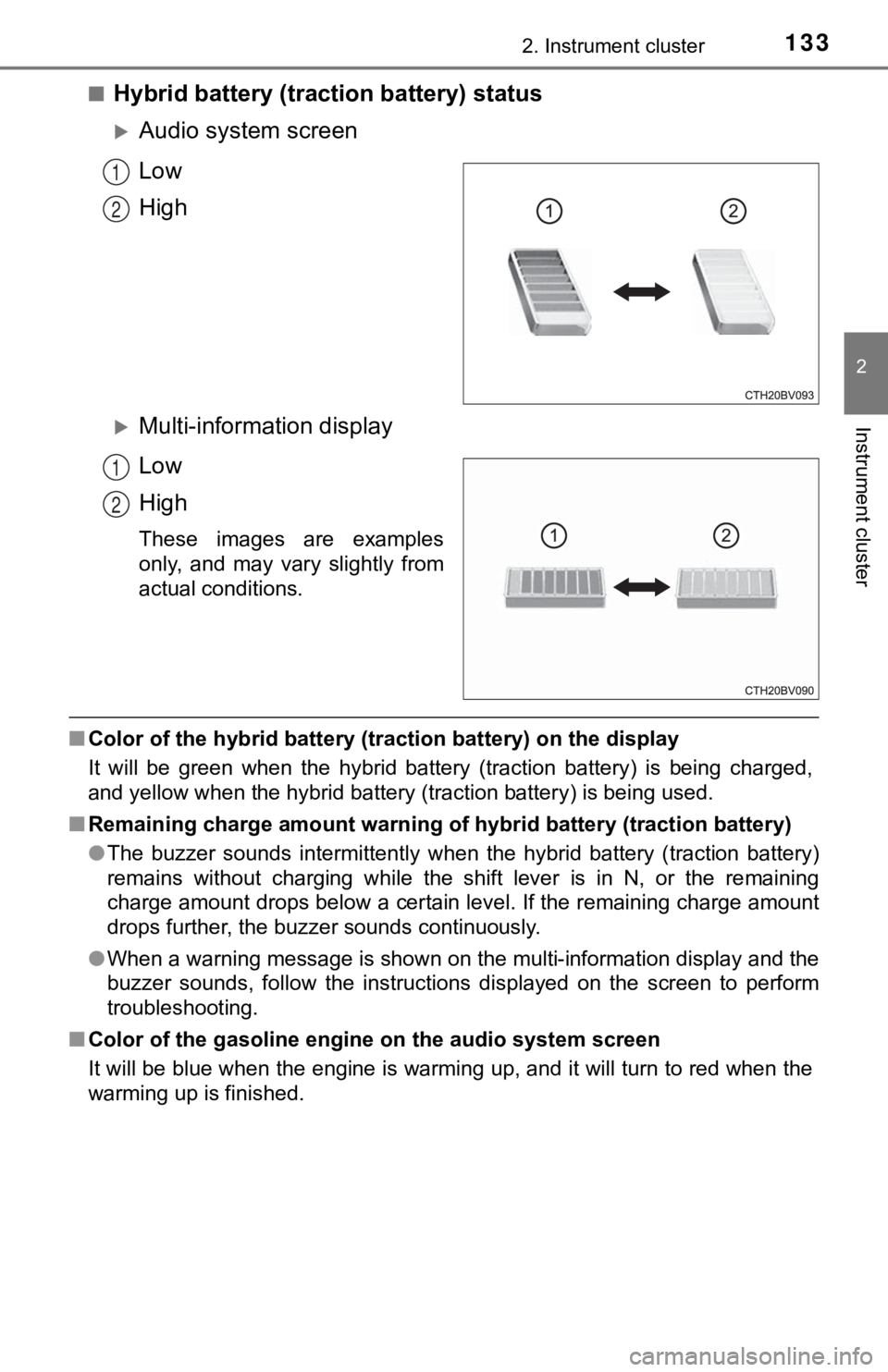

■Hybrid battery (traction battery) status
Audio system screen
Low
High
Multi-information display
Low
High
These images are examples
only, and may vary slightly from
actual conditions.
■Color of the hybrid battery (tr action battery) on the display
It will be green when the hybrid battery (traction battery) is being charged,
and yellow when the hybrid battery (traction battery) is being used.
■ Remaining charge amount warning of hybrid battery (traction battery)
●The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift lever is in N, or the remaining
charge amount drops below a certain level. If the remaining cha rge amount
drops further, the buzzer sounds continuously.
● When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
■ Color of the gasoline engine on the audio system screen
It will be blue when the engine is warming up, and it will turn to red when the
warming up is finished.
1
2
1
2

1342. Instrument cluster
■Trip informationPress the “MENU” button. ( P. 131)
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “History” screen is displayed, select “T rip Informa-
tion”.
Resetting the consumption
data
Displays the average vehicle
speed since the hybrid sys-
tem was started
Displays the elapsed time
since the hybrid system was
started
Fuel consumption in t he past 15 minutes
Cruising range
Regenerated energy i n the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual co ndi-
tions.
Current fuel consumption
Fuel consumption screen
1
2
3
1
2
3
4
5
6
7

1352. Instrument cluster
2
Instrument cluster
■HistoryPress the “MENU” button. ( P. 131)
Select “Info” on t he “Menu” screen.
Select “ECO” on the “Information” screen.
If “Energy Monitor” or “Trip Inf ormation” screen is displayed, select “His-
tory”.
Resetting the past record
data
Best past fuel consumption
Current fuel economy
Previous fuel consumption
record
Audio Plus
Displays the daily average fuel consumption. (Instead of the da te,
“Trip 1” through “Trip 5” will be displayed.)
Premium Audio
Displays the daily average fuel consumption. Updating the average fuel consumption data
Displays a maximum of five past record of the average fuel cons ump-
tion.
The image is example only, and may vary slightly from actual co ndi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset t he fuel consump-
tion and the regenerated energy for the past 15 minutes. Select ing “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following screen will confirm resetting of all the
data.
1
2
3
1
2
3
4
5
