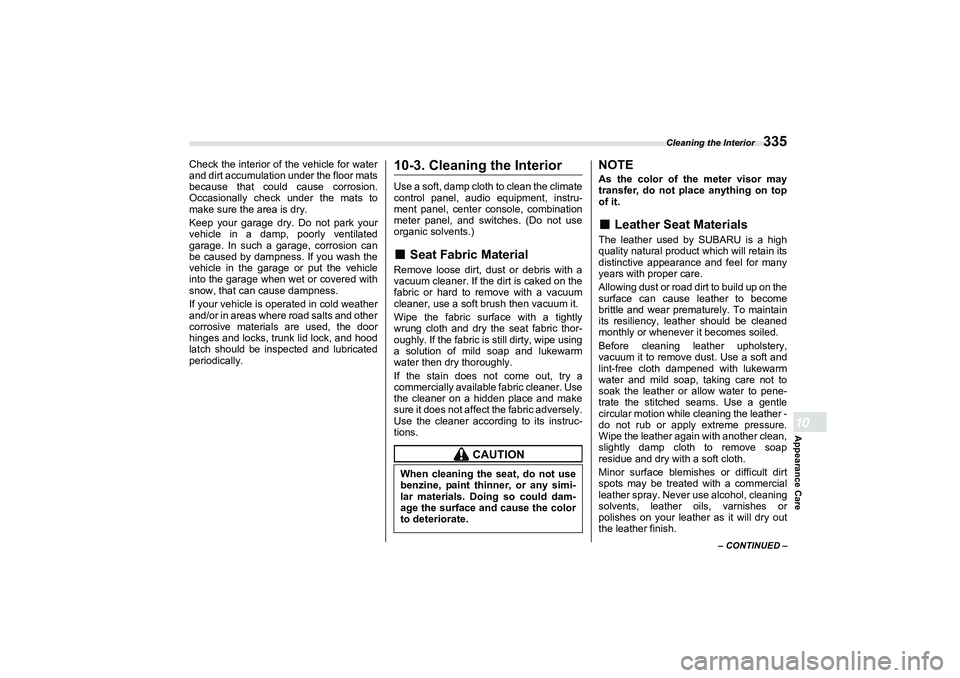

2022 SUBARU BRZ light

Cleaning the Interior
335
Appearance Care10
– CONTINUED –
Check the interior of the vehicle for water
and dirt accumulation under the floor mats
because that could cause corrosion.
Occasionally check under the mats to
make sure the area is dry.
Keep your garage dry. Do not park your
vehicle in a damp, poorly ventilated
garage. In such a garage, corrosion can
be caused by dampness. If you wash the
vehicle in the garage or put the vehicle
into the garage when wet or covered with
snow, that can cause dampness.
If your vehicle is operated in cold weather
and/or in areas where road salts and other
corrosive materials are used, the door
hinges and locks, trunk lid lock, and hood
latch should be inspected and lubricated
periodically.
10-3. Cleaning the InteriorUse a soft, damp cloth to clean the climate
control panel, audio equipment, instru-
ment panel, center console, combination
meter panel, and switches. (Do not use
organic solvents.)■
Seat Fabric Material
Remove loose dirt, dust or debris with a
vacuum cleaner. If the dirt is caked on the
fabric or hard to remove with a vacuum
cleaner, use a soft brush then vacuum it.
Wipe the fabric surface with a tightly
wrung cloth and dry the seat fabric thor-
oughly. If the fabric is still dirty, wipe using
a solution of mild soap and lukewarm
water then dry thoroughly.
If the stain does not come out, try a
commercially available fabric cleaner. Use
the cleaner on a hidden place and make
sure it does not affect the fabric adversely.
Use the cleaner according to its instruc-
tions.
NOTEAs the color of the meter visor may
transfer, do not place anything on top
of it.■
Leather Seat Materials
The leather used by SUBARU is a high
quality natural product which will retain its
distinctive appearance and feel for many
years with proper care.
Allowing dust or road dirt to build up on the
surface can cause leather to become
brittle and wear prematurely. To maintain
its resiliency, leather should be cleaned
monthly or whenever it becomes soiled.
Before cleaning leather upholstery,
vacuum it to remove dust. Use a soft and
lint-free cloth dampened with lukewarm
water and mild soap, taking care not to
soak the leather or allow water to pene-
trate the stitched seams. Use a gentle
circular motion while cleaning the leather -
do not rub or apply extreme pressure.
Wipe the leather again with another clean,
slightly damp cloth to remove soap
residue and dry with a soft cloth.
Minor surface blemishes or difficult dirt
spots may be treated with a commercial
leather spray. Never use alcohol, cleaning
solvents, leather oils, varnishes or
polishes on your leather as it will dry out
the leather finish.
CAUTION
When cleaning the seat, do not use
benzine, paint thinner, or any simi-
lar materials. Doing so could dam-
age the surface and cause the color
to deteriorate.
B5=B8.ERRN 335 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Cleaning the Interior
336If your SUBARU is to be parked for a long
time in bright sunlight, it is recommended
that the seats and headrests be covered,
or the windows shaded, to prevent fading
or shrinkage.
You will discover that each leather seat
section will develop soft folds or wrinkles,
which is characteristic of genuine leather.■
Synthetic Leather Upholstery
The synthetic leather material used on the
SUBARU may be cleaned using mild soap
or detergent and water, after first vacu-
uming or brushing away loose dirt. Allow
the soap to soak in for a few minutes and
wipe off with a clean, damp cloth.
Commercial foam-type cleaners suitable
for synthetic leather materials may be
used when necessary.
■
Instrument Panel, Console
Panel, Switches, Combina -
tion Meter, and Other Plastic
Surface
Use a soft, damp cloth to clean the instru-
ment panel, center console, combination
meter panel, and switches.■
Center Information Display
To clean the center information display,
wipe it with a silicone cloth or with a soft
cloth. If the monitor is extremely dirty,
clean it with a soft cloth moistened with
neutral detergent then carefully wipe off
any remaining detergent.
CAUTION
Strong cleaning agents such as sol-
vents, paint thinners, window
cleaner or gasoline must never be
used on leather or synthetic interior
materials. Doing so could damage
the surface and cause the color to
deteriorate.
CAUTION
 Do not use organic solvents such
as paint thinners or gasoline, or
strong cleaning agents that
contain those solvents. Doing so
could damage the surface and
cause the color to deteriorate.Do not use chemical solvents that
contain silicone on the vehicle
audio system, electrical compo-
nents of the air-conditioner or
any switches. If silicone adheres
to these parts, it may cause
damage to electrical compo-
nents.
CAUTION
Do not spray neutral detergent
directly onto the monitor. Doing
so could damage the monitor’s
components.Do not wipe the monitor with a
hard cloth. Doing so could
scratch the monitor.Do not use cleaning fluid that
contains thinner, fuel, or any
other volatile substance. Such
cleaning fluid could erase the
lettering on the switches at the
bottom of the monitor.
B5=B8.ERRN 336 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Maintenance and Service11-28. Replacing Bulbs ..............................................373
Headlights ..................................................................... 373
Backup Light ................................................................ 373
Trunk Light ................................................................... 374
Other Bulbs................................................................... 374
Adjusting Headlight Aim ............................................. 374
11-29. Replacing Battery............................................375
Replacing Battery of Access Key Fob ....................... 376
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Engine Hood
3443. Release the secondary hood lock by
moving the lever between the front grille
and the hood toward the left.
4. Lift up the hood, release the hood prop
from its retainer and put the end of the
hood prop into the slot in the hood.
To close the hood:
1. Lift the hood slightly and remove the
hood prop from the slot in the hood and
return the prop to its retainer.
2. Lower the hood to a height of approxi-
mately 7.8 to 11.8 in (20 to 30 cm) above
its closed position and then let it drop.
3. After closing the hood, be sure the
hood is securely locked.
If this does not close the hood, release it
from a slightly higher position.
B02095
WARNING
Always check that the hood is prop-
erly locked before you start driving.
If it is not, it might fly open while the
vehicle is moving and block your
view, which may cause an accident
and serious bodily injury.
B5=B8.ERRN 344 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Parking Brake Stroke
357
Maintenance and Service11
The disc brakes have audible wear indica-
tors on the brake pads. If the brake pads
wear close to their service limit, the wear
indicator makes a very audible scraping
noise when the brake pedal is applied.
If you hear this scraping noise each time
you apply the brake pedal, have the brake
pads serviced by your SUBARU dealer as
soon as possible.■
Breaking-in of New Brake
Pads and Linings
When replacing the brake pad or lining,
use only genuine SUBARU parts. After
replacement, the new parts must be
broken in as follows.
▼
Brake pad and lining
While maintaining a speed of 30 to 40 mph
(50 to 65 km/h), step on the brake pedal
lightly. Repeat this five or more times.
▼Parking brake lining
1. Drive the vehicle at a speed of approx-
imately 22 mph (35 km/h).
2. With the parking brake release button
pushed in, pull the parking brake lever
SLOWLY and GENTLY (pulling with a
force of approximately 33.7 lbf [150 N,
15.3 kgf]). 3. Drive the vehicle for approximately
220 yards (200 meters) in this condition.
4. Wait 5 to 10 minutes for the parking
brake to cool down. Repeat this proce-
dure.
5. Check the parking brake lever travel. If
the parking brake lever travel is out of the
specified range, adjust it by turning the
adjusting nut located on the parking brake
lever.
11-20. Parking Brake StrokeCheck the parking brak
e stroke according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”.
Parking brake stroke:
7 – 8 notches / 45 lbf (200 N, 20.4 kgf)
WARNING
A safe location and situation should
be selected for break-in driving.
CAUTION
Pulling the parking brake lever too
forcefully may cause the rear
wheels to lock. To avoid this, be cer-
tain to pull the lever up slowly and
gently.
B02108
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
35811-21. Tires and Wheels■
Types of Tires
You should be familiar with type of tires
present on your vehicle.
▼
Summer tires
The factory-installed tires on your new
vehicle are summer tires.
Summer tires are high-speed capability
tires best suited for highway driving under
dry conditions.
Summer tires are inadequate for driving
on slippery roads such as on snow-
covered or icy roads.
If you drive your vehicle on snow-covered
or icy roads, we strongly recommend the
use of winter (snow) tires.
When installing winter tires, be sure to
replace all four tires.
▼A ll season tires
All season tires are designed to provide
an adequate measure of traction, handling
and braking performance in year-round
driving including snowy and icy road
conditions. However all season tires do
not offer as much traction performance as
winter (snow) tires in heavy or loose snow
or on icy roads. All season tires are identified by “ALL
SEASON” and/or “M+S” (Mud & Snow) on
the tire sidewall.
▼
Wi
nter (snow) tires
Winter tires are best suited for driving on
sn ow-covered and icy roads. However
winter tires do not perform as well as
summer tires and all season tires on roads
other than snow-covered and icy roads.
NOTEIf the tread wears down below 0.16 in.
(4mm) on snow tires the effectiveness
of snow tires is lost.
▼
Lo w profile tires
Generally, low profile tires will wear more
rapidly and tire grip performance will be
reduced on snowy and/or icy roads when
compared to standard tires. Be sure to
use snow tires or tire chains on snowy
and/or icy roads and drive carefully at a
speed appropriate for road and weather
conditions.
NOTELow profile tires may cause greater
damage than usual to the wheel when
receiving impact from the road sur-
face. Therefore pay attention to the fol-
lowing: 
Be sure to use proper tire inflation
pressure. If tires are under-inflated,
they may be damaged more severely.
 Avoid pot holes, uneven pavement,
curbs and other road hazards. Failure
to do so may lead to severe tire and
wheel damage.
■
Tire Pressure Monitoring
Syste m (TPMS) (If Equipped)
The tire pressure monitoring system
provides the driver with a warning
message by sending a signal from a
sensor that is installed in each wheel
when tire pressure is severely low. The
tire pressure monitoring system will acti-
vate only when the vehicle is driven. Also,
this system may not react immediately to
a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).
If you adjust the tire pressures in a warm
garage and will then drive the vehicle in
cold outside air, the resulting drop in tire
pressures may cause the low tire pressure
warning light to illuminate. To avoid this
problem when adjusting the tire pressures
in a warm garage, inflate the tires to pres-
sures higher than those shown on the tire
inflation pressure label. Specifically,
inflate them by an extra 1 psi (6.9 kPa,
0.07 kgf/cm
2) for every difference of 10°F
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
359
Maintenance and Service11
– CONTINUED –
(5.6°C) between the temperature in the
garage and the temperature outside. By
way of example, the following table shows
the required tire pressures that corre-
spond to various outside temperatures
when the temperature in the garage is
60°F (15.6°C).
Example:
Tire size: 215/40R18 85Y
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm
2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C)
Example:
Tire size: 215/45R17 87W
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C) If the low tire pressure warning light illumi-
nates when you drive the vehicle in cold
outside air after adjusting the tire pres-
sures in a warm garage, re-adjust the tire
pressures using the method described
above. Then, increase the vehicle speed
to at least 25mph (40km/h) and check to
see that the low tire pressure warning light
goes off a few minutes later. If the low tire
pressure warning light does not go off, the
tire pressure monito
ring system may not
be functioning normally. In this event, go
to a SUBARU dealer to have the system
inspected as soon as possible.
While the vehicle is driven, friction
between tires and the road surface
causes the tires to warm up. After illumi-
nation of the low tire pressure warning
light, any increase in the tire pressures
caused by an increase in the outside air
temperature or by an increase in the
temperature in the tires can cause the low
tire pressure warning light to go off. System resetting is
necessary when the
wheels are changed (for example, a
switch to snow tires) and new TPMS
valves are installed on the newly fitted
wheels. Have this work performed by a
SUBARU dealer following wheel replace-
ment.
It may not be possible to install TPMS
valves on certain wheels that are on the
market. Therefore, if you change the
wheels (for example, a switch to snow
tires), use wheels that have the same part
number as the standard-equipment
wheels. Without four operational TPMS
valve/sensors on the wheels, the TPMS
will not fully function and the warning light
in the instrument panel will illuminate
steadily after blinking for approximately
one minute.
When a tire is replaced, adjustments are
necessary to ensure continued normal
operation of the tire pressure monitoring
system. As with wheel replacement,
therefore, you s hould have the work
performed by a SUBARU dealer.
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
360
■
Tire Inspection
Check on a daily basis that the tires
are free from serious damage, nails,
and stones. At the same time, check
the tires for abnormal wear.
Contact your SUBARU dealer
immediately if you find any problem.NOTEWhen the wheels and tires
strike curbs or are subjected to
harsh treatment as when the
vehicle is driven on a rough surface, they can suffer damage
that cannot be seen with the
naked eye. This type of damage
does not become evident until
time has passed. Try not to drive
over curbs, potholes or on other
rough surfaces. If doing so is
unavoidable, keep the vehicle’s
speed down to a walking pace or
less, and approach the curbs as
squarely as possible. Also, make
sure the tires are not pressed
against the curb when you park
the vehicle.

If you feel unusual vibration
while driving or find it difficult to
steer the vehicle in a straight line,
one of the tires and/or wheels
may be damaged. Drive slowly to
the nearest authorized SUBARU
dealer and have the vehicle
inspected.
 Tires should be replaced if:
– You have tire damage such
as cuts, splits, cracks deep
enough to expose the fabric or
bulges indicating internal
damage
WARNING
If the low tire pressure warning light
does not illuminate briefly after the
ignition switch is turned ON or the
light illuminates steadily after blink-
ing for approximately one minute,
you should have your Tire Pressure
Monitoring System checked at a
SUBARU dealer as so on as possi-
ble.If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead while gradually reducing speed.2) Slowly pull off the road to a safeplace.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose ai r rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
B5=B8.ERRN 360 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
