Rear View Camera
265
Starting and Operating7
– CONTINUED –
vehicle. When the lever is set to other
positions, the image before setting to “R”
is displayed.
1. Set the ignition switch to “ON”.
2. Set the shift lever/ select lever to “R”.NOTEThe image of the rear view camera is
horizontally reversed as is the case
with the vehicle inside mirror or the
outside mirror.
 When “Rear Camera Delay Control”
is on, the rear view image from the rear
view camera will be displayed on the
center information display for a certain
amount of time after the shift lever (MT
models) or select lever (AT models) is
shifted from “R” to another position.
When any of the following conditions
are met, the rear view image will be
canceled: - The select lever is shifted to “P”
(AT models)
- The vehicle speed becomes
approximately 5 mph (8 km/h) or
more
- The parking brake is engaged
- 9 seconds have elapsed since
the shift lever (MT models) or select
lever (AT models) was shifted from
“R” to another position To turn the function
on and off, refer to
"General settings" 
P161.
 It may be difficult to see the image of
the rear view camera in the following
cases. This is not a malfunction of the
camera. - The vehicle is in a dark place (at
night, in a tunnel, etc.).
- The vehicle is in an extremely hot
or cold place.
- An object (such as raindrops,
snow, dirt, etc.) that disturbs the
view of the rear view camera sticks
to the lens of the camera.
- Strong light is shining directly on
the camera lens (occasionally, there
are vertical lines on the screen).
■

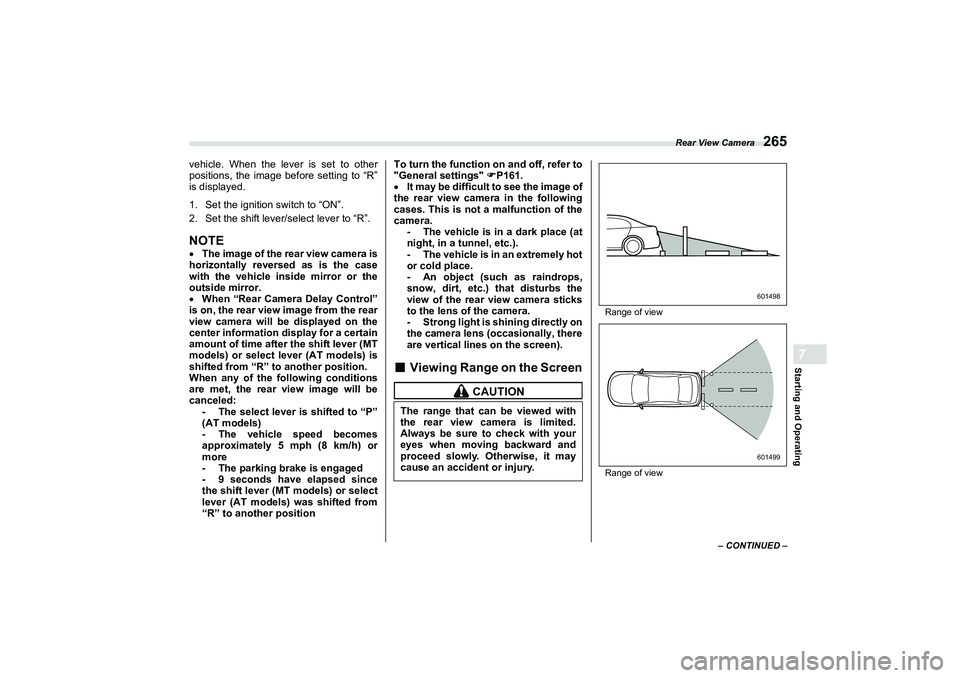

Viewing Range on the Screen
Range of view
Range of view
CAUTION
The range that can be viewed with
the rear view camera is limited.
Always be sure to check with your
eyes when moving backward and
proceed slowly. Otherwise, it may
cause an accident or injury.
601498601499
B5=B8.ERRN 265 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
268▼
Feature of distance marker1) 3 ft (1 m) line
2) 10 ft (3 m) lineThe distance marker shows the distance
on the road. If there is a car or another
object close behind, distance cannot be
correctly displayed.
7-20. BSD/RCTA (IfEquipped)The BSD/RCTA consists of rear corner
radars with Blind Spot Detection and Rear
Cross Traffic Alert.
These functions of BSD/RCTA are the
systems that detect objects and vehicles
to the rear and draw attention to the driver
when changing a lane or when driving in
reverse.
■
System Features
BSD/RCTA consists of the following func-
tions.
To detect a vehicle in a blind spot on an
adjacent lane or a vehicle approaching at
high speed while driving the vehicle (Blind
Spot Detection)
 To detect a vehicle approaching from
the right or left while reversing the vehicle
(Rear Cross Traffic Alert)
601673
2
1
WARNING
The driver is responsible for driving
safely. Always be sure to check the
surroundings with your eyes when
changing lanes or reversing the
vehicle.
The system is designed to assist
the driver in changing lanes or
reversing safely by monitoring the
rear and side areas of the vehicle.
However, you cannot rely on this
system alone in assuring the safety
during a lane change or reversing.
Overconfidence in this system
could result in an accident and lead
to serious injury or death. Since the
system operation has various lim-
itations, the flashing or illumination
of the BSD/RCTA approach indica-
tor light may be delayed or it may
not operate at all even when a vehi-
cle is present in a neighboring lane
or approaching from either side.The driver is responsible for paying
attention to the rear and side areas
of the vehicle.
B5=B8.ERRN 26 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
269
Starting and Operating7
– CONTINUED –
The system uses radar sensors for the
following features.NOTEThe BSD/RCTA radar sensor has been
certified by the radio wave related laws
of the U.S. and other FCC compliant
countries, Canada and Mexico. When
driving in other countries, certifica-
tion of the country where the vehicle is
driven must be obtained. For certifica-
tion in the U.S. and other FCC compli-
ant countries, Canada and Mexico,
refer to "Certification for the BSD/
RCTA" 
P275.
▼
Blind Spot Detection (BSD)1) Operating range
The system notifies the driver of the pres-
ence of vehicles in its blind spot.
 If the system detects a vehicle in its
blind spot, it warns the driver by illumi-
nating the BSD/RCTA approach indicator
light(s) on the outside mirror(s).
 If the driver operates the turn signal
lever in the direction where the BSD/
RCTA approach indicator light is illumi-
nating, the system warns the driver of
dangers by flashing the BSD/RCTA
approach indicator light.
▽Lane Change Assist (LCA)1) Operating rangeThe system notifies the driver of vehicles
approaching at a high speed in the neigh-
boring lanes. 
If the system detects a vehicle
approaching at a high speed in the neigh-
boring lanes, it warns the driver of
dangers by illuminating the BSD/RCTA
approach indicator light(s) on the outside
mirror(s).
 If the driver operates the turn signal
lever in the direction where the BSD/
RCTA approach indicator light is illumi-
nating, the system warns the driver of
dangers by flashing the BSD/RCTA
approach indicator light.
▼
Rear Cross Traffic Alert (RCTA)1) Operating rangeThe system notifies the driver of another
vehicle approaching from either side when
driving in reverse. This feature helps the
701459
1
701406
1
701460
1
B5=B8.ERRN 26 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
270driver check the rear and side areas of the
vehicle when moving backward.
If the system detects a vehicle
approaching from either side while moving
backward, it warns the driver of dangers in
the following way.
The BSD/RCTA approach indicator
light(s) on the outside mirror(s) flashes.
 A warning buzzer sounds.
 An icon appears on the center informa-
tion display.
▽ Limitations of the detectability
of RCTA
Since the detectability of RCTA is limited,
the RCTA may not operate properly in
angled parking.
Example 1
1) The detection range of the radar sensors
2) Area out of detection range of the radar sensors
A) Vehicle that may not be detected
B) Parked vehicle
Example 2
1) The detection range of the radar sensors C) Vehicle that may be detected
NOTEThe system may detect that a vehicle
(C) is passing in fr
ont of your vehicle.
Always be sure to check the
surroundings with your eyes when
reversing the vehicle.■
System Operation
▼
Operating conditions
The BSD/RCTA will operate when all of
the following conditions are met.
 The ignition switch is in the “ON” posi-
tion.
 The BSD/RCTA warning indicator and
BSD/RCTA OFF indicator are turned off.
 The vehicle is driven at speeds above
7 mph (12 km/h) (except when reversing).
 The shift lever/select lever is in the “R”
position (RCTA only).
The BSD/RCTA will not operate in the
following situations.
 The BSD/RCTA OFF indicator
appears.
 The vehicle speed is below 6 mph (10
km/h) even when the BSD/RCTA OFF
indicator does not appear (except when
reversing).
701818
2
A B
1
WARNING
An approaching vehicle (A) may not
be detected because the detection
range is limited by the parked vehi-
cle (B). Always be sure to check the
surroundings with your eyes when
reversing the vehicle.
701819
1
C
B5=B8.ERRN 20 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
271
Starting and Operating7
– CONTINUED –
NOTEIn the following cases, the BSD/
RCTA will stop operating and the BSD/
RCTA warning indicator will appear. - When a malfunction occurs in
the system, including the BSD/
RCTA approach indicator light
 If the BSD/RCTA warning indicator
appears, exercise proper caution. For
details, refer to "BSD/RCTA Warning
Indicator" 
P274.
 In the following cases, the BSD/
RCTA will temporarily stop operating
(or may stop operating) and the BSD/
RCTA OFF indicator will appear. - When the radar sensor becomes
significantly misaligned (If the orien-
tation of the radar sensor is shifted
for any reason, readjustment is
required. Have the sensor adjusted
at a SUBARU dealer.)
- When a large amount of snow or
ice sticks to the rear bumper surface
around the radar sensors
- When the vehicle is driven on a
snow-covered road or in an environ-
ment in which there are no objects
around (such as in a desert) for a
prolonged period of time
- When the temperature around
the radar sensors increases exces-
sively due to long driving on uphill
grades in the summer, etc. - When the temperature around
the radar sensors becomes
extremely low
- When the vehicle battery voltage
lowers
- When the vehicle voltage
exceeds the battery voltage rating
The BSD/RCTA will resume operation
once these conditions are corrected,
and the BSD/RCTA OFF indicator will
disappear. However, if the BSD/RCTA
OFF indicator appears for a prolonged
period of time, have the system
inspected at a SUBARU dealer as soon
as possible.
 The detectability of the radar
sensors is restricted. The BSD/RCTA
detection may be impaired and the
system may not operate properly
under the following conditions. - When the rear bumper around
the radar sensors is distorted
- When ice, snow or mud adheres
to the rear bumper surface around
the radar sensors
- When stickers, etc. are affixed on
the areas of the radar sensors on the
rear bumper
- During adverse weather condi-
tions such as rain, snow or fog
- When driving on wet roads such
as snow-covered roads and through
puddles 
The radar sensors may not detect or
may have difficulty detecting the
following vehicles and objects. - Small motorcycles, bicycles,
pedestrians, stationary objects on
the road or road side, etc.
- Vehicles with body shapes that
the radar may not reflect (vehicles
with lower body height such as a
trailer with no cargo and sports
cars)
- Vehicles that are not
approaching your vehicle even
though they are in the detection area
(either on a neighboring lane to the
rear or beside your vehicle when
reversing) (The system determines
the presence of approaching vehi-
cles based on data detected by the
radar sensors.)
- Vehicles traveling at signifi-
cantly different speeds
- Vehicles driving in parallel at
almost the same speed as your
vehicle for a prolonged time
- Oncoming vehicles
- Vehicles in a lane beyond the
neighboring lane
- Vehicles travelling at a signifi-
cantly lower speed that you are
trying to overtake
 On a road with extremely narrow
lanes, the system may detect vehicles
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
272driving in a lane next to the neigh-
boring lane.■
BSD/RCTA Approach Indi-
cator Light/Warning Buzzer
While the BSD/RCTA is active, the
following item(s) will operate to alert the
driver:
 The BSD/RCTA approach indicator
light (when there are vehicles in the neigh-
boring lanes).
 The BSD/RCTA approach indicator
light and warning buzzer (when a vehicle
is approaching from the left or right side
while your vehicle is reversing)
▼
B SD/RCTA approach indicator lightBSD/RCTA approach indicator light
It is mounted on each side of the outside
mirrors.
The indicator light will illuminate
when a
vehicle approaching from behind is
detected.
The indicator light will flash
to warn the
driver of dangers under the following
conditions.
 While the indicator light is illuminating,
if the turn signal lever is operated toward
the side in which this light turned on
 When reversing the vehicle while the
system detects a v ehicle approaching
from either side
▽BSD/RCTA approach indicator
light dimming function
When the headlights are turned on, the
brightness of the BSD/RCTA approach
indicator light will be reduced.
NOTE You may have difficulty seeing the
BSD/RCTA approach indicator light
under the following conditions. - When sunlight shines directly on
it
- When the headlight beams from
a vehicle traveling behind shines
directly on it
 While the illumination brightness
control dial is in the fully upward posi- tion, even if the headlights are turned
on, the brightness of the BSD/RCTA
approach indicator light will not be
reduced. For details about the illumina-
tion brightness control dial, refer to
"Illumination Brightness Control"

P130.
▼BSD/RCTA approach warning
buzzer (only when reversing)
A warning buzzer sounds along with
fl ashing of the BSD/RCTA approach indi-
cator light to warn the driver of dangers.
The setting of the warning buzzer volume
can be changed by operating the center
information display. For details, refer to
"Car settings" P165.
▼Safety tips regarding t he BSD/
RCTA approach indicator light/
warning buzzer
 In the following cases, operation of the
BSD/RCTA approach indicator light and
the warning buzzer may be delayed or the
system may fail to issue these warnings.
- When a vehicle moves to the neigh-
boring lane from a lane next to the
neighboring lane
- When driving on a steep incline or
on repeated sharp uphill and downhill
grades
- When going beyond a pass
702801
B5=B8.ERRN 22 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

BSD/RCTA (If Equipped)
273
Starting and Operating7
– CONTINUED –
- When both your vehicle and a
vehicle driving on a neighboring lane
are driving on the far side of each lane.
- When several narrowly-spaced
vehicles are approaching in a row
- In low radius bends (tight bends or
when making turns at an intersection)
- When there is a difference in height
between your lane and the neighboring
lane
- Immediately after the BSD/RCTA is
activated by touching “BSD/RCTA”
- Immediately after the shift lever/
select lever is shifted to the “R” position
- When extremely heavy cargo is
loaded in the trunk
 During reversing, operation of the BSD/
RCTA approach indicator light and the
warning buzzer may be delayed or the
system may fail to issue these warnings
under the following conditions.
- When backing out of an angled
parking space
- When a large-sized vehicle is
parked next to your vehicle (That
vehicle prevents the propagation of
radar waves.)
- When reversing on sloped roads
- When reversing at a high speed 
The BSD/RCTA approach indicator
light may illuminate when driving close to
solid objects on the road or road side
(such as guardrails, tunnels and side-
walls).
 When turning at an intersection in
urban areas, or a multilane intersection,
the BSD/RCTA approach indicator light
may flash.
 If a building or a wall exists in the
reversing direction, the BSD/RCTA
approach indicator light may flash and the
warning buzzer may sound.
 In the following cases, the system may
detect a vehicle driving two lanes away
from your vehicle.
- When your vehicle drives on the
near side of its lane from the corre-
sponding vehicle - When the vehicle driving two lanes
away drives on the near side of its lane
from your vehicle
■
BSD/RCTA OFF Indicator
▼
System temporary stops1) BSD/RCTA temporary stop message
2) BSD/RCTA OFF indicatorThis display appears when the system is
used at extremely high or low tempera-
tures or when abnormal voltage exists.
Once these conditions are corrected, the
system will recover from the temporary
stop condition and the indicator will disap-
pear.
If the indicator remains displayed for a
prolonged time, have the system
inspected at a SUBARU dealer.
702802
1
2
702877
B5=B8.ERRN 23 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Reverse Automatic Braking (RAB) System (If Equipped)
281
Starting and Operating7
– CONTINUED –
- Pedestrians.
- Moving objects including
moving vehicles.
- Objects which absorbs sound
waves such as cloth or snow.
- Objects whose surface has a
diagonal angle.
- Objects that are low to the
ground such as parking blocks.
- Objects that are high above the
ground such as objects hanging
from above.
- Objects that are out of range of
the center of the vehicle in the hori-
zontal direction.
- Objects that are not in a vertical
direction.
 When reversing the vehicle, the
functions may not be able to work
properly or may cause a system
malfunction if the following conditions
exist.
High frequency sound from other
sources are nearby:
- Horn sound from another
vehicle.
- Engine sound from other vehi-
cles.
- Sound of an air brake.
- Vehicle detection equipment or a
sonar from another vehicle. - A sound wave with a frequency
similar to the vehicle’s system is
transmitted near by.
- A vehicle equipped with the
same system is reversing toward
your reversing direction.
Weather conditions:
- Extremely high or extremely low
temperatures in which the area near
the sonar sensor becomes too hot
or too cold to operate.
- The sonar sensors or the rear
bumper near the sonar sensors are
exposed to heavy rain or a signifi-
cant amount of water.
- Fog, snow or sandstorm, etc.
- Air is moving rapidly such as
when a strong wind is blowing.
Parts attached to the rear bumper
near the sonar sensor:
- Commercial electr
onic parts (fog
light, fender pole, radio antenna) or
commercial attachment parts (trailer
hitch, bicycle carrier, bumper guard)
are attached.
- Parts that emit high frequency
sound, such as a horn or speaker,
are attached.
Vehicle conditions:
- Ice, snow or mud is adhered to
the sonar sensors or the rear
bumper near the sonar sensor. - The vehicle is significantly
inclined.
- The ground clearance is signifi-
cantly reduced due to the vehicle’s
loading condition, etc.
- When the sonar sensor is
misaligned due to a collision or an
accident.
Surrounding environment:
- A cloth banner, flag, hanging
branch or railroad crossing bars are
present in the reversing direction.
- When reversing on a gravel or
grassy area.
- When reversing in an area where
objects or walls are adjacent to the
vehicle such as narrow tunnels,
narrow bridges, narrow roads or
narrow garages.
- Wheel track or hole is present in
the ground of the reversing direc-
tion.
- When reversing over a drainage
cover (grating cover).
B5=B8.ERRN 21 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
