Tires and Wheels
363
Maintenance and Service11
– CONTINUED –
■
Wheel Balance
Each wheel was correctly balanced
when your vehicle was new, but the
wheels will become unbalanced as
the tires become worn during use.
Wheel imbalance causes the
steering wheel to vibrate slightly at
certain vehicle speeds and detracts
from the vehicle’s straight-line
stability. It can also cause steering
and suspension system problems
and abnormal tire wear. If you
suspect that the wheels are not
correctly balanced, have them
checked and adjusted by your
SUBARU dealer. Also have them
adjusted after tire repairs and after
tire rotation.
NOTEThe suspension system is
designed to hold each wheel at a
certain alignment (relative to the
other wheels and to the road) for
optimum straight-line stability
and cornering performance.■
Wear Indicators1) New tread
2) Worn tread3)
Tread wear indicator
Each tire incorporates a tread wear
indicator, which becomes visible
when the depth of the tread grooves
decreases to 0.063 in (1.6 mm). A tire must be replaced when the
tread wear indicator appears as a
solid band across the tread.
NOTEFor safety, inspect the tire tread
regularly and replace the tires
before their tread wear indicators
become visible.
CAUTION
Loss of correct wheel align-
ment causes the tires to wear
on one side and reduces the
vehicle’s running stability.
Contact your SUBARU dealer
if you notice abnormal tire
wear.
12
3
B00327
WARNING
When a tire’s tread wear indi-
cator becomes visible, the tire
is worn beyond the accept-
able limit and must be
replaced immediately. With a
tire in this condition, driving at
high speeds in wet weather
can cause the vehicle to
hydroplane. The resulting loss
of vehicle control can lead to
an accident.
B5=B8.ERRN 363 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Battery
3703. Align the claws of the support with the
grooves in the rubber and slide the blade
rubber assembly into the support until it
locks.1) Stopper
4. Be sure to position the claws at the
end of the support between the stoppers
on the rubber as shown. If the rubber is
not retained properly, the wiper blade may
scratch the windshield.
11-25. Battery
B02115
1
B02116
WARNING
Before beginning work on or near
any battery, be sure to extinguish
all cigarettes, matches, and
lighters. Never expose a battery
to an open flame or electric
sparks. Batteries give off a gas
which is highly flammable and
explosive.For safety, in case an explosion
does occur, wear eye protection
or shield your eyes when working
near any battery. Never lean over
a battery.Do not let battery fluid contact
eyes, skin, fabrics, or paint
because battery fluid is a corro-
sive acid. If battery fluid gets on
your skin or in your eyes, immedi-
ately flush the area with water
thoroughly. Seek medical help
immediately if acid has entered
the eyes.
If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and seek medical attention
immediately.
B5=B8.ERRN 30 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Fuses
3721) Fuse pullerThe other one (main fuse box) is housed
in the engine compartment. Also, the fuse
puller are stored in the fuse box.
Pinch the upper part of the fuse puller
when removing it from the main fuse box.
1) Good
2) BlownIf any lights, accessories or other elec-
trical controls do not operate, inspect the
corresponding fuse. If a fuse has blown,
replace it.
1. Turn the ignition switch to the “OFF”
position and turn off all electrical accesso-
ries.
2. Remove the fuse box cover.
3. Determine which fuse may be blown.
Look at the back side of each fuse box
cover.4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown,
replace it with a spare fuse of the same
rating.
6. If the same fuse blows again, this indi-
cates that its system has a problem.
Contact your SUBARU dealer for repairs.
1B02118
B01008
12
B00975
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Installation of Accessories
373
Maintenance and Service11
– CONTINUED –
11-27. Installation of Acces-soriesAlways consult your SUBARU dealer
before installing fog lights or any other
electrical equipment in your vehicle. Such
accessories may cause the electronic
system to malfunction if they are incor-
rectly installed or if they are not suited for
the vehicle. We recommend that you
install only genuine SUBARU accessories
on your vehicle.
11-28. Replacing Bulbs
■
Headlights
The LED headlight warning light illumi-
nates if the LED headlights malfunction.
Have your vehicle inspected at a
SUBARU dealer as soon as possible.■
Backup Light
NOTE
 It may be difficult to replace the
bulbs. We recommend that you have
the bulbs replaced by your SUBARU
dealer if necessary.
 If a genuine SUBARU accessory has
been installed to the rear bumper,
check the manual included with the
accessory.
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down, Otherwise, there
is the risk of sustaining a burn
injury.
CAUTION
 Before replacing a backup light,
stop the engine and allow the
exhaust pipes and surrounding
parts to cool suffi ciently. As the
bulbs are near the exhaust pipes,
there is a risk of being burned. Replace any bulb only with a new
bulb of the specified wattage.
Using a bulb of different wattage
could result in a fire. For the spec-
ified wattage of each bulb, refer to
"Bulb Chart" 
P387. For replace-
ment, contact your SUBARU
dealer.
B02119
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Bulbs
3741. Remove the clips.
2. Remove the rear bumper cover.3. Turn the bulb socket counterclockwise
and remove it.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Install the bulb socket by turning it
clockwise.
6. Reconnect the electrical connector.
7. Reinstall the rear bumper cover.
■
Trunk Light■
Other Bulbs
It may be difficult to replace the bulbs.
We recommend that you have the
bulbs replaced by your SUBARU dealer
if necessary.■
Adjusting Headlight Aim1) Adjustment bolt A
2) Adjustment bolt B▼
Before checking the headlight
aiming
1. Make sure the vehicle has a full tank of
gasoline and the area around the head-
light is not deformed.
2. Park the vehicle on level ground.
3. Sit in the driver’s seat.
4. Bounce the vehicle several times.
B02120B02121
CAUTION
Replacing the bulb could cause
burns since the bulb may be very
hot. Have the bulb replaced by your
SUBARU dealer.
B02122
2
1
B02156
B5=B8.ERRN 34 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Battery
375
Maintenance and Service11
– CONTINUED –
▼
Headlight aim adjustment1) Adjustment direction mark1. Turn the bolt A clockwise or
counterclockwise to adjust it. Remember
the direction of the rotation and number of
rotations.2. Turn bolt B the same number of turns
and in the same direction as step 1.
NOTE
If the headlight aim cannot be
adjusted, contact your SUBARU
dealer.
 To inspect of the headlight aim posi-
tion, consult a SUBARU dealer.
11-29. Replacing BatteryThe access key fob may be discharged
under the following conditions.
 The operation of the keyless access
function is unstable
 The operating distance of the remote
keyless entry system is unstable
 The transmitter does not operate prop-
erly when used within the standard
distance
Replace the battery with a new one.
1
B02157
B02158
CAUTION
 Do not let dust, oil or water get on
or in the access key fob/trans-
mitter when replacing battery.Be careful not to damage the
printed circuit board in the
access key fob/transmitter when
replacing the battery.Be careful not to allow children to
touch the battery and any
removed parts; children could
swallow them.There is a danger of an explosion
if the battery is incorrectly
replaced. Replace only with the
same or equivalent type of the
battery.
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Replacing Battery
376NOTEReplace only with the same or
equivalent type of battery recom-
mended by the manufacturer.
 Dispose of used batteries according
to the local laws.
 Mount the battery in the correct
orientation to prevent fluid leakage. Be
careful not to bend the terminals. It
may result in a malfunction.
 It is recommended that the battery
should be replaced by a SUBARU
dealer.
 Use a new battery.
 After replacing the battery, confirm
that the access key fob/transmitter
functions properly.■

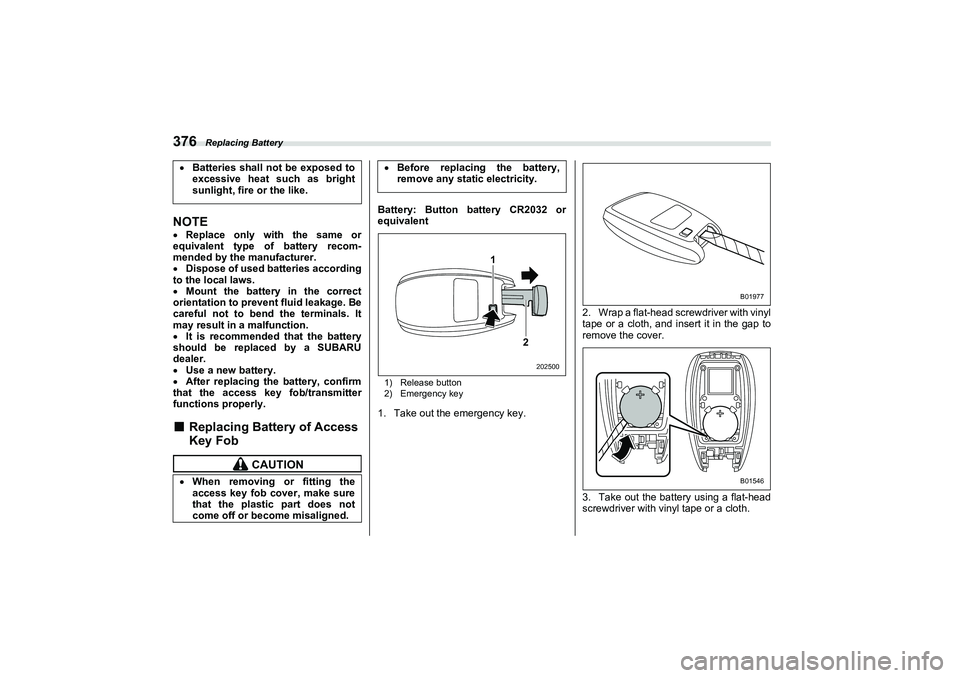

Replacing Battery of Access
Key Fob
Battery: Button battery CR2032 or
equivalent1) Release button
2) Emergency key1. Take out the emergency key. 2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.
3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.

Batteries shall not be exposed to
excessive heat such as bright
sunlight, fire or the like.
CAUTION
When removing or fitting the
access key fob cover, make sure
that the plastic part does not
come off or become misaligned.
Before replacin g the battery,
remove any static electricity.
1
2
202500
B01977B01546
B5=B8.ERRN 36 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
381
Specifications12
– CONTINUED –
■
Fuel
*1: For details, refer to "Fuel" P223.■
Engine Oil
For the checking, adding and replacing procedure or other details, refer to "Engine Oil" P346.NOTEThe procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recom-
mended that you have this service performed by your SUBARU dealer.
▼
Approved engine oil
Always use the SUBARU approved engine oil. For fu rther details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
▼Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTE Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
 In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lower
viscosity provide better fuel economy. However, in hot weather, o il of higher viscosity is required to properly lubricate the
engine. The following table lists the recommended viscosities and applicable temperatures.Compression ratio 12.5 : 1
Firing order 1 – 3 – 2 – 4
Fuel requirement
*1
Unleaded gasoline with 93 AKI (98 RON) or higher
Fuel tank capacity 13.2 US gal (50 liters, 11 Imp gal)
Engine model
FA24 (2.4 L, DOHC, non-turbo)
