2022 PEUGEOT LANDTREK Owners Manual

MY PEUGEO
HANDBOOK

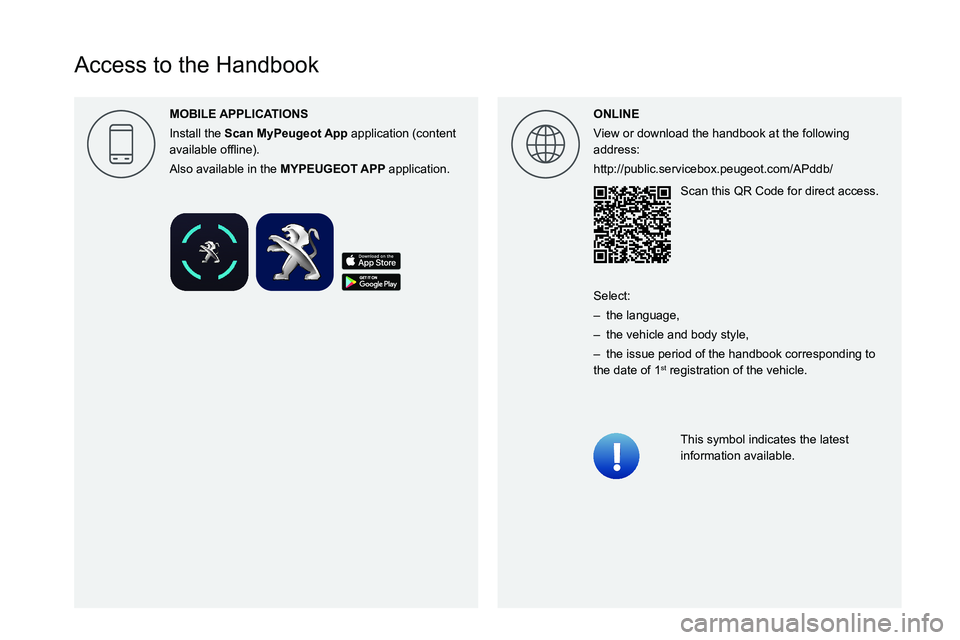

Access to the Handbook
ONLINE
View or download the handbook at the following
address:
http://public.servicebox.peugeot.com/APddb/Scan this QR Code for direct access.
This symbol indicates the latest
information available.
Select:
–
the language,
–


the vehicle and body style,
–


the issue period of the handbook corresponding to
the date of 1st registration of the vehicle.
MOBILE
Install the

Scan

application

(content
004400590044004C004F00440045004F0048000300521089004C00510048000C0011
Also available in the MYPEUGEOT application.

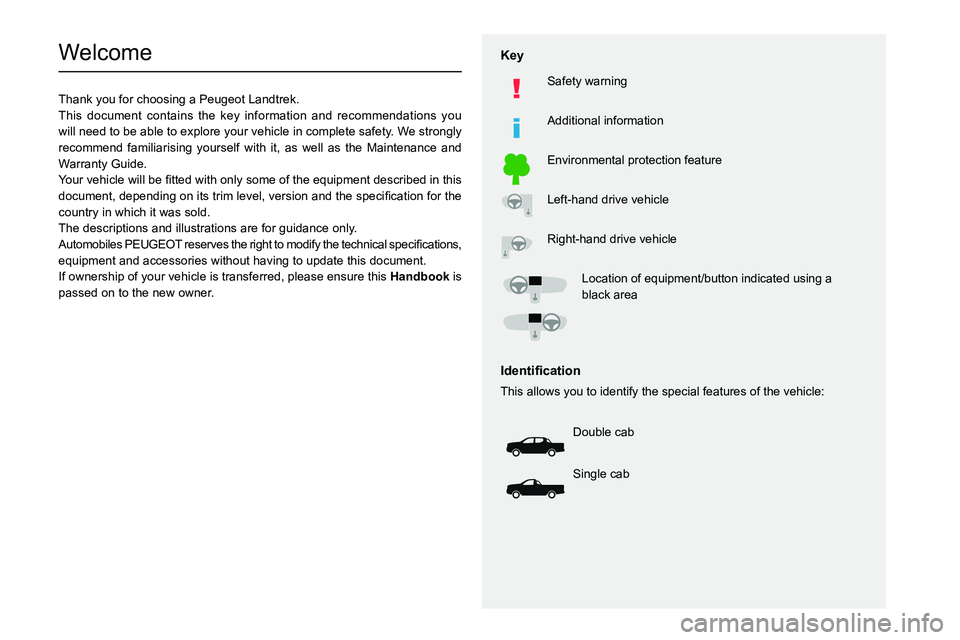

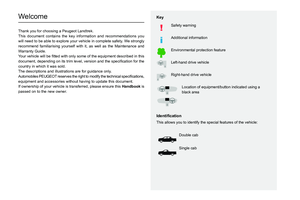

Welcome
Thank you for choosing a Peugeot Landtrek.
This document contains the key information and recommendations you
will need to be able to explore your vehicle in complete safety. We strongly
recommend familiarising yourself with it, as well as the Maintenance and
Warranty Guide.
003C
00470052004600580050004800510057
country in which it was sold.
The descriptions and illustrations are for guidance only.
0024005800570052005000520045004C004F004800560003
004800540058004C00530050004800510057
If ownership of your vehicle is transferred, please ensure this Han is
passed on to the new owner.
Key
Safety warning
Additional information
Environmental protection feature
Left-hand drive vehicle
Right-hand drive vehicle002F0052004600440057004C005200510003005200490003004800540058004C0053005000480051005700120045005800570057005200510003004C00510047004C00460044005700480047000300580056004C0051004A000300440003
black area
002C0047004800510057004C00BF004600440057004C00520051
This allows you to identify the special features of the vehicle:
Double cab
Single cab

2

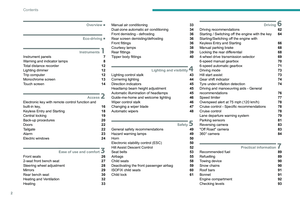

Contents
 ■
Overview
 ■
Eco-driving

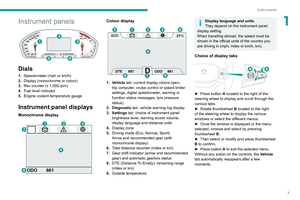

1InstrumentsInstrument panels 7

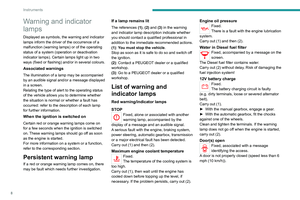

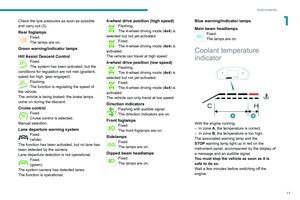

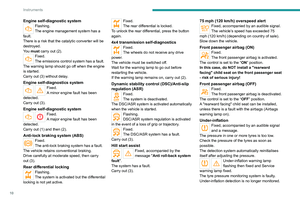

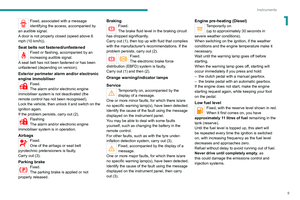

Warning and indicator lamps 8

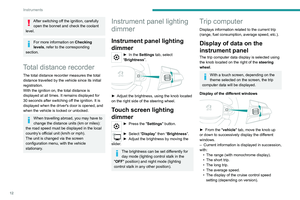

Total distance recorder 12
Lighting dimmer 12

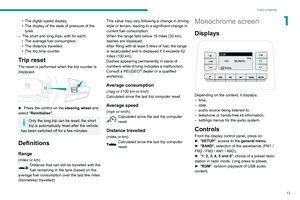

Trip computer 12
Monochrome screen 13

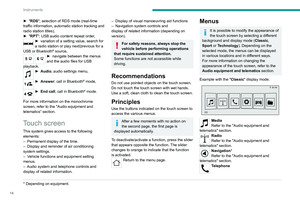

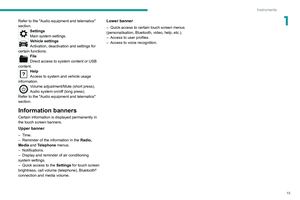

Touch screen 14

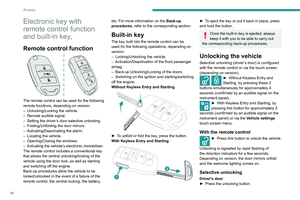

2AccessElectronic key with remote control function and
built-in key, 16
Keyless Entry and Starting 18

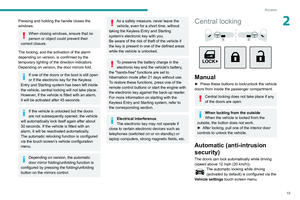

Central locking 19

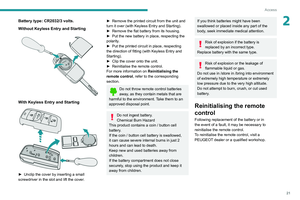

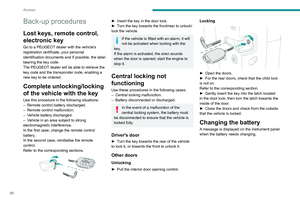

Back-up procedures 20

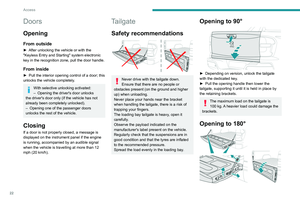

Doors 22
Tailgate 22

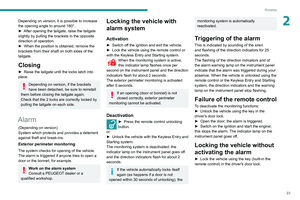

Alarm 23

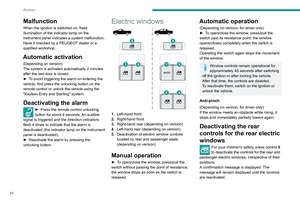

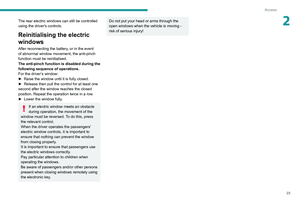

Electric windows 24

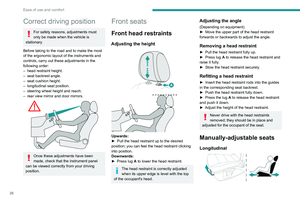

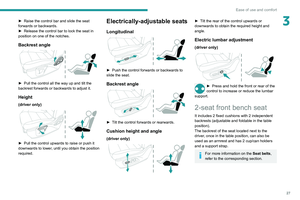

3Ease of use and comfortFront seats 26
2-seat front bench seat 27
Steering wheel adjustment 28

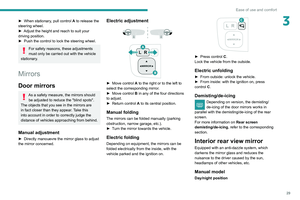

Mirrors 29

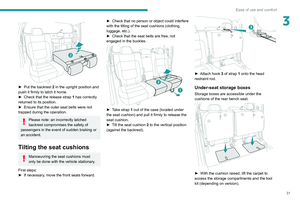

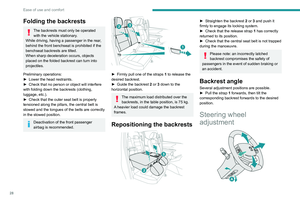

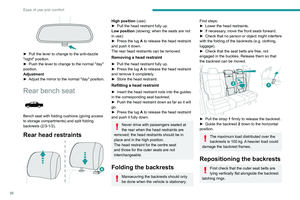

Rear bench seat 30

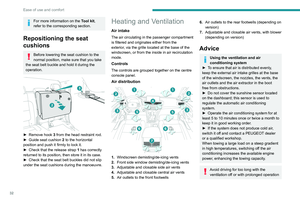

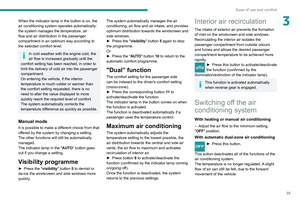

Heating and Ventilation 32

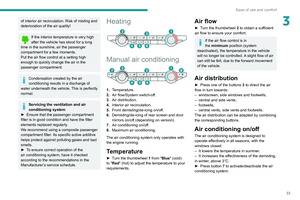

Heating 33
Manual air conditioning 33

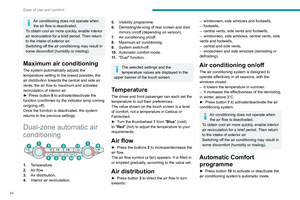

Dual-zone automatic air conditioning 34

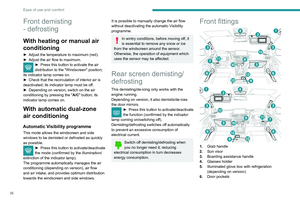

Front demisting - defrosting 36
Rear screen demisting/defrosting 36
Front fittings 36

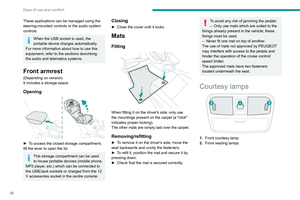

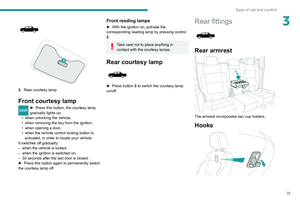

Courtesy lamps 38
Rear fittings 39

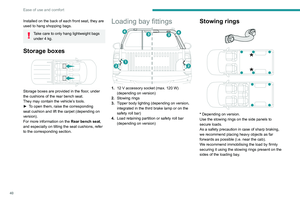

Tipper body fittings 40

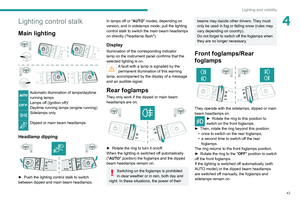

4Lighting and visibilityLighting control stalk 43

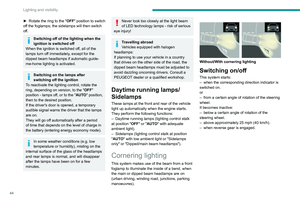

Cornering lighting 44

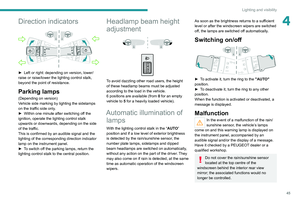

Direction indicators 45
Headlamp beam height adjustment 45
Automatic illumination of headlamps 45

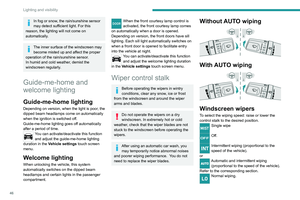

Guide-me-home and welcome lighting 46
Wiper control stalk 46
Changing a wiper blade 47

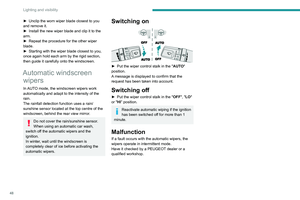

Automatic wipers 48

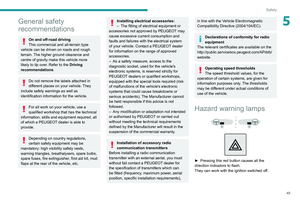

5SafetyGeneral safety recommendations 49

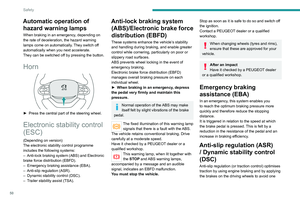

Hazard warning lamps 49
Horn 50

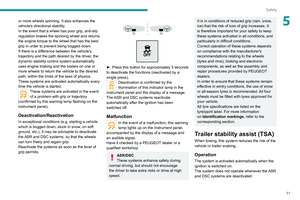

Electronic stability control (ESC) 50

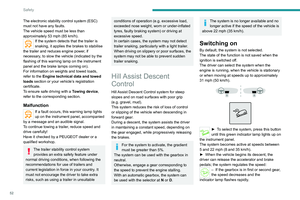

Hill Assist Descent Control 52

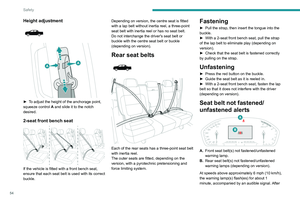

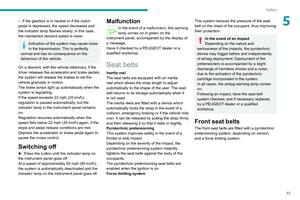

Seat belts 53

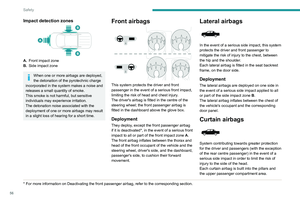

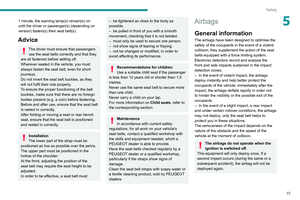

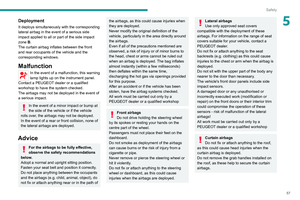

Airbags 55

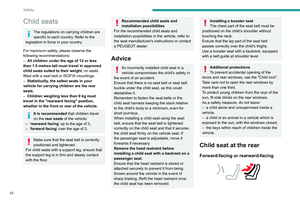

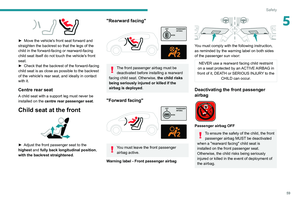

Child seats 58
Deactivating the front passenger airbag 59
ISOFIX child seats 60

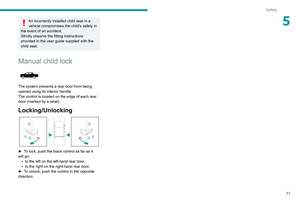

Child lock 61

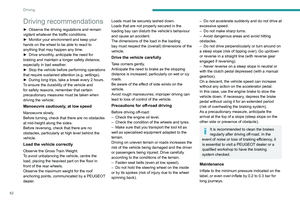

6DrivingDriving recommendations 62

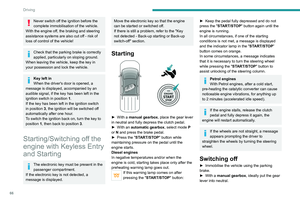

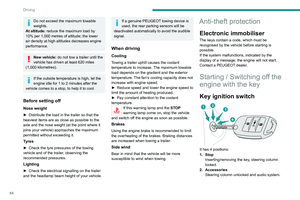

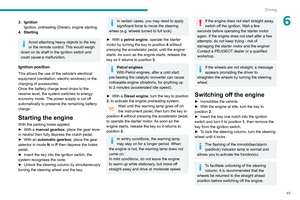

Starting / Switching off the engine with the key 64

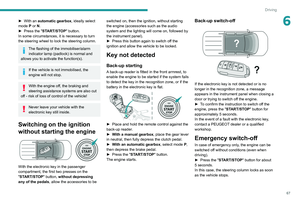

Starting/Switching off the engine with
Keyless Entry and Starting
66

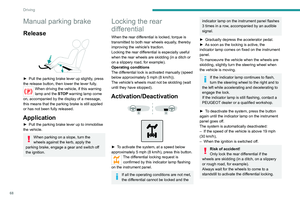

Manual parking brake 68
Locking the rear differential 68

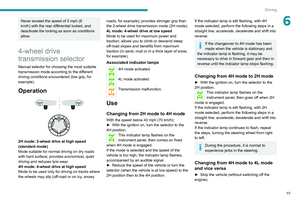

4-wheel drive transmission selector 69
6-speed manual gearbox 70

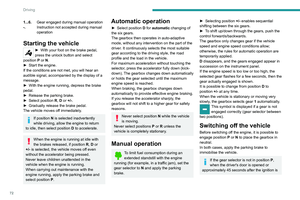

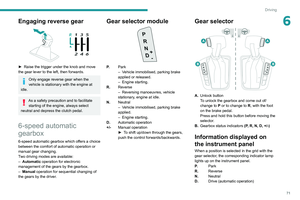

6-speed automatic gearbox 71
Driving mode 73

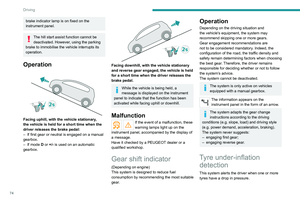

Hill start assist 73
Gear shift indicator 74

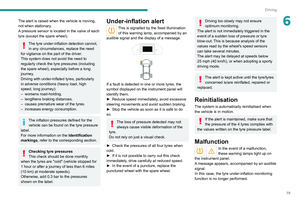

Tyre under-inflation detection 74

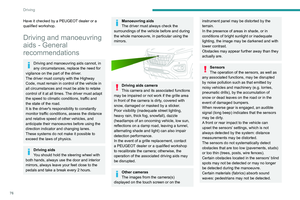

Driving and manoeuvring aids - General
recommendations
76

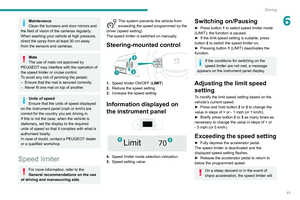

Speed limiter 77

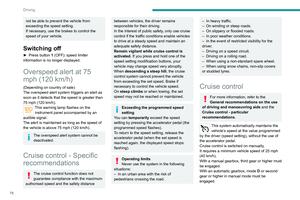

Overspeed alert at 75 mph (120

km/h) 78
Cruise control - Specific recommendations 78

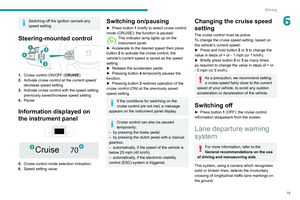

Cruise control 78

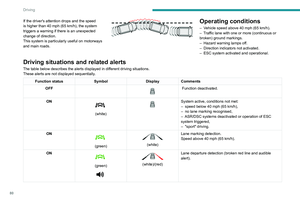

Lane departure warning system 79

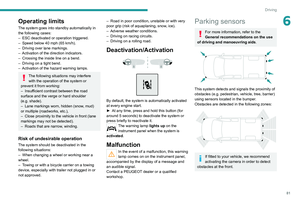

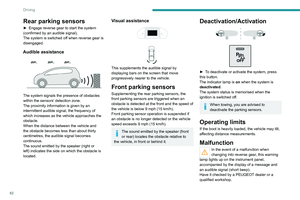

Parking sensors 81

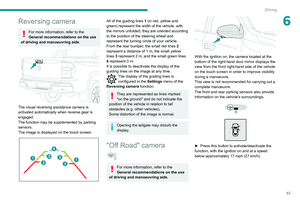

Reversing camera 83
"Off Road" camera 83

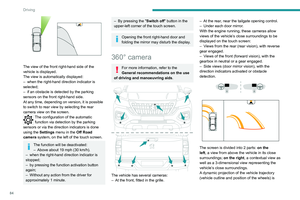

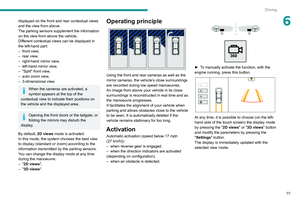

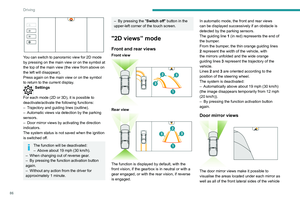

360° camera 84

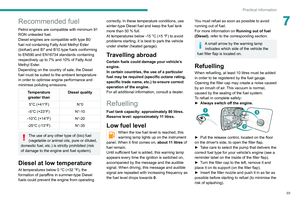

7Practical informationRecommended fuel 89
Refuelling 89

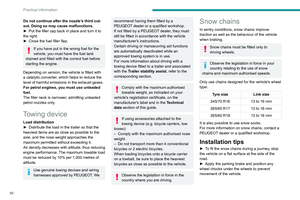

Towing device 90
Snow chains 90
Roof bars 91
Bonnet 91

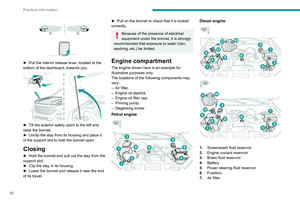

Engine compartment 92

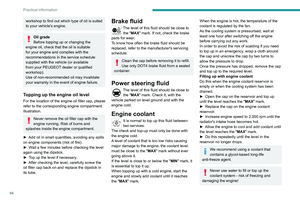

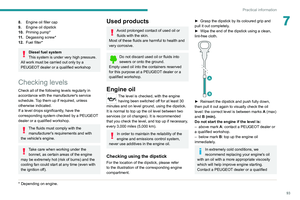

Checking levels 93

3

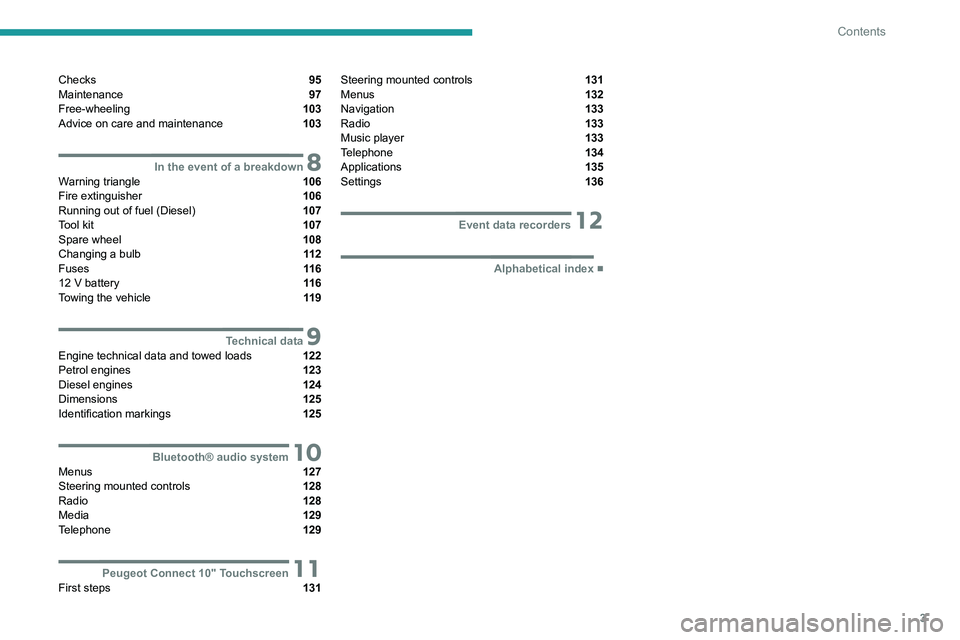

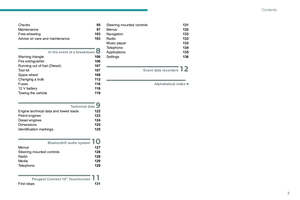

Contents

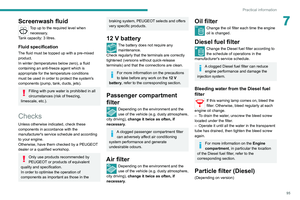

Checks 95

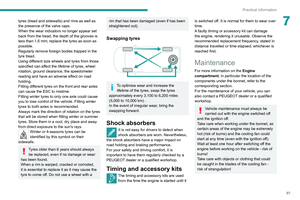

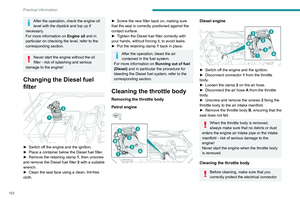

Maintenance 97
Free-wheeling 103

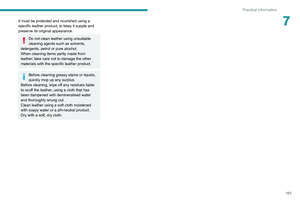

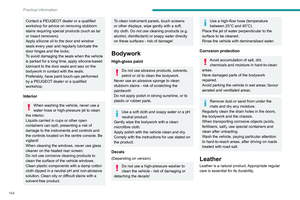

Advice on care and maintenance 103

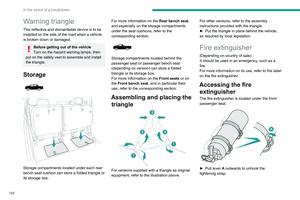

8In the event of a breakdownWarning triangle 106
Fire extinguisher 106
Running out of fuel (Diesel) 107

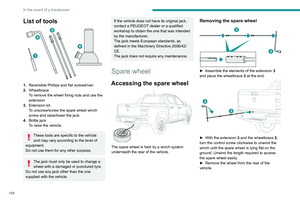

Tool kit 107

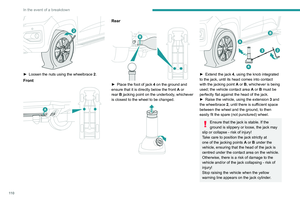

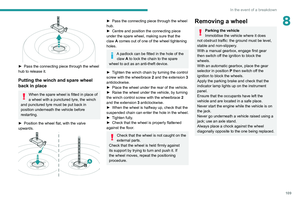

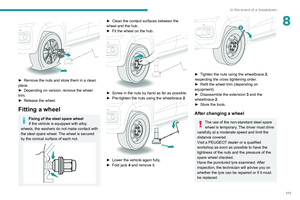

Spare wheel 108

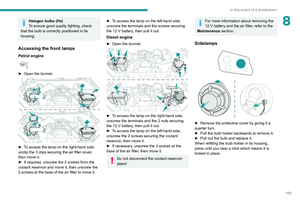

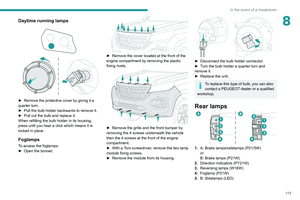

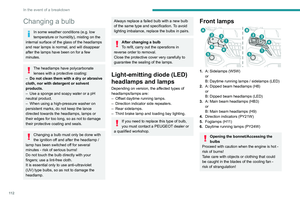

Changing a bulb 11 2
Fuses 11 6
12

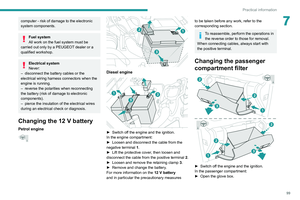

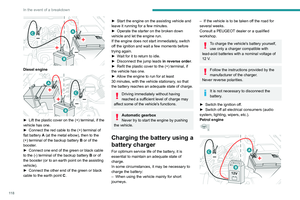

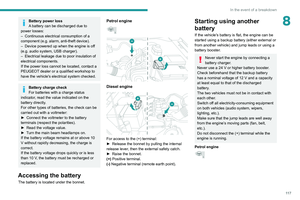

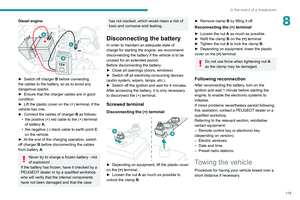

V battery 11 6

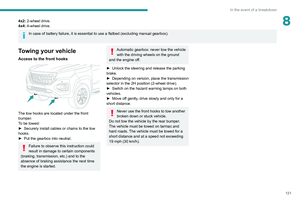

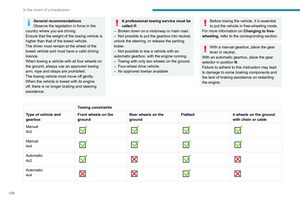

Towing the vehicle 11 9
9Technical dataEngine technical data and towed loads 122

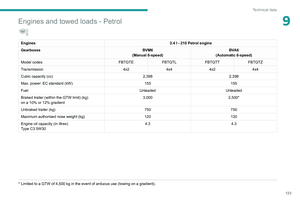

Petrol engines 123

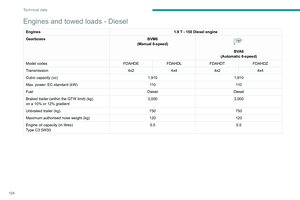

Diesel engines 124

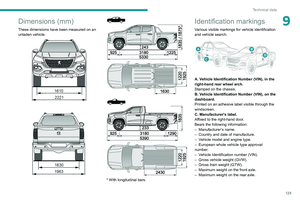

Dimensions 125
Identification markings 125

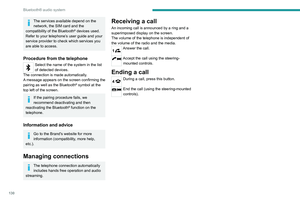

10Bluetooth® audio systemMenus 127
Steering mounted controls 128
Radio 128
Media 129

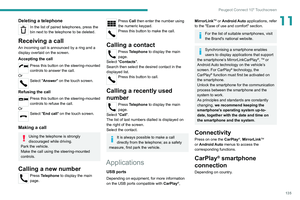

Telephone 129

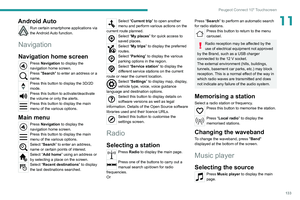

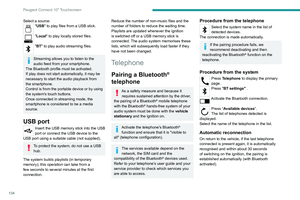

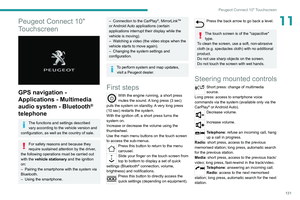

11Peugeot Connect 10" TouchscreenFirst steps 131
Steering mounted controls 131

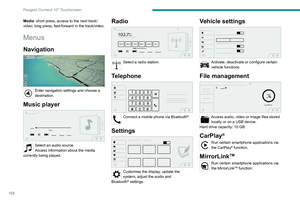

Menus 132
Navigation 133
Radio 133
Music player 133
Telephone 134

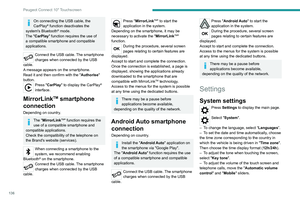

Applications 135

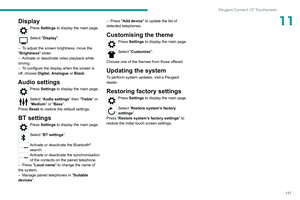

Settings 136

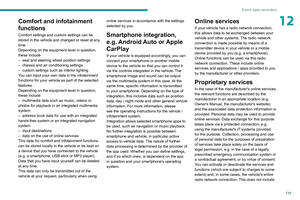

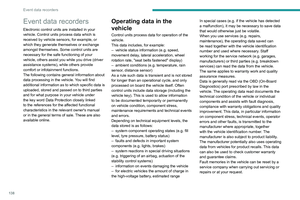

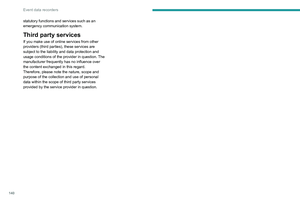

12Event data recorders
 ■

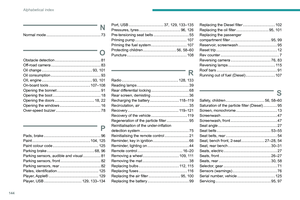

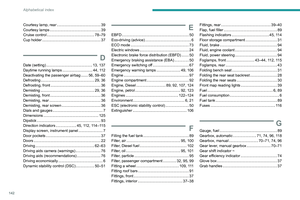

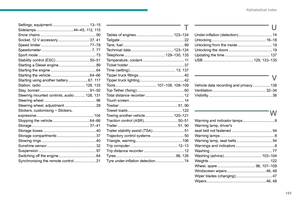

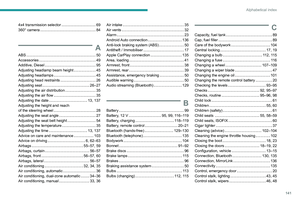

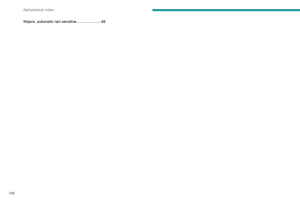

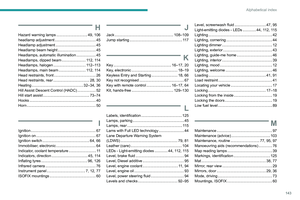

Alphabetical index

4
Overview

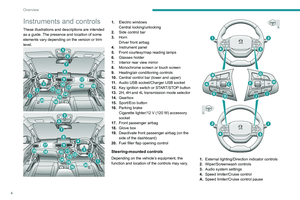

Instruments and controls
These illustrations and descriptions are intended
as a guide. The presence and location of some
elements vary depending on the version or trim
level.
1.Electric windows
Central locking/unlocking
2. Side control bar
3. Horn
Driver front airbag
4. Instrument panel
5. Front courtesy/map reading lamps
6. Glasses holder
7. Interior rear view mirror
8. Monochrome screen or touch screen
9. Heating/air conditioning controls
10. Central control bar (lower and upper)
11 . Audio USB socket/Charger USB socket
12. Key ignition switch or START/STOP button
13. 2H, 4H and 4L transmission mode selector
14. Gearbox
15. Sport/Eco button
16. Parking brake
Cigarette lighter/12
V (120 W) accessory
socket
17. Front passenger airbag
18. Glove box
19. Deactivate front passenger airbag (on the
side of the dashboard)
20. Fuel filler flap opening control
Steering-mounted controls
Depending on the vehicle’s equipment, the
function and location of the controls may vary.1.External lighting/Direction indicator controls
2. Wiper/Screenwash controls
3. Audio system settings
4. Speed limiter/Cruise control
A. Speed limiter/Cruise control pause

5
Overview
B.Activate Cruise control
C. Decrease/Increase Speed limiter/Cruise
control speed setting
Memorising speeds function (SET) or
reactivation of the programmed speed
function (RES)
D. Voice recognition/Media
E. Activate Speed limiter
F. Select menus on the instrument panel and
validate
G. Decrease/Increase volume
H. Select the instrument panel display mode
and navigate in the menus
I. Access the Telephone menu
/Answer a call
Select next media
J. Access the Telephone menu/End a call
Select previous media
Side control bar
1.Door mirror controls 2.
Deactivate the Lane departure warning
system function
3. Headlamp beam height adjustment
4. Activate loading zone external lighting
(available only when stationary)
5. Deactivate parking sensors
Central control bar (lower and upper)
1.Rear differential locking
2. Hill Assist Descent Control
3. Deactivate the DSC/ASR system
4. Central locking
5. Central unlocking
6. Hazard warning lamps
7. Passenger airbag deactivation/activation
indicator lamp
8. Activate camera functions (360° Camera or
Off Road Camera)
9. Audio system on/off (long press)
Volume adjustment/Mute (short press)

6

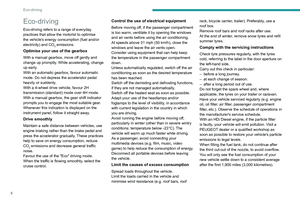

Eco-driving
Eco-driving
Eco-driving refers to a range of everyday
practices that allow the motorist to optimise
the vehicle's energy consumption (fuel and/or
electricity) and CO
2 emissions.
Optimise your use of the gearbox
With a manual gearbox, move off gently and
change up promptly. While accelerating, change
up early.
With an automatic gearbox, favour automatic
mode. Do not depress the accelerator pedal
heavily or suddenly.
With a 4-wheel drive vehicle, favour 2H
transmission (standard) mode over 4H mode.
With a manual gearbox, the gear shift indicator
prompts you to engage the most suitable gear.
Whenever this indication is displayed on the
instrument panel, follow it straight away.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal and
press the accelerator gradually. These practices
help to save on energy consumption, reduce
CO
2 emissions and decrease general traffic
noise.
Favour the use of the "Eco" driving mode.
When the traffic is flowing smoothly, select the
cruise control.
Control the use of electrical equipment
Before moving off, if the passenger compartment
is too warm, ventilate it by opening the windows
and air vents before using the air conditioning.
At speeds above 31
mph (50 km/h), close the
windows and leave the air vents open.
Consider using equipment that can help keep
the temperature in the passenger compartment
down.
Unless automatically regulated, switch off the air
conditioning as soon as the desired temperature
has been reached.
Switch off the demisting and defrosting functions,
if they are not managed automatically.
Switch off the heated seat as soon as possible.
Adapt your use of the headlamps and/or
foglamps to the level of visibility, in accordance
with current legislation in the country in which
you are driving.
Avoid running the engine before moving off,
particularly in winter (other than in severe wintry
conditions: temperature below -23°C). The
vehicle will warm up much faster while driving.
As a passenger, avoid connecting your
multimedia devices (e.g.
film, music, video
game) to help reduce the consumption of energy.
Disconnect all portable devices before leaving
the vehicle.
Limit the causes of excess consumption
Spread loads throughout the vehicle.
Limit the loads carried in the vehicle and
minimise wind resistance (e.g.
roof bars, roof rack, bicycle carrier, trailer). Preferably, use a
roof box.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit
summer tyres.
Comply with the servicing instructions
Check tyre pressures regularly, with the tyres
cold, referring to the label in the door aperture on
the left-hand side.
Carry out this check in particular:
–

before a long journey
.
–

at each change of season.
–


after a long period out of use.
Do not forget the spare wheel and, where
applicable, the tyres on your trailer or caravan.
Have your vehicle serviced regularly (e.g.

engine
oil, oil filter, air filter, passenger compartment
filter, etc.). Observe the schedule of operations in
the manufacturer's service schedule.
With an HDi Diesel engine, if the particle filter
is faulty, your vehicle will emit pollution. Visit a
PEUGEOT dealer or a qualified workshop as
soon as possible to restore your vehicle's particle
emissions to legal levels.
When filling the fuel tank, do not continue after
the third cut-out of the nozzle, to avoid overflow.
You will only see the fuel consumption of your
new vehicle settle down to a consistent average
after the first 1,900 miles (3,000 kilometres).
