172
Practical information
12 V battery
The battery does not require any maintenance.
Check regularly that the terminals are correctly
tightened (versions without quick-release
terminals) and that the connections are clean.
For more information on the precautions
to take before any work on the 12 V
battery, refer to the corresponding section.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out only by
a PEUGEOT dealer or a qualified workshop.
Passenger compartment
filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,
city driving), change it twice as often, if
necessary .
A clogged passenger compartment filter
can adversely affect air conditioning
system performance and generate
undesirable odours.
Air filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,
city driving), change it twice as often, if
necessary .
Oil filter
Change the oil filter each time the engine
oil is changed.
Particle filter (Diesel)
The start of clogging of the particle filter is
indicated by the temporary lighting of this
warning lamp, accompanied by an alert
message.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 37
mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this
indicates a low Diesel additive level.
For more information on Checking levels,
refer to the corresponding section.
Following prolonged operation of the
vehicle at very low speed or at idle, you
may, in exceptional circumstances, notice
water vapour coming from the exhaust while
accelerating. These emissions have no
impact on the vehicle’s behaviour and the
environment.
New vehicle
During the first few particle filter
regeneration operations, you may notice a
"burning" smell. This is perfectly normal.
Manual gearbox
The gearbox does not require any maintenance (no oil change).
Automatic gearbox
The gearbox does not require any maintenance (no oil change).
Brake pads
Brake wear depends on the style of
driving, particularly in the case of vehicles
used in town, over short distances. It may be
necessary to have the condition of the brakes
checked, even between vehicle services.
Unless there is a leak in the circuit, a drop in the
brake fluid level indicates that the brake pads
are worn.
After washing the vehicle, moisture, or in wintry conditions, ice can form on the
brake discs and pads: braking efficiency may
be reduced. Gently dab the brakes to dry and
defrost them.

204
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
PEUGEOT i-Connect
Advanced - PEUGEOT
i-Connect
GPS navigation -
Applications - Multimedia
audio system - Bluetooth
®
telephone
The functions and settings described
vary according to the version and
configuration of the vehicle, and according to
the country of sale.
For safety reasons and because they
require continued attention on the part of
the driver, the following operations must be
carried out with the vehicle stationary and
the ignition on:
–

Pairing the smartphone with the system via
Bluetooth®.
–
Using the smartphone.
–

Connecting to Mirror Screen
(Apple®CarPlay® or Android Auto).
–
Changing the system settings and
configuration.
The message Energy economy mode is displayed when the system is about to go
into standby.
For more information on Energy economy
mode, refer to the "Practical information"
section.
Warning
Navigation is a driving aid. It cannot
replace the driver. All guidance instructions
should be carefully checked by the user.
By using the navigation, you accept the
following terms and conditions:
https://www.tomtom.com/en_gb/legal/
eula-automotive/?388448
First steps
The system starts when the ignition is switched on.
Short press, ignition off: system on/off.
Short press, ignition on: mute/restore sound.
Long press, ignition on: start standby mode
(mute sound, screens and clock display off).
Rotation: volume adjustment.
Information
This system gives access to the following
elements:
–

Audio equipment and telephone controls with
display of associated information. –


Connected services and display of associated
information.
–

Navigation system controls and display
of associated information (depending on
equipment).
–

V
oice recognition (depending on equipment).
–
T
ime and outside temperature.
–
Heating/air conditioning system controls and
reminders of settings.
–

Settings for driving aid functions, comfort
and safety functions, extended head-up display
(depending on equipment and version), audio
equipment and digital instrument panel.
–

Settings for functions specific to rechargeable
hybrid vehicles.
–

Display of visual manoeuvring aid functions.
–

Interactive handbook.
–

V
ideo tutorials (e.g. screen management,
driving aids, voice recognition).
Upper banner
Certain information is displayed permanently in
the upper banner of the touch screen:
–

Outside temperature from the vehicle's
sensors (associated with a blue symbol if there is
a risk of ice).
–


T
emperature setting reminder for the air
conditioning on the driver's and passenger sides.
–

Navigation information reminder (depending
on equipment).
–


Charge level of the connected smartphone.
–


System connection status (Bluetooth®, Wi-Fi,
mobile telephone network).

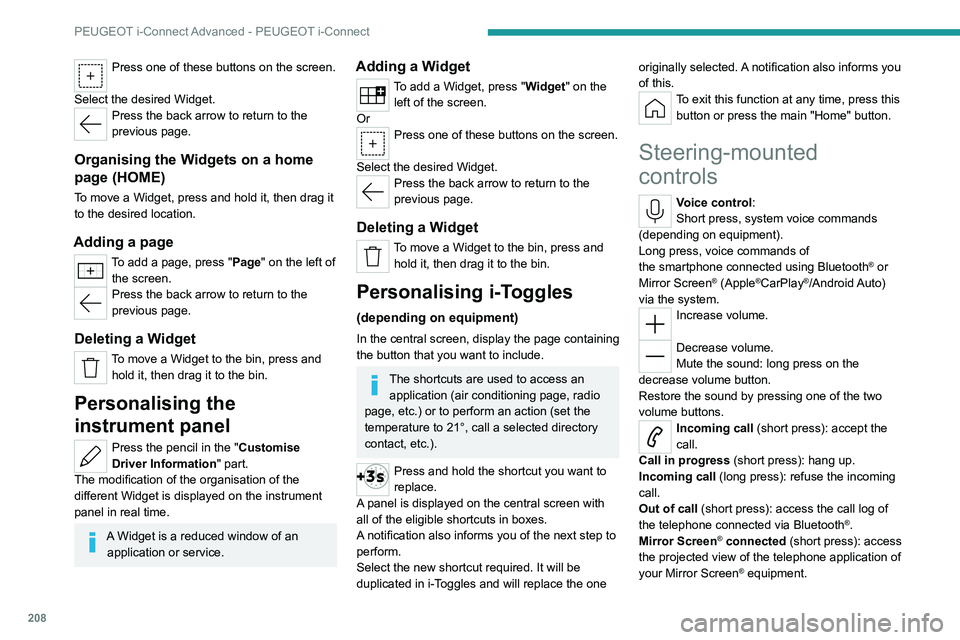

208
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
Press one of these buttons on the screen.
Select the desired Widget.
Press the back arrow to return to the
previous page.
Organising the Widgets on a home
page (HOME)
To move a Widget, press and hold it, then drag it
to the desired location.
Adding a page
To add a page, press "Page" on the left of the screen.
Press the back arrow to return to the
previous page.
Deleting a Widget
To move a Widget to the bin, press and hold it, then drag it to the bin.
Personalising the
instrument panel
Press the pencil in the "Customise
Driver Information" part.
The modification of the organisation of the
different Widget is displayed on the instrument
panel in real time.
A Widget is a reduced window of an application or service.
Adding a Widget
To add a Widget, press "Widget" on the left of the screen.
Or
Press one of these buttons on the screen.
Select the desired Widget.
Press the back arrow to return to the
previous page.
Deleting a Widget
To move a Widget to the bin, press and hold it, then drag it to the bin.
Personalising i-Toggles
(depending on equipment)
In the central screen, display the page containing
the button that you want to include.
The shortcuts are used to access an application (air conditioning page, radio
page, etc.) or to perform an action (set the
temperature to 21°, call a selected directory
contact, etc.).
Press and hold the shortcut you want to
replace.
A panel is displayed on the central screen with
all of the eligible shortcuts in boxes.
A notification also informs you of the next step to
perform.
Select the new shortcut required. It will be
duplicated in i-Toggles and will replace the one originally selected. A notification also informs you
of this.
To exit this function at any time, press this
button or press the main "Home" button.
Steering-mounted
controls
Voice control:
Short press, system voice commands
(depending on equipment).
Long press, voice commands of
the

smartphone connected using Bluetooth
® or
Mirror Screen® (Apple®CarPlay®/Android Auto)
via the system.
Increase volume.
Decrease volume.
Mute the sound: long press on the
decrease volume button.
Restore the sound by pressing one of the two
volume buttons.
Incoming call (short press): accept the
call.
Call in progress (short press): hang up.
Incoming call (long press): refuse the incoming
call.
Out of call (short press): access the call log of
the telephone connected via
Bluetooth
®.
Mirror Screen® connected (short press): access
the projected view of the telephone application of
your Mirror Screen
® equipment.

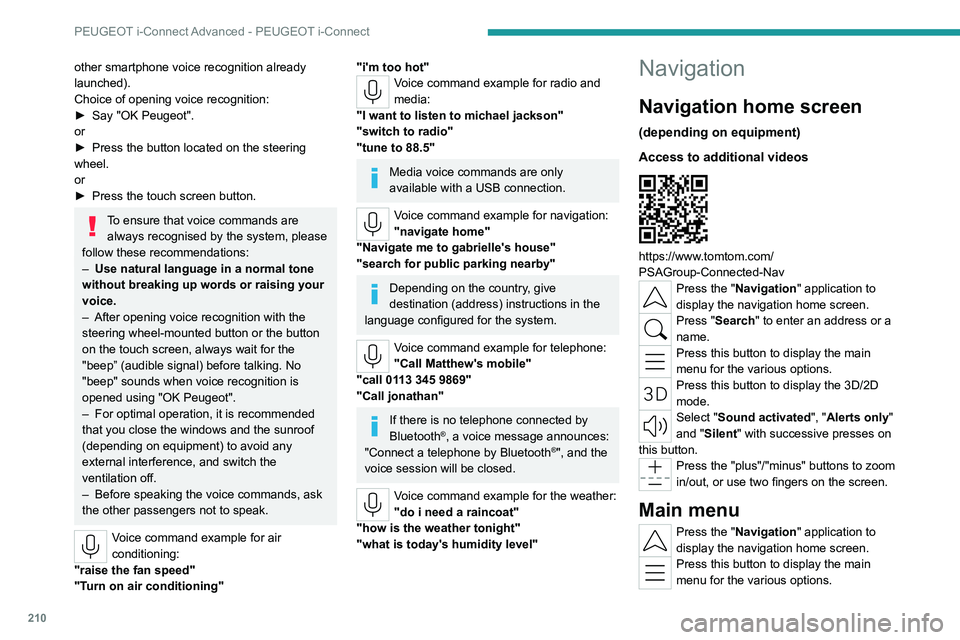

210
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
other smartphone voice recognition already
launched).
Choice of opening voice recognition:
►
Say
"OK Peugeot".
or
►

Press the button located on the steering
wheel.
or
►


Press the touch screen button.
To ensure that voice commands are always recognised by the system, please
follow these recommendations:
–

Use natural language in a normal tone
without breaking up words or raising your
voice.
–


After opening voice recognition with the
steering wheel-mounted button or the button
on the touch screen, always wait for the
"beep” (audible signal) before talking. No
"beep" sounds when voice recognition is
opened using "OK Peugeot".
–


For optimal operation, it is recommended
that you close the windows and the sunroof
(depending on equipment) to avoid any
external interference, and switch the
ventilation off.
–


Before speaking the voice commands, ask
the other passengers not to speak.
Voice command example for air
conditioning:
"raise the fan speed"
"Turn on air conditioning"
"i'm too hot"Voice command example for radio and
media:
"I want to listen to michael jackson"
"switch to radio"
"tune to 88.5"
Media voice commands are only
available with a USB connection.
Voice command example for navigation:
"navigate home"
"Navigate me to gabrielle's house"
"search for public parking nearby"
Depending on the country, give
destination (address) instructions in the
language configured for the system.
Voice command example for telephone:
"Call Matthew's mobile"
"call 0113 345 9869"
"Call jonathan"
If there is no telephone connected by
Bluetooth®, a voice message announces:
"Connect a telephone by Bluetooth®", and the
voice session will be closed.
Voice command example for the weather:
"do i need a raincoat"
"how is the weather tonight"
"what is today's humidity level"
Navigation
Navigation home screen
(depending on equipment)
Access to additional videos


https://www.tomtom.com/
PSAGroup-Connected-Nav
Press the "Navigation" application to
display the navigation home screen.
Press "Search" to enter an address or a
name.
Press this button to display the main
menu for the various options.
Press this button to display the 3D/2D
mode.
Select "Sound activated", "Alerts only"
and "Silent" with successive presses on
this button.
Press the "plus"/"minus" buttons to zoom
in/out, or use two fingers on the screen.
Main menu
Press the "Navigation" application to
display the navigation home screen.
Press this button to display the main
menu for the various options.

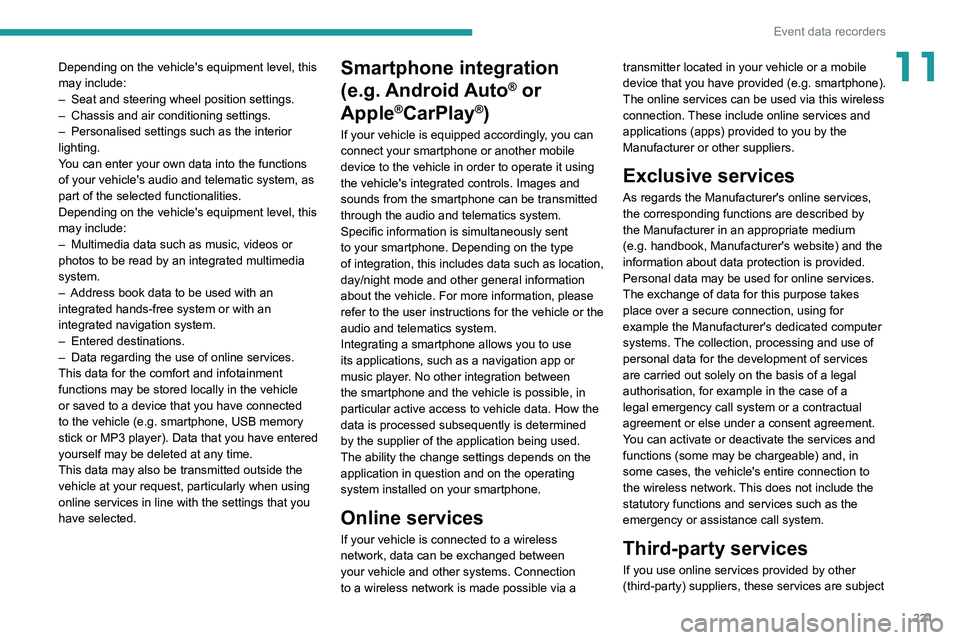

221
Event data recorders
11Depending on the vehicle's equipment level, this
may include:
–

Seat and steering wheel position settings.
–


Chassis and air conditioning settings.
–


Personalised settings such as the interior
lighting.
Y

ou can enter your own data into the functions
of your vehicle's audio and telematic system, as
part of the selected functionalities.
Depending on the vehicle's equipment level,
this
may
include:
–

Multimedia data such as music, videos or
photos to be read by an integrated multimedia
system.
–


Address book data to be used with an
integrated hands-free system or with an
integrated navigation system.
–


Entered destinations.
–


Data regarding the use of online services.
This data for the comfort and infotainment
functions may be stored locally in the vehicle
or saved to a device that you have connected
to the vehicle (e.g.

smartphone, USB memory
stick or MP3 player). Data that you have entered
yourself may be deleted at any time.
This data may also be transmitted outside the
vehicle at your request, particularly when using
online services in line with the settings that you
have selected. Smartphone integration
(e.g.
Android
Auto
® or
Apple
®CarPlay®)
If your vehicle is equipped accordingly, you can
connect your smartphone or another mobile
device to the vehicle in order to operate it using
the vehicle's integrated controls. Images and
sounds from the smartphone can be transmitted
through the audio and telematics system.
Specific information is simultaneously sent
to your smartphone. Depending on the type
of
integration, this includes data such as location,
day/night mode and other general information
about the vehicle. For more information, please
refer to the user instructions for the vehicle or the
audio and telematics system.
Integrating a smartphone allows you to use
its applications, such as a navigation app or
music player. No other
integration between
the smartphone and the vehicle is possible, in
particular active access to vehicle data. How the
data is processed subsequently is determined
by the supplier of the application being used.
The ability the change settings depends on the
application in question and on the operating
system installed on your smartphone.
Online services
If your vehicle is connected to a wireless
network, data can be exchanged between
your vehicle and other systems. Connection
to a wireless network is made possible
via a transmitter located in your vehicle or a mobile
device that you have provided (e.g.

smartphone).
The online services can be used via this wireless
connection.
These include online services and
applications (apps) provided to you by the
Manufacturer or other suppliers.
Exclusive services
As regards the Manufacturer's online services,
the corresponding functions are described by
the Manufacturer in an appropriate medium
(e.g.
handbook, Manufacturer's website) and the
information about data protection is provided.
Personal data may be used for online services.
The exchange of data for this purpose takes
place over a secure connection, using for
example the Manufacturer's dedicated computer
systems. The collection, processing and use of
personal data for the development of services
are carried out solely on the basis of a legal
authorisation, for example in the case of a
legal emergency call system or a contractual
agreement or else under a consent agreement.
You can activate or deactivate the services and
functions (some may be chargeable) and, in
some cases, the vehicle's entire connection to
the wireless network. This does not include the
statutory functions and services such as the
emergency or assistance call system.
Third-party services
If you use online services provided by other
(third-party) suppliers, these services are subject

223

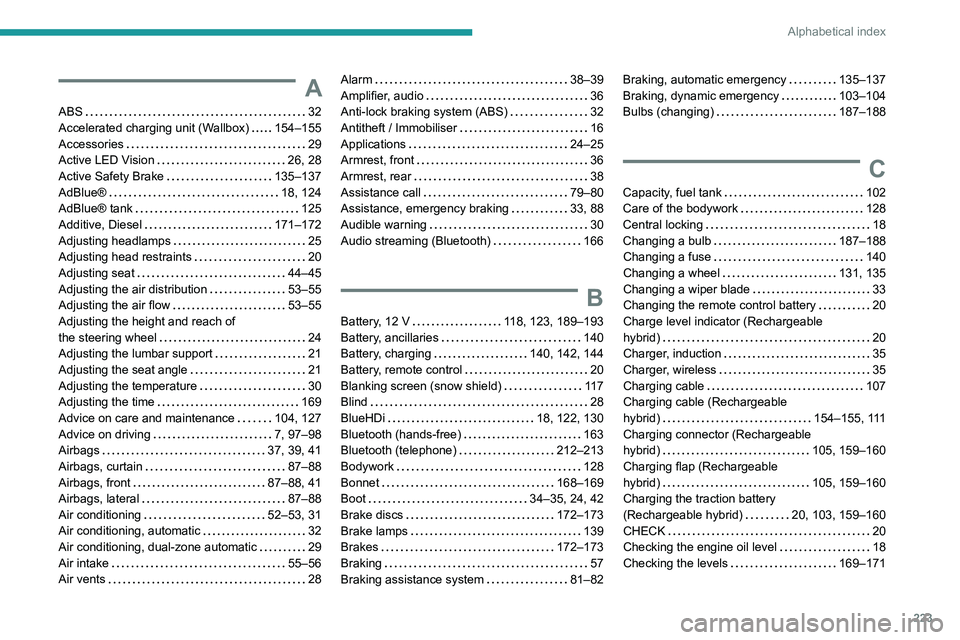

Alphabetical index
A
ABS 32
Accelerated charging unit (Wallbox)
154–155
Accessories

29
Active LED Vision

26, 28
Active Safety Brake

135–137
AdBlue®

18, 124
AdBlue® tank

125
Additive, Diesel

171–172
Adjusting headlamps

25
Adjusting head restraints

20
Adjusting seat

44–45
Adjusting the air distribution

53–55
Adjusting the air flow

53–55
Adjusting the height and reach of
the steering wheel

24
Adjusting the lumbar support

21
Adjusting the seat angle

21
Adjusting the temperature

30
Adjusting the time

169
Advice on care and maintenance

104, 127
Advice on driving

7, 97–98
Airbags

37, 39, 41
Airbags, curtain

87–88
Airbags, front

87–88, 41
Airbags, lateral

87–88
Air conditioning

52–53, 31
Air conditioning, automatic

32
Air conditioning, dual-zone automatic

29
Air intake

55–56
Air vents

28
Alarm 38–39
Amplifier, audio
36
Anti-lock braking system (ABS)

32
Antitheft / Immobiliser

16
Applications

24–25
Armrest, front

36
Armrest, rear

38
Assistance call

79–80
Assistance, emergency braking

33, 88
Audible warning

30
Audio streaming (Bluetooth)

166
B
Battery, 12 V 118, 123, 189–193
Battery, ancillaries
140
Battery, charging

140, 142, 144
Battery, remote control

20
Blanking screen (snow shield)

11 7
Blind

28
BlueHDi

18, 122, 130
Bluetooth (hands-free)

163
Bluetooth (telephone)

212–213
Bodywork

128
Bonnet

168–169
Boot

34–35, 24, 42
Brake discs

172–173
Brake lamps

139
Brakes

172–173
Braking

57
Braking assistance system

81–82
Braking, automatic emergency 135–137
Braking, dynamic emergency
103–104
Bulbs (changing)

187–188
C
Capacity, fuel tank 102
Care of the bodywork
128
Central locking

18
Changing a bulb

187–188
Changing a fuse

140
Changing a wheel

131, 135
Changing a wiper blade

33
Changing the remote control battery

20
Charge level indicator (Rechargeable
hybrid)

20
Charger, induction

35
Charger, wireless

35
Charging cable

107
Charging cable (Rechargeable
hybrid)

154–155, 111
Charging connector (Rechargeable
hybrid)

105, 159–160
Charging flap (Rechargeable
hybrid)

105, 159–160
Charging the traction battery
(Rechargeable hybrid)

20, 103, 159–160
CHECK

20
Checking the engine oil level

18
Checking the levels

169–171

227
Alphabetical index
Paint colour code 153
Parking brake, electric
102–104, 124
Parking sensors, audible and visual

94
Parking sensors, front

95
Parking sensors, rear

94
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

24, 33
Pedestrian horn (Rechargeable hybrid)

30
Personalisation

10, 24
Plates, identification

153
Port, USB

58–59, 38
Post Collision Safety Brake

33
Power

20
Power indicator (Rechargeable hybrid)

8, 20
Pressures, tyres

124, 133, 154
Pre-tensioning seat belts

36
Priming the fuel system

130
Profiles

156
Protecting children

87–93
Proximity Keyless Entry & Start

16
Puncture

181–182, 135
R
Radar (warnings) 64
Radio
214–215
Range, AdBlue®

18, 122
Reading lamps

37
READY lamp

119
Rear screen, demisting

32
Rear traffic alert

99
Rechargeable hybrid engine 8, 23, 119,
146, 152
Rechargeable hybrid system

6, 8, 23,
52, 60, 103
Recharging the battery

140, 142, 144
Recharging the traction battery

107
Recharging the traction battery
(Rechargeable hybrid)

103, 159–160
Recirculation, air

55–56
Recovery

194–196
Recovery of the vehicle

195–196
Reduction of electrical load

119
Regeneration of the particle filter

123
Regenerative braking (deceleration
by engine braking)

57
Reinitialisation of the under-inflation
detection system

63
Reinitialising the remote control

20
Reminder, key in ignition

51
Reminder, lighting on

24
Remote control

27–32
Remote functions

11 2
Remotely operable functions
(Rechargeable hybrid)

24, 33
Removing a wheel

185–186
Removing the mat

37
Replacing bulbs

187–188
Replacing fuses

140
Replacing the air filter

123
Replacing the oil filter

123
Replacing the passenger compartment
filter

123Reservoir, screenwash 122
Reset trip
21
Reversing camera

65, 145–146
Reversing lamps

139
Roof bars

11 6
Roof, opening

28
Running out of fuel (Diesel)

130
S
Safety, children 87–93
Saturation of the particle filter (Diesel)
123
Screens, very cold conditions

11 7
Screenwash

31
Screenwash, front

31
Screenwash, rear

31
SCR (Selective Catalytic Reduction)

19, 124
Seat angle

21
Seat belts

84–85, 42
Seat belts, rear

35
Seat, rear bench

26
Seats, electric

45–46
Seats, front

44–46
Seats, heated

46–47
Seats, rear

50–52, 40
Selector, gear

105–107
Semi-automatic lane changing

82
Sensors (warnings)

65
Serial number, vehicle

153
Service indicator

17
Servicing

17, 122, 124
