2022 PEUGEOT 308 Owners Manual

HANDBOOK
MY PEUGE

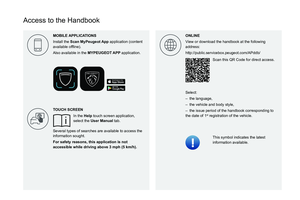

Access to the Handbook
ONLINE
View or download the handbook at the following
address:
http://public.servicebox.peugeot.com/APddb/Scan this QR Code for direct access.
This symbol indicates the latest
information available.
Select:
–
the language,
–


the vehicle and body style,
–


the issue period of the handbook corresponding to
the date of 1st registration of the vehicle.
MOBILE
Install the

Scan

application

(content
004400590044004C004F00440045004F0048000300521089004C00510048000C0011
Also available in the MYPEUGEOT application.
T In the Help touch screen application,
select the User Manual tab.
Several types of searches are available to access the
information sought.
For safety reasons, this application is not
accessible while driving above 3 mph \(5 km/h\).

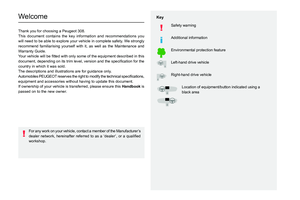

Welcome
Thank you for choosing a Peugeot 308.
This document contains the key information and recommendations you
will need to be able to explore your vehicle in complete safety. We strongly
recommend familiarising yourself with it, as well as the Maintenance and
Warranty Guide.
003C
00470052004600580050004800510057
country in which it was sold.
The descriptions and illustrations are for guidance only.
0024005800570052005000520045004C004F004800560003
004800540058004C00530050004800510057
If ownership of your vehicle is transferred, please ensure this Han is
passed on to the new owner.
Key
Safety warning
Additional information
Environmental protection feature
Left-hand drive vehicle
Right-hand drive vehicle002F0052004600440057004C005200510003005200490003004800540058004C0053005000480051005700120045005800570057005200510003004C00510047004C00460044005700480047000300580056004C0051004A000300440003
black area
For any work on your vehicle, contact a member of the Manufacturer

2
Contents
 ■
Overview
 ■
Eco-driving
1InstrumentsDriver information 10
Matrix instrument panel 10
Digital instrument panels 10

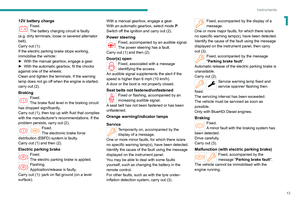

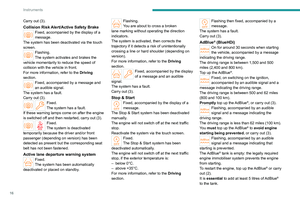

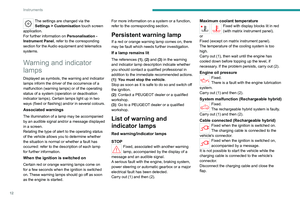

Warning and indicator lamps 12
Indicators 18
Manual test 21

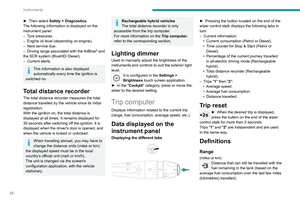

Total distance recorder 22

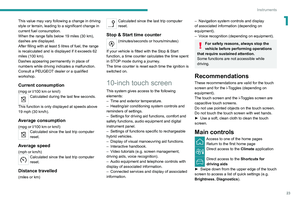

Trip computer 22
10-inch touch screen 23

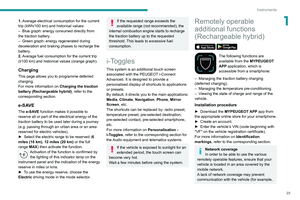

i-Toggles 25
Remotely operable additional functions
(Rechargeable hybrid)
25

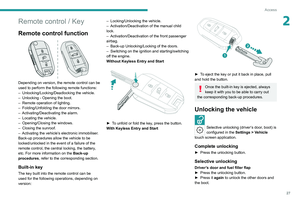

2AccessRemote control / Key 27

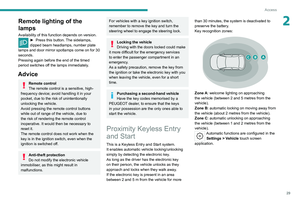

Proximity Keyless Entry and Start 29

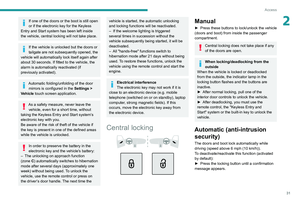

Central locking 31

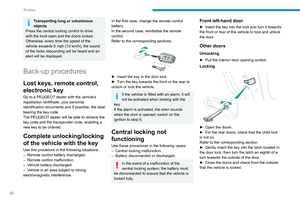

Back-up procedures 32
Doors 34
Boot 34

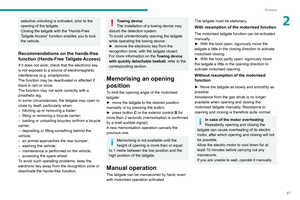

Motorised tailgate (SW) 35
Alarm 38

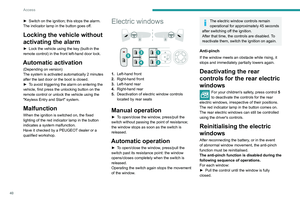

Electric windows 40

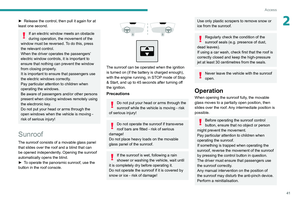

Sunroof 41
3Ease of use and comfortDriving position 43

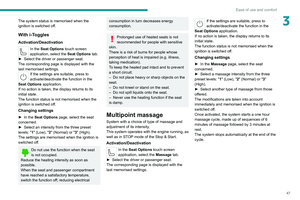

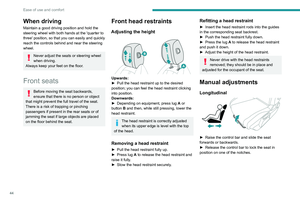

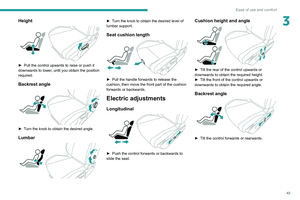

Front seats 44
Steering wheel adjustment 48
Heated steering wheel 48

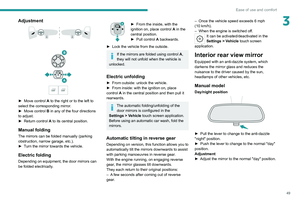

Mirrors 48

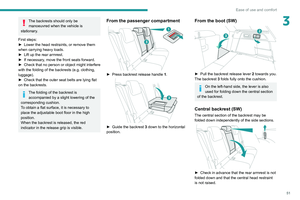

Rear bench seat 50

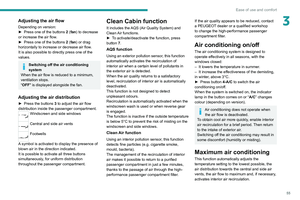

Heating and Ventilation 52

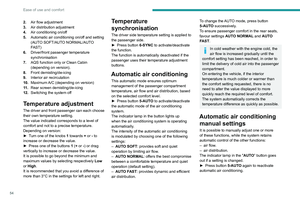

Dual-zone automatic air conditioning 53
Front demisting - defrosting 56
Rear screen demisting/defrosting 56
Heated windscreen 56
Temperature pre-conditioning
(Rechargeable hybrid)
57
Front fittings 58
Courtesy lamps 61
Interior ambient lighting 62
Rear fittings 62

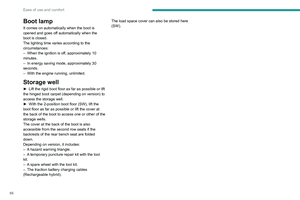

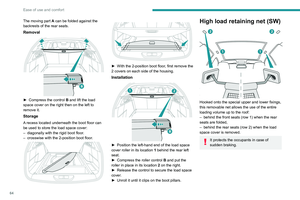

Boot fittings 63

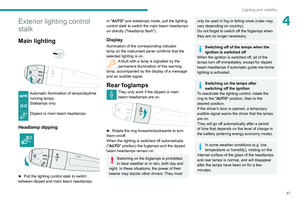

4Lighting and visibilityExterior lighting control stalk 67
Direction indicators 68
Headlamp beam height adjustment 68
Automatic illumination of headlamps 69
Guide-me-home and welcome lighting 69
Automatic lighting systems - General
recommendations
70
Automatic headlamp dipping 70

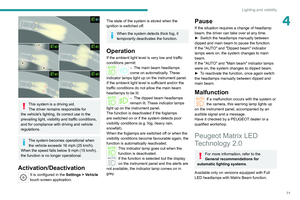

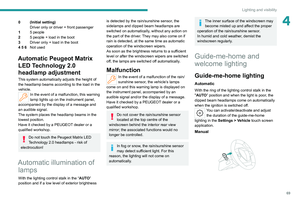

Peugeot Matrix LED Technology 2.0 71
Wiper control stalk 73
Intermittent wipers 75

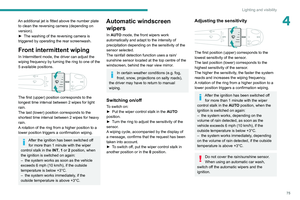

Automatic wipers 75
Changing a wiper blade 76
5SafetyGeneral safety recommendations 78
Hazard warning lamps 78

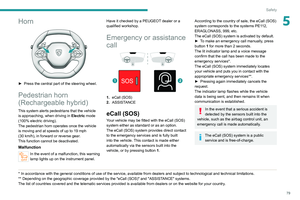

Horn 79
Pedestrian horn (Rechargeable hybrid) 79
Emergency or assistance 79
Electronic stability control (ESC) 81

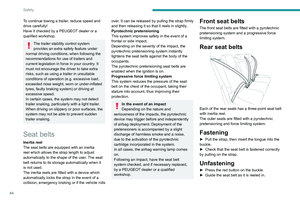

Seat belts 84

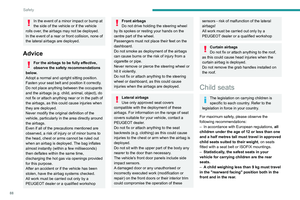

Airbags 86

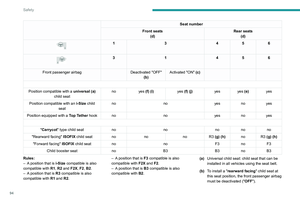

Child seats 88

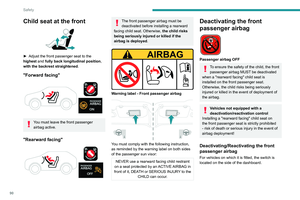

Deactivating the front passenger airbag 90

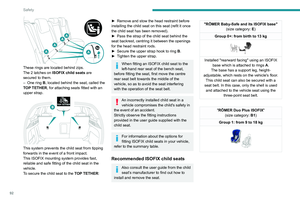

ISOFIX child seats 91
i-Size child seats 93
Installing child seats 93
Child lock 96
6DrivingDriving recommendations 97
Starting / Switching off the engine
with the key
99

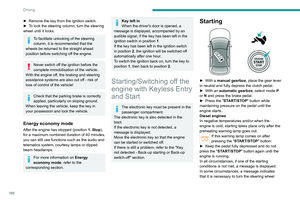

Starting/Switching off the engine with
Keyless Entry and Start
100

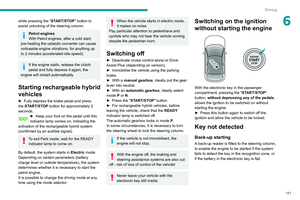

Starting rechargeable hybrid vehicles 101

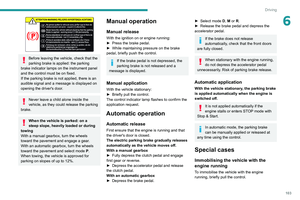

Electric parking brake 102
Manual gearbox 104

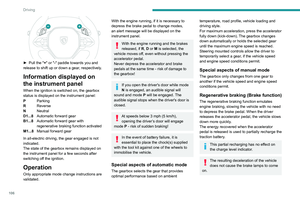

Automatic gearbox 105

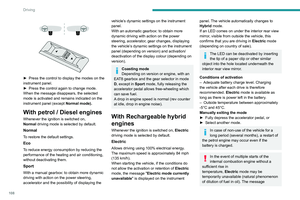

Driving modes 107

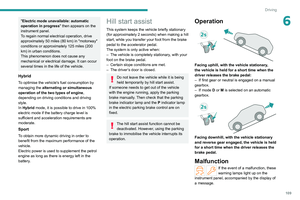

Hill start assist 109
Gear shift indicator 11 0

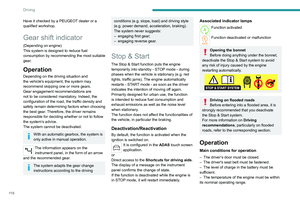

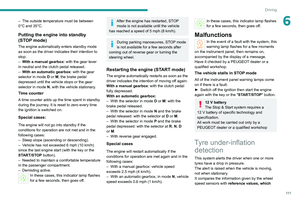

Stop & Start 11 0
Tyre under-inflation detection 111

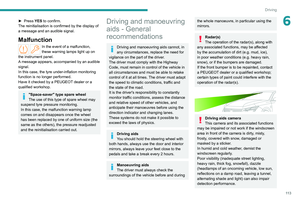

Driving and manoeuvring aids - General
recommendations
11 3

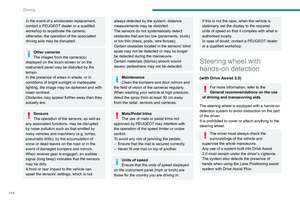

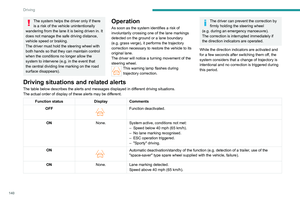

Steering wheel with hands-on detection 11 4
Shortcuts for driving aids 11 5

3
Contents

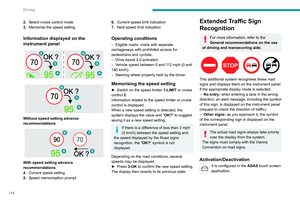

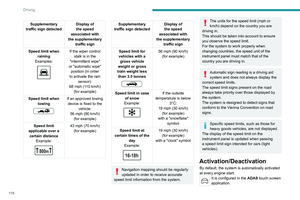

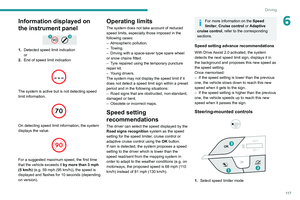

Road signs recognition 11 5

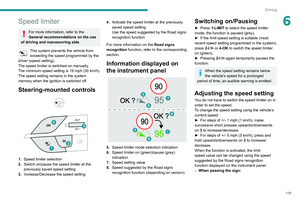

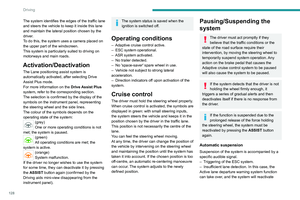

Speed limiter 11 9

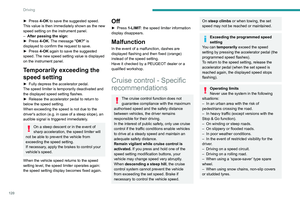

Cruise control - Specific recommendations 120

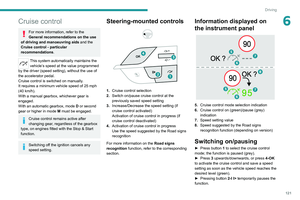

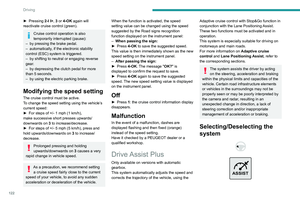

Cruise control 121
Drive Assist Plus 122

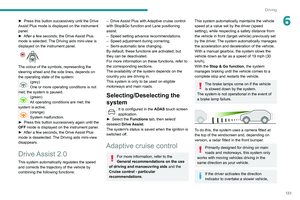

Drive Assist 2.0 123
Adaptive cruise control 123

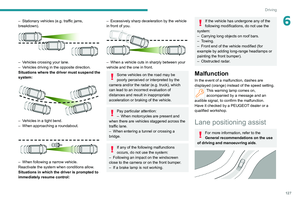

Lane positioning assist 127

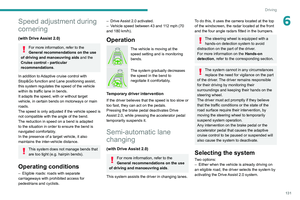

Speed adjustment during cornering 131
Semi-automatic lane changing 131

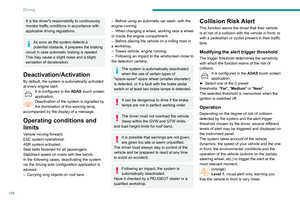

Active Safety Brake with Collision Risk Alert
and Intelligent emergency braking assistance
135
Distraction detection 138

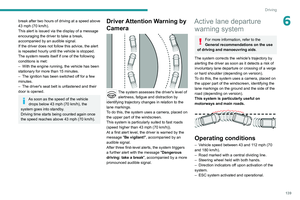

Active lane departure warning system 139

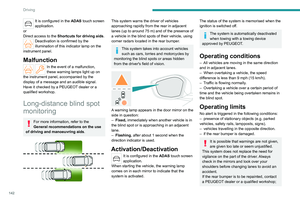

Long-distance blind spot monitoring 142

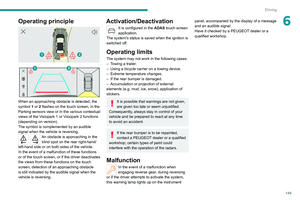

Parking sensors 143

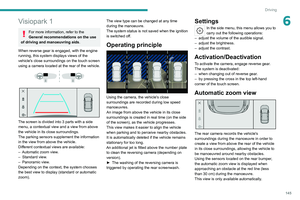

Visiopark 1 145
Visiopark 2 146
Rear traffic alert 148
7Practical informationCompatibility of fuels 151
Refuelling 151
Misfuel prevention (Diesel) 152

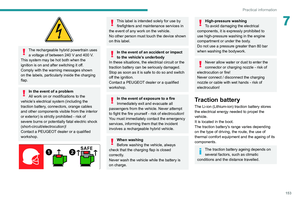

Rechargeable hybrid system 152

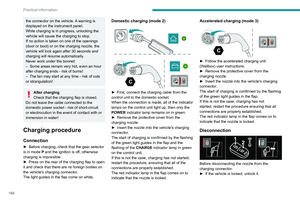

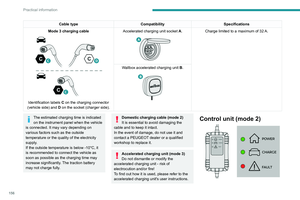

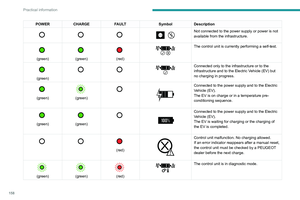

Charging the traction battery
(Rechargeable hybrid engine)
159

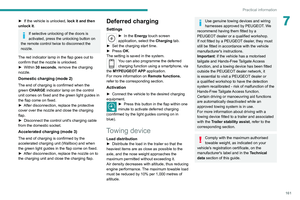

Towing device 161

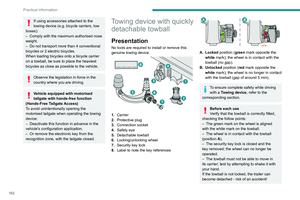

Towing device with quickly detachable towball 162

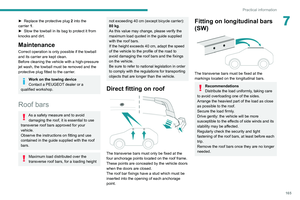

Roof bars 165
Very cold climate screens 166

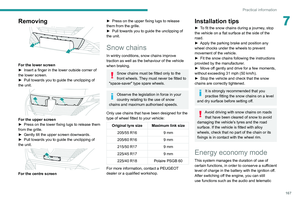

Snow chains 167
Energy economy mode 167

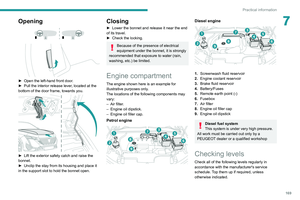

Bonnet 168
Engine compartment 169
Checking levels 169
Checks 171

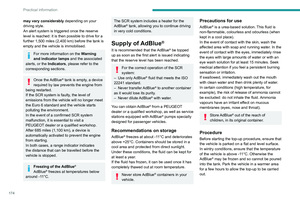

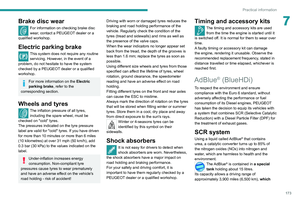

AdBlue® (BlueHDi) 173
Free-wheeling 175

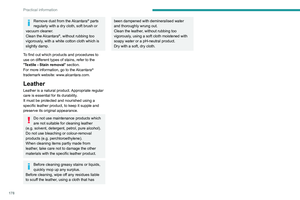

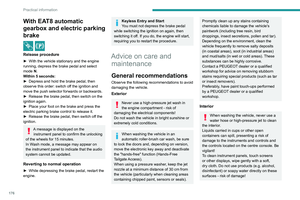

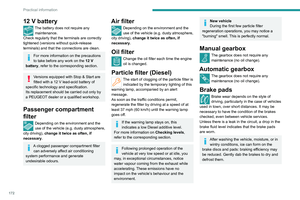

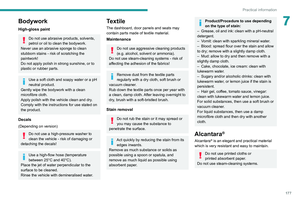

Advice on care and maintenance 176

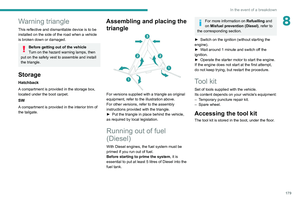

8In the event of a breakdownWarning triangle 179
Running out of fuel (Diesel) 179

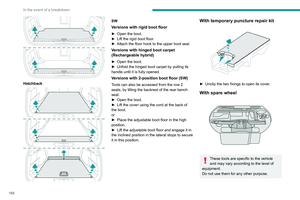

Tool kit 179

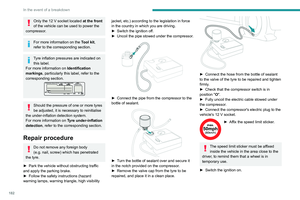

Temporary puncture repair kit 181

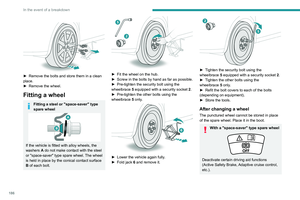

Spare wheel 184

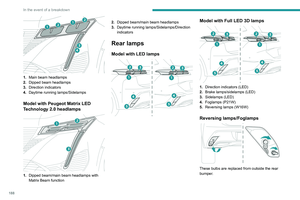

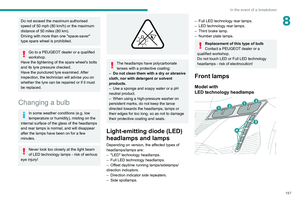

Changing a bulb 187
Fuses 189
12

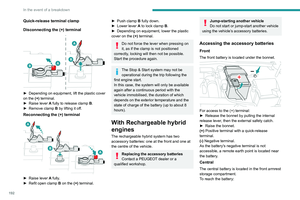

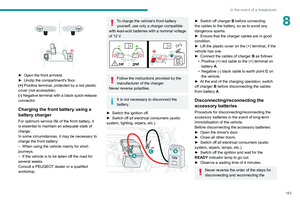

V battery/Accessory batteries 189

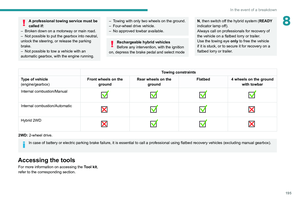

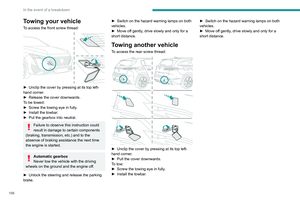

Towing the vehicle 194
9Technical dataEngine technical data and towed loads 197

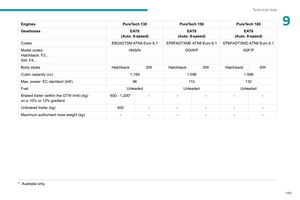

Petrol engines 198
Diesel engines 200

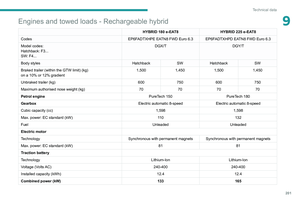

Rechargeable hybrid engines 201

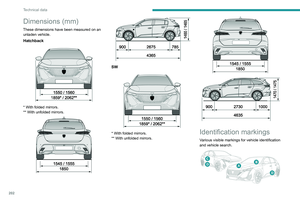

Dimensions 202

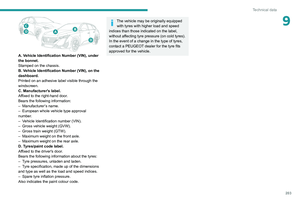

Identification markings 202

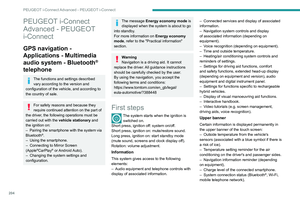

10 PEUGEOT i-Connect Advanced -PEUGEOT i-Connect
First steps 204

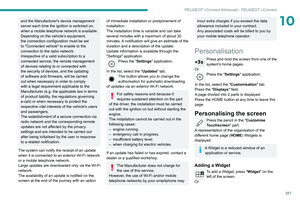

Customisation 207
Steering mounted controls 208

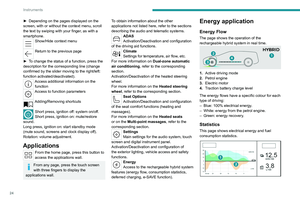

Applications 209
Voice commands 209
Navigation 210

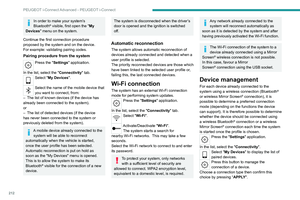

Connectivity 2 11

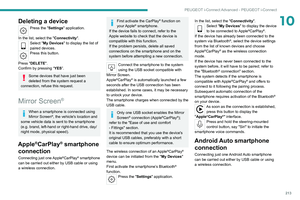

Mirror Screen 213

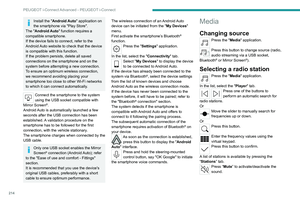

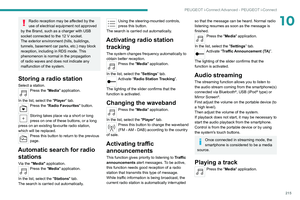

Media 214
Phone 216
Settings 217
Help 218

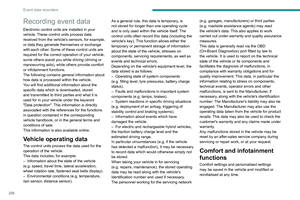

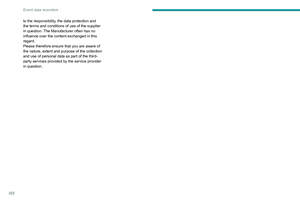

11Event data recorders
 ■

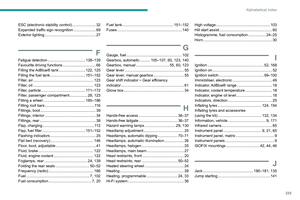

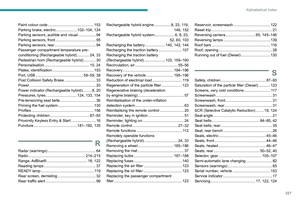

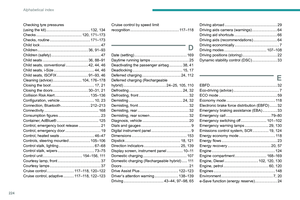

Alphabetical index
bit.ly/helpPSA
Access to additional videos

4
Overview

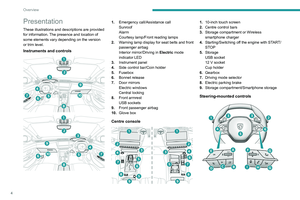

Presentation
These illustrations and descriptions are provided
for information. The presence and location of
some elements vary depending on the version
or trim level.
Instruments and controls



1. Emergency call/Assistance call
Sunroof
Alarm
Courtesy lamp/Front reading lamps
2. Warning lamp display for seat belts and front
passenger airbag
Interior mirror/Driving in Electric mode
indicator LED
3. Instrument panel
4. Side control bar/Coin holder
5. Fusebox
6. Bonnet release
7. Door mirrors
Electric windows
Central locking
8. Front armrest
USB sockets
9. Front passenger airbag
10. Glove box
Centre console

1.10-inch touch screen
2. Centre control bars

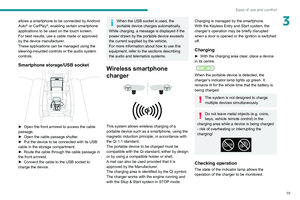

3. Storage compartment or Wireless
smartphone charger
4. Starting/Switching off the engine with START/
STOP
5. Storage
USB socket
12
V socket
Cup holder
6. Gearbox
7. Driving mode selector
8. Electric parking brake
9. Storage compartment/Smartphone storage

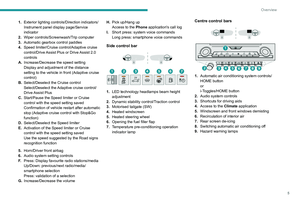

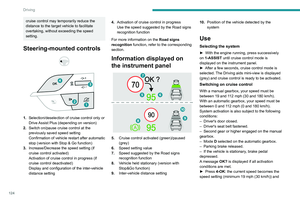

Steering-mounted controls

5
Overview
1.Exterior lighting controls/Direction indicators/
Instrument panel display page/Service
indicator
2. Wiper controls/Screenwash/Trip computer
3. Automatic gearbox control paddles
4. Speed limiter/Cruise control/Adaptive cruise
control/Drive Assist Plus or Drive Assist 2.0
controls
A. Increase/Decrease the speed setting
Display and adjustment of the distance
setting to the vehicle in front (Adaptive cruise
control)
B. Select/Deselect the Cruise control
Select/Deselect the Adaptive cruise control/
Drive Assist Plus
C. Start/Pause the Speed limiter or Cruise
control with the speed setting saved
Confirmation of vehicle restart after automatic
stop (Adaptive cruise control with Stop&Go
function)
D. Select/Deselect the Speed limiter
E. Activation of the Speed limiter or Cruise
control with the speed setting saved
Use the speed suggested by the Road signs
recognition function
5. Horn/Driver front airbag
6. Audio system setting controls
F. Press: Display favourite radio stations/media
Up/Down: previous/next radio/media/
smartphone selection
Press: validation of a selection
G. Increase/Decrease the volume H.
Pick up/Hang up
Access to the Phone application's call log
I. Short press: system voice commands
Long press: smartphone voice commands
Side control bar



1. LED technology headlamps beam height
adjustment
2. Dynamic stability control/Traction control
3. Motorised tailgate (SW)
4. Heated windscreen
5. Heated steering wheel
6. Opening the fuel filler flap
7. Temperature pre-conditioning operation
indicator lamp
Centre control bars



1. Automatic air conditioning system controls/
HOME button
or
i-Toggles/HOME button
2. Audio system controls
3. Shortcuts for driving aids
4. Access to the Climate application
5. Windscreen and front windows demisting
6. Recirculation of interior air
7. Rear screen de-icing
8. Switching automatic air conditioning off
9. Hazard warning lamps

6
Overview
Rechargeable hybrid
system


1.Petrol engine
2. Electric motor
3. Traction battery
4. 12 V accessories batteries
5. 8-speed electric automatic gearbox (e-EAT8)
6. Charging flap
7. Fuel filler flap
8. Driving mode selector
9. Domestic charging cable
The rechargeable hybrid technology combines
two sources of energy: that of the petrol engine
and that of the electric motor, which drive the
front wheels (traction).
The engine and the motor can operate
alternately or simultaneously, according to the
driving mode selected and the driving conditions.
The electric power alone provides the mobility
of the vehicle in Electric mode, and in Hybrid mode in case of moderate demand. It assists the
petrol engine during starting and acceleration
phases.
The electric power is supplied by a rechargeable
traction battery.
Labels
"Ease of use and comfort - Front
fittings -
Wireless smartphone charger" section:


"Lighting and visibility - Exterior lighting
control stalk" and "In the event of a
breakdown - Changing a bulb" sections:


"Safety - Child seats - Deactivating the front
passenger airbag" section:


"Safety - ISOFIX mountings" section:
i-SizeTOP TETHER
"Driving - Electric parking brake" section:

"Driving - Stop & Start" section:

"Practical information - Compatibility of
fuels" section:




"Practical information - Rechargeable hybrid
system" section:






"Practical information - Charging the traction
battery (Rechargeable hybrid)" section:


"Practical information - Bonnet" section:


"In the event of a breakdown - Temporary
puncture repair kit" section:
