2022 PEUGEOT 301 Owners Manual

11 9

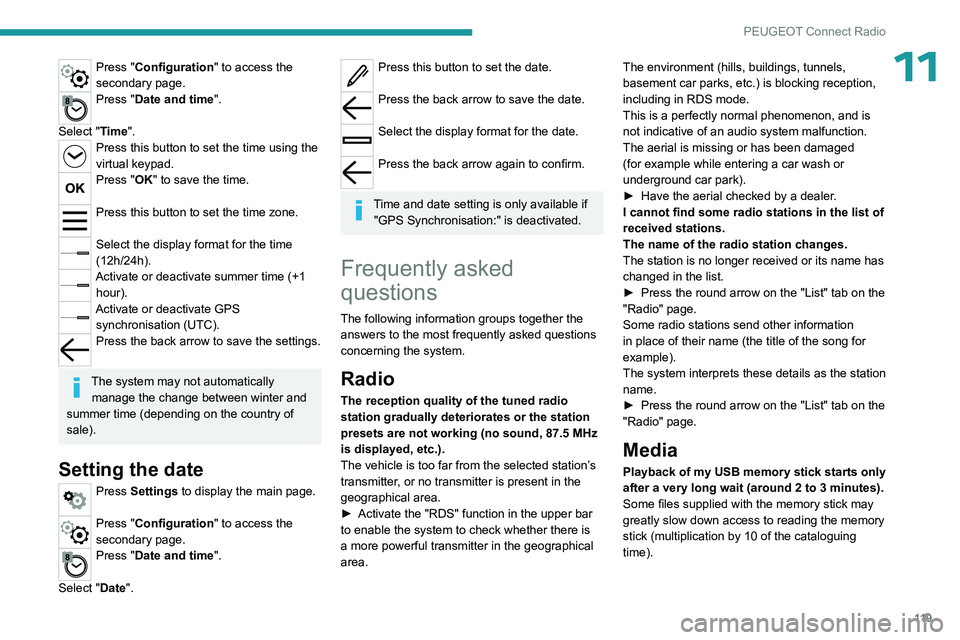

PEUGEOT Connect Radio
11Press "Configuration" to access the
secondary page.
Press "Date and time".
Select "Time".
Press this button to set the time using the
virtual keypad.
Press "OK" to save the time.
Press this button to set the time zone.
Select the display format for the time
(12h/24h).
Activate or deactivate summer time (+1 hour).
Activate or deactivate GPS synchronisation (UTC).
Press the back arrow to save the settings.
The system may not automatically manage the change between winter and
summer time (depending on the country of
sale).
Setting the date
Press Settings to display the main page.
Press "Configuration" to access the
secondary page.
Press "Date and time".
Select "Date".
Press this button to set the date.
Press the back arrow to save the date.
Select the display format for the date.
Press the back arrow again to confirm.
Time and date setting is only available if
"GPS Synchronisation:" is deactivated.
Frequently asked
questions
The following information groups together the answers to the most frequently asked questions
concerning the system.
Radio
The reception quality of the tuned radio
station gradually deteriorates or the station
presets are not working (no sound, 87.5 MHz
is displayed, etc.).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function in the upper bar
to enable the system to check whether there is
a more powerful transmitter in the geographical
area. The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►


Have the aerial checked by a dealer
.
I cannot find some radio stations in the list of
received stations.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
►
Press the round arrow on the "List" tab on the
"Radio" page.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press the round arrow on the "List" tab on the
"Radio" page.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).

120
PEUGEOT Connect Radio

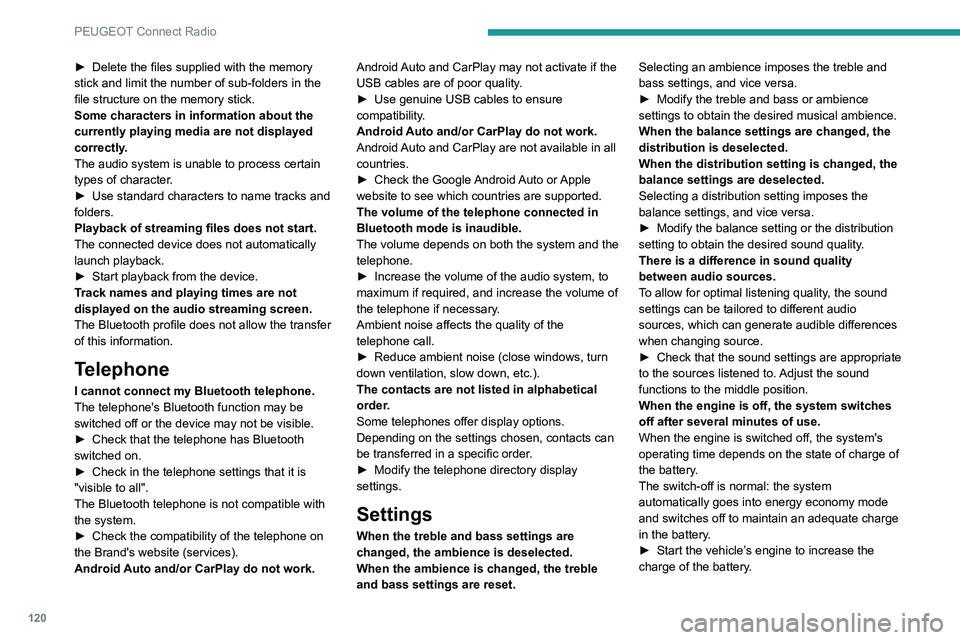

► Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
Some characters in information about the
currently playing media are not displayed
correctly
.
The audio system is unable to process certain
types of character.
►

Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system.
►


Check the compatibility of the telephone on
the Brand's website (services).
Android

Auto and/or CarPlay do not work. Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►

Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the Google
Android Auto or Apple
website to see which countries are supported.
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►
Reduce ambient noise (close windows, turn
down ventilation, slow down, etc.).
The contacts are not listed in alphabetical
order
.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset. Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►

Modify the balance setting or the distribution
setting to obtain the desired sound quality
.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►
Check that the sound settings are appropriate
to the sources listened to.
Adjust the sound
functions to the middle position.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
► Start the vehicle’ s engine to increase the
charge of the battery.

121
Vehicle data recording and privacy
Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.

122
Vehicle data recording and privacy

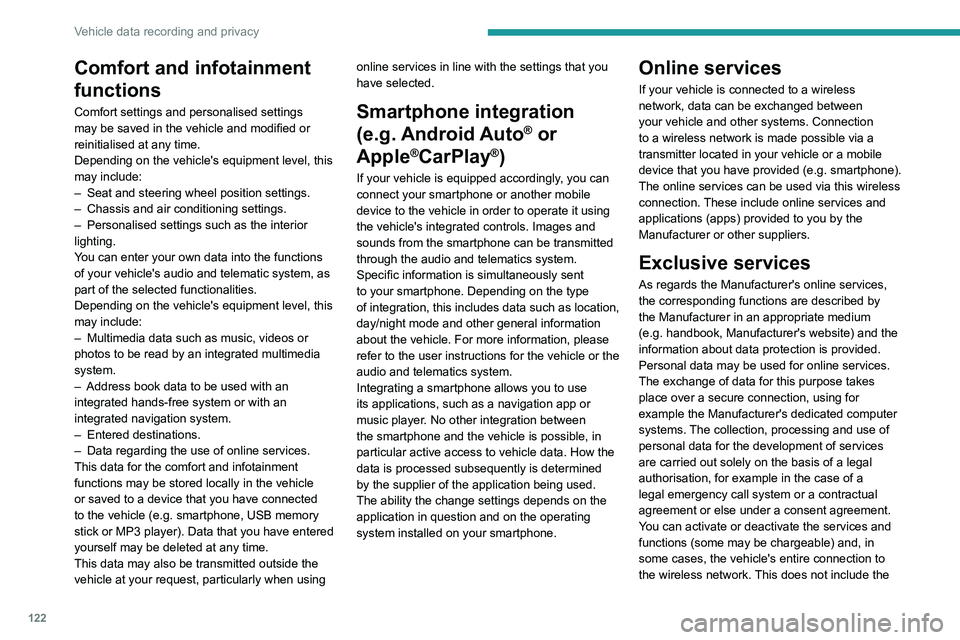

Comfort and infotainment
functions
Comfort settings and personalised settings
may be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.
–


Chassis and air conditioning settings.
–


Personalised settings such as the interior
lighting.
Y

ou can enter your own data into the functions
of your vehicle's audio and telematic system, as
part of the selected functionalities.
Depending on the vehicle's equipment level,
this
may
include:
–

Multimedia data such as music, videos or
photos to be read by an integrated multimedia
system.
–


Address book data to be used with an
integrated hands-free system or with an
integrated navigation system.
–


Entered destinations.
–


Data regarding the use of online services.
This data for the comfort and infotainment
functions may be stored locally in the vehicle
or saved to a device that you have connected
to the vehicle (e.g.

smartphone, USB memory
stick or MP3 player). Data that you have entered
yourself may be deleted at any time.
This data may also be transmitted outside the
vehicle at your request, particularly when using online services in line with the settings that you
have selected. Smartphone integration
(e.g.

Android
Auto
® or
Apple
®CarPlay®)
If your vehicle is equipped accordingly, you can
connect your smartphone or another mobile
device to the vehicle in order to operate it using
the vehicle's integrated controls. Images and
sounds from the smartphone can be transmitted
through the audio and telematics system.
Specific information is simultaneously sent
to your smartphone. Depending on the type
of
integration, this includes data such as location,
day/night mode and other general information
about the vehicle. For more information, please
refer to the user instructions for the vehicle or the
audio and telematics system.
Integrating a smartphone allows you to use
its applications, such as a navigation app or
music player. No other
integration between
the smartphone and the vehicle is possible, in
particular active access to vehicle data. How the
data is processed subsequently is determined
by the supplier of the application being used.
The ability the change settings depends on the
application in question and on the operating
system installed on your smartphone.
Online services
If your vehicle is connected to a wireless
network, data can be exchanged between
your vehicle and other systems. Connection
to a wireless network is made possible
via a
transmitter located in your vehicle or a mobile
device that you have provided (e.g.

smartphone).
The online services can be used via this wireless
connection.

These include online services and
applications (apps) provided to you by the
Manufacturer or other suppliers.
Exclusive services
As regards the Manufacturer's online services,
the corresponding functions are described by
the Manufacturer in an appropriate medium
(e.g.
handbook, Manufacturer's website) and the
information about data protection is provided.
Personal data may be used for online services.
The exchange of data for this purpose takes
place over a secure connection, using for
example the Manufacturer's dedicated computer
systems. The collection, processing and use of
personal data for the development of services
are carried out solely on the basis of a legal
authorisation, for example in the case of a
legal emergency call system or a contractual
agreement or else under a consent agreement.
You can activate or deactivate the services and
functions (some may be chargeable) and, in
some cases, the vehicle's entire connection to
the wireless network. This does not include the

123
Vehicle data recording and privacy

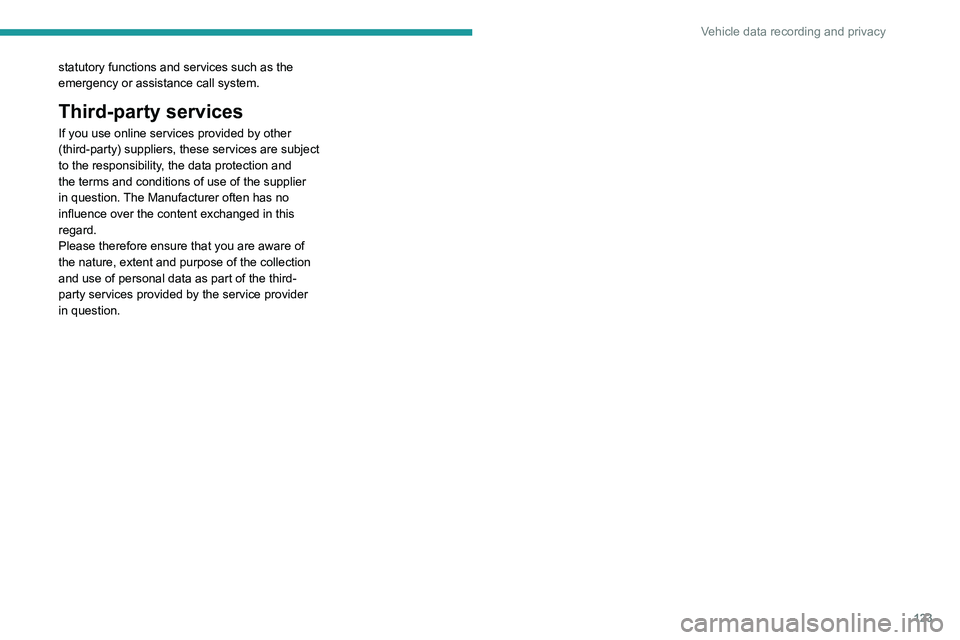

statutory functions and services such as the
emergency or assistance call system.
Third-party services
If you use online services provided by other
(third-party) suppliers, these services are subject
to the responsibility, the data protection and
the terms and conditions of use of the supplier
in question. The Manufacturer often has no
influence over the content exchanged in this
regard.
Please therefore ensure that you are aware of
the nature, extent and purpose of the collection
and use of personal data as part of the third-
party services provided by the service provider
in question.

124

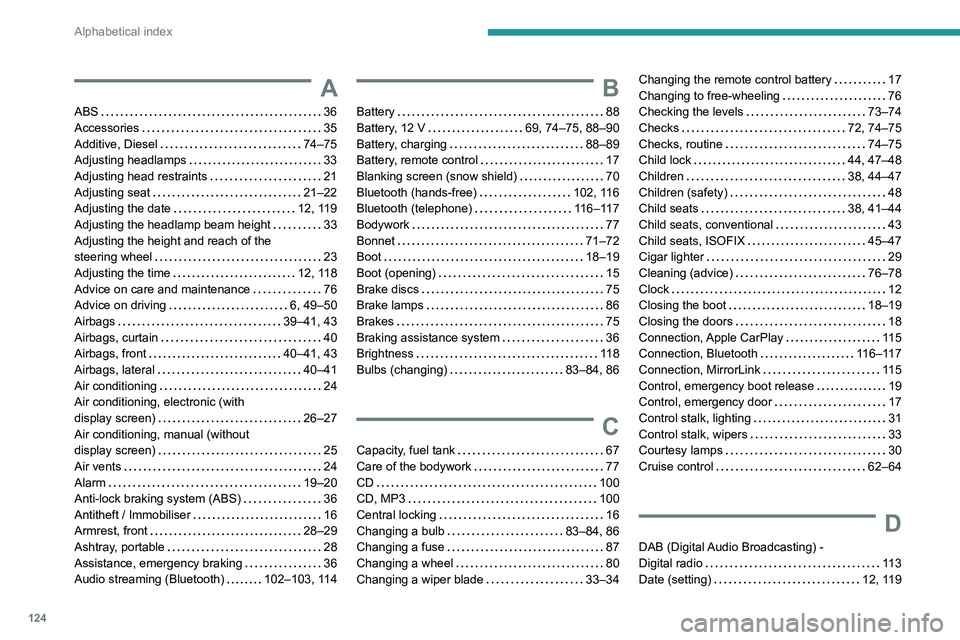

Alphabetical index
A
ABS 36
Accessories
35
Additive, Diesel

74–75
Adjusting headlamps

33
Adjusting head restraints

21
Adjusting seat

21–22
Adjusting the date

12, 119
Adjusting the headlamp beam height

33
Adjusting the height and reach of the
steering wheel

23
Adjusting the time

12, 118
Advice on care and maintenance

76
Advice on driving

6, 49–50
Airbags

39–41, 43
Airbags, curtain

40
Airbags, front

40–41, 43
Airbags, lateral

40–41
Air conditioning

24
Air conditioning, electronic (with
display screen)

26–27
Air conditioning, manual (without
display screen)

25
Air vents

24
Alarm

19–20
Anti-lock braking system (ABS)

36
Antitheft / Immobiliser

16
Armrest, front

28–29
Ashtray, portable

28
Assistance, emergency braking

36
Audio streaming (Bluetooth)

102–103, 114
B
Battery 88
Battery, 12 V
69, 74–75, 88–90
Battery, charging

88–89
Battery, remote control

17
Blanking screen (snow shield)

70
Bluetooth (hands-free)

102, 116
Bluetooth (telephone)

116–117
Bodywork

77
Bonnet

71–72
Boot

18–19
Boot (opening)

15
Brake discs

75
Brake lamps

86
Brakes

75
Braking assistance system

36
Brightness

11 8
Bulbs (changing)

83–84, 86
C
Capacity, fuel tank 67
Care of the bodywork
77
CD

100
CD, MP3

100
Central locking

16
Changing a bulb

83–84, 86
Changing a fuse

87
Changing a wheel

80
Changing a wiper blade

33–34
Changing the remote control battery 17
Changing to free-wheeling
76
Checking the levels

73–74
Checks

72, 74–75
Checks, routine

74–75
Child lock

44, 47–48
Children

38, 44–47
Children (safety)

48
Child seats

38, 41–44
Child seats, conventional

43
Child seats, ISOFIX

45–47
Cigar lighter

29
Cleaning (advice)

76–78
Clock

12
Closing the boot

18–19
Closing the doors

18
Connection, Apple CarPlay

11 5
Connection, Bluetooth

116–117
Connection, MirrorLink

11 5
Control, emergency boot release

19
Control, emergency door

17
Control stalk, lighting

31
Control stalk, wipers

33
Courtesy lamps

30
Cruise control

62–64
D
DAB (Digital Audio Broadcasting) -
Digital radio
11 3
Date (setting)

12, 119

125
Alphabetical index
Daytime running lamps 32, 84
Deactivating the passenger airbag
40, 43
Defrosting

24–25, 27
Defrosting, front

27
Defrosting, lower windscreen

27
Defrosting, rear screen

27–28
Demisting

24–25
Demisting, front

27
Demisting, rear

28
Dimensions

96
Dipstick

73
Direction indicators (turn signals)

32, 84, 86
Doors

18
Driving

49–50
Driving aids (recommendations)

60
Driving economically

6
Dynamic stability control (DSC)

36–37
E
EBFD 36
Eco-driving (advice)
6
Electric windows

20
Electronic brake force distribution (EBFD)

36
Emergency braking assistance (EBA)

36
Emergency warning lamps

35, 79
Energy economy (mode)

69
Energy economy mode

69
Engine compartment

72
Engine, Diesel

67, 72, 79, 95
Engine, petrol

72, 94
Engines 93–95
Environment
6, 17
ESC (electronic stability control)

36
F
Filling the fuel tank 67–68
Filter, air
75
Filter, oil

75
Filter, particle

74–75
Filter, passenger compartment

24, 75
Fitting a wheel

81–82
Fitting roof bars

70–71
Fittings, interior

28
Flap, fuel filler

67–68
Flashing indicators

32, 84
Fluid, brake

74
Fluid, engine coolant

74
Foglamp, rear

31, 86
Foglamps, front

31, 86
Folding the rear seats

22
Fuel

6, 67
Fuel consumption

6
Fuel level, low

67
Fuel (tank)

67–68
Fuses

87
G
Gauge, fuel 67
Gearbox, automatic 53–55, 75, 88
Gearbox, manual
53, 75
Gear lever, automatic gearbox

55
Gear lever, manual gearbox

53
Gear shift indicator

56
Glove box

28
H
Hazard warning lamps 35, 79
Headlamps (adjustment)
33
Headlamps, dipped beam

84–85
Headlamps, halogen

84
Headlamps, main beam

84–85
Head restraints, front

21
Head restraints, rear

22–23
Heating

24–27
Hill start assist

52–53
Horn

36
I
Immobiliser, electronic 50
Indicators, direction
32, 84
Indicator, service

10
Inflating tyres

76, 97
Information, vehicle

121
Infrared camera

60
Input, auxiliary

101
Instrument panel

7, 61

126

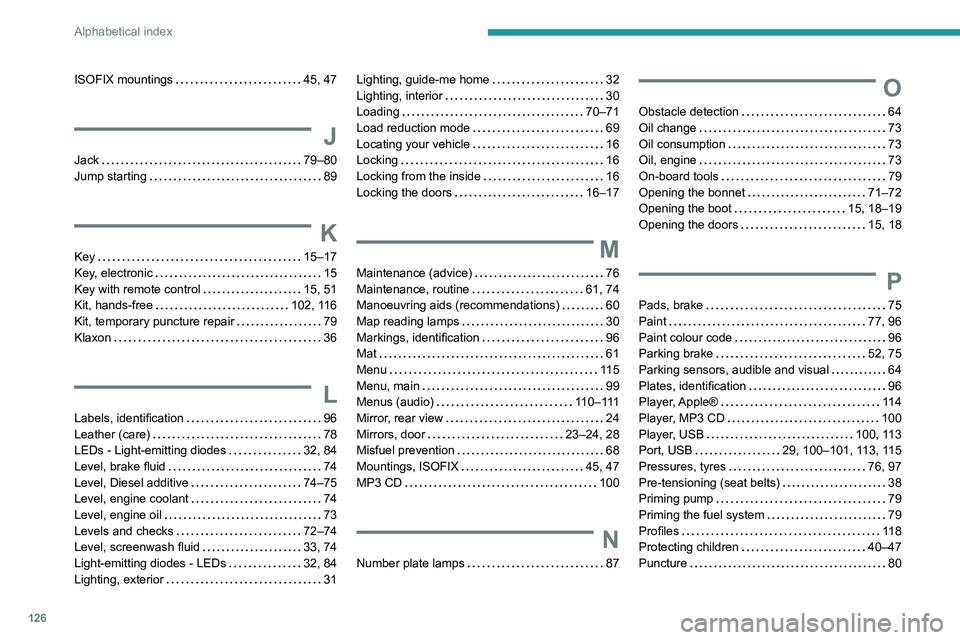

Alphabetical index
ISOFIX mountings 45, 47
J
Jack 79–80
Jump starting
89
K
Key 15–17
Key, electronic
15
Key with remote control

15, 51
Kit, hands-free

102, 116
Kit, temporary puncture repair

79
Klaxon

36
L
Labels, identification 96
Leather (care)
78
LEDs - Light-emitting diodes

32, 84
Level, brake fluid

74
Level, Diesel additive

74–75
Level, engine coolant

74
Level, engine oil

73
Levels and checks

72–74
Level, screenwash fluid

33, 74
Light-emitting diodes - LEDs

32, 84
Lighting, exterior

31
Lighting, guide-me home 32
Lighting, interior
30
Loading

70–71
Load reduction mode

69
Locating your vehicle

16
Locking

16
Locking from the inside

16
Locking the doors

16–17
M
Maintenance (advice) 76
Maintenance, routine
61, 74
Manoeuvring aids (recommendations)

60
Map reading lamps

30
Markings, identification

96
Mat

61
Menu

11 5
Menu, main

99
Menus (audio)

11 0 – 111
Mirror, rear view

24
Mirrors, door

23–24, 28
Misfuel prevention

68
Mountings, ISOFIX

45, 47
MP3 CD

100
N
Number plate lamps 87
O
Obstacle detection 64
Oil change
73
Oil consumption

73
Oil, engine

73
On-board tools

79
Opening the bonnet

71–72
Opening the boot

15, 18–19
Opening the doors

15, 18
P
Pads, brake 75
Paint
77, 96
Paint colour code

96
Parking brake

52, 75
Parking sensors, audible and visual

64
Plates, identification

96
Player, Apple®

11 4
Player, MP3 CD

100
Player, USB

100, 113
Port, USB

29, 100–101, 113, 115
Pressures, tyres

76, 97
Pre-tensioning (seat belts)

38
Priming pump

79
Priming the fuel system

79
Profiles

11 8
Protecting children

40–47
Puncture

80
