2022 NISSAN NV200 Owners Manual

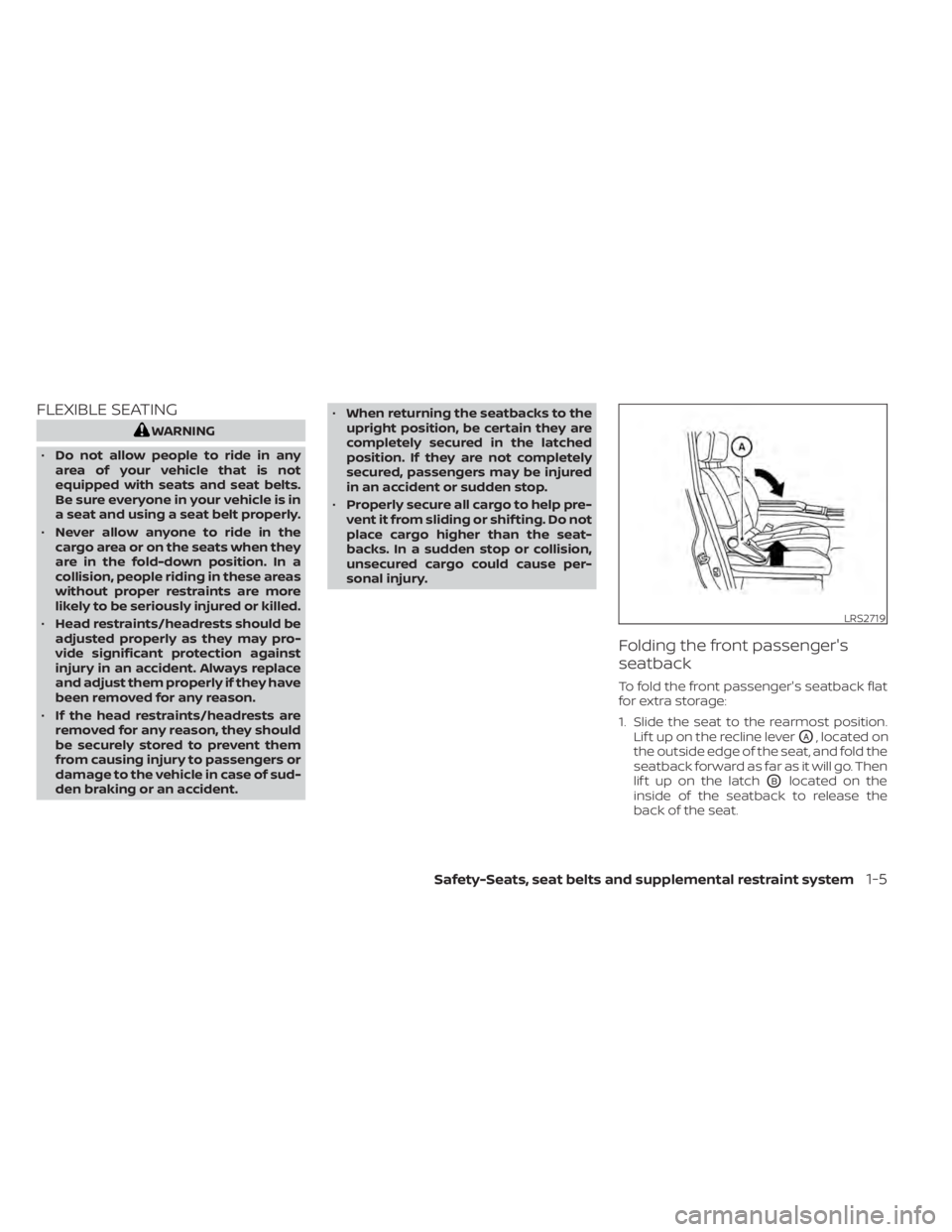

FLEXIBLE SEATING
LRS2719

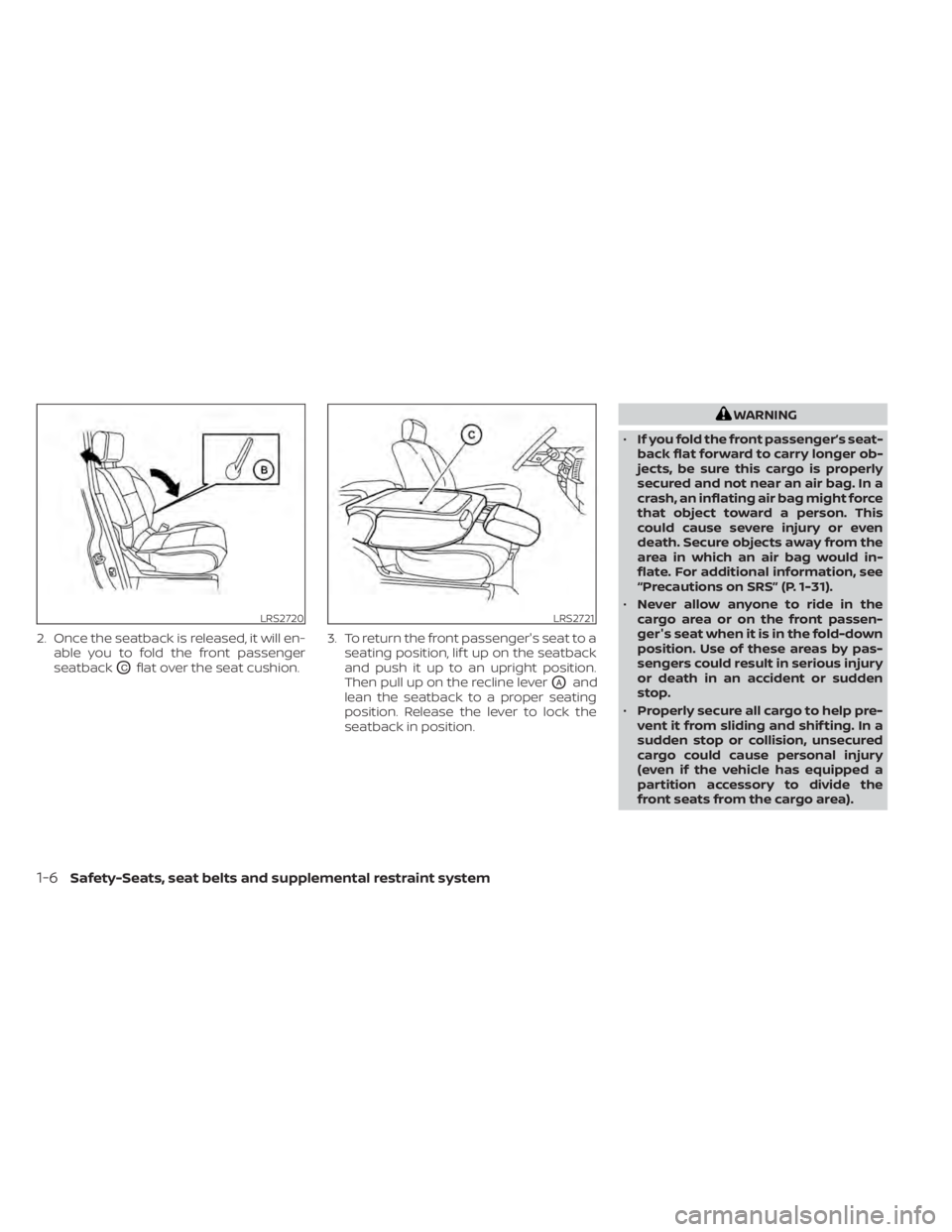

2. Once the seatback is released, it will en-able you to fold the front passenger
seatback
OCflat over the seat cushion. 3. To return the front passenger's seat to a
seating position, lif t up on the seatback
and push it up to an upright position.
Then pull up on the recline lever
OAand
lean the seatback to a proper seating
position. Release the lever to lock the
seatback in position.
LRS2721
1-6Safety-Seats, seat belts and supplemental restraint system

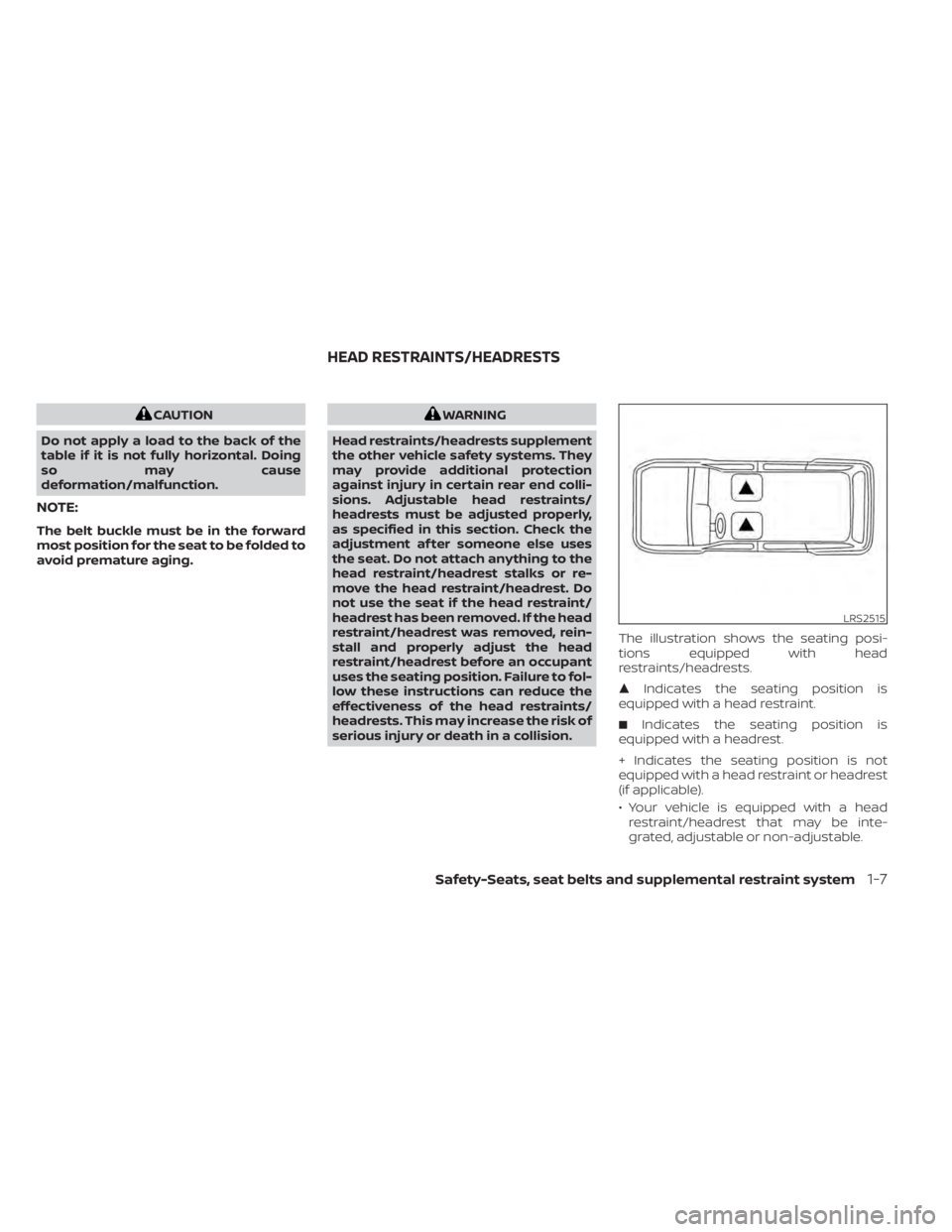

CAUTION
Do not apply a load to the back of the
table if it is not fully horizontal. Doing
so may cause
deformation/malfunction.
NOTE:
The belt buckle must be in the forward
most position for the seat to be folded to
avoid premature aging.
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/
headrests must be adjusted properly,
as specified in this section. Check the
adjustment af ter someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the
effectiveness of the head restraints/
headrests. This may increase the risk of
serious injury or death in a collision. The illustration shows the seating posi-
tions equipped with head
restraints/headrests.

Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is
equipped with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
• Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
LRS2515
HEAD RESTRAINTS/HEADRESTS
Safety-Seats, seat belts and supplemental restraint system1-7

LRS2300LRS2299
1-8Safety-Seats, seat belts and supplemental restraint system

LRS2302LRS2303

WRS0134LRS2351LRS2305
1-10Safety-Seats, seat belts and supplemental restraint system

SSS0136
SEAT BELTS
Safety-Seats, seat belts and supplemental restraint system1-11

WARNING
• Every person who drives or rides in
this vehicle should use a seat belt at
all times.WARNING
• The seat belt should be properly ad-
justed to a snug fit. Failure to do so
may reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident. Serious injury or death can
occur if the seat belt is not worn
properly.
SSS0016
1-12Safety-Seats, seat belts and supplemental restraint system
