2022 NISSAN NV200 Owners Manual

LDI2254

LDI2223
8-26Do-it-yourself

ItemWattage (W)Bulb No.
Headlight assembly/daytime running lights High/ Low 60/55H13
Park/Turn 28/83457NAK
Map light 5W5W
Cargo light 5W5W
High-mounted stop light 16W16W
Rear combination light Stop/Tail 21/73047K
Backup (reversing) 16W16W
Turn 273157AK
License plate light 5W5W
* It is recommended that you visit a NISSAN dealer for replacement.
Always check with the Parts Department at a NISSAN dealer for the latest parts
information.
1. Map light
2. Headlight assembly/daytime running
lights
3. High-mounted stop light
4. Cargo light
5. Rear combination light
6. License plate light
LDI3461

Indicates bulb removalIndicates bulb installationUse a cloth to protect the housing.
1Use a cloth to protect the housing.
WDI0263
LDI2217

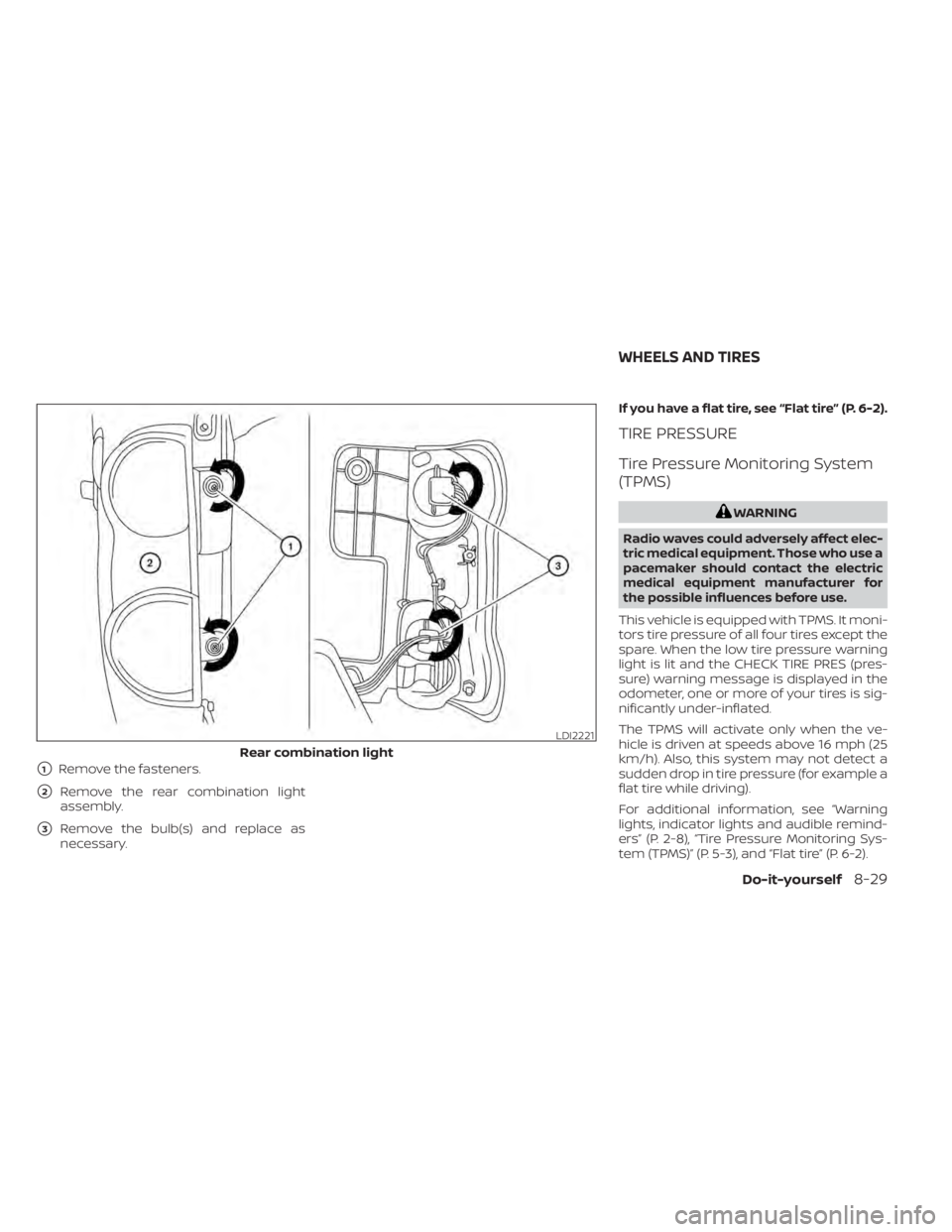

Map light

1Remove the fasteners.
2Remove the rear combination light
assembly.
3Remove the bulb(s) and replace as
necessary.
If you have a flat tire, see “Flat tire” (P. 6-2).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
LDI2221
Rear combination light
WHEELS AND TIRES
Do-it-yourself8-29

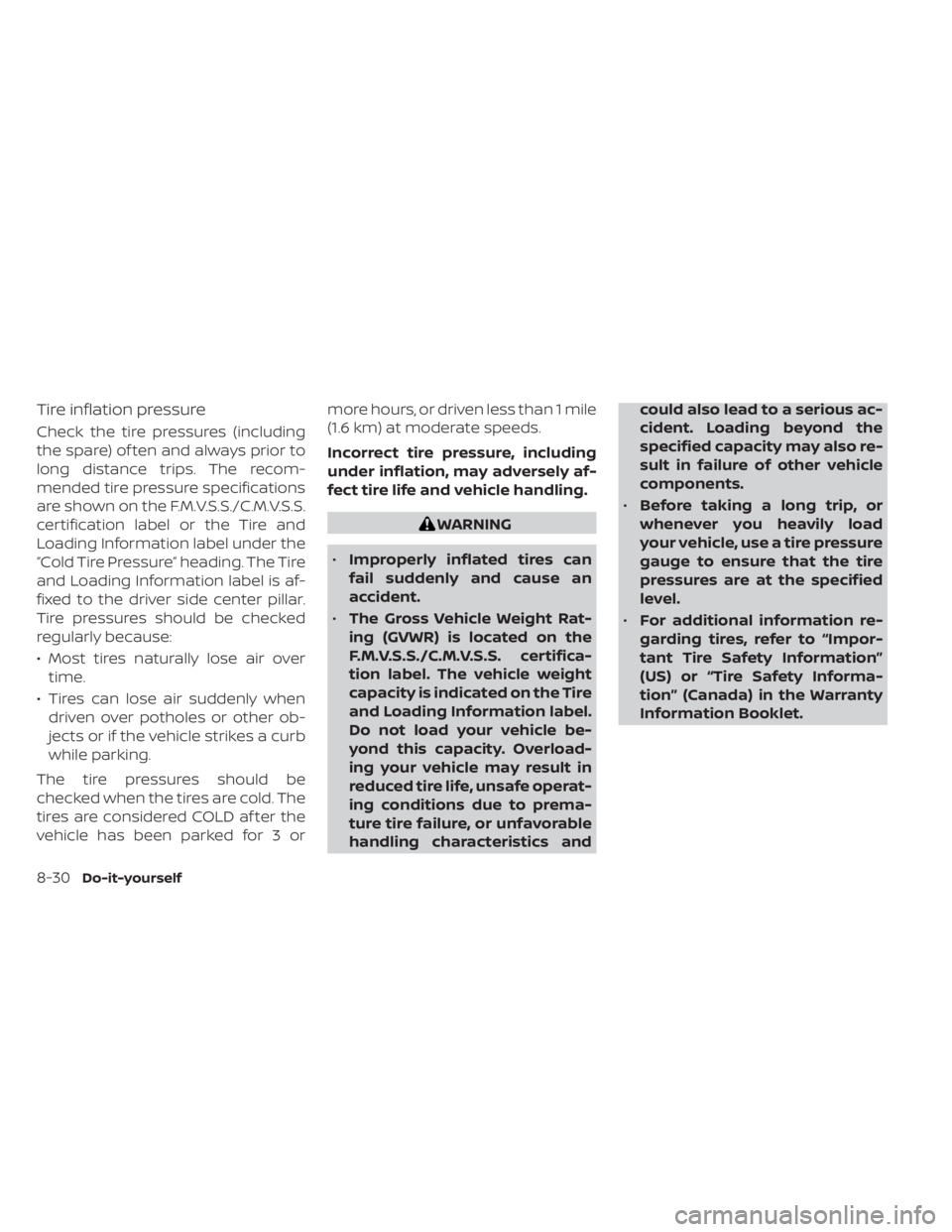

Tire inflation pressure
Check the tire pressures (including
the spare) of ten and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
• Most tires naturally lose air overtime.
• Tires can lose air suddenly when driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.
The tire pressures should be
checked when the tires are cold. The
tires are considered COLD af ter the
vehicle has been parked for 3 or more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.
WARNING
• Improperly inflated tires can
fail suddenly and cause an
accident.
• The Gross Vehicle Weight Rat-
ing (GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle be-
yond this capacity. Overload-
ing your vehicle may result in
reduced tire life, unsafe operat-
ing conditions due to prema-
ture tire failure, or unfavorable
handling characteristics and could also lead to a serious ac-
cident. Loading beyond the
specified capacity may also re-
sult in failure of other vehicle
components.
• Before taking a long trip, or
whenever you heavily load
your vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
• For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-
tion” (Canada) in the Warranty
Information Booklet.
8-30
Do-it-yourself

LDI2495

SizeCold Tire Infla-
tion Pressure
Front Original Tire:
185/60R15C
94/92T 44 psi, 300 kPa
Rear Original Tire:
185/60R15C
94/92T 48 psi, 325 kPa
Spare Tire: Full size
TIRE LABELING
Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identif y the tire in
case of a recall.
LDI0393WDI0394
Example
