2022 NISSAN NV200 Owners Manual

If the brakes do not operate properly, have
the brakes checked. It is recommended
that you visit a NISSAN dealer for this
service.
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front disc-type brakes self-adjust ev-
ery time the brake pedal is applied. The rear
drum-type brakes self-adjust every time
the parking brake is applied.
LDI2187
BRAKES
Do-it-yourself8-17

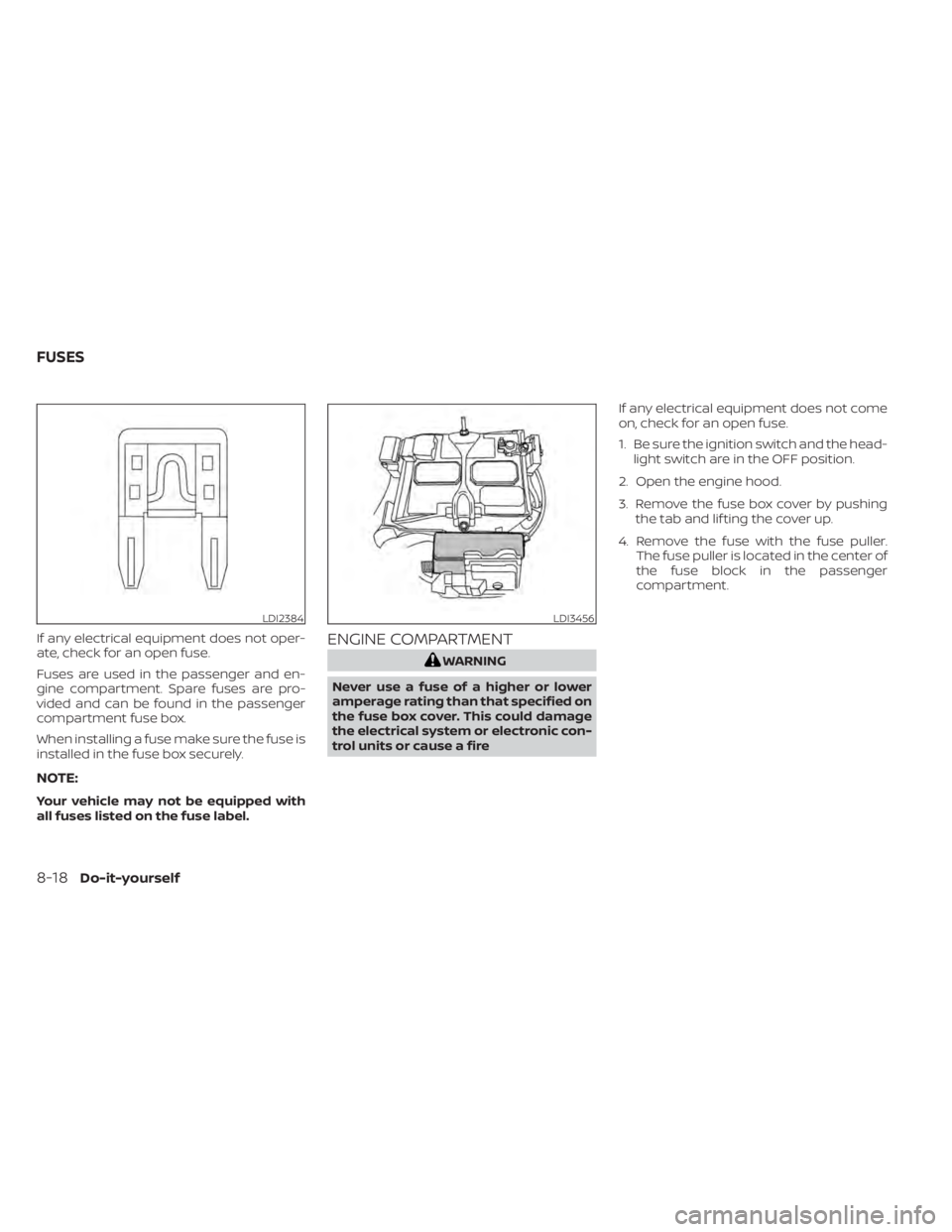

If any electrical equipment does not oper-
ate, check for an open fuse.
Fuses are used in the passenger and en-
gine compartment. Spare fuses are pro-
vided and can be found in the passenger
compartment fuse box.
When installing a fuse make sure the fuse is
installed in the fuse box securely.
NOTE:
Your vehicle may not be equipped with
all fuses listed on the fuse label.
ENGINE COMPARTMENT
LDI2384LDI3456
FUSES

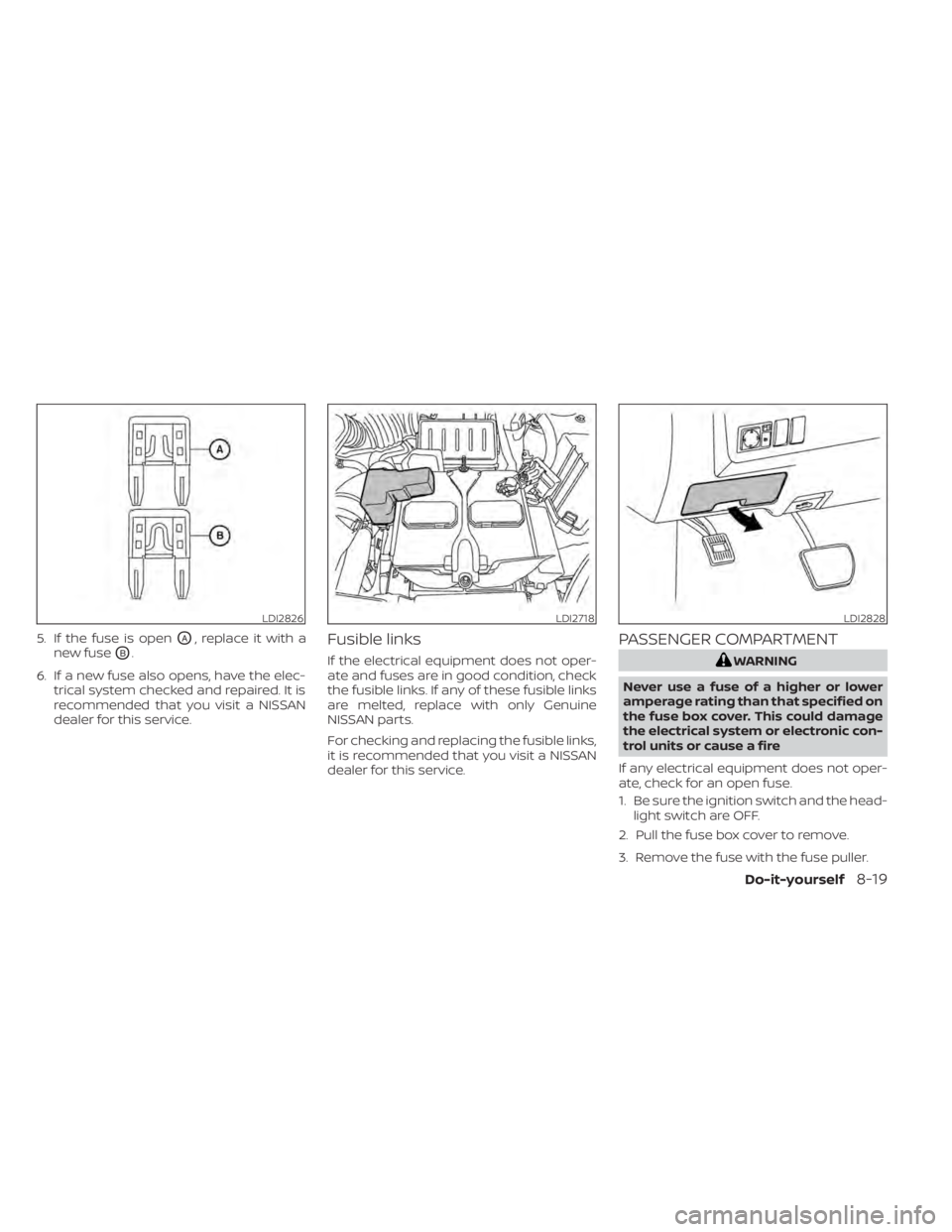

5. If the fuse is openOA, replace it with a
new fuse
OB.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.Fusible links
If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.
For checking and replacing the fusible links,
it is recommended that you visit a NISSAN
dealer for this service.
PASSENGER COMPARTMENT
LDI2826LDI2718LDI2828

LDI2826LDI2216
8-20Do-it-yourself

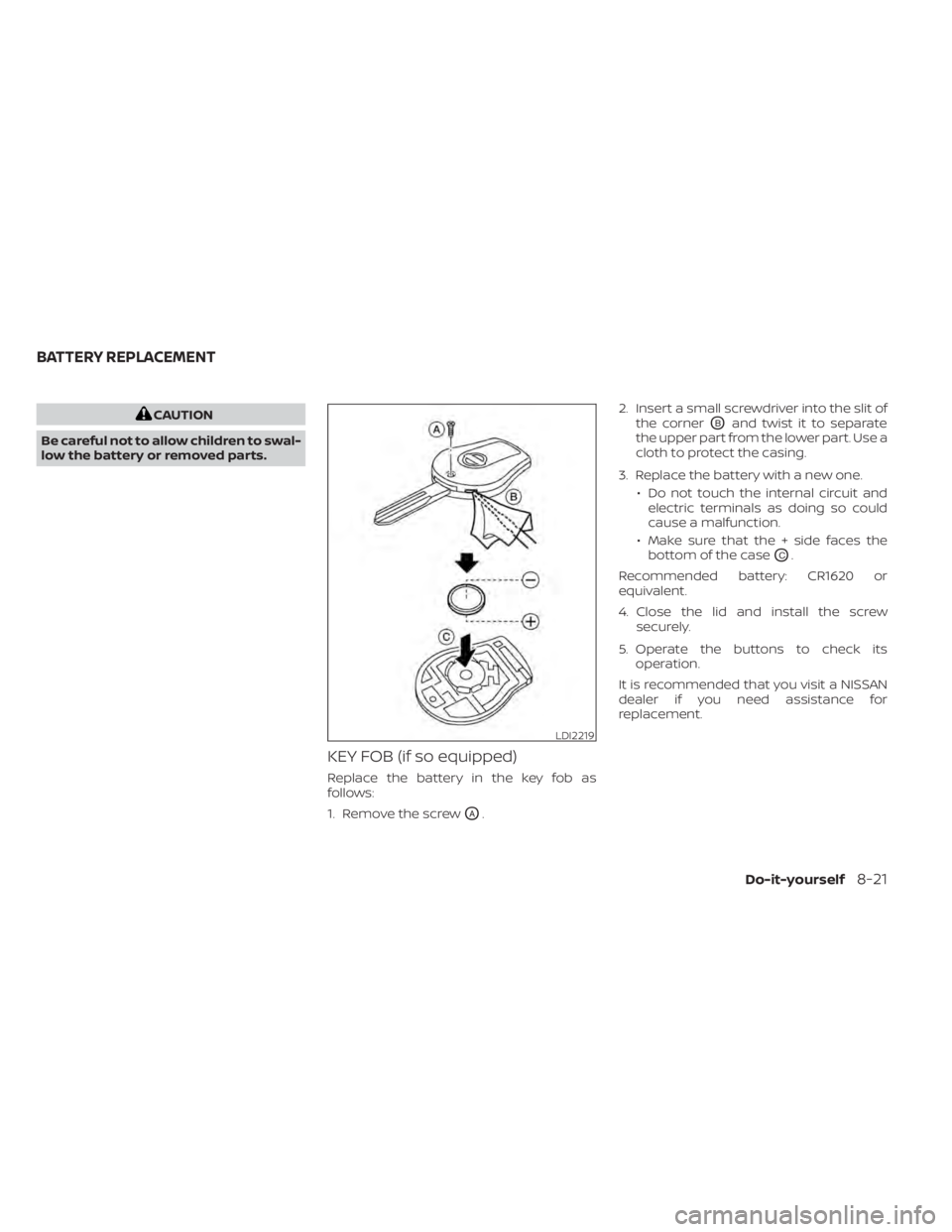

CAUTION
Be careful not to allow children to swal-
low the battery or removed parts.
KEY FOB (if so equipped)
Replace the battery in the key fob as
follows:
1. Remove the screw
OA. 2. Insert a small screwdriver into the slit of
the corner
OBand twist it to separate
the upper part from the lower part. Use a
cloth to protect the casing.
3. Replace the battery with a new one. • Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
• Make sure that the + side faces the bottom of the case
OC.
Recommended battery: CR1620 or
equivalent.
4. Close the lid and install the screw securely.
5. Operate the buttons to check its operation.
It is recommended that you visit a NISSAN
dealer if you need assistance for
replacement.
LDI2219
BATTERY REPLACEMENT
Do-it-yourself8-21

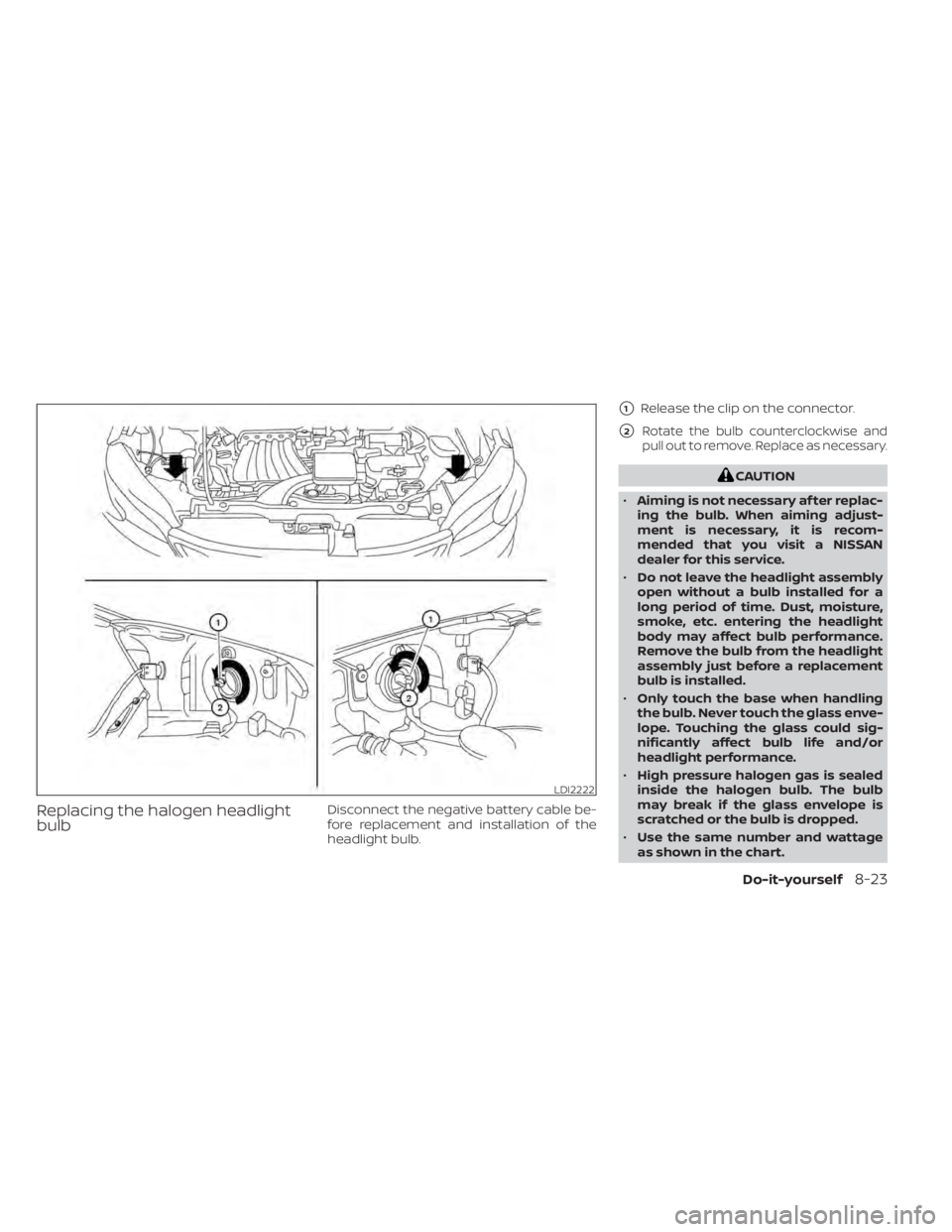

Replacing the halogen headlight
bulbDisconnect the negative battery cable be-
fore replacement and installation of the
headlight bulb.
1Release the clip on the connector.
2Rotate the bulb counterclockwise and
pull out to remove. Replace as necessary.

LDI2252LDI2255
8-24Do-it-yourself
