2022 NISSAN NV200 Owners Manual

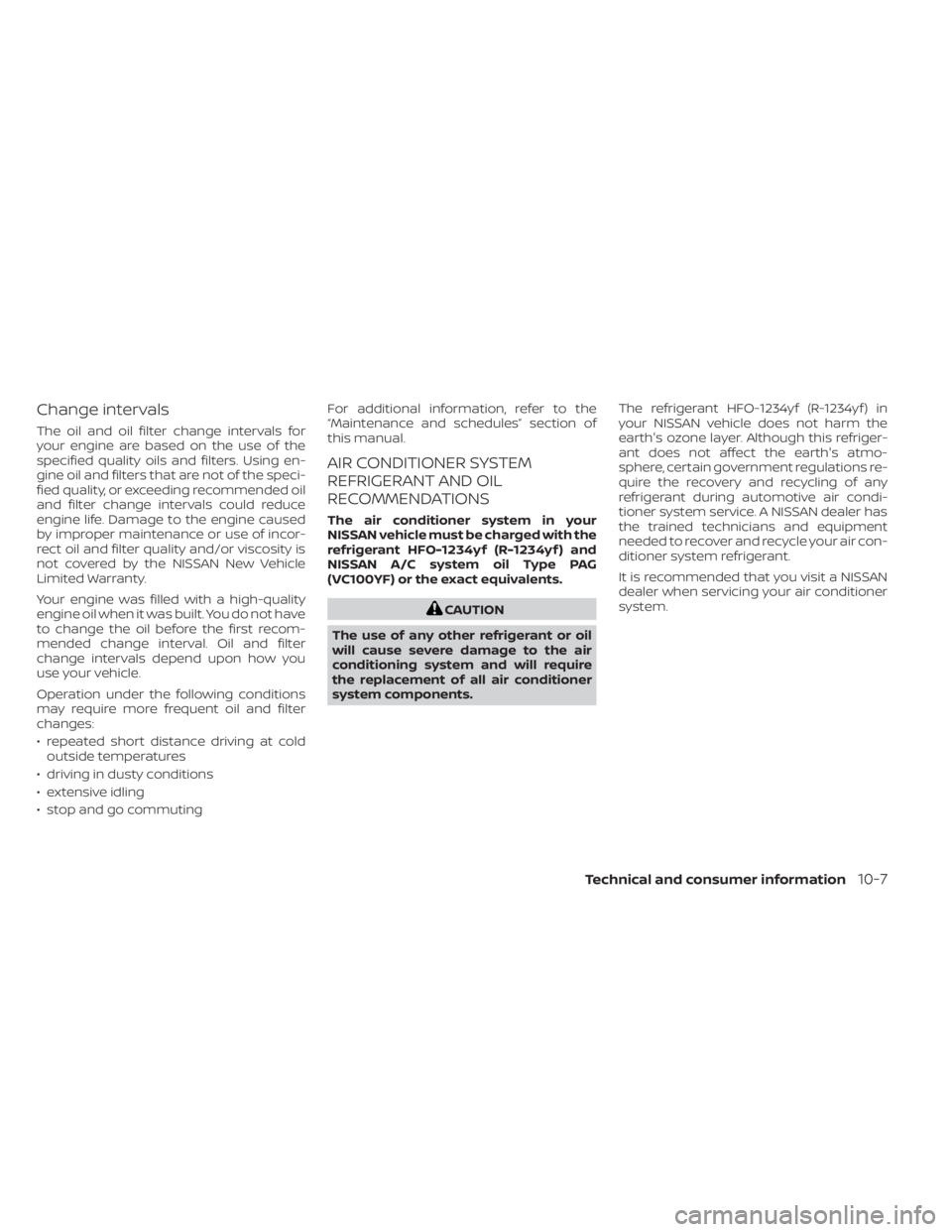

Change intervals
The oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Using en-
gine oil and filters that are not of the speci-
fied quality, or exceeding recommended oil
and filter change intervals could reduce
engine life. Damage to the engine caused
by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is
not covered by the NISSAN New Vehicle
Limited Warranty.
Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter
change intervals depend upon how you
use your vehicle.
Operation under the following conditions
may require more frequent oil and filter
changes:
• repeated short distance driving at coldoutside temperatures
• driving in dusty conditions
• extensive idling
• stop and go commuting For additional information, refer to the
“Maintenance and schedules” section of
this manual.
AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your
NISSAN vehicle must be charged with the
refrigerant HFO-1234yf (R-1234yf ) and
NISSAN A/C system oil Type PAG
(VC100YF) or the exact equivalents.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner
system components. The refrigerant HFO-1234yf (R-1234yf ) in
your NISSAN vehicle does not harm the
earth's ozone layer. Although this refriger-
ant does not affect the earth's atmo-
sphere, certain government regulations re-
quire the recovery and recycling of any
refrigerant during automotive air condi-
tioner system service. A NISSAN dealer has
the trained technicians and equipment
needed to recover and recycle your air con-
ditioner system refrigerant.
It is recommended that you visit a NISSAN
dealer when servicing your air conditioner
system.
Technical and consumer information10-7

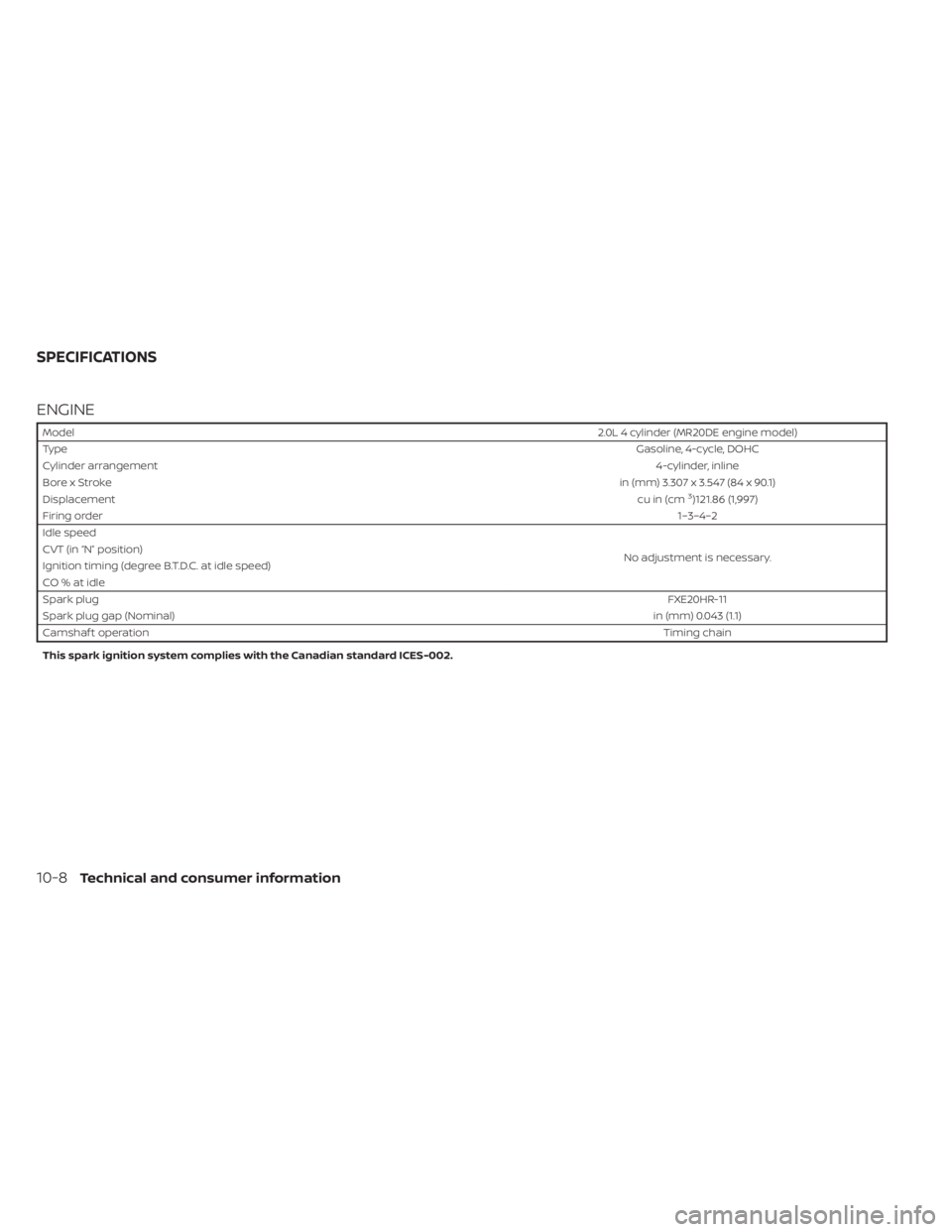

Model2.0L 4 cylinder (MR20DE engine model)
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, inline
Bore x Stroke in (mm) 3.307 x 3.547 (84 x 90.1)
Displacement cu in (cm
3)121.86 (1,997)
Firing order 1…3…4…2
Idle speed
No adjustment is necessary.
CVT (in position)
Ignition timing (degree B.T.D.C. at idle speed)
CO%atidle
Spark plug
FXE20HR-11
Spark plug gap (Nominal) in (mm) 0.043 (1.1)
Camshaf t operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
SPECIFICATIONS
10-8Technical and consumer information

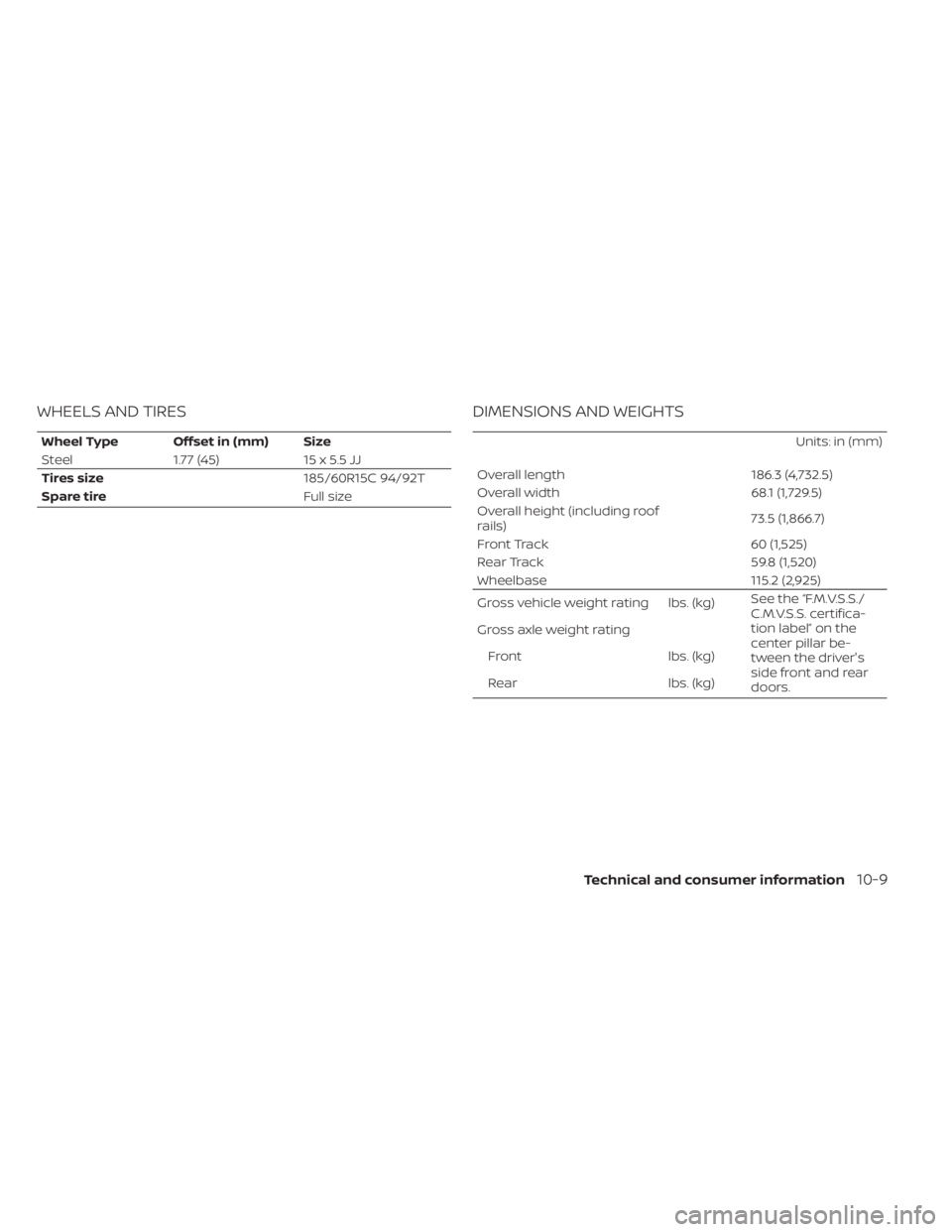

Units: in (mm)
Overall length 186.3 (4,732.5)
Overall width 68.1 (1,729.5)
Overall height (including roof
rails) 73.5 (1,866.7)
Front Track 60 (1,525)
Rear Track 59.8 (1,520)
Wheelbase 115.2 (2,925)
Gross vehicle weight rating lbs. (kg) See the
C.M.V.S.S. certifica-
tion labelŽ on the
center pillar be-
tween the driver's
side front and rear
doors.
Gross axle weight rating
Front lbs. (kg)
Rear lbs. (kg)
Technical and consumer information10-9

LTI2050STI0466
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRYVEHICLE IDENTIFICATION

WTI0058WTI0188WTI0174

LDI2381LTI2073
10-12Technical and consumer information

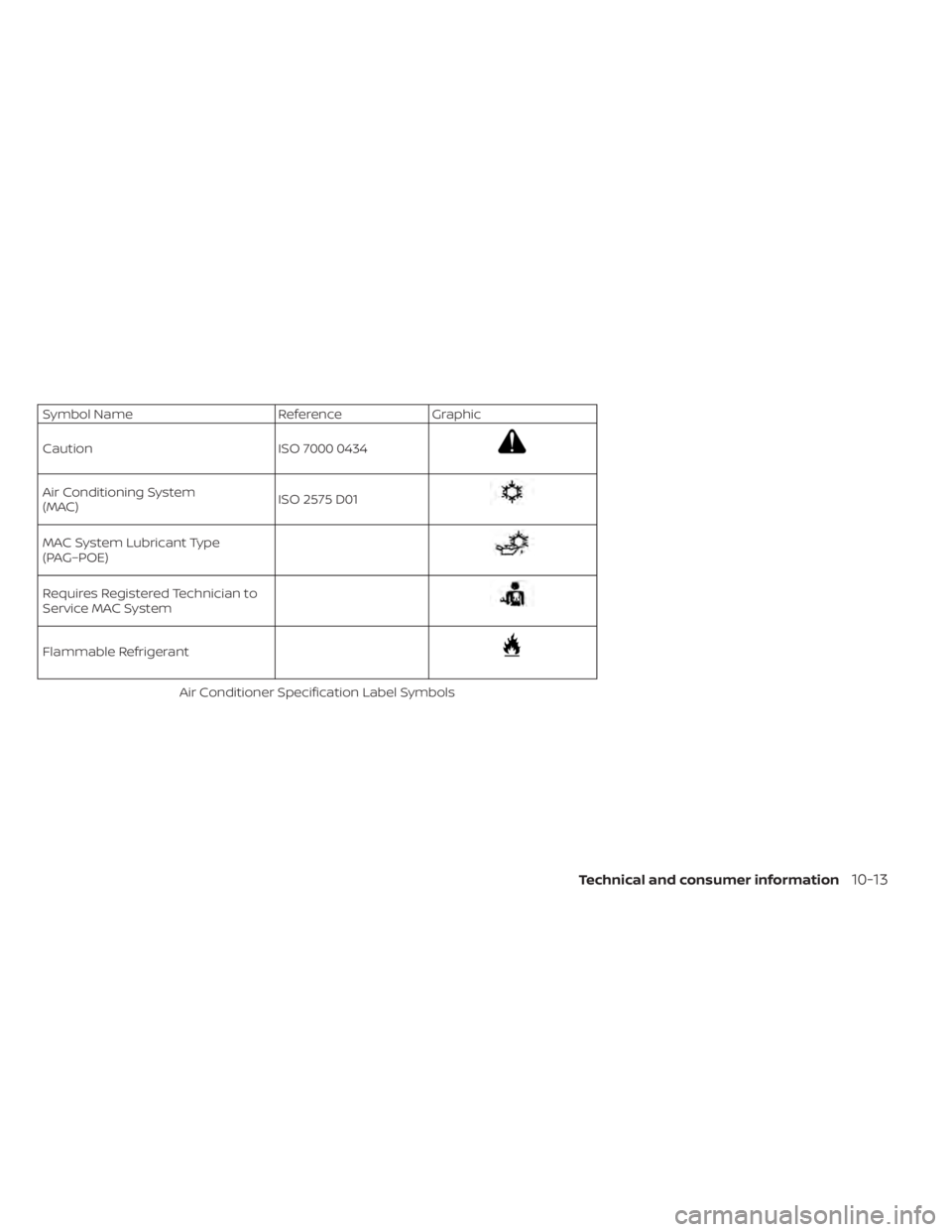

Air Conditioning System
(MAC)ISO 2575 D01
MAC System Lubricant Type
(PAG…POE)
Requires Registered Technician to
Service MAC System
Flammable Refrigerant
Air Conditioner Specification Label Symbols
Technical and consumer information10-13

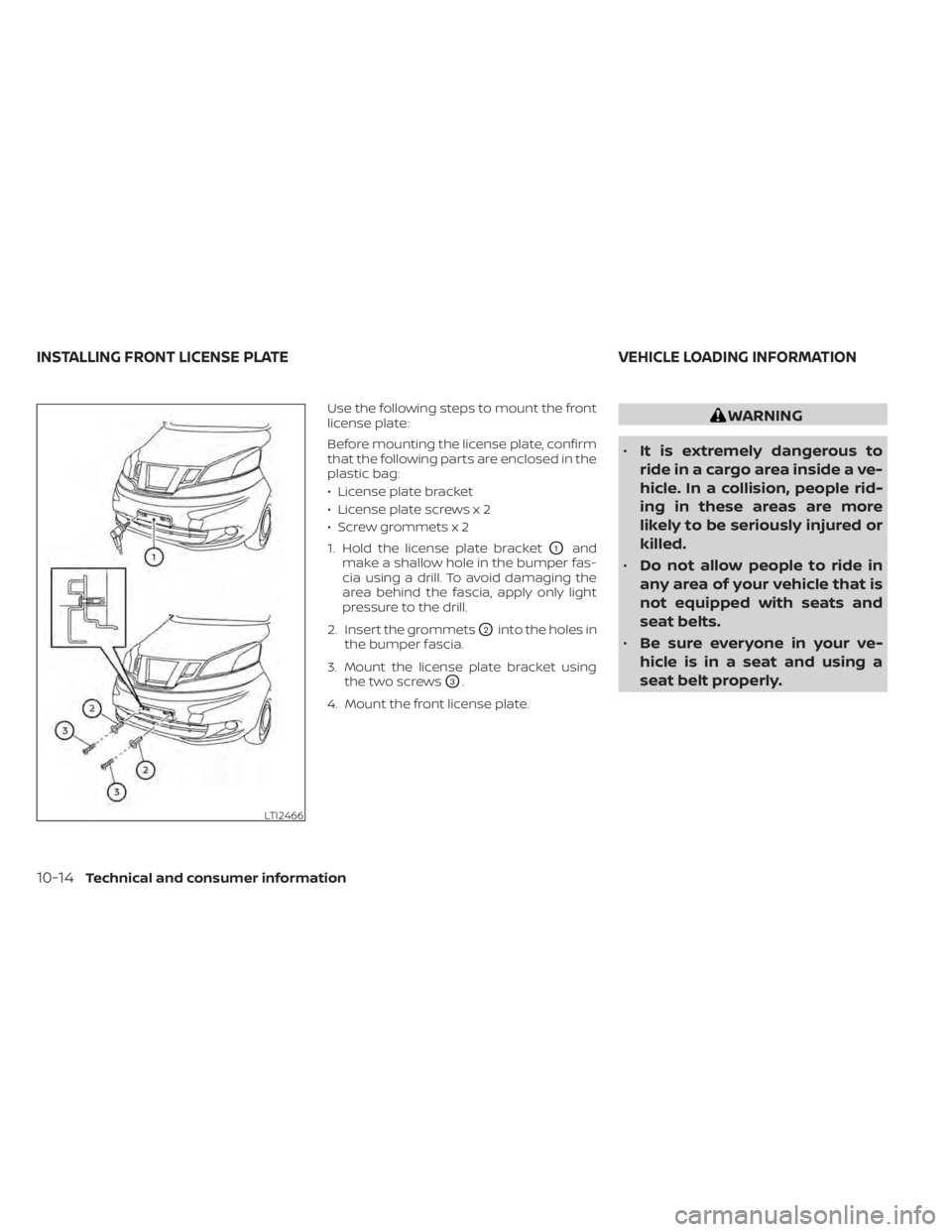

Use the following steps to mount the front
license plate:
Before mounting the license plate, confirm
that the following parts are enclosed in the
plastic bag:
• License plate bracket
• License plate screws x 2
• Screw grommets x 2
1. Hold the license plate bracket
O1and
make a shallow hole in the bumper fas-
cia using a drill. To avoid damaging the
area behind the fascia, apply only light
pressure to the drill.
2. Insert the grommets
O2into the holes in
the bumper fascia.
3. Mount the license plate bracket using the two screws
O3.
4. Mount the front license plate.
