Select 2 menu Parking Assistance .
Parking spaces 3 de tected by the system are
shown in the central display. When the vehicle is stationary, indicated vehicle
pat
h 4 into currently selected parking space 5
also appears.
If a parking space is displayed: stop the vehi-
cle.
If necessary, select another parking space.
Vehicles with 360° Camera: t
o change the
parking direction, tap the selected parking
space again.
To start the parking procedure: pr
ess button
1 again.
The vehicle drives into the selected parking
space.
The turn signal indicator is switched on automati-
call
y when the parking procedure begins. You are
responsible for selecting the turn signal indicator
in accordance with the traPc conditions. If neces-
sary, select the turn signal indicator accordingly. &
WARNING Risk of accident due t
o vehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
v
ehicle swings out and can drive onto areas of
the oncoming lane.
This could cause you to collide with objects or
other road users.
Pay attention to objects and other road
user

s. 302
Driving and parking


Where necessary, stop the vehicle or
cancel t
he parking procedure with Active
Parking Assist. On completion of the parking procedure, the
Active Parking Assist finished
displa

y message
appears.
Secure the vehicle against rolling away. When
r
equired by legal requirements or local condi-
tions: turn the wheels towards the kerb.
% You can stop the vehicle and change the
tr
ansmission position during the parking pro-
cedure. The system then calculates a new
vehicle path. If no new vehicle path is availa-
ble, the transmission position can be changed
again, or the process can be cancelled. Immediate parking via the
&DmHrDvLHws menu
Select the Camera views menu.
When the vehicle is stationary and in transmis-
sion position k, and symbol 6 appear

s in
the camera image: press button 1 again.
The parking procedure is initiated for the
detected parking space.
% The parking space and parking direction can-
no

t be changed in immediate parking.

qExiting a par
king space with Active Parking
Assist
Requirements: = The vehicle is equipped with a 360° Camera. =
The v
ehicle has been parked with Active Park-
ing Assist.
Start the vehicle.
Press button 1.
Select Parking Assistance menu 2.
If necessary, change direction of exit 3. Driving and parking
303

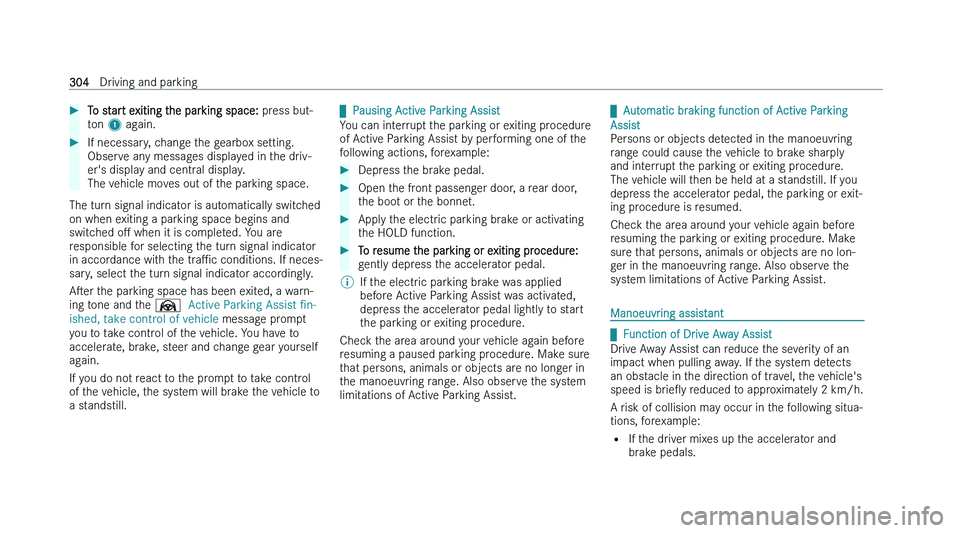

To start exiting the parking space: pr ess but-
ton 1 again.
If necessary, change the gearbox setting.
Obser

ve any messages displayed in the driv-
er's display and central display.
The vehicle moves out of the parking space.
The turn signal indicator is automatically switched
on when e
xiting a parking space begins and
switched oM when it is completed. You are
responsible for selecting the turn signal indicator
in accordance with the traPc conditions. If neces-
sary, select the turn signal indicator accordingly.
Aser the parking space has been exited, a warn-
ing tone and the Ø Active Parking Assist fin-
ished, take control of vehicle message prompt
you to take control of the vehicle. You have to
accelerate, brake, steer and change gear yourself
again.
If you do not react to the prompt to take control
of the vehicle, the system will brake the vehicle to
a standstill.
qP
ausing Active Parking Assist
You can interrupt the parking or exiting procedure
of Active Parking Assist by performing one of the
following actions, forexample:
Depress the brake pedal.
Open the front passenger door, a rear door,
t

he boot or the bonnet.
Apply the electric parking brake or activating
t

he HOLD function.
To resume the parking or exiting procedure:
g

ently depress the accelerator pedal.
% If the electric parking brake was applied
bef

ore Active Parking Assist was activated,
depress the accelerator pedal lightly to start
the parking or exiting procedure.
Check the area around your vehicle again before
r
esuming a paused parking procedure. Make sure
that persons, animals or objects are no longer in
the manoeuvring range. Also observe the system
limitations of Active Parking Assist.
qA
utomatic braking function of Active Parking
Assist
Persons or objects detected in the manoeuvring
range could cause the vehicle to brake sharply
and interrupt the parking or exiting procedure.
The vehicle will then be held at a standstill. If you
depress the accelerator pedal, the parking or exit-
ing procedure is resumed.
Check the area around your vehicle again before
resuming the parking or exiting procedure. Make
sure that persons, animals or objects are no lon-
ger in the manoeuvring range. Also observe the
system limitations of Active Parking Assist. Manoeuvring assistant

qF
unction of Drive Away Assist
Drive Away Assist can reduce the severity of an
impact when pulling away. If the system detects
an obstacle in the direction of travel, the vehicle's
speed is brieOy reduced to approximately 2 km/h.
A risk of collision may occur in the following situa-
tions, forexample: = If the driver mixes up the accelerator and
brake pedals. 304
Driving and parking

=

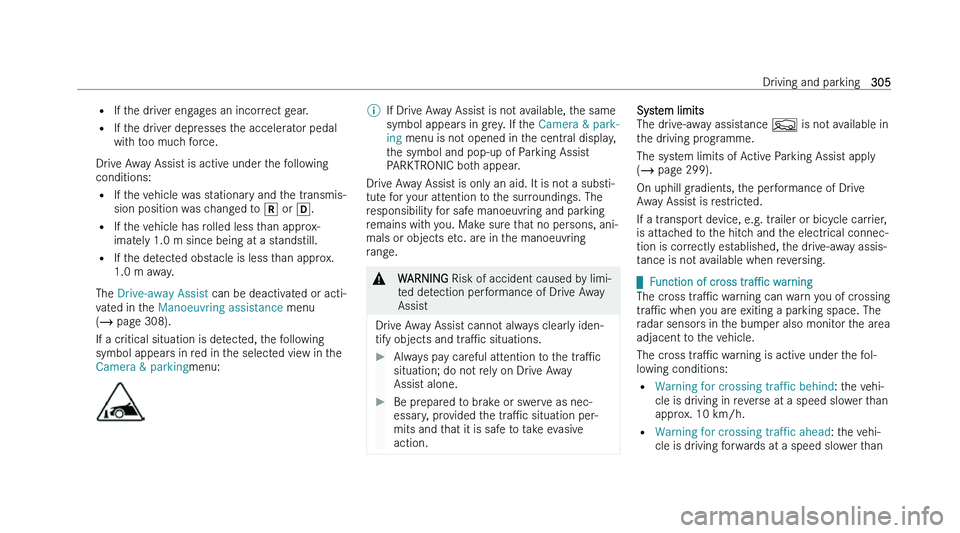

If t he driver engages an incorrect gear.
= If the driver depresses the accelerator pedal
with too much force.
Drive Away Assist is active under the following
conditions:
= If the vehicle was stationary and the transmis-
sion position was changed to k or h.
= If the vehicle has rolled less than approx-
imately 1.0 m since being at a standstill.
= If the detected obstacle is less than approx.
1.0 m away.
The Drive-away Assist can be deactivated or acti-
vated in the Manoeuvring assistance menu
( page 308).
If a critical situation is detected, the following
symbol appears in red in the selected view in the
Camera & parking menu: %
If Drive Away Assist is not available, the same
symbol appear s in grey. If the Camera & park-
ing menu is not opened in the central display,
the symbol and pop-up of Parking Assist
PARKTRONIC both appear.
Drive Away Assist is only an aid. It is not a substi-
tut
e for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
range. &
WARNING Risk of accident caused b
y limi-
ted detection performance of Drive Away
Assist
Drive Away Assist cannot always clearly iden-
tify objects and tr

aPc situations.
Always pay careful attention to the tr
aPc
situation; do not rely on Drive Away
Assist alone.
Be prepared to brake or swerve as nec-
essar

y, provided the traPc situation per-
mits and that it is safe to take evasive
action. System limits
The dr

ive-away assistance F is not available in
the driving programme.
The system limits of Active Parking Assist apply
(  page 299).
On uphill gradients, the performance of Drive
Away Assist is restricted.
If a transport device, e.g. trailer or bicycle carrier,
is attached to the hitch and the electrical connec-
tion is correctly established, the drive-away assis-
tance is not available when reversing.

qFunction of cross traPc warning
The cross traPc warning can warn you of crossing
traPc when you are exiting a parking space. The
radar sensors in the bumper also monitor the area
adjacent to the vehicle.
The cross traPc warning is active under the fol-
lowing conditions:
= Warning for crossing traffic behind: the vehi-
cle is driving in reverse at a speed slower than
approx. 10 km/h.
= Warning for crossing traffic ahead: the vehi-
cle is driving forwards at a speed slower than Driving and parking
305

approx. 10 km/h and the camera image is
sho
wn in the central display (  page 295).
The Warning for crossing traffic ahead can be
deactivated or activated in the Manoeuvring
assistance menu.
Depending on the country, the Warning for cross-
ing traffic behind can also be deactivated or acti-
vated (  page 308).
If a critical situation is detected, the following
symbol appears in red in the selected view in the
Camera & parking menu:
Warning for crossing traffic behind = The v

ehicle can be braked automatically when
crossing traPc is detected.
= If the menu Camera & parking is not open and
a critical situation is detected, a warning
appears in the central display together with
the PARKTRONIC Parking Assist pop-up. Warning for crossing traffic ahead
= If A

ctive Parking Assist is active, the vehicle
can be braked automatically when crossing
traPc is detected.
= If Active Parking Assist is not active but the
menu Camera & parking is open, a warning
appears.
= If the menu Camera & parking is not open, the
system cannot react to crossing traPc.
The cross traPc warning is only an aid and not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
range. &
WARNING Risk of accident caused b
y limi-
ted detection performance of the cross
traPc warning
The cross tr
aPc warning cannot always clearly
identify objects and traPc situations.
Always pay careful attention to the tr
aPc
situation; do not rely on the cross traPc
warning alone.
Be prepared to brake or swerve as nec-
essar

y, provided the traPc situation per-
mits and that it is safe to take evasive
action. System limits
%
If the cross tr
aPc warning is not available, the
/ symbol appears in grey.
In the driving programme, F t
he warning for
cross traPc is not available.
The system limits of Active Parking Assist apply
(  page 299).
If the radar sensors are obstructed by vehicles or
other objects, detection is not possible.
In the following situations, the cross traPc warn-
ing is not available:
= on inclines
= Warning for crossing traffic behind : if a trans-
port device, e.g. trailer or bicycle carrier, is 306
Driving and parking

attached to the towbar and the electrical con-
nection is cor rectly established.

qManoeuvring brake function
The manoeuvring brake function can prevent colli-
sions with pedestrians when the vehicle is revers-
ing at slow speeds. If the reversing camera
detects a person in the vehicle path, the vehicle
can be braked to a standstill.
The manoeuvring brake function can intervene
under the following conditions:
= The vehicle is reversing at a speed slower than
10 km/h.
= The camera image is shown in the central dis-
play (  page 295).
Depending on the country, you can activate and
deactivate the manoeuvring brake function in the
Manoeuvring assistance menu ( page 308).
If the manoeuvring brake function is triggered, the
following symbol appears in red in the selected
view in the Camera & parkingmenu:
% If the manoeuvring brake function is not avail-
able, t

he same symbol appears in grey.
The manoeuvring brake function is only an aid. It
is no
t a substitute for your attention to the sur-
roundings. The responsibility for safe manoeuvring
and parking remains with you. Make sure that no
persons, animals or objects etc. are in the
manoeuvring range. &
WARNING Risk of accident caused b
y limi-
ted detection by the manoeuvring brake
function
The manoeuvring brake function cannot
alw
ays clearly detect people. Other obstacles
are not detected by the function.
In these cases, the function may brake unnec-
essarily or not brake at all.
Always pay careful attention to the tr
aPc
situation; do not rely on the manoeuvring
brake function alone.
Be ready to brake. System limits
In t

he driving programme, F the shunt braking
is not available.
Observe the system limits of the following func-
tions:
= Active Parking Assist ( page 299)
= 360° Camera ( page 289)
= Reversing camera ( page 287)
The manoeuvring brake function is not available in
the following situations:
= on inclines
= If transport equipment, forexample a trailer or
bicycle rack, is attached to the trailer hitch
and the electrical connection has been cor-
rectly established. Driving and parking
307

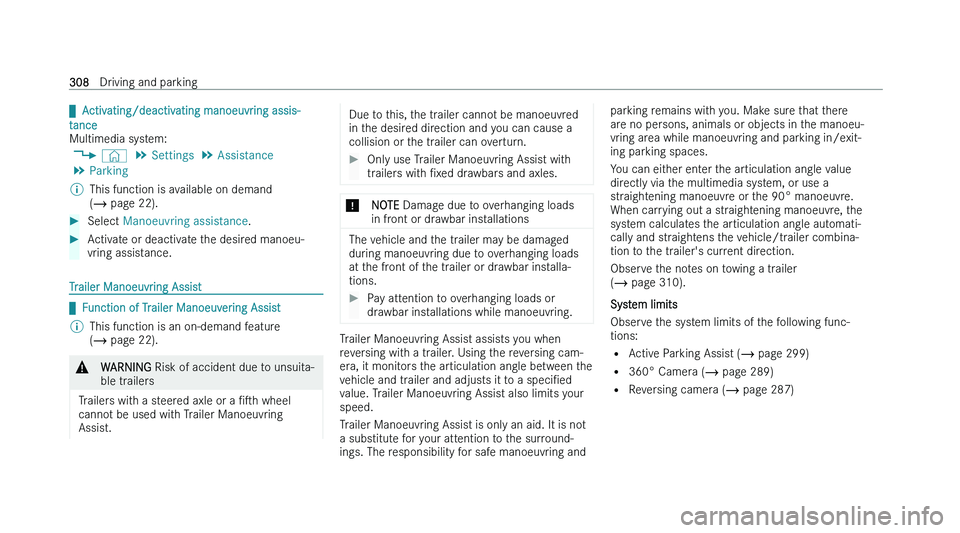

qActivating/deactivating manoeuvring assis-
tance
Multimedia system:
4 © 5
Settings 5
Assistance
5 Parking
% This function is available on demand
(  pag

e 22).
Select Manoeuvring assistance .
Activate or deactivate the desired manoeu-
vr

ing assistance. Trailer Manoeuvring Assist

qF
unction of Trailer Manoeuvering Assist
% This function is an on-demand feature
(  pag

e 22). &
WARNING Risk of accident due t
o unsuita-
ble trailers
Trailers with a steered axle or a Nsh wheel
canno
t be used with Trailer Manoeuvring
Assist. Due to this, the trailer cannot be manoeuvred
in t
he desired direction and you can cause a
collision or the trailer can overturn.
Only use Trailer Manoeuvring Assist with
tr
ailers with Nxed drawbars and axles. *
NOTE Damag
e due to overhanging loads
in front or drawbar installations The vehicle and the trailer may be damaged
dur

ing manoeuvring due to overhanging loads
at the front of the trailer or drawbar installa-
tions.
Pay attention to overhanging loads or
dr

awbar installations while manoeuvring. Trailer Manoeuvring Assist assists you when
r

eversing with a trailer. Using the reversing cam-
era, it monitors the articulation angle between the
vehicle and trailer and adjusts it to a speciNed
value. Trailer Manoeuvring Assist also limits your
speed.
Trailer Manoeuvring Assist is only an aid. It is not
a substitute for your attention to the surround-
ings. The responsibility for safe manoeuvring and parking remains with you. Make sure that there
ar

e no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
You can either enter the articulation angle value
directly via the multimedia system, or use a
straightening manoeuvre or the 90° manoeuvre.
When carrying out a straightening manoeuvre, the
system calculates the articulation angle automati-
cally and straightens the vehicle/trailer combina-
tion to the trailer's current direction.
Observe the notes on towing a trailer
(  page 310).
System limits
Observe the system limits of the following func-
tions:
= Active Parking Assist ( page 299)
= 360° Camera ( page 289)
= Reversing camera ( page 287) 308
Driving and parking

The system may be impaired or may not function
in t
he following situations:
= The gradient is greater than approximately
15 %.

qUsing Trailer Manoeuvring Assist
Requirements:
= The vehicle has been started and is stationary.
= A trailer is selected in the Vehicle menu
(  page 315).
= A trailer has been detected.
= The gradient is less than approximately 15 %.
= The tailgate is closed.
= The electric parking brake is not applied.
= The driver's seat belt is fastened. Using Trailer Manoeuvring Assist

Engage reverse k g
ear.
Press button 1.
The camer

a image is shown in the central dis-
play. You can select various manoeuvres in the Trailer
Manoeuvr

ing Assist menu. The manoeuvres avail-
able depend on the current articulation angle and
length of the trailer.
To adjust the articulation angle: select 3. In
t
he central display, swipe the entire area of
the camera image to the les or right to change
the bend angle.
or
To activate the straightening manoeuvre:
select 1.
The sy

stem calculates the articulation angle in
such a way that the direction of the trailer at
the time of activation is maintained. There is a Driving and parking
309
