5
Position of the wheels
6 Area under the bonnet
7 Lane indicating the route the vehicle will take
at t
he current steering angle
If the oM-r
oad menu is open in the central display
and the button 1 is switched on, the Transparent
bonnet view is automatically displayed in gearbox
position h.
The Transparent Bonnet view shows a virtual
image of the area directly in front of the bumper,
in front of the tyres and under the bonnet. In addi-
tion, the current lane is displayed. The Transpar-
ent Bonnet can assist you when driving in diPcult
terrain, e.g. on rocky or uneven ground.
The hatched area under the bonnet 6 was cap-
tured and recorded by the front camera. As soon
as the area has been crossed by the vehicle, it is
faded in. If the vehicle has not been moved for
some time, the recorded area is displayed in grey-
scale and faded out. Front and rear view
1
Switch camera view on/oM
2 Activating/deactivating PARKTRONIC
( pag

e 296)
3 Point of the compass
4 Altitude above sea level
5 Roll display 6
Lane indicating the route the vehicle will take
at t

he current steering angle
7 Pitch display
% Note that the area between the vehicle and up
t

o approx. 1 m in front of the vehicle is not
displayed.
The slope and inclination indicators are only
shown in the front view.
If the vehicle is travelling faster than approx.
8 km/h
the view automatically changes from
Transparent Bonnet to Front View. If the vehicle is
travelling faster than approx. 20 km/h, the cam-
era image is closed.
When you engage reverse gear, the image from
the reversing camera is automatically displayed.
System limits
The area under the bonnet may not be displayed
correctly in the following situations:
= in the rain
= Driving in the dark
= When shadows fall on the area recorded by
the camera 294
Driving and parking

Observe the instructions on the function of the
360° camer
a as well as its system limits, other-
wise you will not be able to recognise dangers
(  page 289).

qCalling up the 360° Camera views using the
button
Press button 1.
Select the Camera views menu.
In the multimedia system, select the desired
vie
w (  page 289).

qSelecting a vie
w for the 360° Camera (reverse
gear)
Requirements: = The Activation in R setting is activated in the
multimedia system ( page 295).
Engage reverse gear.
Select the desired view in the multimedia sys-
t
em ( page 289).

qSe
tting the reversing camera or 360° Camera
The reversing camera is only an aid. It is not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
range. Pay attention to your surroundings and be
ready to brake at all times.
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera
Activate or deactivate Activation in R.%
The settings for deactivating the reversing
camer

a are not available in every country.

q360° Camer
a with GPS - managing activation
positions
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera
Renaming an activation position
% You can determine activation positions in the
Camera views menu. ( pag

e 289)
W Select f
or the desired activation posi-
tion.
Select Edit.
Enter a name and conNr
m.
The activation position is saved under the new
name.
Deleting an activation position
W Select f
or the desired activation posi-
tion.
Select Delete entry. Driving and parking
295


ConNrm the prompt.
The activation position is deleted.

qOpening t
he camera cover
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera
Select Open camera cover.
% The camera cover closes automatically aser
some time or aser t

he vehicle is switched on
or oM. Parking Assist PARKTRONIC

qF
unction of Parking Assist PARKTRONIC
Parking Assist PARKTRONIC is an electronic park-
ing assistance system which monitors the area
surrounding your vehicle and shows you the dis-
tance between the vehicle and a detected obsta-
cle visually and audibly.
The passive side impact protection also warns you
of obstacles to the side. These must be detected
beforehand by the sensors in the front or rear
bumper while driving by them. If you steer in the
direction of a detected obstacle and there is a risk of a lateral collision, a warning is issued. The pas-
siv

e side impact protection can be activated and
deactivated via the multimedia system.
In order for front or rear obstacles to the side to
be displayed, the vehicle must Nrst travel a dis-
tance of at least half a vehicle length. Once the
vehicle has travelled one vehicle length, obstacles
on all sides can be shown.
Parking Assist PARKTRONIC is only an aid. It is
not a substitute for your attention to the surround-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces. Displays in the central display Vehicles with 360° Camera
Vehicles with reversing camera296
Driving and parking

As soon as Parking Assist PARKTRONIC is opera-
tional, t
he respective areas of the display are
shown in blue.
1 Operational, front and rear
2 Operational, all around
3 Operational, all around and obstacle detected
The colour of the display changes depending on
t
he distance to the detected obstacle:
= Blue: > 1 m (no obstacles detected)
= Yellow: approx. 1 m - 0.7 m
= Orange: approx. 0.7 m - 0.4 m
= Red: < 0.4 m
Vehicles with 360° Camera: the boundary line
shiss dynamically depending on the position and
distance of the obstacles detected.
Depending on the distance to the obstacle detec-
ted, an intermittent warning tone also sounds. You
can set the timing of the warnings in the multime-
dia system. In the Warn early setting, the system
warns you from a distance of 1 m, in the standard
setting only from 0.4 m. Vehicles with 360° Camera Vehicles with reversing camera
If you are not in the Camera & parking menu and
an obs
tacle in the vehicle path is detected, pop-
up window 1 appears in the central display if the
following requirements are met:
= Vehicles without Active Parking Assist: when
driving no faster than 12 km/h. Driving and parking
297

=
V ehicles with Active Parking Assist: when driv-
ing no faster than 18 km/h. Optionally, obstacles detected by Parking Assist
P

ARKTRONIC from a distance of approximately
1.0 m in front 2 and 0.7 m on sides 3 can also
be displayed in the head-up display.
System limits
Parking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects. =
Obs
tacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of lorries.
= Pedestrians or animals approaching the vehi-
cle from the side.
= Objects placed next to the vehicle
Obstacles on the sides are not shown in the fol-
lowing situations, for example: = You park the vehicle and switch it oM.
= You open the doors.
Aser the engine is restarted, obstacles must be
detected again by driving past them before a new
warning can be issued.
Also observe the system limits of the following
systems:
= Reversing camera (  page 287)
= 360° camera ( page 289)
Observe the information on vehicle sensors and
cameras; the system otherwise cannot function
properly (  page 237). Vehicles with towbar:
If a tr ansport device, e.g.
trailer or bicycle carrier, is attached to the towbar
and the electrical connection is correctly estab-
lished, PARKTRONIC Parking Assist is deactivated
for the rear zone.
Problems with Parking Assist PARKTRONIC
If the Parking Assist PARKTRONIC display lights
up red for approximately three seconds then goes
out, and the

qActivating/deactivating Parking Assist
PARKTRONIC
* NOTE Risk of an accident fr
om objects at
close range Parking Assist PARKTRONIC may not detect
cer
tain objects at close range.
When parking or manoeuvring the vehi-
cle, pa

y particular attention to any
objects which are above or below the
sensors, e.g. Oowerpots or drawbars.
The vehicle or other objects could other-
wise be damaged. Requirements:
= The camer

a menu is open.
= Or: Active Parking Assist is active.
= Or: the PARKTRONIC pop-up window appears.
Press in t
he central display.
If the indicator lamp is lit, Parking Assist
P
ARKTRONIC is active. If the indicator lamp does
not light up or the symbol

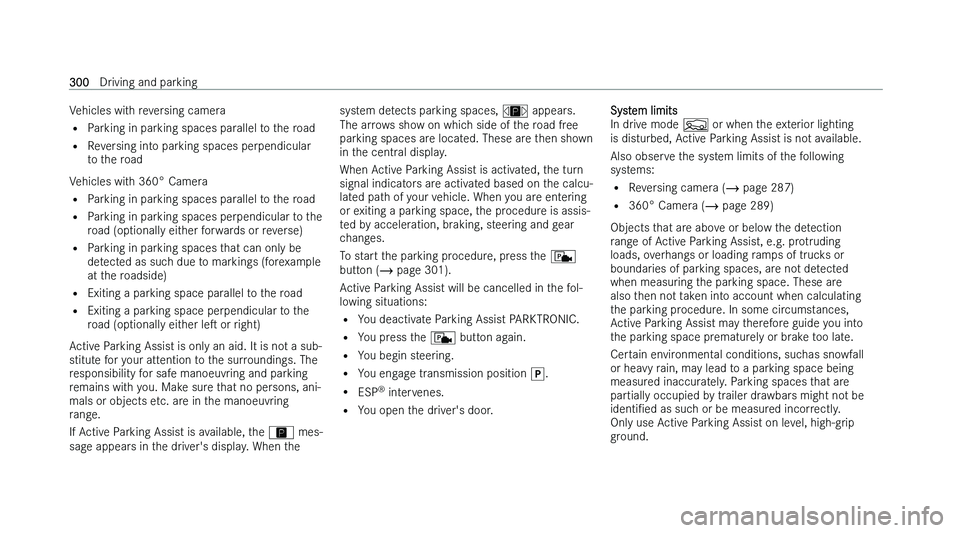

Vehicles with reversing camera
=
P
arking in parking spaces parallel to the road
= Reversing into parking spaces perpendicular
to the road
Vehicles with 360° Camera
= Parking in parking spaces parallel to the road
= Parking in parking spaces perpendicular to the
road (optionally either forwards or reverse)
= Parking in parking spaces that can only be
detected as such due to markings (forexample
at the roadside)
= Exiting a parking space parallel to the road
= Exiting a parking space perpendicular to the
road (optionally either les or right)
Active Parking Assist is only an aid. It is not a sub-
stitute for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
range.
If Active Parking Assist is available, the Ç mes-
sage appears in the driver's display. When the system detects parking spaces,
È appear s.
The arrows show on which side of the road free
parking spaces are located. These are then shown
in the central display.
When Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle. When you are entering
or exiting a parking space, the procedure is assis-
ted by acceleration, braking, steering and gear
changes.
To start the parking procedure, press the E
button ( page 301).
Active Parking Assist will be cancelled in the fol-
lowing situations:
= You deactivate Parking Assist PARKTRONIC.
= You press the E button again.
= You begin steering.
= You engage transmission position j.
= ESP n
intervenes.
= You open the driver's door. System limits
In dr
ive mode F or when the exterior lighting
is disturbed, Active Parking Assist is not available.
Also observe the system limits of the following
systems:
= Reversing camera (  page 287)
= 360° Camera (  page 289)
Objects that are above or below the detection
range of Active Parking Assist, e.g. protruding
loads, overhangs or loading ramps of trucks or
boundaries of parking spaces, are not detected
when measuring the parking space. These are
also then not taken into account when calculating
the parking procedure. In some circumstances,
Active Parking Assist may therefore guide you into
the parking space prematurely or brake too late.
Certain environmental conditions, suchas snowfall
or heavy rain, may lead to a parking space being
measured inaccurately. Parking spaces that are
partially occupied by trailer drawbars might not be
identiNed as such or be measured incorrectly.
Only use Active Parking Assist on level, high-grip
ground. 300
Driving and parking

&
WARNING Risk of accident due t o objects
located above or below the detection
range of Active Parking Assist
If there are objects above or below the detec-
tion r
ange, the following situations may arise:
= Active Parking Assist may steer too early.
= The vehicle may not stop in front of these
objects.
There is a danger of collision!
In these situations, do not use Active
P
arking Assist. Active Parking Assist can also display unsuitable
par

king spaces, e.g. parking spaces in which
parking is not permitted or parking spaces on
unsuitable surfaces.
Do not use Active Parking Assist in the following
situations:
= In extreme weather conditions suchas ice,
packed snow or in heavy rain.
= When transporting a load that protrudes
beyond the vehicle. =
If t
he parking space is on a steep downhill or
uphill gradient.
= When snow chains are Ntted.
= When a trailer or bicycle rack is attached.
= Directly aser a tyre change or when spare
tyres are Ntted.
= If the tyre pressure is too low or too high.
= If the suspension is out of alignment, e.g. aser
bottoming out on a kerb.
= On steep inclines of more than approximately
15 %.
qParking with Active Parking Assist
Press button 1 . Driving and parking
301
