2022 MAZDA MODEL MX-30 EV level 2

Display range
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
If an image containing an object with a conspicuous color is picked up by any of
the cameras, the screen area for each camera may be affected and it may display
in that color.
Obstructions displayed in the front view may not display on the top view screen.If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
When Driving
i-ACTIVSENSE
4-158
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Range of displayed screen image
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
If an image containing an object with a conspicuous color is picked up by any of
the cameras, the screen area for each camera may be a ffected and it may display
in that color.
Obstructions displayed in the rear view may not display on the top view screen.If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
When Driving
i-ACTIVSENSE
4-163
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Range of displayed screen image
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
If an image containing an object with a conspicuous color is picked up by any of
the cameras, the screen area for each camera may be affected and it may display
in that color.
Obstructions displayed in the front view may not display on the top view screen.If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
When Driving
i-ACTIVSENSE
4-168
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver's
responsibility to maintain correct tire
pressure, even if under-inflation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not
operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long
as the malfunction exists. When the
malfunction indicator is illuminated,
the system may not be able to detect
or signal low tire pressure as
intended. TPMS malfunctions may
occur for a variety of reasons,
including the installation of
replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to function
properly.
 To avoid false readings, the system
samples for a little while before
indicating a problem. As a result it
will not instantaneously register a
rapid tire de flation or blow out.▼ If there is a problem with the Tire
Pressure Monitoring System
(TPMS)
If the TPMS warning light
flashes, there
may be a problem with the system.
Consult an Authorized Mazda Dealer
to have the system inspected.
Refer to Tire Pressure Monitoring
System (TPMS) Warning Indication/
Warning Light (Flashing) on page
7-27.
In the following cases, the system
cannot recognize the tire pressures
correctly and the TPMS warning light
may flash.
There is equipment or a device
nearby emitting radio signals the
same as a tire pressure sensor.
A metallic object such as a
non-genuine electronic device is
installed near the center of the
dashboard (obstructs the radio
signals from the tire pressure sensors
to the receiver).
A device such as one of the following
is used in the cabin.
Electronic devices such as a
computer.
Converter devices such as a
DC -AC converter.
There is a large accumulation of
snow or ice around the vehicle tires.
The battery in a tire pressure sensor
is dead.
A wheel not equipped with a tire
pressure sensor is used.
Tires employing steel in the sidewall
of the tire are installed.
Tire chains are used.
▼ When a tire pressure decreases
If the TPMS warning light turns on, a
tire pressure may be low. Inspect the
tire pressures and adjust them to the
correct in
flation pressure.
When Driving
Tire Pressure Monitoring System (TPMS)
4-181
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

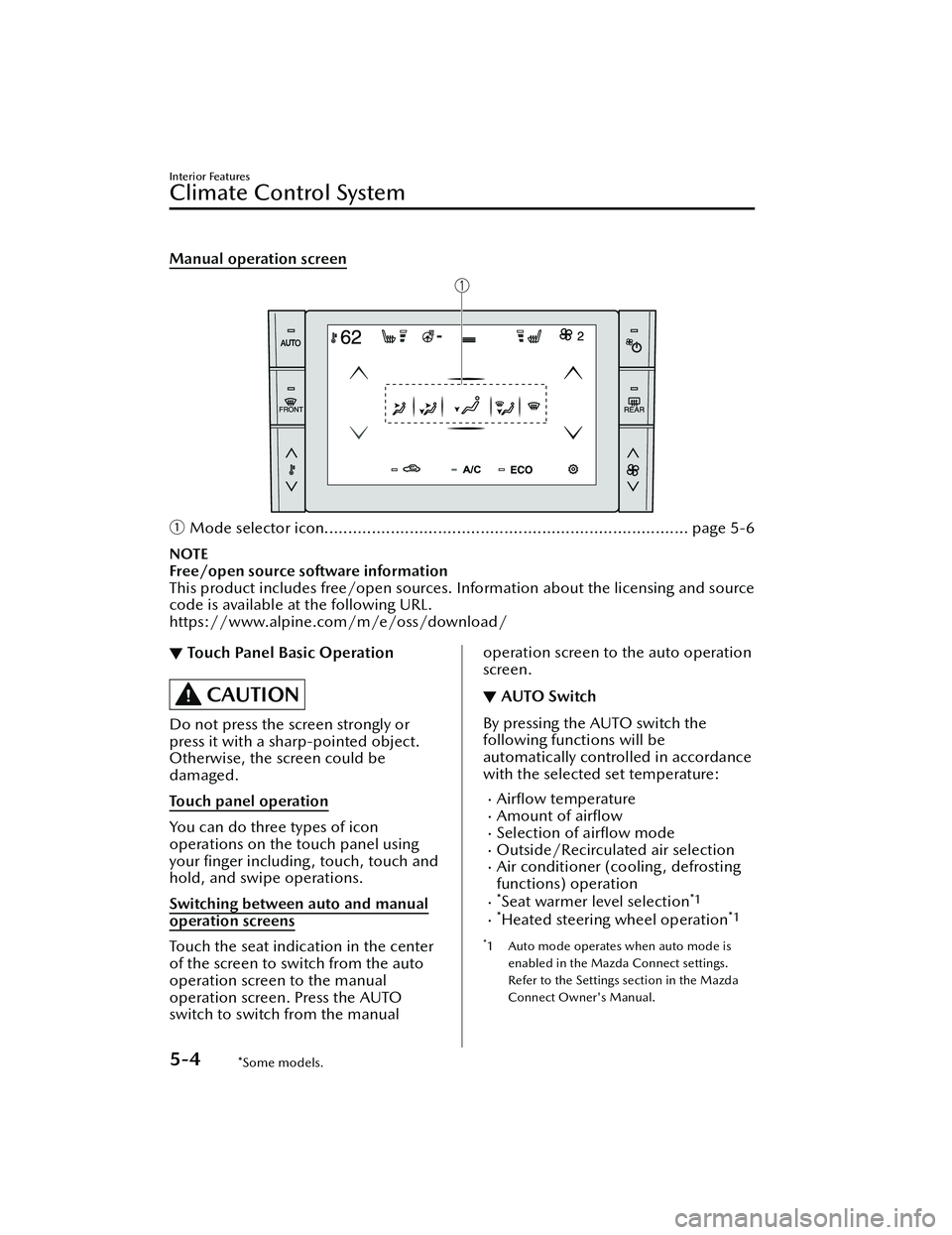

Manual operation screen
ƒMode selector icon............................................................................. page 5-6
NOTE
Free/open source software information
This product includes free/open sources. Information about the licensing and source
code is available at the following URL.
https://www.alpine.com/m/e/oss/download/
▼ Touch Panel Basic Operation
CAUTION
Do not press the screen strongly or
press it with a sharp-pointed object.
Otherwise, the screen could be
damaged.
Touch panel operation
You can do three types of icon
operations on the touch panel using
your
finger including , touch, touch and
hold, and swipe operations.
Switching between auto and manual
operation screens
Touch the seat indication in the center
of the screen to switch from the auto
operation screen to the manual
operation screen. Press the AUTO
switch to switch from the manual
operation screen to the auto operation
screen.
▼ AUTO Switch
By pressing the AUTO switch the
following functions will be
automatically controlled in accordance
with the selected set temperature:
Air
flow temperatureAmount of
airflowSelection of airfl ow modeOutside/Recirculated air selectionAir conditioner (cooling, defrosting
functions) operation
*Seat warmer level selection*1
*Heated steering wheel operation*1
*1 Auto mode operates when auto mode is
enabled in the Mazda Connect settings.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
Interior Features
Climate Control System
5-4*Some models.
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

NOTE
AUTO switch indicator light
ON
The indicator light turns on during
auto operation.
OFF
When any switch or icon is operated
during auto operation, including the
, , , , , , , the
fan control switch, or the defroster
switch, the indicator light turns o ff.
At this time, the functions other than
the one operated operate
automatically.
▼ Temperature Control Switch/Icon
The temperature setting can be
adjusted between 15 °C (60 °F) and
29 °C (84 °F) by pressing the
temperature setting switch, or touching
the
(red) or (blue).
The temperature setting can be quickly
adjusted by pressing and holding the
temperature setting switch, or touching
and holding the
(red) or
(blue).
NOTE
When you set the temperature to the
lower or upper limit, “LO” or “HI” is
displayed.
The temperature units for the
temperature setting display can be
changed in conjunction with the
temperature units for the outside
temperature display.
When swiping the (red) or
(blue) up/down, the temperature
can be adjusted up or down in
increments of 3 °C (6 °F).
To reduce power consumption by
the climate control system, warm air flow may not be supplied when
the ambient temperature is 25 °C
(77 °F) or more.
▼ Fan Control Switch/Icon
The air
flow amount can be adjusted to
7 levels.
The air flow amount can be adjusted by
pressing the fan control switch, or by
touching the
or .
In addition, when the fan control
switch,
, or is pressed and held,
the air flow amount can be adjusted
quickly.
NOTE
When the or is swiped
upward, the air flow amount can be
increased at 3 levels. When swiped
downward, the air flow amount can
be decreased at 3 levels.
▼ Climate Control Power Switch
(System On/Off
)
The climate control system turns on
and
off each time the climate control
power switch is pressed.
▼ Rear Window Defogger Switch
Press the rear window defogger switch
to defrost the rear window.
When the defroster is operated, the
outside mirror defogger
* and the
windshield wiper de-icer* operate in
conjunction.
▼ Display Setting Icon
To u c h t h e to display the display
setting screen.
You can adjust the brightness (41
levels), select the screen from
Interior Features
Climate Control System
*Some models.5-5
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Auto/Day/Night, and adjust the
operation volume (mute or 3 levels).
To u c h t h e
to close the screen.
NOTE
For safety reasons, the setting screen is
not displayed while driving the vehicle.
▼ECO Icon
ECO mode switches on/o
ff each time
the icon is touched.
The operation frequency of the air
conditioner in ECO mode is less than
in normal mode, ma king driving more
economical.
▼ Auto and Manual Operation
Screen Switching Icon
Touch the seat indication in the center
of the screen to switch to the manual
operation screen.
The
, , , , and can be
operated.
▼ A/C Icon
Touch the A/C while the AUTO switch
is turned on will turn
off the air
conditioner (cooling, defrosting
functions).
The on/o ff of the air conditioner
switches each time the A/C is
touched.
While the air conditioner is operating,
the indicator light next to the A/C
turns on.
NOTE
The air conditioner operates when
the A/C is touched while the air
conditioner is turned o ff.
The air conditione r may not function
when the outside temperature
approaches 0 °C (32 °F).
▼ Air Intake Selector Icon
Outside or recirculated air positions
can be selected. Touch the
to
select outside/recirculated air
positions.
WARNING
Do not recirculate the air in the cabin
during cold or rainy weather:
Recirculating the air in the cabin during
cold and rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
Recirculated air position (Indicator
light next to the
turns on)
Outside air is shut off. Use this position
when going through tunnels, driving in
congested tra ffic (high engine exhaust
areas) or when quick cooling is
desired.
Outside air position (Indicator light
next to the
turns o ff)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
▼ Windshield Defroster Switch
Press the switch to defrost the
windshield and front door windows.
NOTE
The defroster can also be used by
touching the
.
▼Mode Selector Icon
When the , , , , or is
touched, the airfl ow mode can be
selected according to the purpose of
use.
Interior Features
Climate Control System
5-6
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

No. MenuExplanation
(1) Information Energy E
fficiency History:
Monitor energy
effi ciency in real time and view energy
effi ciency histo-
ry.
High Voltage Battery Monitor:
View high voltage battery charge level, charging schedule, and more.
SiriusXM Travel Link
*:
Access traffic information, weather, fuel prices, parking information
and sports scores.
Vehicle Status Monitor:
View important vehicle maintenance messages, information, and inter-
vals.
(2) Entertainment FM
SiriusXM
*
Pandora*
Bluetooth
USB1 Audio/USB2 Audio
USB1 Video/USB2 Video
Smartphone Apps
*/Apple CarPlay*/A n d ro i d A u to*
Audio O
ff
(3) Notifications Displays text messages received by the mobile device paired to Mazda
Connect and noti
fications from the vehicle. The number of noti fica-
tions is displayed, and if they exceed 100, 99+ is displayed. If a serious
problem occurs, the background color changes to amber or red.
(4) Communication By connecting your mobile device, such as a Smartphone, to Mazda
Connect via Bluetooth
®, you can use the hands-free call and short mes-
sage functions.
(5) Navigation The navigation system (vehicles with navigation system) can be used
when the SD card for the navigation system is inserted.

If the SD card for the navigation system is not inserted, the compass in-
dicating the direction in which the ve
hicle is moving is displayed. The
compass may not indicate the correct bearing when the vehicle is stop-
ped or traveling at a slow speed.
For the navigation system operation, refer to the navigation system
manual.
Interior Features
Mazda Connect
*Some models.5-15
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
