2022 MAZDA MODEL MX-30 EV immobilizer

3Before Driving
Use of various features, including keys, doors, mirrors and
windows.
Electric Vehicles........................ 3-2 Electric Vehicles..................... 3-2
Charging............................. 3-10
Keys...................................... 3-25 Keys.................................... 3-25
Keyless Entry System.............3-27
Advanced Keyless Entry
System...................................3-31 Advanced Keyless Entry
System
*............................... 3-31
Operational Range...............3-32
Doors and Locks..................... 3-33 Door Locks.......................... 3-33
Liftgate................................ 3-41
Mirrors.................................. 3-44 Mirrors................................3-44
Windows............................... 3-49Power Windows...................3-49
Moonroof
*.......................... 3-51
Security System.......................3-54 Modi fication and Add-
On Equipment..................... 3-54
Immobilizer System..............3-54
Driving Tips............................ 3-56 Break-In Period.................... 3-56
Hazardous Driving............... 3-56
Floor Mat............................ 3-57
Rocking the Vehicle..............3-57
Winter Driving..................... 3-58
Overloading........................ 3-59
Driving on Uneven Road.......3-60
Towing.................................. 3-61 Trailer Towing...................... 3-61
Recreational Towing............. 3-61
*Some models.3-1
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Modification and
Add-On Equipment
▼ Modi
fication and Add-On
Equipment
Mazda cannot guarantee the
immobilizer system's operation if the
system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer system
or the vehicle.
Immobilizer System
▼ Immobilizer System
The immobilizer system allows the EV
system to start only with a key the
system recognizes.

If someone attempts to start the EV
system with an unrecognized key, the
EV system will not start, thereby
helping to prevent vehicle theft.
If you have a problem with the
immobilizer system or the key, consult
an Authorized Mazda Dealer.
CAUTION

Radio equipment like this is
governed by laws in the United
States.
Changes or modi fications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as the
dashboard, under direct sunlight.
 If the EV system does not start with
the correct key, and the security
indicator light keeps illuminating or
fl ashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.
Before Driving
Security System
3-54
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

NOTE
The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining a replacement
key requires security validation, this
will add some delays in supplying a
replacement key. They are only
available through an Authorized
Mazda Dealer.
Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
▼Operation
NOTE
The EV system may not start and
security indicator light may illuminate
or
flash if the key is placed in an area
where it is di fficult for the system to
detect the signal, such as on the
dashboard or in the glove
compartment. Move the key to a
location within the signal range,
switch the power switch o ff, and
then restart the EV system.
Signals from a TV or radio station, or
from a transceiver or mobile
telephone could interfere with your
immobilizer system. If you are using
the proper key and the EV system
fails to start, check the security
indicator light.
Arming
The system is armed when the power
switch is switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2
seconds until the system is disarmed.

Disarming
The system is disarmed when the
power switch is switched ON with the
correct programmed key. The security
indicator light illu minates for about 3
seconds and then turns off.
If the EV system does not start with the
correct key, and the security indicator
light remains illuminated or flashing ,
try the following:
Make sure the key is within the
operational range for signal
transmission. Switch the power switch
o ff, and then restart the EV system. If
the EV system does not start after 3 or
more tries, contact an Authorized
Mazda Dealer.
Before Driving
Security System
3-55
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

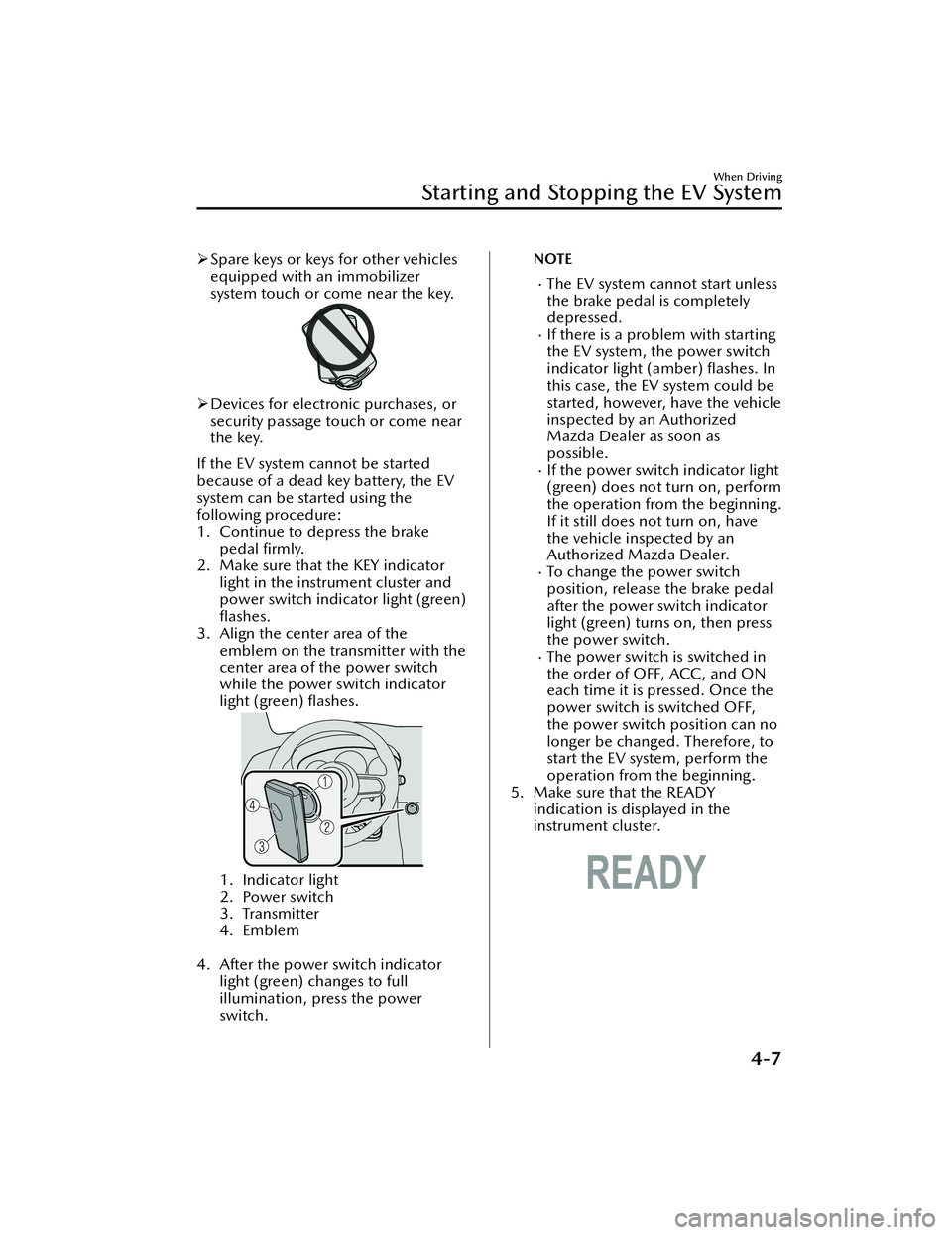

Spare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key.
Devices for electronic purchases, or
security passage touch or come near
the key.
If the EV system cannot be started
because of a dead key battery, the EV
system can be started using the
following procedure:
1. Continue to depress the brake pedal firmly.
2. Make sure that the KEY indicator light in the instrument cluster and
power switch indicator light (green)
flashes.
3. Align the center area of the emblem on the transmitter with the
center area of the power switch
while the power switch indicator
light (green) flashes.
1. Indicator light
2. Power switch
3. Transmitter
4. Emblem

4. After the power switch indicator light (green) changes to full
illumination, press the power
switch.
NOTE
The EV system cannot start unless
the brake pedal is completely
depressed.
If there is a problem with starting
the EV system, the power switch
indicator light (amber) flashes. In
this case, the EV system could be
started, however, have the vehicle
inspected by an Authorized
Mazda Dealer as soon as
possible.
If the power switch indicator light
(green) does not turn on, perform
the operation from the beginning.
If it still does not turn on, have
the vehicle inspected by an
Authorized Mazda Dealer.
To change the power switch
position, release the brake pedal
after the power switch indicator
light (green) turns on, then press
the power switch.
The power switch is switched in
the order of OFF, ACC, and ON
each time it is pressed. Once the
power switch is switched OFF,
the power switch position can no
longer be changed. Therefore, to
start the EV system, perform the
operation from the beginning.
5. Make sure that the READY indication is displayed in the
instrument cluster.
When Driving
Starting and Stopping the EV System
4-7
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼Indication/Indicator Lights
These lights turn on or
flash to notify the user of the system operation status or a
system malfunction.
Signal Indicator Refer to
(Green)Seat Belt Indicator Light (Rear seat)
2-30
Front Passenger Air Bag Deactivation Indicator Light 2-64
Security Indicator LightImmobilizer
System3-55
Malfunction 7-28
(Green) KEY Indicator Light
4-5
Wrench Indication/Indicator Light*14-23
Shift Position Indication4-26
Lights-On Indicator Light4-35
Headlight High-Beam Indicator LightHeadlight
High-Low
Beam4-37
Flashing the Headlights 4-37
Turn Signal/Hazard Warning Indicator Lights Tu r n a n d
Lane-Change Signals4-39
Hazard Warn- ing Flasher
4-47
When Driving
Instrument Cluster and Display
4-21
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼KEY Warning Indication/Warning
Light (Red)
“Keyless Entry System Malfunction.
Have the Vehicle Inspected” is
displayed
This message is displayed if the system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the power switch indicator light
(amber)
flashes at the same time, the
EV system may not start. Have the
vehicle inspected by an Authorized
Mazda Dealer as soon as possible.
Refer to When Stopping the EV System
on page 4-8.
“Key Not Detected” is displayed
The KEY warning indication/warning
light (red) displays/turns on under the
following conditions. Bring the key into
the operation range.
The key is outside of the operation
range or it is placed in the cabin but
in a position where it is di fficult to be
detected.
Without the power switch switched
OFF, the key is taken out of the
cabin, then all the doors are closed.
▼ Security Indicator Light
If the security indicator light turns on/
fl
ashes while driving , do not stop the
EV system (leave it operating) and have
the vehicle inspected at an Authorized
Mazda Dealer. If the EV system is
stopped, it may not be restarted.
If the EV system cannot be started,
switch the power switch OFF, place the
key in another position within the
operation range, and then restart the
EV system.
Check the security indicator light and if
it does not turn o ff, such as it remains
on or flashes, switch the power switch
OFF, wait for a while, and then restart
the system.
If the EV system does not start after
three attempts, a system malfunction
may have occurred. Have the vehicle
inspected by an Authorized Mazda
Dealer.
NOTE
Because the electronic codes are reset
when the immobilizer system is
repaired, the keys are needed. Make
sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
▼ High Beam Control System (HBC)
Warning Indication/Warning Light
(Amber)
*
The light remains turned on if there is a
problem with the system. Have your
vehicle inspected at an Authorized
Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-28*Some models.
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Declaration of Conformity
▼Keyless Entry System/Immobilizer System
▼Tire Pressure Monitoring System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-32
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Index
Starting the EV System............ 4-5
Starting the EV System When the
Key Battery is Dead................ 4-6
When Stopping the EV
System................................... 4-8
Excessive Speed Warning........... 7-40
Exterior Care............................. 6-34 Aluminum wheel
maintenance........................ 6-39
Bright-metal maintenance..... 6-38
Camera and Lens
Maintenance........................ 6-38
Maintaining the finish........... 6-35
Plastic part maintenance....... 6-39
F
Flasher Hazard warning.................... 4-47
Headlights............................4-35
Flat Tire...................................... 7-3
Floor Mat................................. 3-57
Fluids Brake................................... 6-12
Classi fication.......................... 9-4
Washer................................ 6-13
Foot Brake................................ 4-52
Forward Sensing Camera (FSC)... 4-71
Front Camera/Side Cameras/Rear
Camera.................................... 4-81
Front Cross Tra ffic Alert (FCTA) ..........
.............................................. 4-104
Front Cross Tra ffic Alert (FCTA)
Warning Beep........................... 7-40
Front Radar Sensor.................... 4-75
Front Side Radar Sensor............. 4-77
Fully Discharged High Voltage Battery Actions to take if the remaining
high voltage battery power is
completely depleted............. 7-16
Fuses........................................ 6-27
Panel description.................. 6-29
Replacement........................ 6-27
G
Gauges....................................... 4-9
Glove Compartment..................5-45
H
Hazardous Driving.....................3-56
Hazard Warning Flasher............. 4-47
Headlights Coming home light...............4-37
Flashing................................4-37
High-low beam.................... 4-37
Leaving home light............... 4-37
Leveling................................4-38
Head Restraint.......................... 2-18
High Beam Control System
(HBC)....................................... 4-83 High Beam Control System (HBC)
indicator light (green)........... 4-83
High Voltage Battery.................... 9-3
Hill Launch Assist (HLA)............. 4-61
HomeLink Wireless Control
System...................................... 4-47
Hood Release............................. 6-8
Horn........................................ 4-46
I
If a Warning Light Turns On or
Flashes......................................7-21
If the Active Driving Display Does Not
Operate.................................... 7-43
Illuminated Entry System............ 5-38
Immobilizer System................... 3-54
Inspecting Brake Fl uid Level........6-12
Inspecting Coolan t Level............ 6-11
Inspecting Washer Fluid Level..... 6-13
Instrument Cluster.......................4-9 Average Energy E fficiency.......4-16
10-4
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
