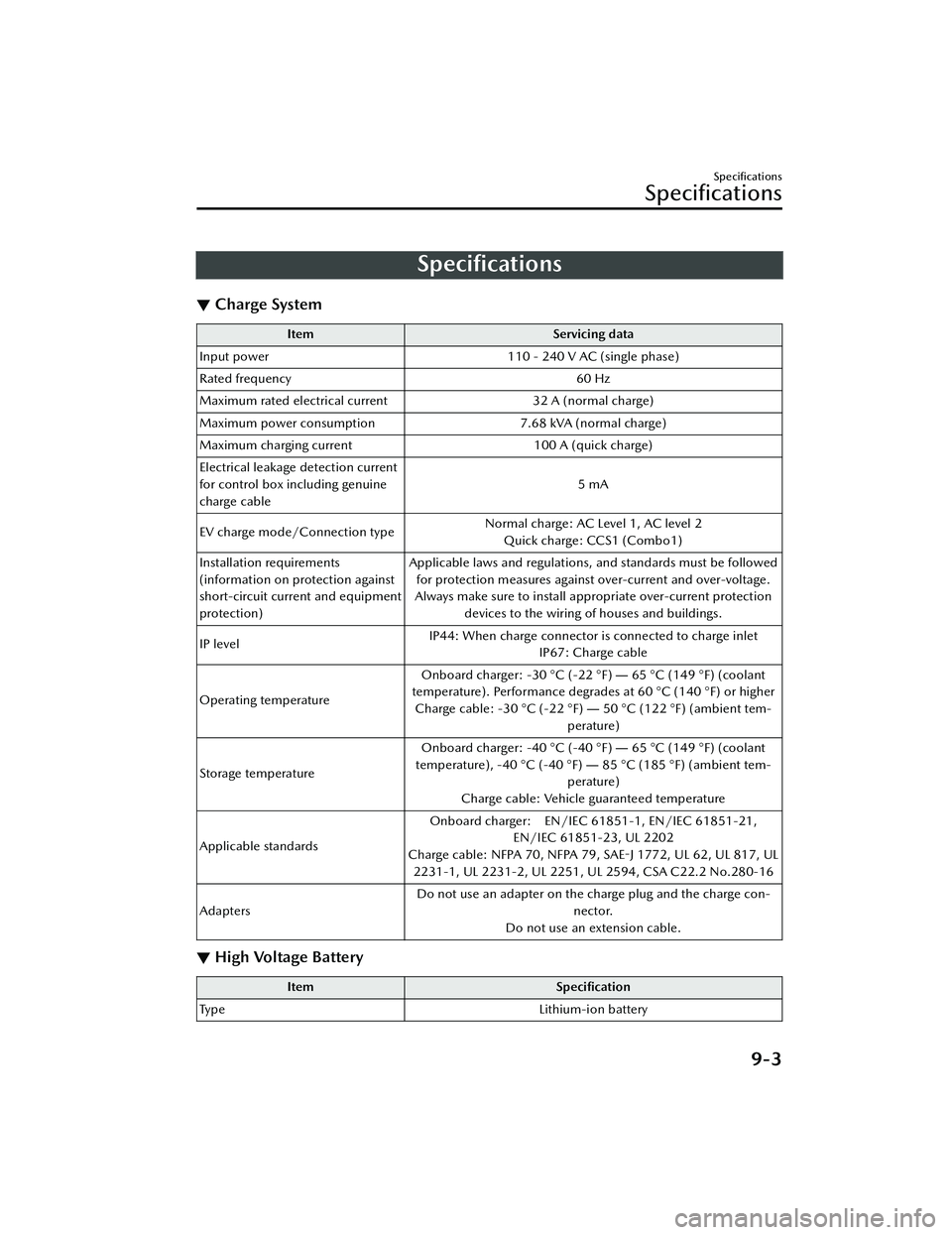

Specifications
▼ Charge System
Item
Servicing data
Input power 110 - 240 V AC (single phase)
Rated frequency 60 Hz
Maximum rated electrical current 32 A (normal charge)
Maximum power consumption 7.68 kVA (normal charge)
Maximum charging current 100 A (quick charge)
Electrical leakage detection current
for control box including genuine
charge cable 5 mA
EV charge mode/Connection type Normal charge: AC Level 1, AC level 2
Quick charge: CCS1 (Combo1)
Installation requirements
(information on protection against
short-circuit current and equipment
protection) Applicable laws and regulations, and standards must be followed
for protection measures against over-current and over-voltage.
Always make sure to install a ppropriate over-current protection
devices to the wiring of houses and buildings.
IP level IP44: When charge connector is connected to charge inlet
IP67: Charge cable
Operating temperature Onboard charger: -30 °C (-22 °F)
― 65 °C (149 °F) (coolant
temperature). Performance degrades at 60 °C (140 °F) or higher Charge cable: -30 °C (-22 °F) ― 50 °C (122 °F) (ambient tem-
perature)
Storage temperature Onboard charger: -40 °C (-40 °F)
― 65 °C (149 °F) (coolant
temperature), -40 °C (-40 °F) ― 85 °C (185 °F) (ambient tem-
perature)
Charge cable: Vehicle guaranteed temperature
Applicable standards Onboard charger:
EN/IEC 61851-1, EN/IEC 61851-21,
EN/IEC 61851-23, UL 2202
Charge cable: NFPA 70, NFPA 79, SAE -J 1772, UL 62, UL 817, UL
2231-1, UL 2231-2, UL 2251, UL 2594, CSA C22.2 No.280-16
Adapters Do not use an adapter on the charge plug and the charge con-
nector.
Do not use an extension cable.
▼ High Voltage Battery
Item
Specification
Type Lithium-ion battery
Specifications
Speci fications
9-3
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
ItemSpecification
Te m p e ra t u r e ra n g e Operation guaranteed temperature: -30 °C (-22 °F)
― 60 °C
(140 °F)
Storage guaranteed temperature: -40 °C (-40 °F) ― 70 °C
(158 °F)
▼ Lead-acid Battery
Item
Specification
Lead-acid battery
*112V -42Ah/20HR
*1 Check the battery installed on the vehicle and use a battery with an equal or
higher performance. However, the performance of the battery may vary even
among the same battery types, consul t an Authorized Mazda Dealer for
replacement.
▼ Lubricant Quality
Lubricant
Classification
Coolant FL-22 type
EV Transaxle fluid Mazda Original Oil ATF-FZ
Brake fluid SAE J1703 or FMVSS116 DOT-3
▼ Capacities
(Approximate Quantities)
Item
Capacity
Coolant 4.3 L (4.5 US qt, 3.8 Imp qt)
EV Transaxle fluid 1.55 L (1.64 US qt, 1.36 Imp qt)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼ Dimensions
Item
Vehicle specification
Overall length 4,393 mm (173.0 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,574 mm (62.0 in)
Front tread 1,563 mm (61.5 in)
Rear tread 1,563 mm (61.5 in)
Wheelbase 2,653 mm (104.4 in)
Specifications
Speci fications
9-4
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
