2022 INFINITI QX50 Owners Manual

•The FEB with Pedestrian Detection sys-
tem may operate when a pattern, object,
shadow or lights are detected that are
similar to the outline of vehicles or pe-
destrians, or if they are the same size and
position as a vehicle or motorcycle’s tail
lights.
• The system may keep operating when
the vehicle ahead is turning right or left.
• The system may operate when your ve-
hicle is approaching and passing a vehicle
ahead.
• Depending on the road shape (curved
road, entrance and exit of the curve,
winding road, lane regulation, under
construction, etc.), the system may op-
erate temporarily for the oncoming ve-
hicle in front of your vehicle.
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
• The FEB with Pedestrian Detection sys-
tem may react to:
– objects on the roadside (traffic sign, guardrail, pedestrian, motorcycle,
vehicle, etc.)
– pedestrians when driving on the nar- row alleys, etc. – pedestrians who temporarily pro-
trude into or approaching the driving
lane to avoid the obstacles on the
road shoulder
– objects above road (low bridge, traf- fic sign, etc.)
– objects on the road surface (railroad track, grate, steel plate, etc.)
– objects in the parking garage (beam, pillar, etc.)
– pedestrians or motorcycles ap- proaching the travelling lane
– vehicles, pedestrians, motorcycles or objects in adjacent lanes or close to
the vehicle
LSD4248
Starting and driving5-113

– oncoming pedestrians
– objects on the road (such as trees)
• Braking distances increase on slippery
surfaces.
• Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the sensor may
detect vehicles in a different lane, or may
temporarily not detect a vehicle traveling
ahead. This may cause the system to work
inappropriately. The detection of vehicles may also be af-
fected by vehicle operating (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition. If this occurs, the system
may warn you by blinking the system indica-
tor and sounding the chime unexpectedly.
You will have to manually control the proper
distance away from the vehicle traveling
ahead.
SSD0253
5-114Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with Pe-
destrian Detection system warning light
blinks and the system will be turned off
automatically.
• The radar sensor picks up interference fromanother radar source.
• The camera area of the windshield is misted or frozen.
• Strong light is shining from the front.
• The cabin temperature is over approxi- mately 104°F (40°C) in direct sunlight.
• The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area have it checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
LSD3920
Starting and driving5-115

Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Forward Driving Aids
temporarily disabled Front Sensor blocked
See Owner’s Manual” warning message will
appear in the vehicle information display.
• The sensor area of the front bumper iscovered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift
position in the P (Park) position and turn the
engine off. Clean the radar sensor area of the
front bumper or the camera area of the wind-
shield with a soft cloth, and restart the en-
gine. If the warning light continues to illumi-
nate, have the FEB with Pedestrian
Detection system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
Condition C:
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls). Action to take
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
5-116Starting and driving

SYSTEM MAINTENANCE
The radar sensorOAis located on the front of
the vehicle. The camera
OBis located on the
upper side of the windshield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
• Always keep sensor areas of the front bumper and windshield clean.
• Do not strike or damage the areas around the sensors (ex. Bumper, windshield). • Do not cover or attach stickers, or install
any accessory near the sensors. This could
block sensor signals, and/or cause failure
or malfunction.
• Do not attach metallic objects near the ra- dar sensor (brush guard, etc.). This could
cause failure or malfunction.
• Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit's detection
capability.
• Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.Radio frequency statement
For USA/Canada
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject
to the following two conditions:
1. This device may not cause harmful inter- ference, and 2. This device must accept any interference
received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouil- lage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en com-
promettre le fonctionnement.
Radiofrequency radiation exposure
Information:
This equipment complies with FCC and IC
radiation exposure limits set forth for an un-
controlled environment.
This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.
This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
LSD2954
Starting and driving5-117

Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps.
FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
• The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.
The PFCW system uses a radar sensor
OAlocated on the front of the vehicle to measure
the distance to the vehicle ahead in the same
lane.
LSD2952
PREDICTIVE FORWARD COLLISION
WARNING (PFCW)
5-118Starting and driving

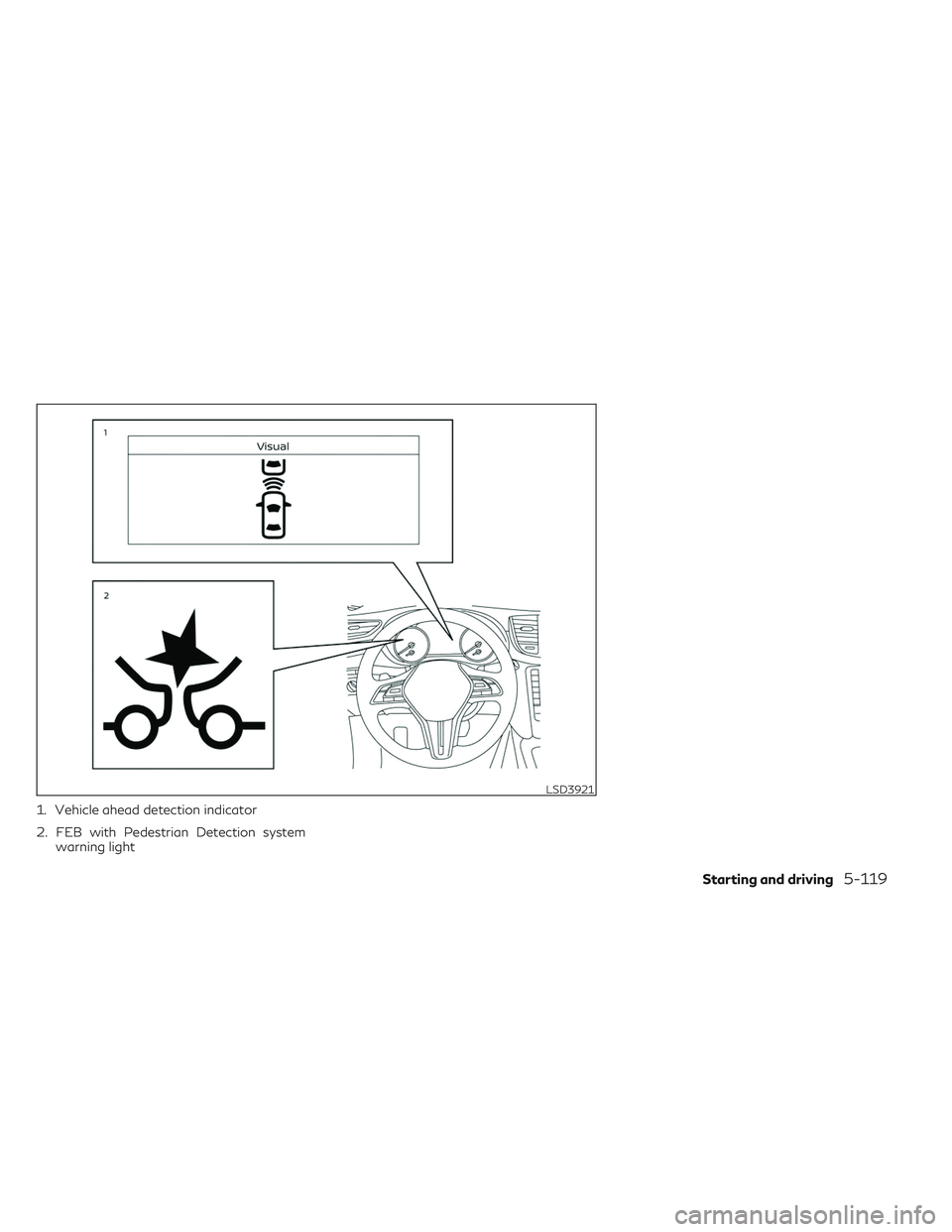

1. Vehicle ahead detection indicator
2. FEB with Pedestrian Detection systemwarning light
LSD3921
Starting and driving5-119

PFCW SYSTEM OPERATION
The PFCW system operates at speeds above
approximately 3 mph (5 km/h).
If there is a potential risk of a forward colli-
sion, the PFCW system will warn the driver
by blinking the vehicle ahead detection indi-
cator, and sounding an audible alert.
LSD2263
