2022 INFINITI QX50 Owners Manual

PROPILOT ASSIST SYSTEM
OPERATION1Steering-wheel-mounted control (left)
2Vehicle information display
3Steering-wheel-mounted control (right)
4ProPILOT Assist switch
The ProPILOT Assist system has the follow-
ing two functions:
1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of two
cruise control modes:
• Conventional (fixed speed) cruise control
mode: For cruising at a preset speed
NOTE:Steering assist is not available in the conven-
tional (fixed speed) cruise control mode.
•Vehicle-to-vehicle distance control mode:
The ICC system maintains a selected dis-
tance from the vehicle in front of you within
the speed range of 0 to 90 mph (0 to 144
km/h) up to the set speed. The set speed
can be selected by the driver between 20 to
90 mph (30 to 144 km/h). When the ve-
hicle ahead slows to a stop, your vehicle
gradually decelerates to a standstill. When
the vehicle is stopped, the ICC system
maintains braking force to keep your ve-
hicle stopped.
NOTE:When your vehicle is stopped for less than 3
seconds and the vehicle ahead begins to
move, your vehicle will start moving again
automatically.
LSD2996
Starting and driving5-73

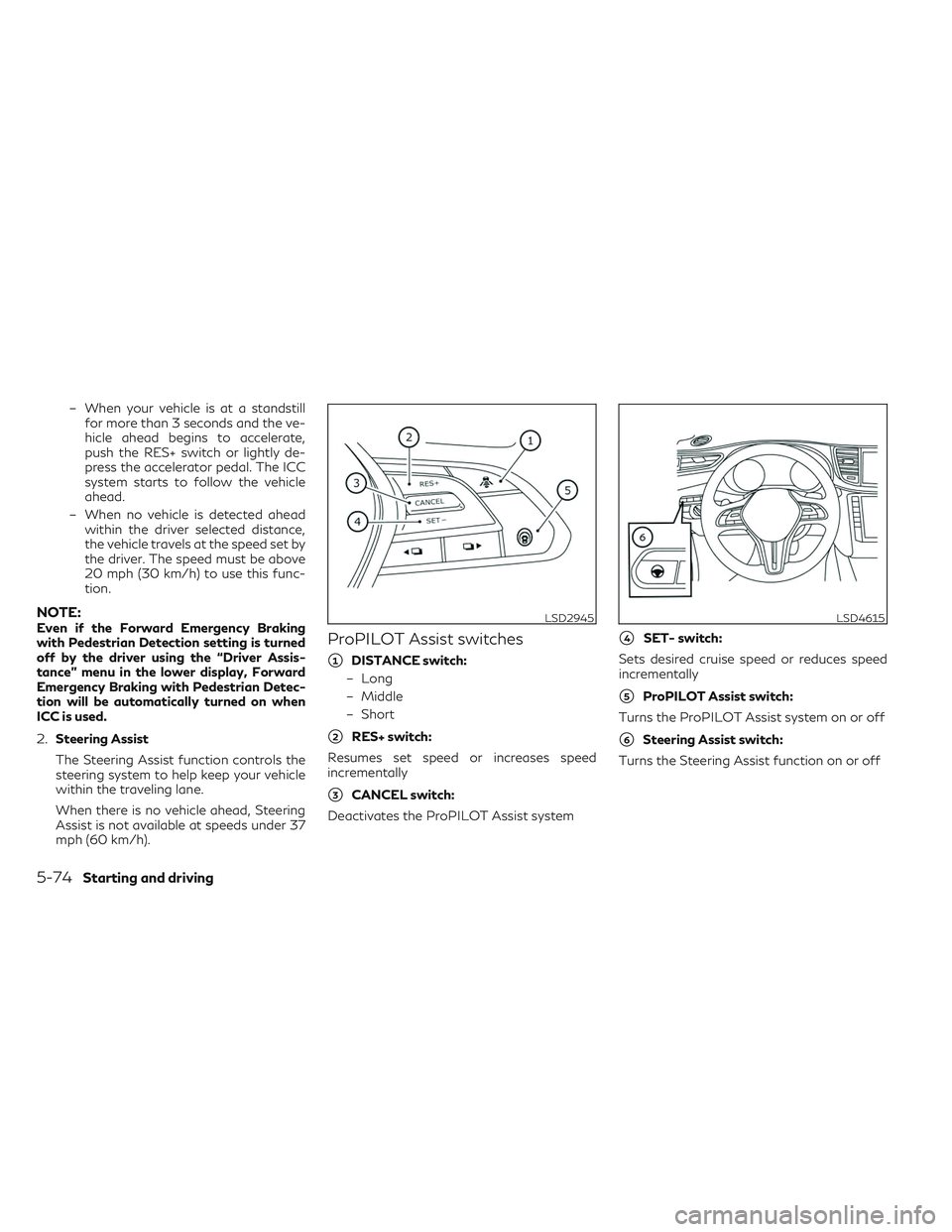

– When your vehicle is at a standstillfor more than 3 seconds and the ve-
hicle ahead begins to accelerate,
push the RES+ switch or lightly de-
press the accelerator pedal. The ICC
system starts to follow the vehicle
ahead.
– When no vehicle is detected ahead within the driver selected distance,
the vehicle travels at the speed set by
the driver. The speed must be above
20 mph (30 km/h) to use this func-
tion.
NOTE:Even if the Forward Emergency Braking
with Pedestrian Detection setting is turned
off by the driver using the “Driver Assis-
tance” menu in the lower display, Forward
Emergency Braking with Pedestrian Detec-
tion will be automatically turned on when
ICC is used.
2. Steering Assist
The Steering Assist function controls the
steering system to help keep your vehicle
within the traveling lane.
When there is no vehicle ahead, Steering
Assist is not available at speeds under 37
mph (60 km/h).ProPILOT Assist switches
1DISTANCE switch:
– Long
– Middle
– Short
2RES+ switch:
Resumes set speed or increases speed
incrementally
3CANCEL switch:
Deactivates the ProPILOT Assist system
4SET- switch:
Sets desired cruise speed or reduces speed
incrementally
5ProPILOT Assist switch:
Turns the ProPILOT Assist system on or off
6Steering Assist switch:
Turns the Steering Assist function on or off
LSD2945LSD4615
5-74Starting and driving

The ProPILOT Assist system
display and indicators
1Lane marker indicator
Indicates whether the system detects lane
markers • No lane markers displayed: Steering As-sist is turned off
• Lane marker indicator (gray): No lane markers detected
• Lane marker indicator (green): Lane markers detected
• Lane marker indicator (yellow): Lane de- parture is detected
2Set distance indicator
Displays the selected distance
3Vehicle ahead detection indicator
Indicates whether the system detects a ve-
hicle in front of you
4Steering Assist indicator
Indicates the status of the Steering Assist
function by the color of the indicator • Steering Assist indicator (gray): SteeringAssist standby
• Steering Assist indicator (green): Steer- ing Assist active
• Steering Assist indicator (orange): Steering Assist malfunction
5ProPILOT Assist activation
Displays once the ProPILOT Assist system is
activated
6ProPILOT Assist status indicator
Indicates the status of the ProPILOT Assist
system by the color of the indicator – ProPILOT Assist status indicator(white): ProPILOT Assist is on but in
standby.
– ProPILOT Assist status indicator (blue): ProPILOT Assist active
7Steering Assist status indicator/
warning
Displays the status of the Steering Assist by
the color of the indicator/warning
• No Steering Assist status indicator dis-played: Steering Assist is turned off
• Steering Assist indicator (gray): Steering Assist standby
• Steering Assist indicator (green): Steer- ing Assist active
• Steering Assist indicator (yellow): Steer- ing Assist malfunction
8Set vehicle speed indicator
Indicates the set vehicle speed
9Speed control status indicator/warning
Displays the status of speed control by the
color and shape of the indicator/warning – Speed control status indicator/warning(gray): ICC standby
– Speed control status indicator/warning (solid green
): ICC (distance control
mode) is active (vehicle detected
ahead). Your vehicle matches the speed
of the vehicle ahead.
LSD3614
Starting and driving5-75

– Speed control status indicator/warning(green outline): ICC (maintain
speed control mode) is active (no ve-
hicle detected ahead). Your vehicle
maintains the driver-selected set speed.
– Speed control status indicator/warning (solid yellow
): ICC malfunction
TURNING THE CONVENTIONAL
(fixed speed) CRUISE CONTROL
MODE ON
NOTE:
ProPILOT Assist provides no approach
warnings, automatic braking, or steering as-
sist in the conventional (fixed speed) cruise
control mode.
To choose the conventional (fixed speed)
cruise control mode, push and hold the Pro-
PILOT Assist switch for longer than approxi-
mately 1.5 seconds. For additional informa-
tion, see “Conventional (fixed speed) cruise
control mode” (P. 5-100).
OPERATING PROPILOT ASSIST
1. Forward Emergency Braking (FEB)
2. Lane Departure Warning (LDW) when shaded and Lane Departure Prevention
(LDP) when solid
3. Blind Spot Warning (BSW) 1. Push the ProPILOT Assist switch
OA. This
turns on the ProPILOT Assist system.
LSD3311LSD3615
5-76Starting and driving

2. A screen is displayed for a period of timethat indicates the status of the driving aid
functions.
– FEB, LDW, and BSW are enabled when the specified driving aid is shaded.
– LDP is enabled when the driving aid is solid.
– To change the status of the driving aids, use the
O1orO2button to navigate the
settings screen. For additional informa-
tion, see “How to use the vehicle infor-
mation display” (P. 2-19). 3. The status of the ProPILOT Assist system
is displayed in the vehicle information dis-
play
OB.
4. Accelerate or decelerate your vehicle to the desired speed.
5. Push the SET- switch
OC. The ProPILOT
Assist system begins to automatically
maintain the set speed. The ProPILOT
Assist activation indicator
ODand ProPI-
LOT Assist status indicator
OEilluminate
(blue). When a vehicle ahead is traveling at
a speed of 20 mph (30 km/h) or below
and the SET- switch is pushed, the set
speed of your vehicle is 20 mph (30
km/h).
NOTE:
When “Lane Intervention” is selected in the
settings menu, turning the ProPILOT Assist
system on will activate the LDP system at
the same time. If “Lane Intervention” is not
selected in the settings menu, LDP will auto-
matically activate when the ProPILOT As-
sist system is “SET.” For additional informa-
tion, see “Lane Departure Prevention (LDP)”
(P. 5-38).
LSD4616LSD3616
Starting and driving5-77

When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
O1blinks for approximately 2
seconds:
• When traveling below 20 mph (30 km/h) and the vehicle ahead is not detected
• When the shift lever is not in the D (Drive) position or manual shift mode
• When the electronic parking brake is applied
• When the brakes are operated by the driver • When the VDC system is off. For additional
information, see “Vehicle Dynamic Control
(VDC) system” (P. 5-140).
• When the VDC system (including the trac- tion control system) is operating
• When a wheel is slipping
• When any door is open
• When the driver’s seat belt is not fastened
How to change the set vehicle
speed
The set vehicle speed can be adjusted.
To change to a faster cruising speed:
• Push and hold the RES+ switch. The set vehicle speed increases by approximately 5
mph (5 km/h).
• Push, then quickly release, the RES+ switch. Each time you do this, the set speed in-
creases by approximately 1 mph (1 km/h).
LSD3617LSD2948
5-78Starting and driving

To change to a slower cruising speed:
• Push and hold the SET- switch. The setvehicle speed decreases by approximately
5 mph (5 km/h).
• Push, then quickly release, the SET- switch. Each time you do this, the set speed de-
creases by approximately 1 mph (1 km/h).
How to momentarily accelerate or
decelerate
• Depress the accelerator pedal when accel-eration is required. Release the accelerator
pedal to resume the previously set vehicle
speed.
• Depress the brake pedal when deceleration is required. Control by the ProPILOT Assist
system is canceled. Push the RES+ switch
to resume the previously set vehicle speed.
WARNING
When the accelerator pedal is depressed
and you are approaching the vehicle ahead,
the ICC system will neither control the
brake nor warn the driver with the chime
and display. The driver must manually con-
trol the vehicle speed to maintain a safe
distance to the vehicle ahead. Failure to do
so could result in severe personal injury or
death.
NOTE:
When you accelerate by depressing the ac-
celerator pedal or decelerate by pushing the
SET- switch and the vehicle travels faster
than the speed set by the driver, the set
speed vehicle indicator will blink.
How to change the set distance to
the vehicle ahead
The distance to the vehicle ahead can be
selected at any time.
Each time the DISTANCE switch
OAis
pushed, the set distance will change to long,
middle, short and back to long again in that
sequence.
LSD2949
Starting and driving5-79

Distance Approximate distance at 60mph (100 km/h) [ft (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 90 (30)
• The distance to the vehicle ahead changes
automatically according to the vehicle
speed. The higher the vehicle speed, the
longer the distance.
• The distance setting will remain at the cur- rent setting even if the engine is restarted.
LSD2806
