2022 HYUNDAI ELANTRA engine

Driver assistance system
7-38
Detecting sensor
OCN7060046[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the rear corner
radar or radar assembly, or apply any
impact on it.

[If the rear corner radars have been
replaced or repaired, we recommend
that the vehicle be inspected by an
authorized HYUNDAI dealer.

[If there is impact on the rear
corner radar or near the radar,
even though the warning message
does not appear on the cluster,
Blind-Spot Safety system may not
operate properly. We recommend
that the system be inspected by an
authorized HYUNDAI dealer.

[Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.
[The system may not work properly
if the bumper has been replaced, or
the surroundings of the rear corner
radar has been damaged or paint has
been applied.

[If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or the system may not operate.
Function settings
Setting
OCN7070037L
Blind-Spot Safety
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

07
7-39
OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
LV2II
TPHVVDJHZLOODSSHDURQWKH
cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S:DUQLQJ2QO\
TWKHZDUQLQJOLJKWRQWKH
outside rearview mirror will blink for
three seconds.
In addition, if the engine is turned on,
ZKHQWKHV\VWHPLVVHWWR
S:DUQLQJ2QO\
T
the warning light on the outside rearview
mirror will blink for three seconds.
WARNING

[If ‘Warning Only’ is selected, braking
is not assisted.

[If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system

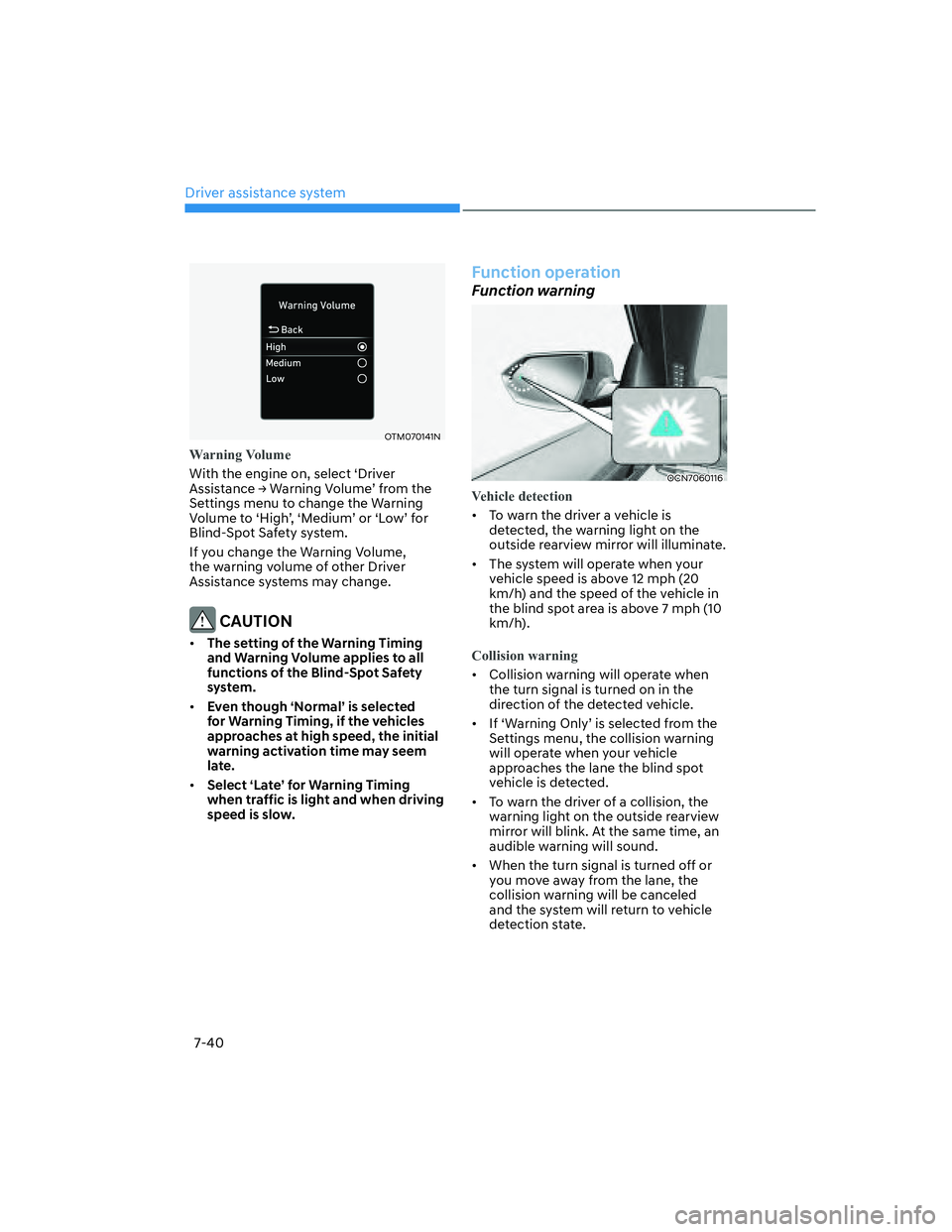

7-40
OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system
7-42
Function malfunction and
limitations
Function malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6DIHW\V\VWHPV
TZDUQLQJPHVVDJHZLOO
appear on the cluster, and the system
will turn off automatically, or the system
will be limited. We recommend that the
system be inspected by an authorized
HYUNDAI dealer.
OTM070100N
When the outside rearview mirror
warning light is not working properly, the

S&KHFNVLGHYLHZPLUURUZDUQLQJOLJKW
T
warning message will appear on the
cluster. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
System disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-Spot Safety
V\VWHPVGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The system will operate normally when
such foreign material or trailer, etc.
is removed, and then the engine is
restarted.
If the system does not operate normally
after it is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.

07
7-43
WARNING

[Even though the warning message
does not appear on the cluster, Blind-
Spot Safety system may not properly
operate.

[Blind-Spot Safety system may not
properly operate in an area (e.g. open
terrain), where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Blind-Spot Safety system to
install a trailer, carrier, etc., or remove
the trailer, carrier, etc. to use Blind-Spot
Safety system.
Limitations of the function
Blind-Spot Safety system may not
operate normally, or the system may
operate unexpectedly under the
following circumstances:

[There is inclement weather, such as
heavy snow, heavy rain, etc.

[The rear corner radar is covered with
snow, rain, dirt, etc.

[The temperature around the rear
corner radar is high or low

[Driving on a highway (or motorway)
ramp

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (i.e. possibly due to
subway construction)
[There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[Driving through a narrow road where
trees or grass are overgrown

[Driving on a wet road surface, such as
a puddle on the road

[The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity

[The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[Your vehicle passes by the other
vehicle

[Your vehicle changes lane

[Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[A trailer or carrier is installed around
the rear corner radar

[The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bumper guard, bike
rack, etc.

[The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

Driver assistance system

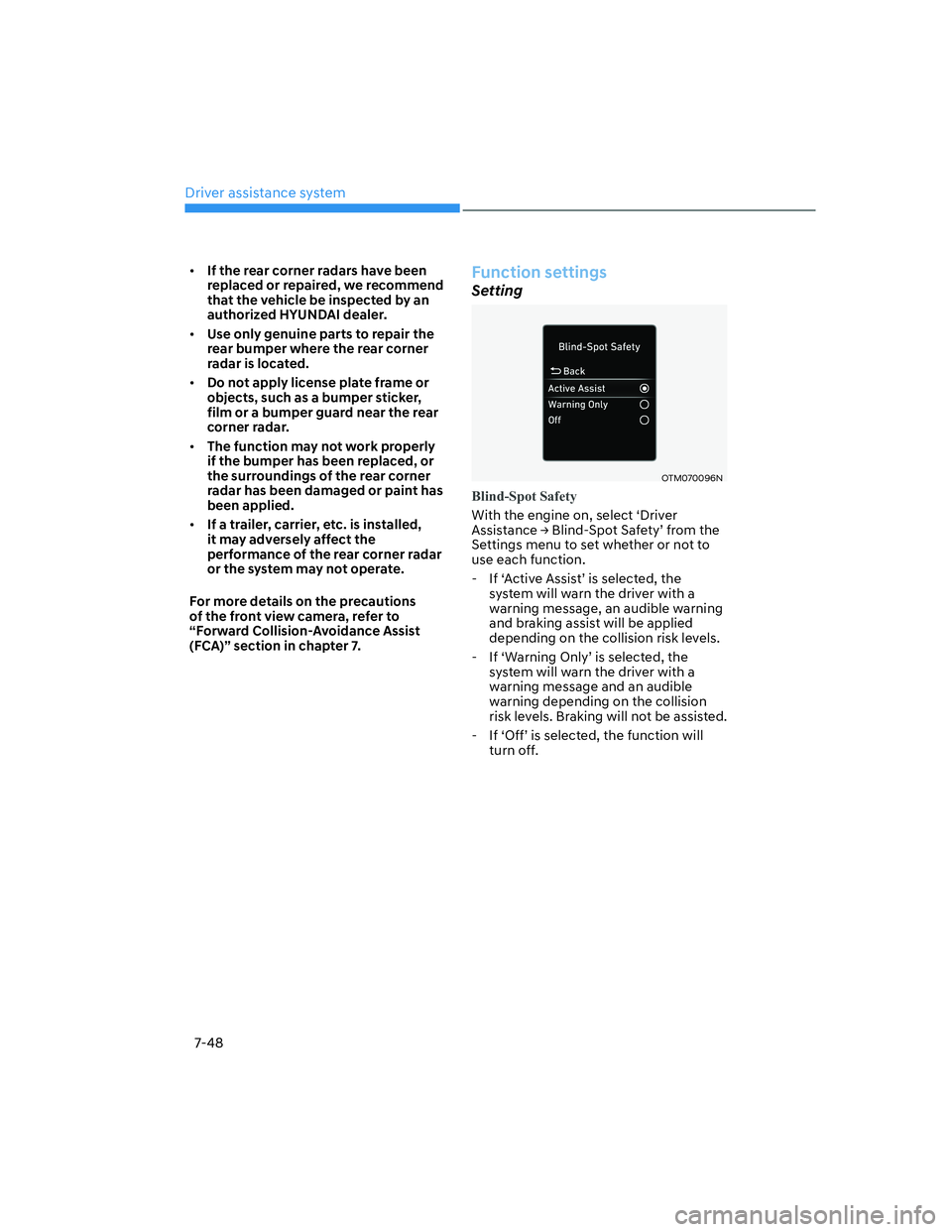

7-48

[If the rear corner radars have been
replaced or repaired, we recommend
that the vehicle be inspected by an
authorized HYUNDAI dealer.

[Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.

[The function may not work properly
if the bumper has been replaced, or
the surroundings of the rear corner
radar has been damaged or paint has
been applied.

[If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or the system may not operate.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.Function settings
Setting
OTM070096N
Blind-Spot Safety
With the engine on, select ‘Driver
$VVLVWDQFH

07

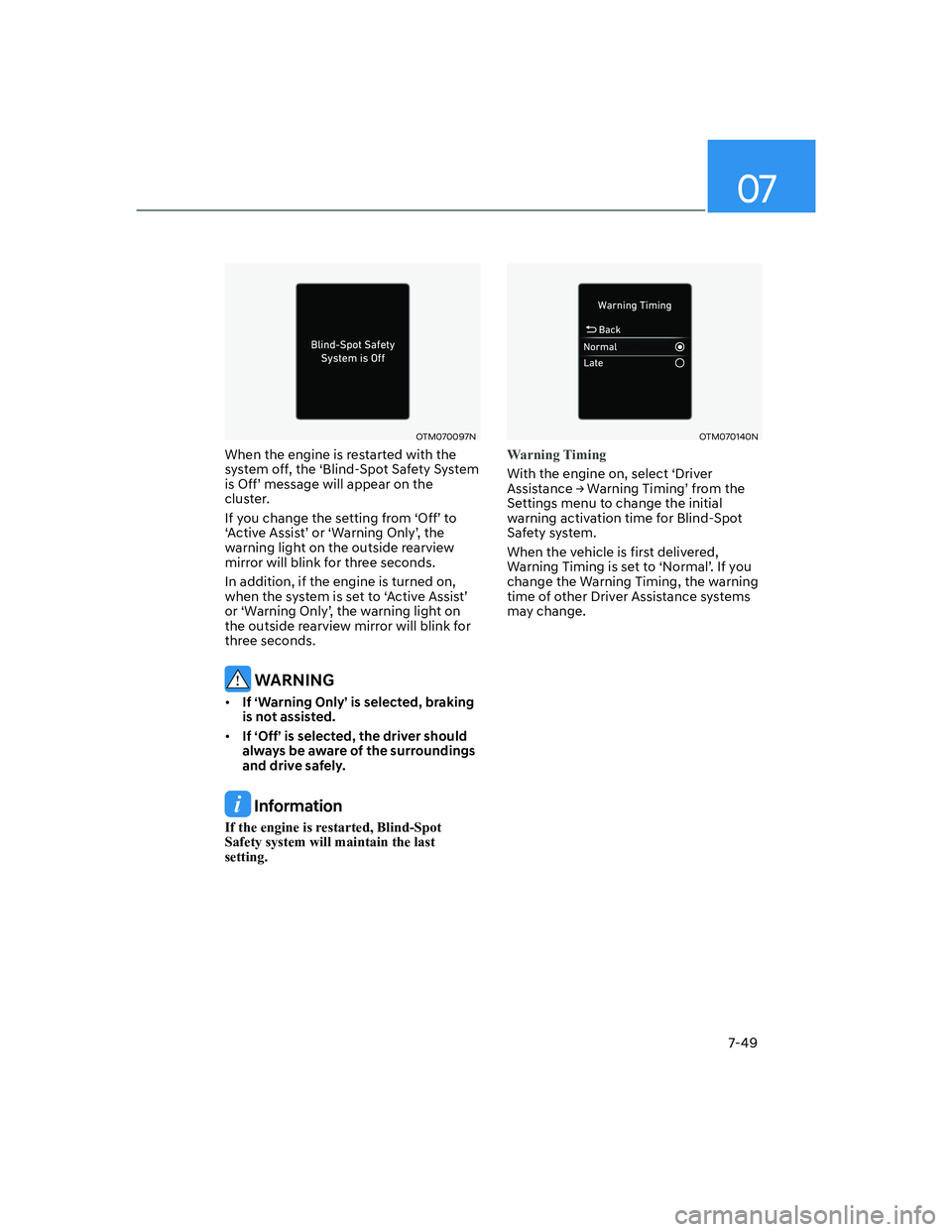

7-49
OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
LV2II
TPHVVDJHZLOODSSHDURQWKH
cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S$FWLYH$VVLVW
TRU
S:DUQLQJ2QO\
TWKH
warning light on the outside rearview
mirror will blink for three seconds.
In addition, if the engine is turned on,
ZKHQWKHV\VWHPLVVHWWR
S$FWLYH$VVLVW
T
RU
S:DUQLQJ2QO\
TWKHZDUQLQJOLJKWRQ
the outside rearview mirror will blink for
three seconds.
WARNING

[If ‘Warning Only’ is selected, braking
is not assisted.

[If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

Driver assistance system

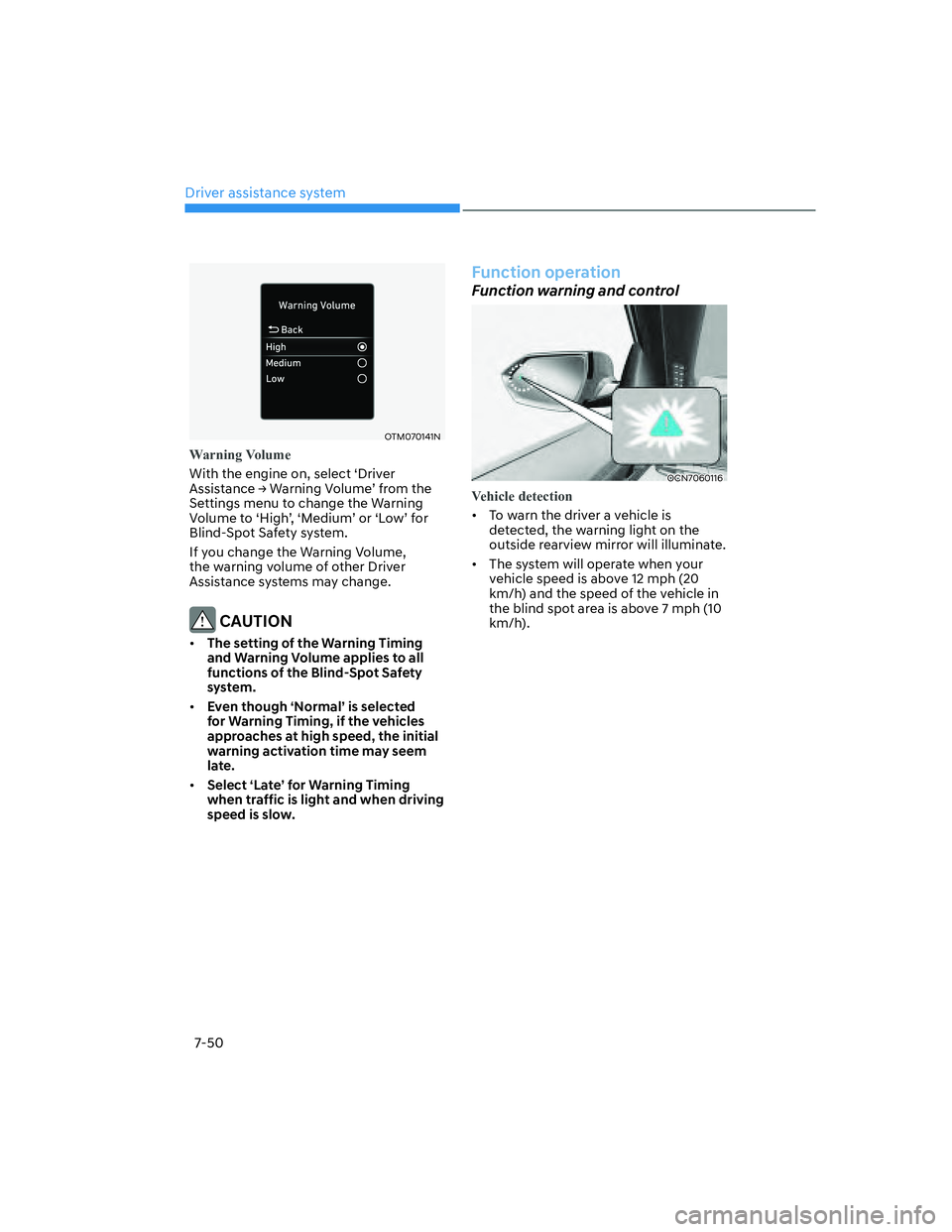

7-50
OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLVWDQFH
