2022 HYUNDAI ELANTRA engine

07
7-139
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Always keep the rear view camera
and rear ultrasonic sensors clean.

[Do not use any cleanser containing
acid or alkaline detergents when
cleaning the rear view camera lens.
Use only a mild soap or neutral
detergent, and rinse thoroughly with
water.

[Never disassemble or strike the rear
view camera or the rear ultrasonic
sensors components.

[Do not apply unnecessary force on
the rear view camera or the rear
ultrasonic sensors. The system may
not operate properly if the rear
view camera or the rear ultrasonic
sensor(s) is forcibly moved out of
proper alignment. We recommend
that the vehicle be inspected by an
authorized HYUNDAI dealer.

[Do not spray the rear view camera or
the rear ultrasonic sensors or their
surrounding area directly with a
high pressure washer. It may cause
the rear view camera or the rear
ultrasonic sensors to malfunction.

[The function may not work properly
if the bumper has been damaged,
replaced or repaired.

[Do not apply objects, such as a
bumper sticker or a bumper guard,
near the rear view camera or rear
ultrasonic sensors or apply paint to
the bumper. Doing so may adversely
affect the performance of the
function.

[Reverse Parking Collision-Avoidance
Assist may not operate normally if
interfered by strong electromagnetic
waves.
Function settings
Setting
OCN7070110N
Parking Safety
With the Engine Start/Stop button in the
ON position, select or deselect ‘Driver
$VVLVWDQFH

Driver assistance system
7-140

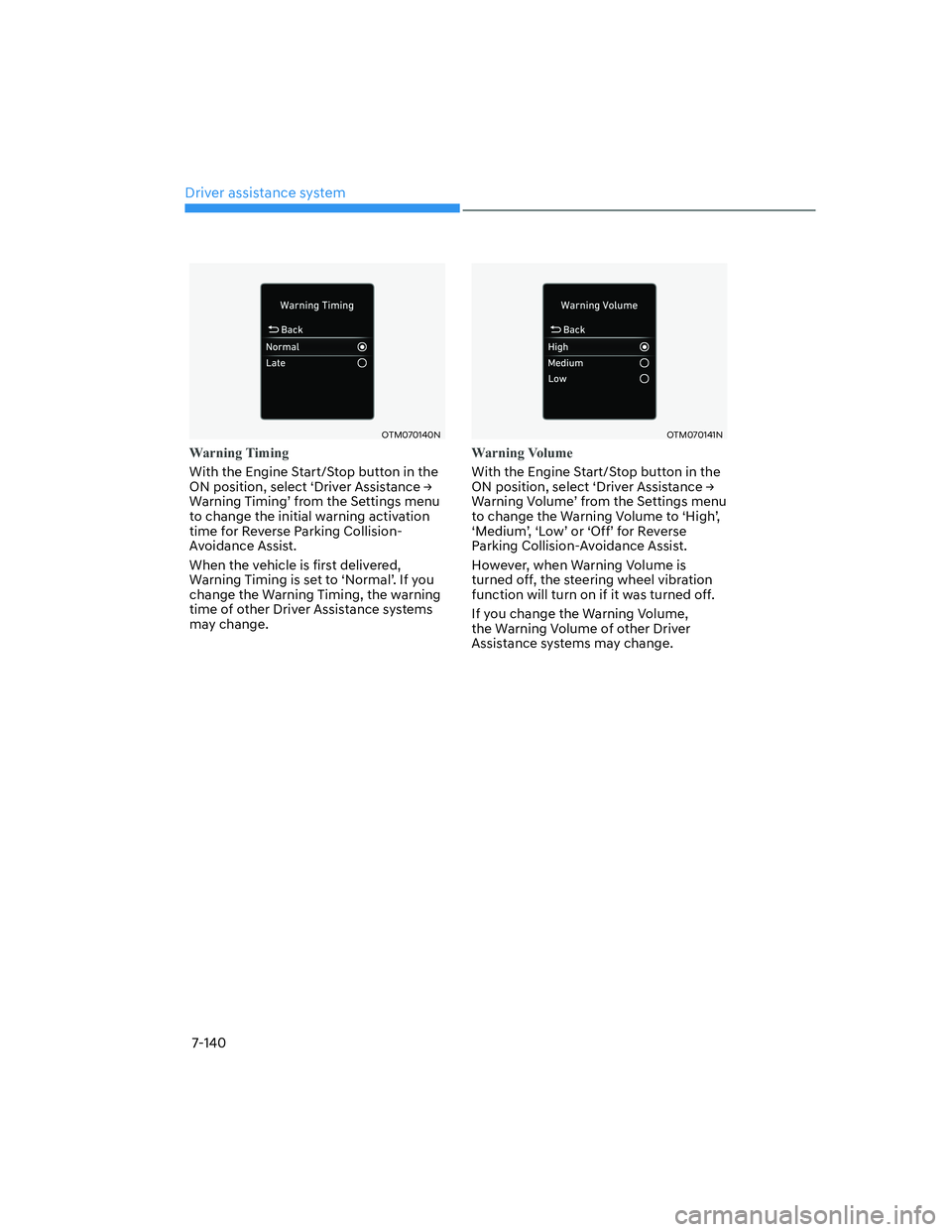

OTM070140N
Warning Timing
With the Engine Start/Stop button in the
21SRVLWLRQVHOHFW
S'ULYHU$VVLVWDQFH

Driver assistance system
7-144
Limitations of the function
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or rear ultrasonic
sensor installation has been modified

[Rear view camera or rear ultrasonic
sensor(s) is damaged

[Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.

[The surrounding is very bright or very
dark

[Outside temperature is very high or
very low

[The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

[There is ground height difference
between the vehicle and the
pedestrian

[The image of the pedestrian in the
rear view camera is indistinguishable
from the background
[The pedestrian is near the rear edge of
the vehicle

[The pedestrian is not standing upright

[The pedestrian is either very short or
very tall for the system to detect

[The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[The pedestrian is wearing clothing
that does not reflect ultrasonic waves
well

[Size, thickness, height, or shape of
the object does not reflect ultrasonic
waves well (e.g., pole, bush, curbs,
carts, edge of a wall, etc.)

[The pedestrian or the object is moving

[The pedestrian or the object is very
close to the rear of the vehicle

[A wall is behind the pedestrian or the
object

[The object is not located at the rear
center of your vehicle

[The object is not parallel to the rear
bumper

[The road is slippery or inclined

[The driver backs up the vehicle
immediately after shifting to R
(Reverse)

[The driver accelerates or circles the
vehicle

07
7-145
Reverse Parking Collision-Avoidance
Assist may unnecessarily warn the driver
or assist with braking even if there are
no pedestrians or objects under the
following circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or rear ultrasonic
sensor installation has been modified

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[The pattern on the road is mistaken
for a pedestrian

[There is shadow or light reflecting on
the ground

[Pedestrians or objects are around the
path of the vehicle

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[Your vehicle is backing towards a
narrow passage or parking space

[Your vehicle is backing towards an
uneven road surface, such as an
unpaved road, gravel, bump, gradient,
etc.

[A trailer or carrier is installed on the
rear of your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

Hazard Warning Flasher ................................................................................ 8-2
In Case of an Emergency While Driving ....................................................... 8-2
If the Engine Stalls While Driving ............................................................................ 8-2
If the Engine Stalls at a Crossroad or Crossing ...................................................... 8-2
If you Have a Flat Tire While Driving ....................................................................... 8-3
If the Engine Will not Start ............................................................................ 8-3If the Engine Doesn’t Turn Over or Turns Over Slowly ........................................... 8-3
If the Engine Turns Over Normally but Doesn’t Start ............................................. 8-3
Jump Starting ................................................................................................8-4
If the engine overheats ..................................................................................8-6
Tire Pressure Monitoring System (TPMS) ....................................................8-8
Check tire pressure ..................................................................................................8-8
Tire pressure monitoring system ............................................................................. 8-9
Low tire pressure telltale ....................................................................................... 8-10
Low tire pressure position and tire pressure telltale ............................................ 8-10
TPMS (Tire Pressure Monitoring System) malfunction indicator ......................... 8-12
Changing a tire with TPMS ..................................................................................... 8-12
If you Have a Flat Tire (With spare tire) ...................................................... 8-14Jack and Tools .........................................................................................................8-14
Changing Tires .........................................................................................................8-15
Towing ..........................................................................................................8-20
Towing Service ....................................................................................................... 8-20
Emergency Towing ................................................................................................. 8-21
Removable towing hook ......................................................................................... 8-21
Emergency towing ................................................................................................. 8-22
8. Emergency Situations
8

Emergency Situations
8-2
If the Engine Stalls While Driving

[Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[Turn on your hazard warning flasher.

[Try to start the engine again. If your
vehicle will not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Engine Stalls at a Crossroad
or Crossing
If the engine stalls at a crossroads or
crossing, if safe to do so, move the shift
button to the N (Neutral) position and
then push the vehicle to a safe location.
IN CASE OF AN EMERGENCY
WHILE DRIVING

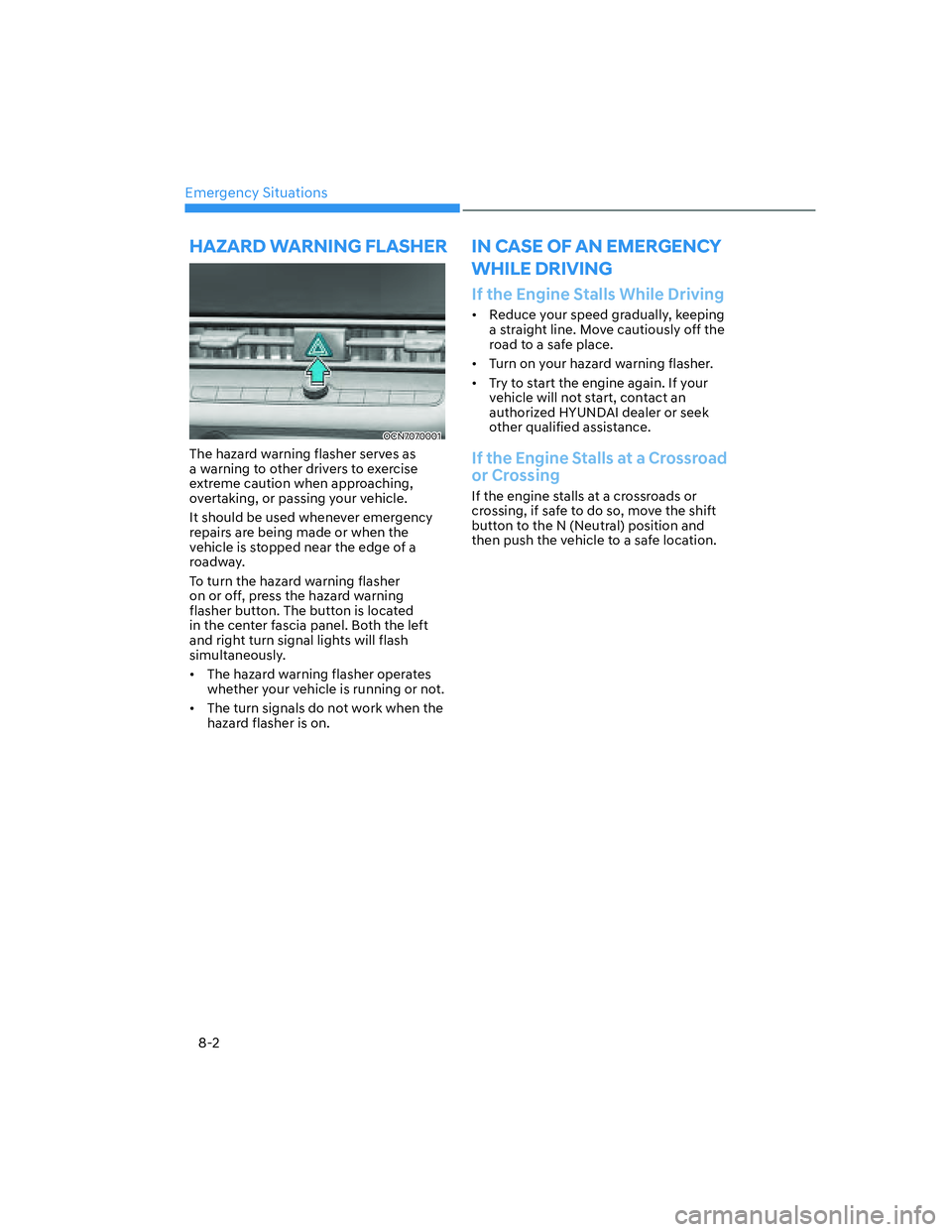

OCN7070001
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher
on or off, press the hazard warning
flasher button. The button is located
in the center fascia panel. Both the left
and right turn signal lights will flash
simultaneously.

[The hazard warning flasher operates
whether your vehicle is running or not.

[The turn signals do not work when the
hazard flasher is on.
HAZARD WARNING FLASHER

08
8-3
If you Have a Flat Tire While
Driving
If a tire goes flat while you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[When the vehicle is stopped, press the
hazard warning flasher button, move
the shift button into P (Park), and
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

[Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[When changing a flat tire, follow the
instructions provided later in this
chapter.
IF THE ENGINE WILL NOT
START
If the Engine Doesn’t Turn Over
or Turns Over Slowly

[Be sure the shift button is in N
(Neutral) or P (Park). The engine starts
only when the shift button is in N
(Neutral) or P (Park).

[Check the battery connections to be
sure they are clean and tight.

[Turn on the interior light. If the light
dims or goes out when you operate
the starter, the battery is drained.
Do not push or pull the vehicle to start it.
This could cause damage to your vehicle.
See instructions for “Jump Starting”
provided in this chapter.
CAUTION
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.
If the Engine Turns Over
Normally but Doesn’t Start
Check the fuel level and add fuel if
necessary.
If the engine still does not start, have
your vehicle checked by an authorized
HYUNDAI dealer.

Emergency Situations
8-4
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, we strongly recommend
that you have a service technician or
towing service do it for you.
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.

[When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[Do not attempt to jump start your
vehicle if your battery is frozen.

[NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[The electrical ignition system works
with high voltage. NEVER touch
these components with the engine
running or when the ignition switch
is in the ON position.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
NOTICE
To prevent damage to your vehicle:

[Only use a 12-volt power supply
(battery or jumper system) to jump
start your vehicle.

[Do not attempt to jump start your
vehicle by push-starting.
JUMP STARTING
