3-50
Seats & Safety System
Do Not Install a Child Restraint in the
Front Passenger’s Seat
OHI039193NOHI039193N
Even though your vehicle is equipped
with the OCS, never install a child
restraint in the front passenger’s seat.
An inflating air bag can forcefully strike a
child or child restraint resulting in serious
or fatal injury.
WARNING
• NEVER place a rear-facing or front-
facing child restraint in the front
passenger’s seat of the vehicle.
• An inflating frontal air bag could
forcefully strike a child resulting in
serious injury or death.
• Always properly restrain children in
an appropriate child restraint in the
rear seat of the vehicle.
Why Didn’t My Air Bag Go Off in
a Collision?
Air bags are not designed to inflate in
every collision. There are certain types
of accidents in which the air bag would
not be expected to provide additional
protection. These include rear impacts,
second or third collisions in multiple
impact accidents, as well as low speed
impacts. Damage to the vehicle indicates
a collision energy absorption, and is not
an indicator of whether or not an air bag
should have inflated.
WARNING
To reduce the risk of an air bag
deploying unexpectedly and causing
serious injury or death:
• Do not hit or allow any objects to
impact the locations where air bags
or sensors are installed.
• Do not perform maintenance on or
around the air bag sensors. If the
location or angle of the sensors is
altered, the air bags may deploy
when they should not or may not
deploy when they should.
• Do not install bumper guards or
replace the bumper with a non-
genuine HYUNDAI parts. This may
adversely affect the collision and air
bag deployment performance.
• Place the ignition switch in the
LOCK/OFF or ACC position when the
vehicle is being towed to prevent
inadvertent air bag deployment.
• Have all air bag repairs conducted by
an authorized HYUNDAI dealer.
CN7 HMA 3.indd 3-502020-12-03 9:02:15

03
3-55
Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON position
may cause the air bags to inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
OCN7030069NOCN7030069N
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.
CN7 HMA 3.indd 3-552020-12-03 9:02:20

07
7-15
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the detecting
sensor or sensor assembly, or apply
any impact on it.

[If the detecting sensors have been
replaced or repaired, we recommend
that you have your vehicle inspected
by an authorized HYUNDAI dealer.

[Never install any accessories or
stickers on the front windshield, or
tint the front windshield.

[Pay extreme caution to keep the
front view camera dry.

[Never place any reflective objects
(i.e. white paper, mirror) over the
dashboard. Any light reflection may
prevent the system from functioning
properly.

[Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard, near the
front radar cover.

[Always keep the front radar and
cover clean and free of dirt and
debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.
[If excessive force has been applied
to the radar or around the radar,
Forward Collision-Avoidance
Assist may not properly operate
even though a warning message
does not appear on the cluster. We
recommend that the vehicle be
inspected by an authorized HYUNDAI
dealer.

[Use only genuine parts to repair or
replace a damaged front radar cover.
Do not apply paint to the front radar
cover.

07
7-23
System disabled
OCN7070032LOCN7070033L
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety
V\VWHPV GLVDEOHG &DPHUD REVFXUHG
T RU
the ‘Forward Safety system(s) disabled.
5DGDU EORFNHG
T ZDUQLQJ PHVVDJH
and the
and warning lights will
illuminate on the cluster.
The function will operate normally when
when such snow, rain or foreign material
is removed.
If the function does not operate normally
after obstruction (snow, rain, or foreign
material) is removed, we recommend
that the function be inspected by an
authorized HYUNDAI dealer.
WARNING

[Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[Forward Collision-Avoidance Assist
may not properly operate in an area
(e.g. open terrain), where any objects
are not detected after turning ON the
engine.
Limitations of the function
Forward Collision-Avoidance Assist may
not operate normally, or the function
may operate unexpectedly under the
following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[The temperature around the front
view camera is high or low

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
material (sticker, bug, etc.) on the
glass

[Moisture is not removed or frozen on
the windshield

[Washer fluid is continuously sprayed,
or the wiper is on

[Driving in heavy rain or snow, or thick
fog

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[An object is placed on the dashboard

Driver assistance system

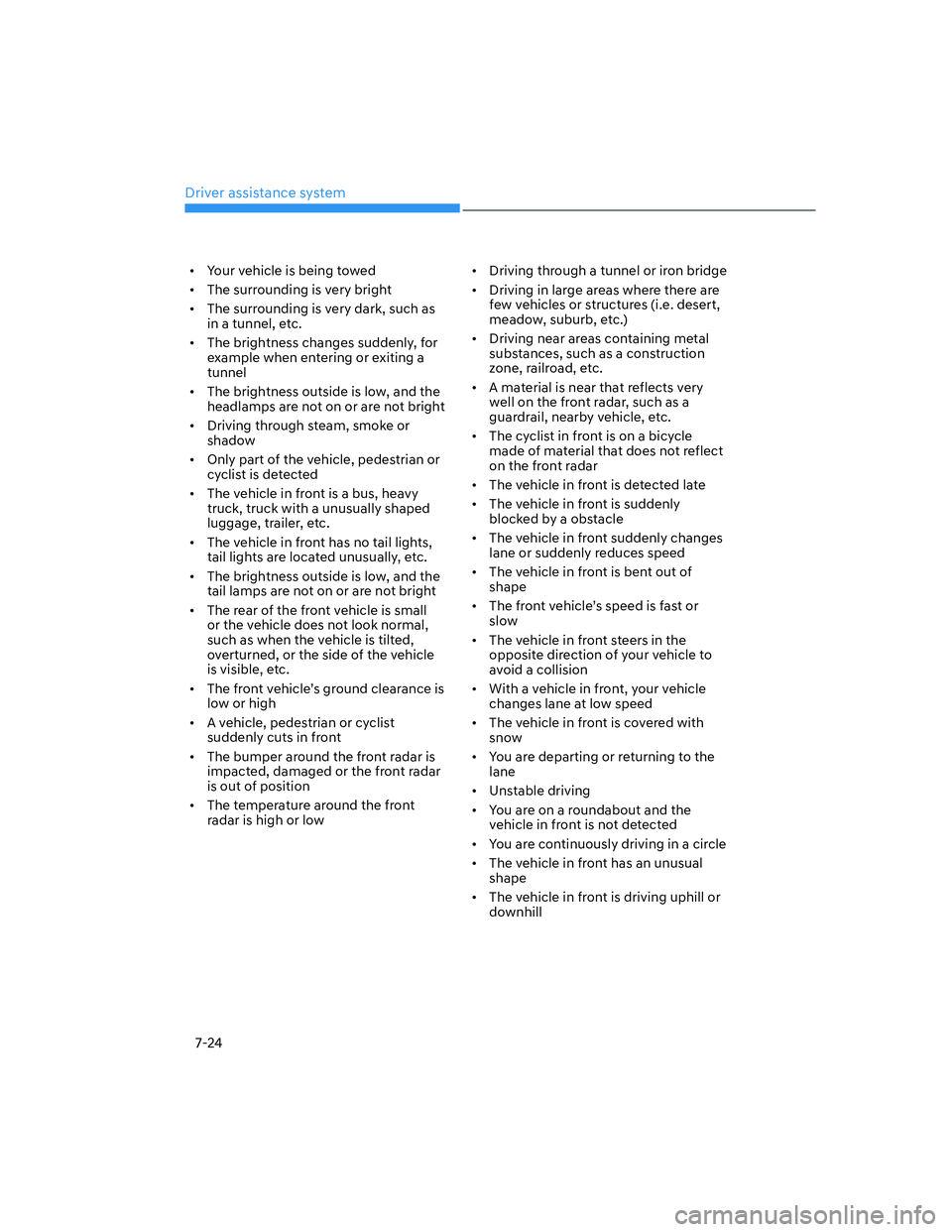

7-24

[Your vehicle is being towed

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving through steam, smoke or
shadow

[Only part of the vehicle, pedestrian or
cyclist is detected

[The vehicle in front is a bus, heavy
truck, truck with a unusually shaped
luggage, trailer, etc.

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visible, etc.

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV
low or high

[A vehicle, pedestrian or cyclist
suddenly cuts in front

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low
[Driving through a tunnel or iron bridge

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by a obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed

[The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU
slow

[The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[You are departing or returning to the
lane

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[The vehicle in front has an unusual
shape

[The vehicle in front is driving uphill or
downhill

Driver assistance system
7-38
Detecting sensor
OCN7060046[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the rear corner
radar or radar assembly, or apply any
impact on it.

[If the rear corner radars have been
replaced or repaired, we recommend
that the vehicle be inspected by an
authorized HYUNDAI dealer.

[If there is impact on the rear
corner radar or near the radar,
even though the warning message
does not appear on the cluster,
Blind-Spot Safety system may not
operate properly. We recommend
that the system be inspected by an
authorized HYUNDAI dealer.

[Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.
[The system may not work properly
if the bumper has been replaced, or
the surroundings of the rear corner
radar has been damaged or paint has
been applied.

[If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or the system may not operate.
Function settings
Setting
OCN7070037L
Blind-Spot Safety
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

Driver assistance system
7-42
Function malfunction and
limitations
Function malfunction
OTM070099N
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-Spot
6DIHW\V\VWHPV
TZDUQLQJPHVVDJHZLOO
appear on the cluster, and the system
will turn off automatically, or the system
will be limited. We recommend that the
system be inspected by an authorized
HYUNDAI dealer.
OTM070100N
When the outside rearview mirror
warning light is not working properly, the

S&KHFNVLGHYLHZPLUURUZDUQLQJOLJKW
T
warning message will appear on the
cluster. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
System disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-Spot Safety
V\VWHPVGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The system will operate normally when
such foreign material or trailer, etc.
is removed, and then the engine is
restarted.
If the system does not operate normally
after it is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.

07
7-43
WARNING

[Even though the warning message
does not appear on the cluster, Blind-
Spot Safety system may not properly
operate.

[Blind-Spot Safety system may not
properly operate in an area (e.g. open
terrain), where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Blind-Spot Safety system to
install a trailer, carrier, etc., or remove
the trailer, carrier, etc. to use Blind-Spot
Safety system.
Limitations of the function
Blind-Spot Safety system may not
operate normally, or the system may
operate unexpectedly under the
following circumstances:

[There is inclement weather, such as
heavy snow, heavy rain, etc.

[The rear corner radar is covered with
snow, rain, dirt, etc.

[The temperature around the rear
corner radar is high or low

[Driving on a highway (or motorway)
ramp

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (i.e. possibly due to
subway construction)
[There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[Driving through a narrow road where
trees or grass are overgrown

[Driving on a wet road surface, such as
a puddle on the road

[The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity

[The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[Your vehicle passes by the other
vehicle

[Your vehicle changes lane

[Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[A trailer or carrier is installed around
the rear corner radar

[The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bumper guard, bike
rack, etc.

[The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.
