2022 HONDA ODYSSEY Owners Manual

720
22 US ODYSSEY-31THR6400.book 720 ページ ２０２０年１１月１６日　月曜日　午後１時４１分This page intentionally left blank.

721

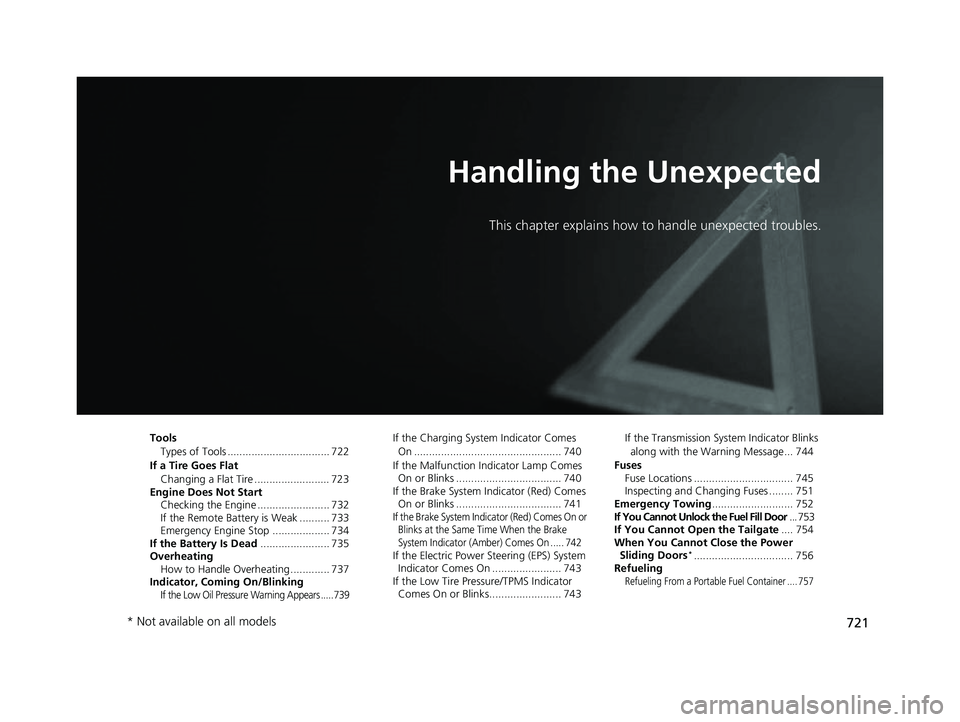

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 722
If a Tire Goes Flat Changing a Flat Tire ......................... 723
Engine Does Not Start Checking the Engine ........................ 732
If the Remote Battery is Weak .......... 733
Emergency Engine Stop ................... 734
If the Battery Is Dead ....................... 735
Overheating How to Handle Overheating ............. 737
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ..... 739
If the Charging System Indicator Comes
On ................................................. 740
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 740
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 741
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On ..... 742
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 743
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 743 If the Transmission System Indicator Blinks
along with the Warning Message... 744
Fuses Fuse Locations ................................. 745
Inspecting and Changing Fuses ........ 751
Emergency Towing ........................... 752
If You Cannot Unlock the Fuel Fill Door ... 753
If You Cannot Open the Tailgate .... 754
When You Cannot Close the Power Sliding Doors*................................. 756
Refueling
Refueling From a Portable Fuel Container .... 757
* Not available on all models
22 US ODYSSEY-31THR6400.book 721 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

722
Handling the Unexpected

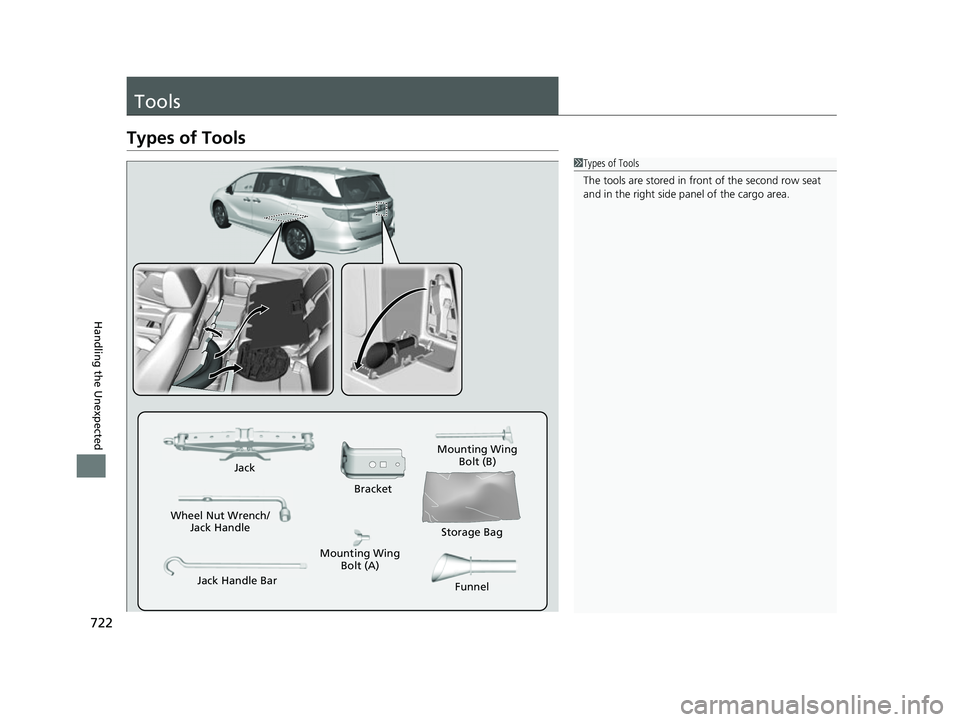

Tools
Types of Tools
1Types of Tools
The tools are stored in fr ont of the second row seat
and in the right side pa nel of the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle Bar Bracket
Mounting Wing
Bolt (B)
Mounting Wing Bolt (A) Storage Bag
Funnel
22 US ODYSSEY-31THR6400.book 722 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

723Continued
Handling the Unexpected

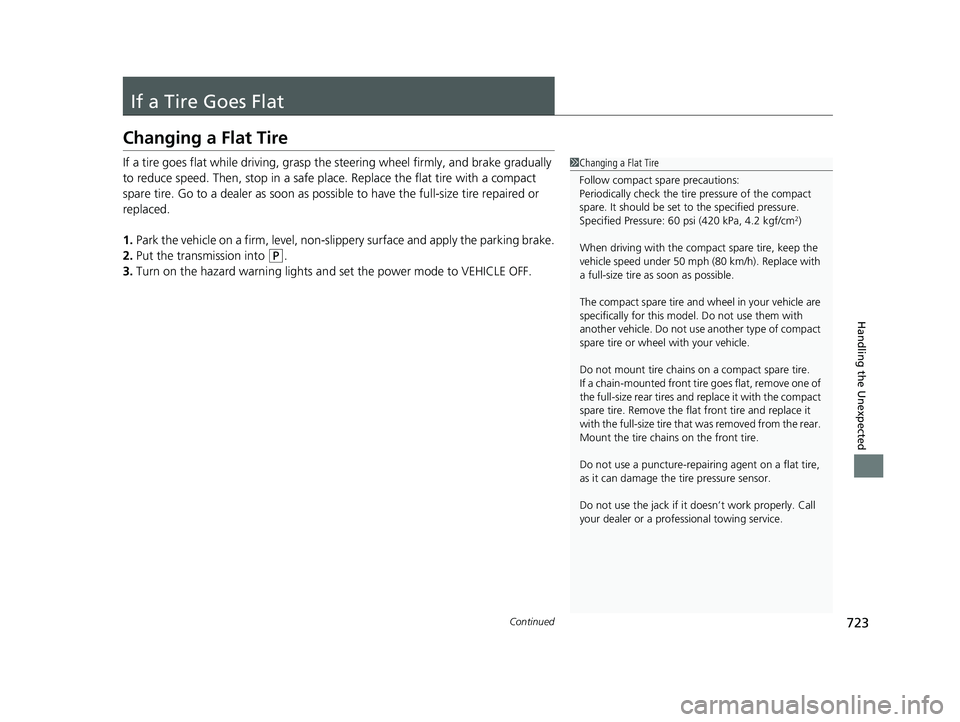

If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
22 US ODYSSEY-31THR6400.book 723 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

724
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

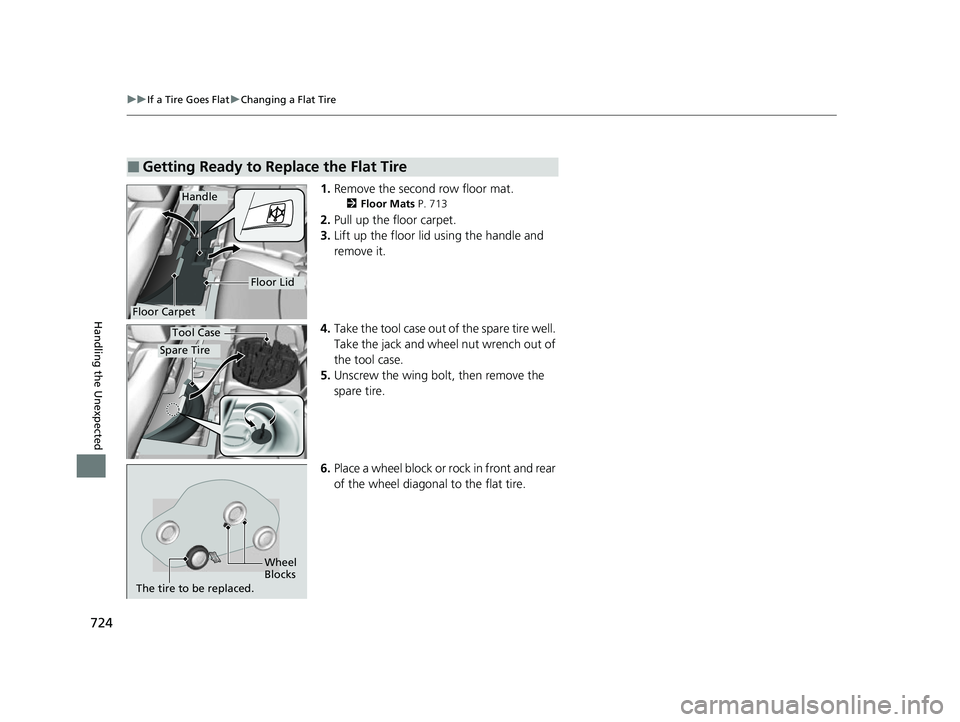

1. Remove the second row floor mat.
2 Floor Mats P. 713
2.Pull up the floor carpet.
3. Lift up the floor lid using the handle and
remove it.
4. Take the tool case out of the spare tire well.
Take the jack and wheel nut wrench out of
the tool case.
5. Unscrew the wing bolt, then remove the
spare tire.
6. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Floor Carpet
Handle
Floor Lid
Spare Tire
Tool Case
Wheel
Blocks
The tire to be replaced.
22 US ODYSSEY-31THR6400.book 724 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

725
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

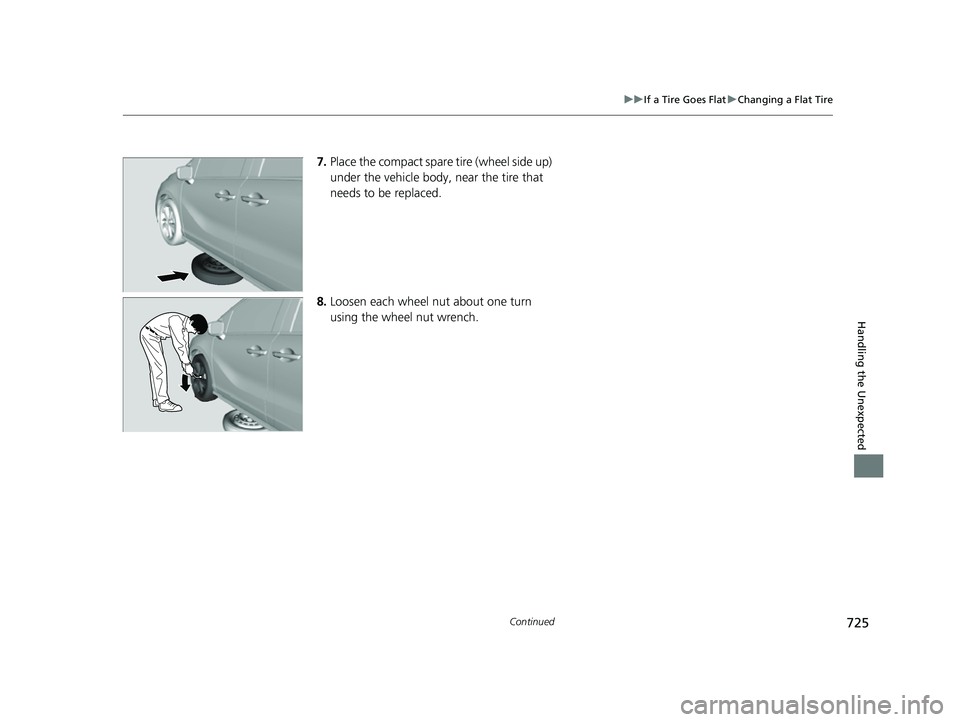

7. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
8. Loosen each wheel nut about one turn
using the wheel nut wrench.
22 US ODYSSEY-31THR6400.book 725 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuIf a Tire Goes Flat uChanging a Flat Tire
726
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
Turn off the sliding door main switch before
replacing a rear tire. If the main switch is on, the
power sliding door may acci dentally operate, causing
an accident.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Models with power sliding doors
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
22 US ODYSSEY-31THR6400.book 726 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

Continued727
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

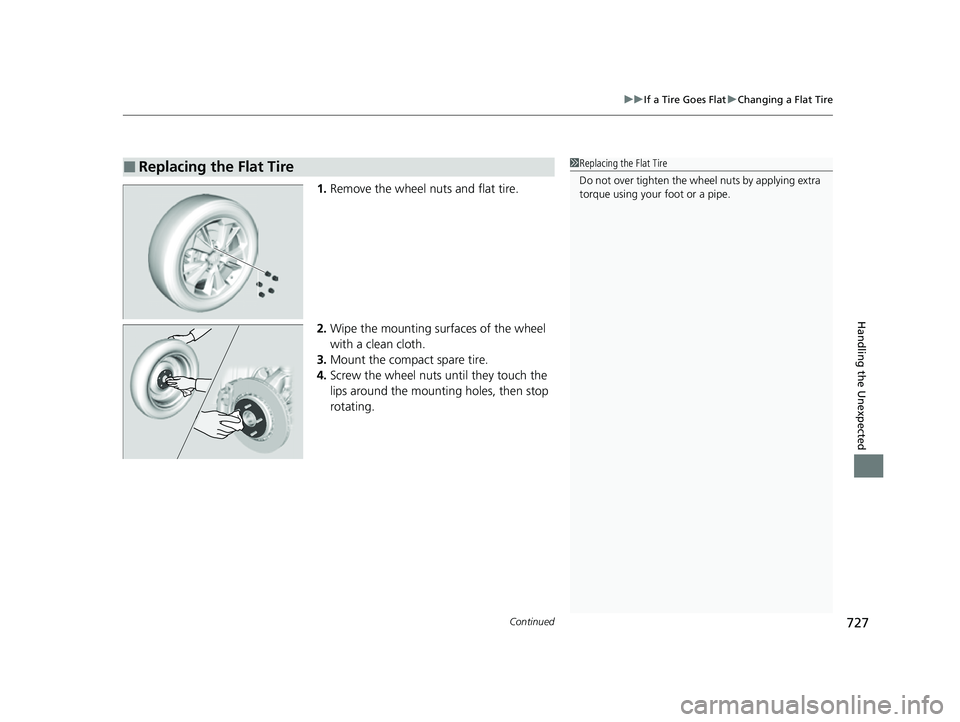

1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
22 US ODYSSEY-31THR6400.book 727 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
