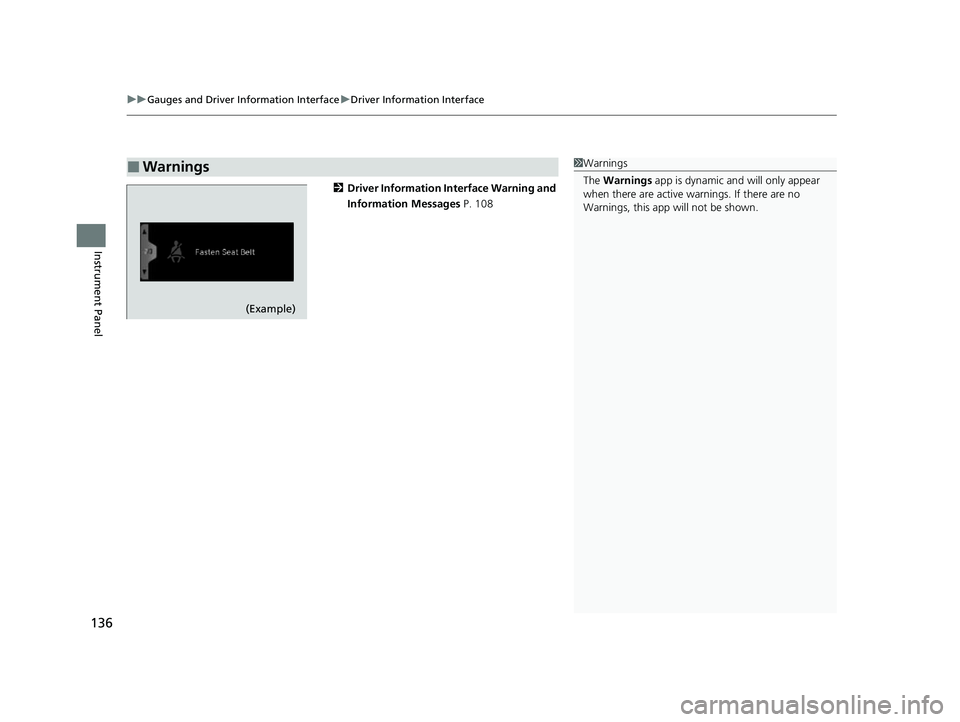

2022 HONDA ODYSSEY Owners Manual

uuGauges and Driver Information Interface uDriver Information Interface
136
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 108
■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
22 US ODYSSEY-31THR6400.book 136 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

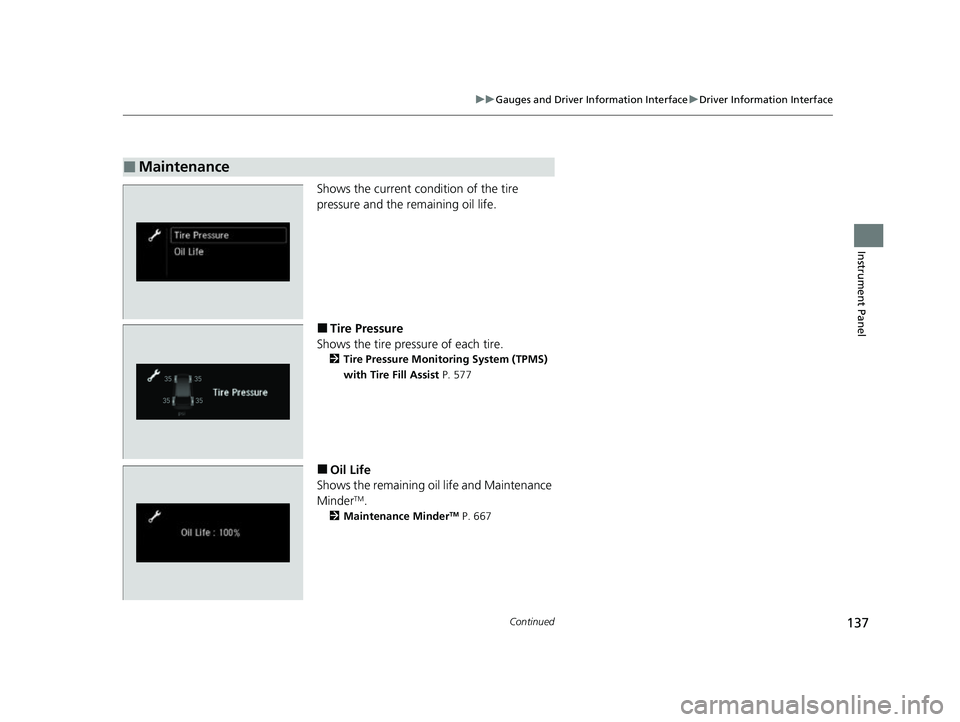

137
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist P. 577
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 667
■Maintenance
22 US ODYSSEY-31THR6400.book 137 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

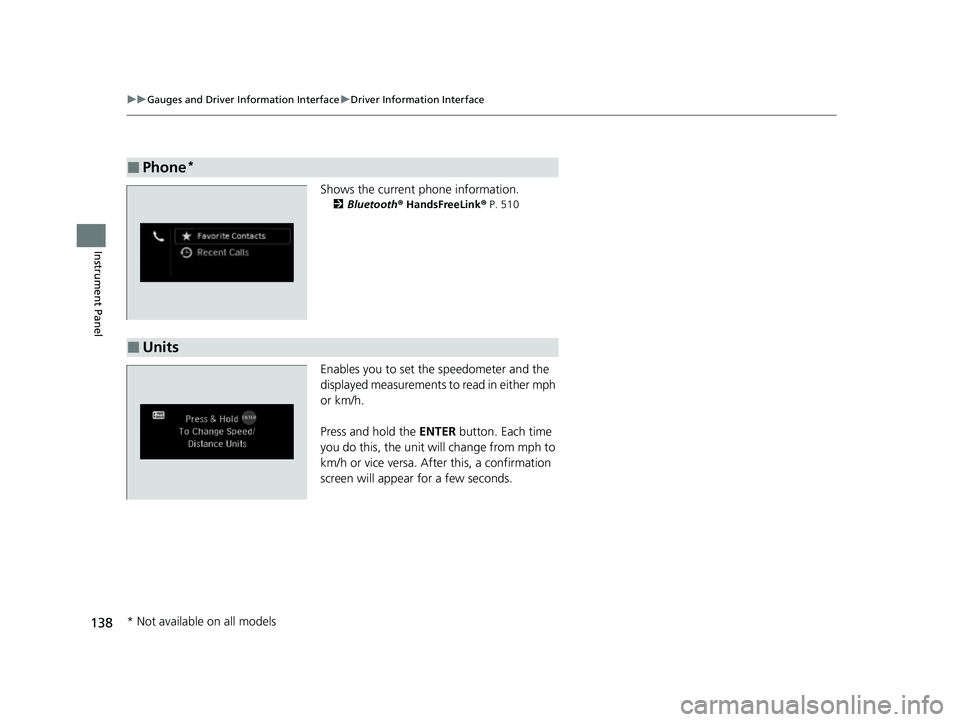

138
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 510
Enables you to set the speedometer and the
displayed measurements to read in either mph
or km/h.
Press and hold the ENTER button. Each time
you do this, the unit will change from mph to
km/h or vice versa. After this, a confirmation
screen will appear for a few seconds.
■Phone*
■Units
* Not available on all models
22 US ODYSSEY-31THR6400.book 138 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

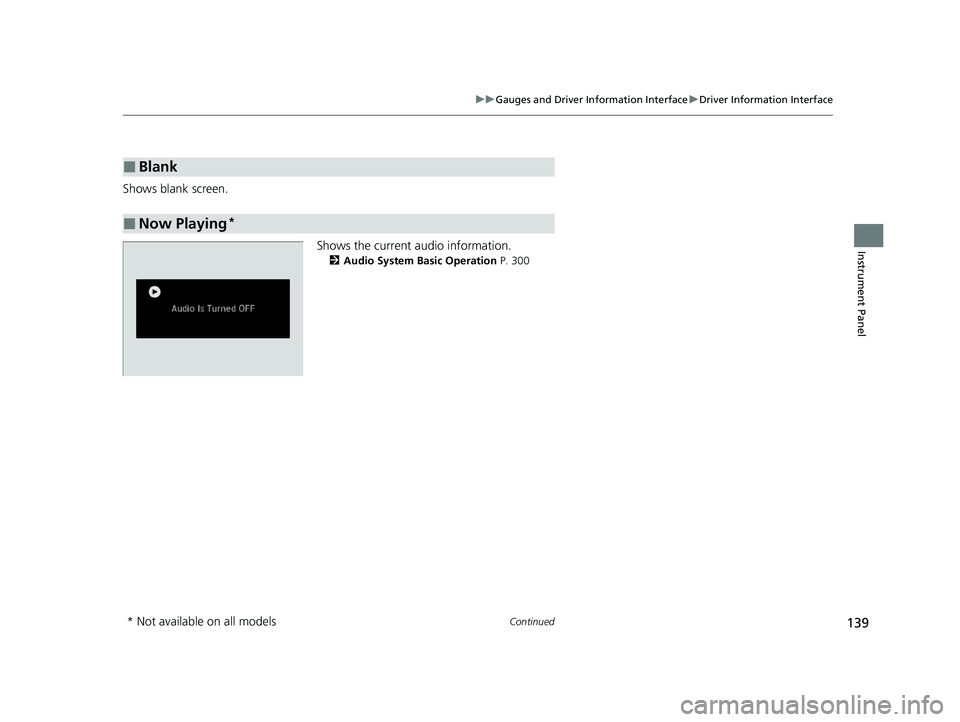

139
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows blank screen.
Shows the current audio information.
2Audio System Basic Operation P. 300
■Blank
■Now Playing*
* Not available on all models
22 US ODYSSEY-31THR6400.book 139 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

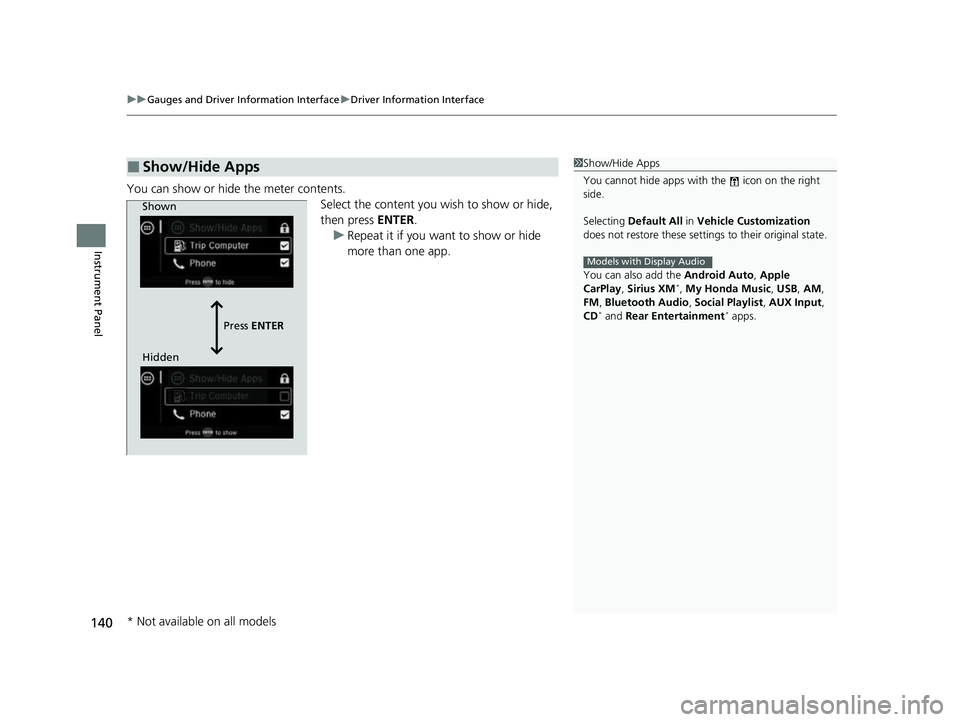

uuGauges and Driver Information Interface uDriver Information Interface
140
Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press ENTER.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB, AM,
FM , Bluetooth Audio , Social Playlist , AUX Input ,
CD
* and Rear Entertainment* apps.
Models with Display Audio
Shown
Press ENTER
Hidden
* Not available on all models
22 US ODYSSEY-31THR6400.book 140 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

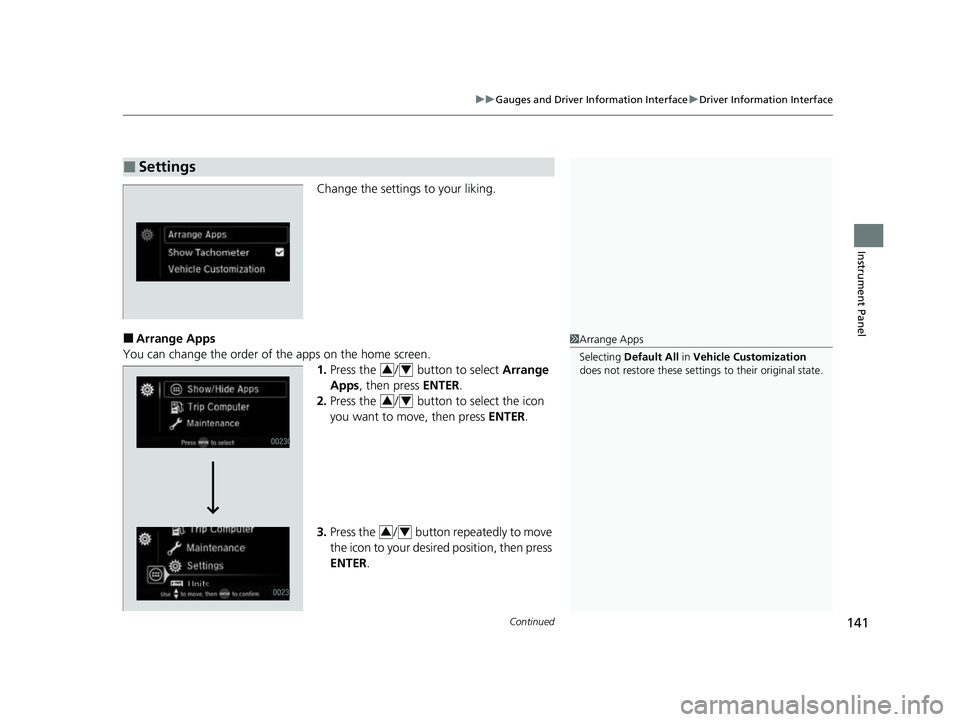

Continued141
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Change the settings to your liking.
■Arrange Apps
You can change the order of the apps on the home screen. 1.Press the / button to select Arrange
Apps , then press ENTER.
2. Press the / button to select the icon
you want to move, then press ENTER.
3. Press the / button repeatedly to move
the icon to your desired position, then press
ENTER .
■Settings
1Arrange Apps
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
34
34
34
22 US ODYSSEY-31THR6400.book 141 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

uuGauges and Driver Information Interface uDriver Information Interface
142
Instrument Panel
■Show Tachometer
You can show or hide the tachometer. Press the / button to select Show
Tachometer , then press ENTER.
u The tachometer appears when the check
box is checked.1Show Tachometer
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
34
22 US ODYSSEY-31THR6400.book 142 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

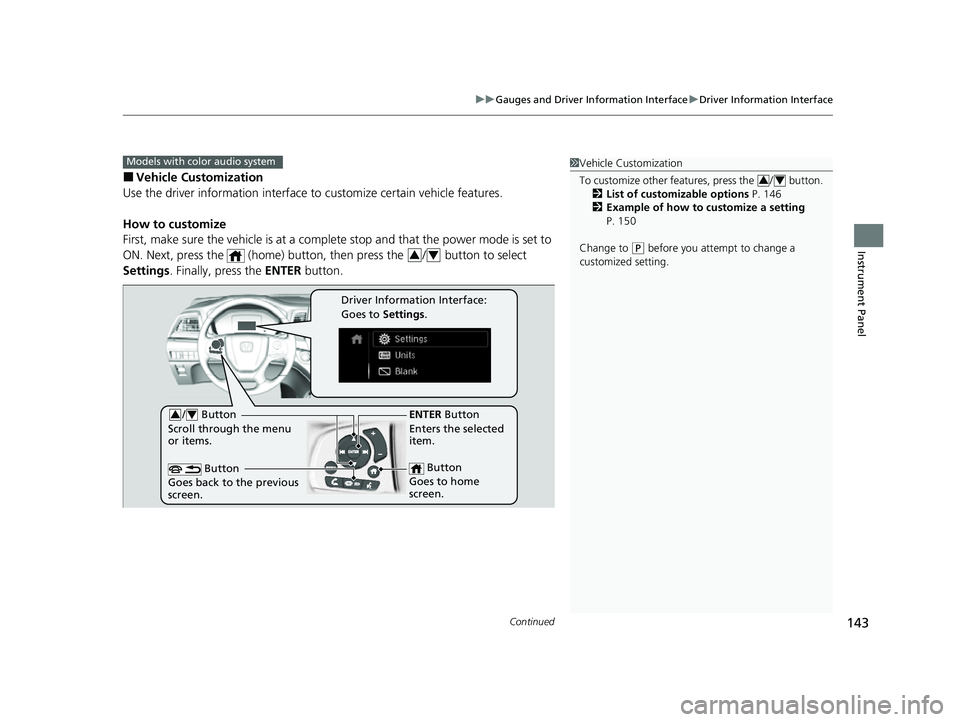

Continued143
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Vehicle Customization
Use the driver information interface to customize certain vehicle features.
How to customize
First, make sure the vehicle is at a complete stop and that the power mode is set to
ON. Next, press the (home) button, then press the / button to select
Settings . Finally, press the ENTER button.
Models with color audio system1Vehicle Customization
To customize other features, press the / button.
2 List of customizable options P. 146
2 Example of how to customize a setting
P. 150
Change to
( P before you attempt to change a
customized setting.
34
34
/ Button
Scroll through the menu
or items.34
Button
Goes back to the previous
screen.
ENTER Button
Enters the selected
item.
Button
Goes to home
screen.
Driver Information Interface:
Goes to Settings.
22 US ODYSSEY-31THR6400.book 143 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
