2022 HONDA ODYSSEY Owners Manual

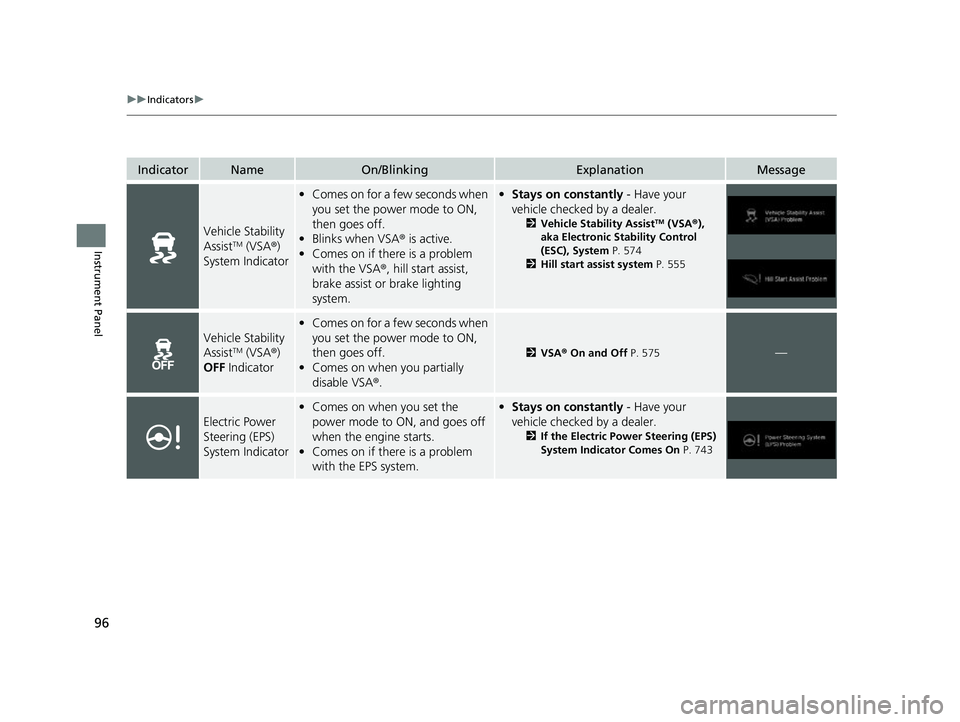

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
System Indicator
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Blinks when VSA ® is active.
• Comes on if there is a problem
with the VSA ®, hill start assist,
brake assist or brake lighting
system.• Stays on constantly - Have your
vehicle checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®),
aka Electronic Stability Control
(ESC), System P. 574
2 Hill start assist system P. 555
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on when you partially
disable VSA®.
2 VSA ® On and Off P. 575—
Electric Power
Steering (EPS)
System Indicator
•Comes on when you set the
power mode to ON, and goes off
when the engine starts.
• Comes on if there is a problem
with the EPS system.•Stays on constantly - Have your
vehicle checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 743
22 US ODYSSEY-31THR6400.book 96 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

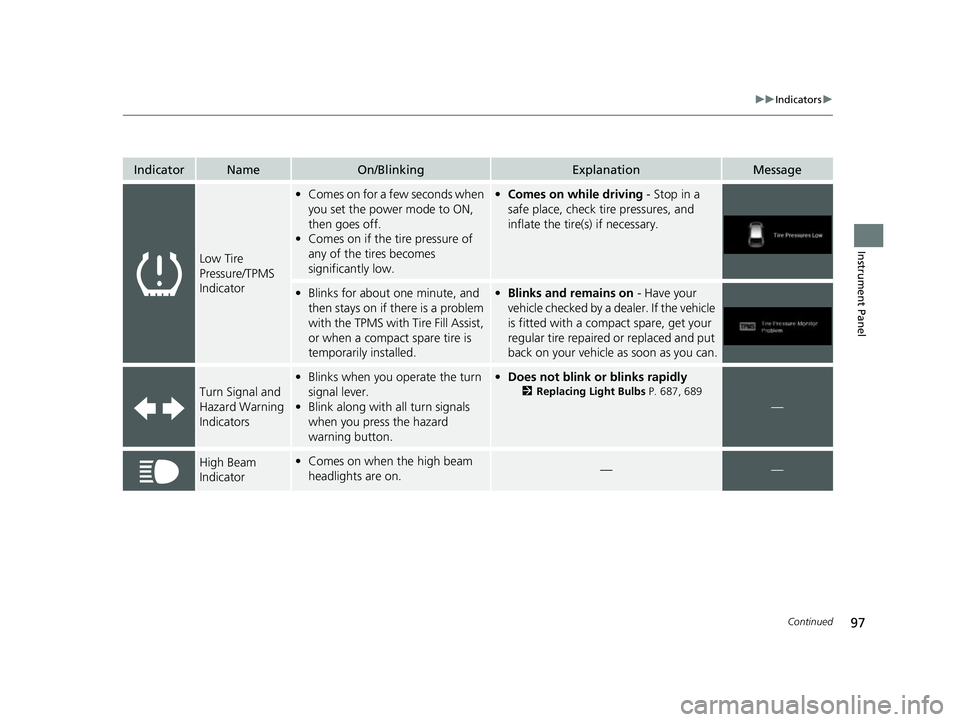

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if the tire pressure of
any of the tires becomes
significantly low.•Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
• Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill Assist,
or when a compact spare tire is
temporarily installed.•Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators
• Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard
warning button.• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 687, 689
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
22 US ODYSSEY-31THR6400.book 97 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

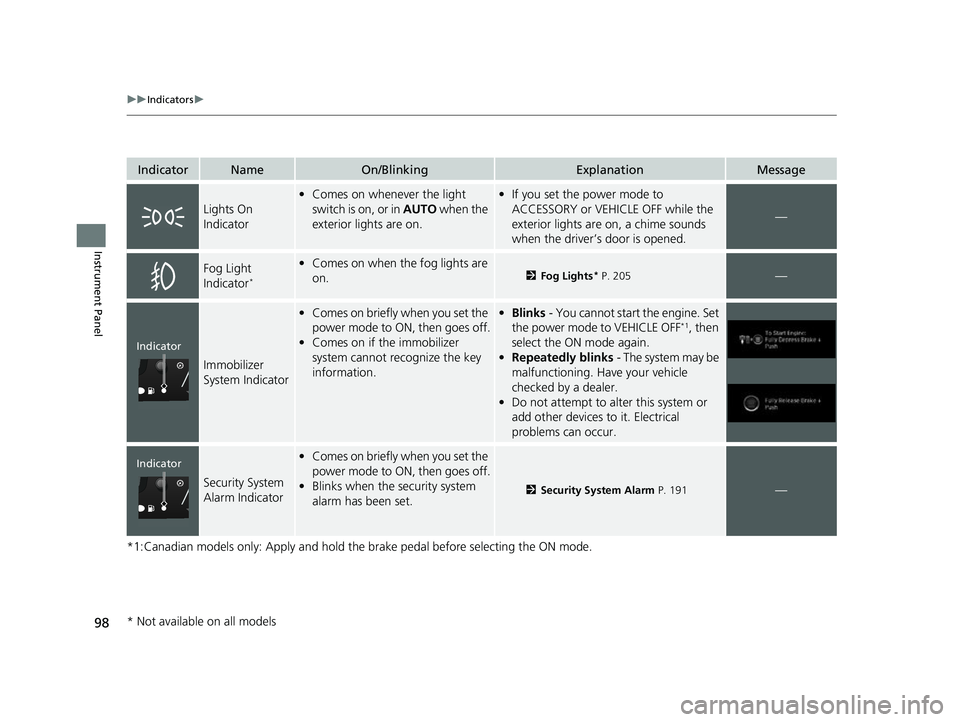

98
uuIndicators u
Instrument Panel
*1:Canadian models only: Apply and hold the brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.• If you set the power mode to
ACCESSORY or VEHICLE OFF while the
exterior lights are on, a chime sounds
when the driver’s door is opened.
—
Fog Light
Indicator*
• Comes on when the fog lights are
on.2 Fog Lights* P. 205—
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Comes on if the immobilizer
system cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
Security System
Alarm Indicator
• Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 191—
Indicator
Indicator
* Not available on all models
22 US ODYSSEY-31THR6400.book 98 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
•Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.•While the indicator is on, press the
(home) button, select Warnings, then
press the ENTER button to see the
message again.
• Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
• The driver information interface does not
return to the norma l screen unless the
warning is canceled, or the ENTER
button is pressed repeatedly.
—
Econ Mode
Indicator• Comes on when you press the
ECON button.
2ECON Button P. 572
Snow Mode
Indicator• Comes on when you press the
SNOW button and snow mode is
selected.2 Intelligent Traction Management
P. 573
Normal Mode
Indicator
• Comes on for a few seconds when
Snow mode is selected, and the
vehicle is powered off, then
restarted.
2 Intelligent Traction Management
P. 573—
22 US ODYSSEY-31THR6400.book 99 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator (Green)•Comes on when Auto Idle Stop is
in operation. The engine
automatically shuts off.
2 Auto Idle Stop P. 566—
Auto Idle Stop
OFF Indicator
•Comes on when th e Auto Idle
Stop system has been turned off
by the Auto Idle Stop OFF Button.
2Auto Idle Stop System ON/OFF
P. 567
Auto Idle Stop
System Indicator
(Amber)
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
——
•Blinks if there is a problem with
the Auto Idle Stop system.•Blinks - Have your vehicle checked by a
dealer.
22 US ODYSSEY-31THR6400.book 100 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

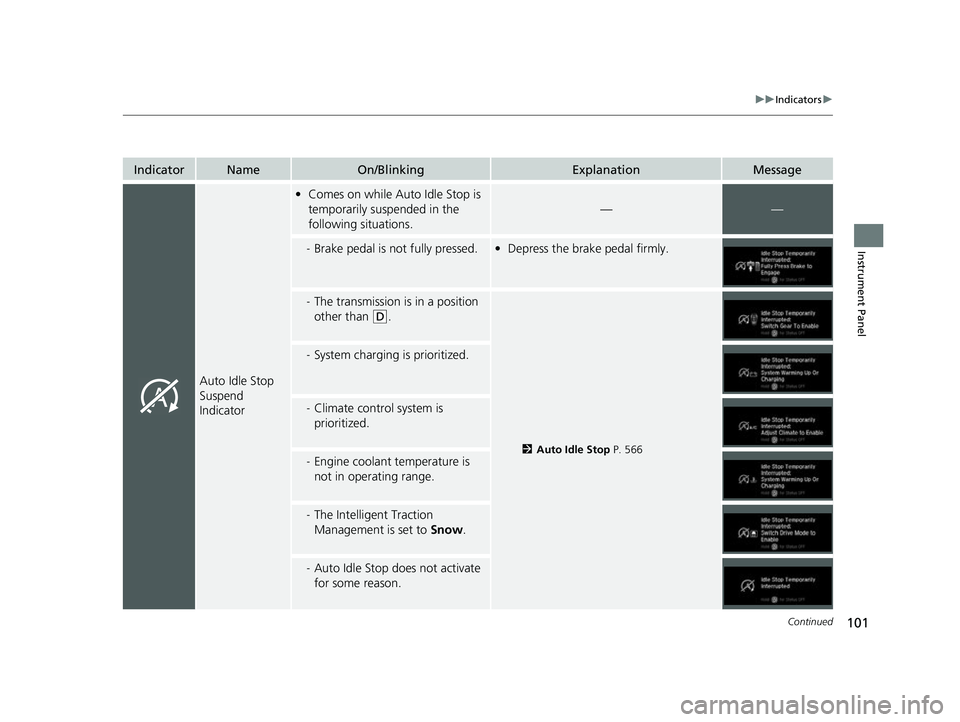

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Suspend
Indicator
•Comes on while Auto Idle Stop is
temporarily suspended in the
following situations.
——
-Brake pedal is not fully pressed.• Depress the brake pedal firmly.
-The transmission is in a position
other than
(D.
2 Auto Idle Stop P. 566
-System charging is prioritized.
-Climate control system is
prioritized.
-Engine coolant temperature is
not in operating range.
-The Intellig ent Traction
Management is set to Snow.
-Auto Idle Stop does not activate
for some reason.
22 US ODYSSEY-31THR6400.book 101 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

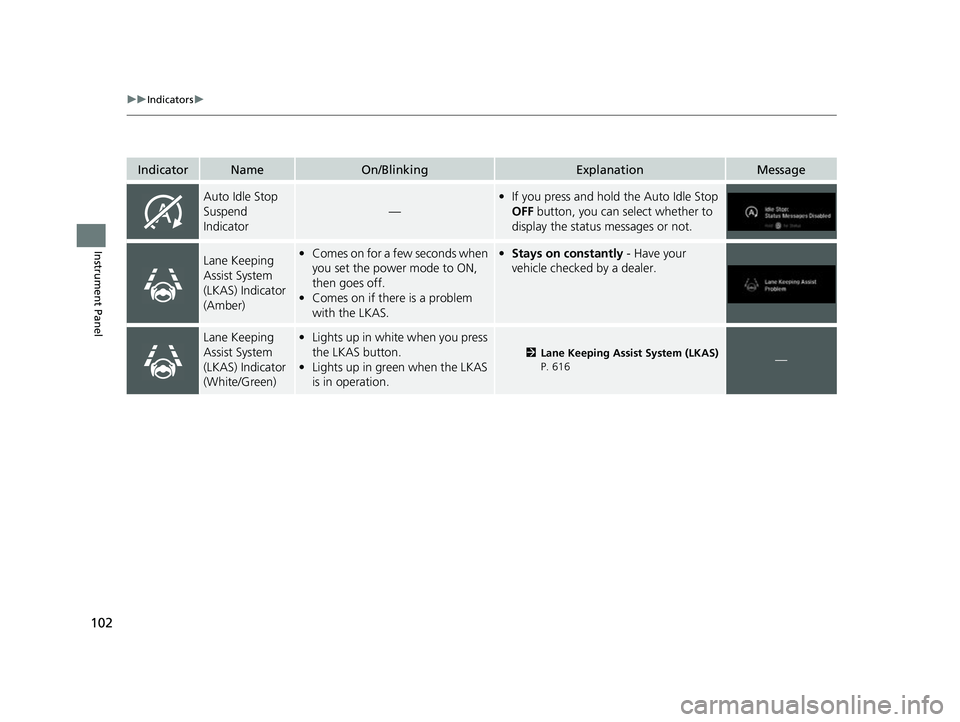

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Suspend
Indicator
—
•If you press and hold the Auto Idle Stop
OFF button, you can select whether to
display the status messages or not.
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with the LKAS.•Stays on constantly - Have your
vehicle checked by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)• Lights up in white when you press
the LKAS button.
• Lights up in green when the LKAS
is in operation.
2 Lane Keeping Assist System (LKAS)
P. 616—
22 US ODYSSEY-31THR6400.book 102 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(Amber)
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with ACC with Low Speed Follow.•Comes on while driving - Have your
vehicle checked by a dealer.
• Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
• ACC with Low Speed Follow has
been automatically canceled.•Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 541
•Stays on constantly - Have your
vehicle checked by a dealer.
—
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(White/Green)• Lights up in white when you press
the button.
• Lights up in green when you press
the RES/+ button or -/SET button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 600—
22 US ODYSSEY-31THR6400.book 103 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
