2022 HONDA ODYSSEY Owners Manual

16
Quick Reference Guide

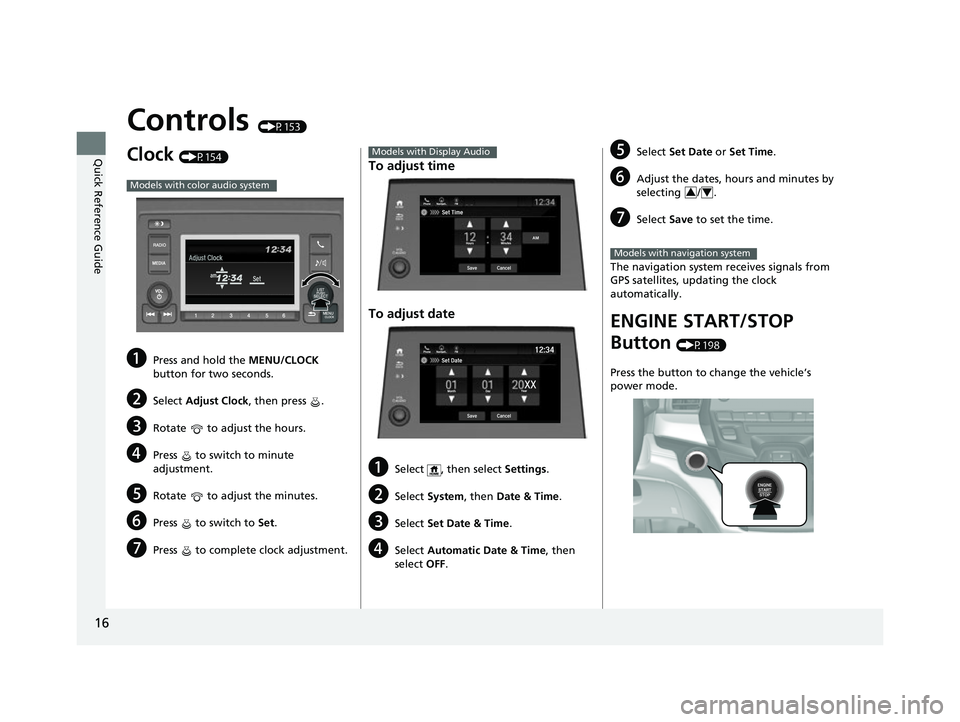

Controls (P153)
Clock (P154)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock, then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio system
To adjust time
To adjust date
aSelect , then select Settings .
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
Models with Display Audio
Set DateBlu-Ray
Save
Month DayYearXX
Cancel
Phone Navigati.. FM12:34
eSelect
Set Date or Set Time .
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P198)
Press the button to change the vehicle’s
power mode.
34
Models with navigation system
22 US ODYSSEY-31THR6400.book 16 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

17
Quick Reference Guide
Turn Signals (P201)
Lights (P202)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P210)
*1:Models with automatic intermittent wipers
*2:Models without au tomatic intermittent
wipers
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
( -: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P218)
To adjust, push the adjustment lever down,
adjust to the desired position, then pull up
the lever back in place.
LeverTo lock
To adjust
22 US ODYSSEY-31THR6400.book 17 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

18
Quick Reference Guide

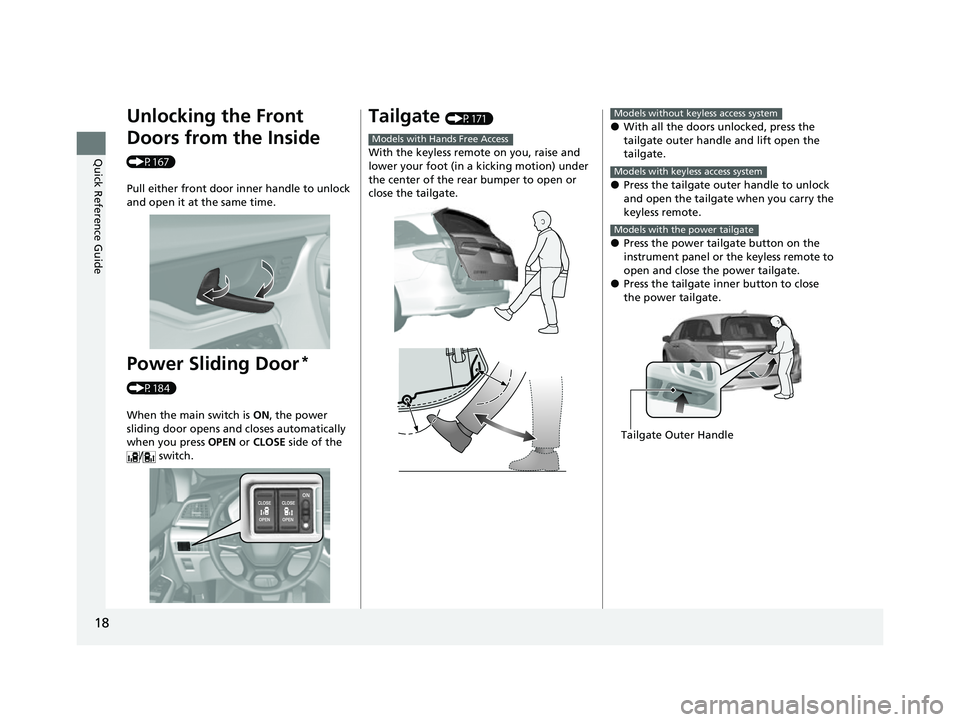

Unlocking the Front
Doors from the Inside
(P167)Pull either front door inner handle to unlock
and open it at the same time.
Power Sliding Door*
(P184)
When the main switch is ON, the power
sliding door opens and closes automatically
when you press OPEN or CLOSE side of the
/ switch.
Tailgate (P171)
With the keyless remote on you, raise and
lower your foot (in a kicking motion) under
the center of the rear bumper to open or
close the tailgate.
Models with Hands Free Access●With all the doors unlocked, press the
tailgate outer handle and lift open the
tailgate.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless remote.
●Press the power tailgate button on the
instrument panel or the keyless remote to
open and close the power tailgate.
●Press the tailgate inner button to close
the power tailgate.
Models without ke yless access system
Models with keyless access system
Models with the power tailgate
Tailgate Outer Handle
22 US ODYSSEY-31THR6400.book 18 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

19
Quick Reference Guide

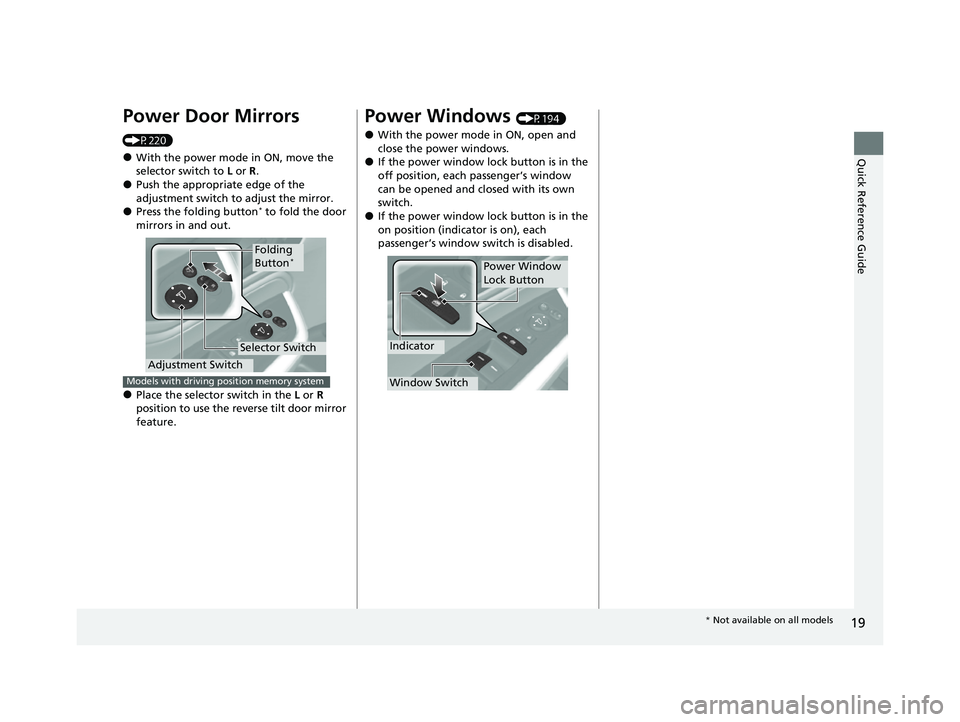

Power Door Mirrors
(P220)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold the door
mirrors in and out.
●Place the selector switch in the L or R
position to use the reverse tilt door mirror
feature.
Selector Switch
Adjustment Switch
Folding
Button*
Models with driving position memory system
Power Windows (P194)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch
Indicator
* Not available on all models
22 US ODYSSEY-31THR6400.book 19 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

20
Quick Reference Guide

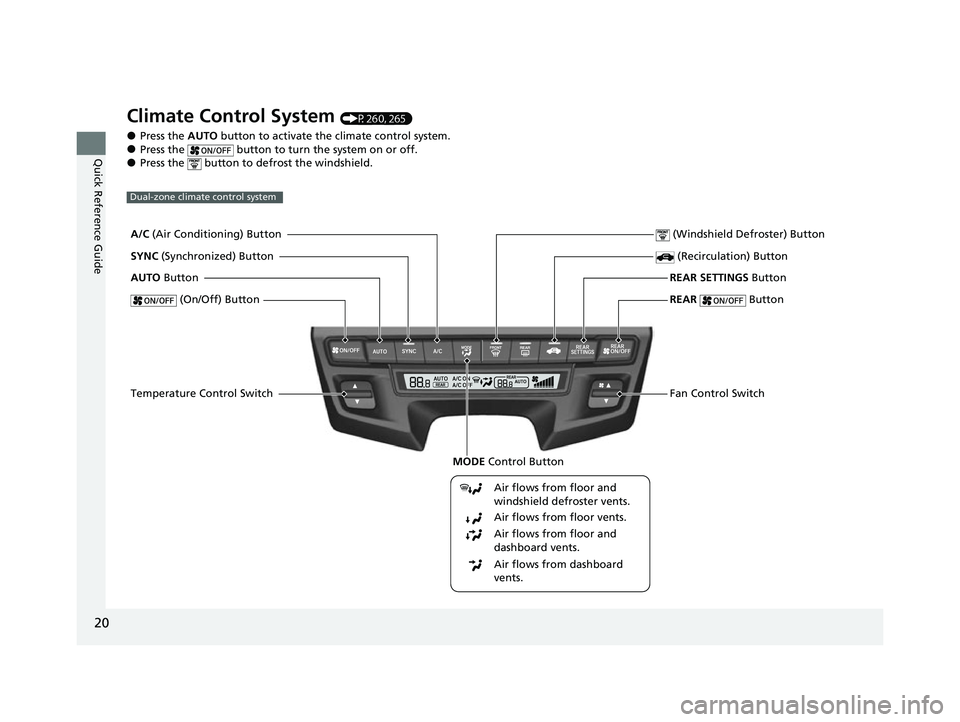

Climate Control System (P260, 265)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Dual-zone climate control system
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
A/C (Air Conditioning) Button
MODE Control Button
SYNC (Synchronized) Button
AUTO Button
(On/Off) Button
Temperature Control Switch (Windshield Defroster) Button
(Recirculation) Button
REAR SETTINGS Button
REAR
Button
Fan Control Switch
22 US ODYSSEY-31THR6400.book 20 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

21
Quick Reference Guide

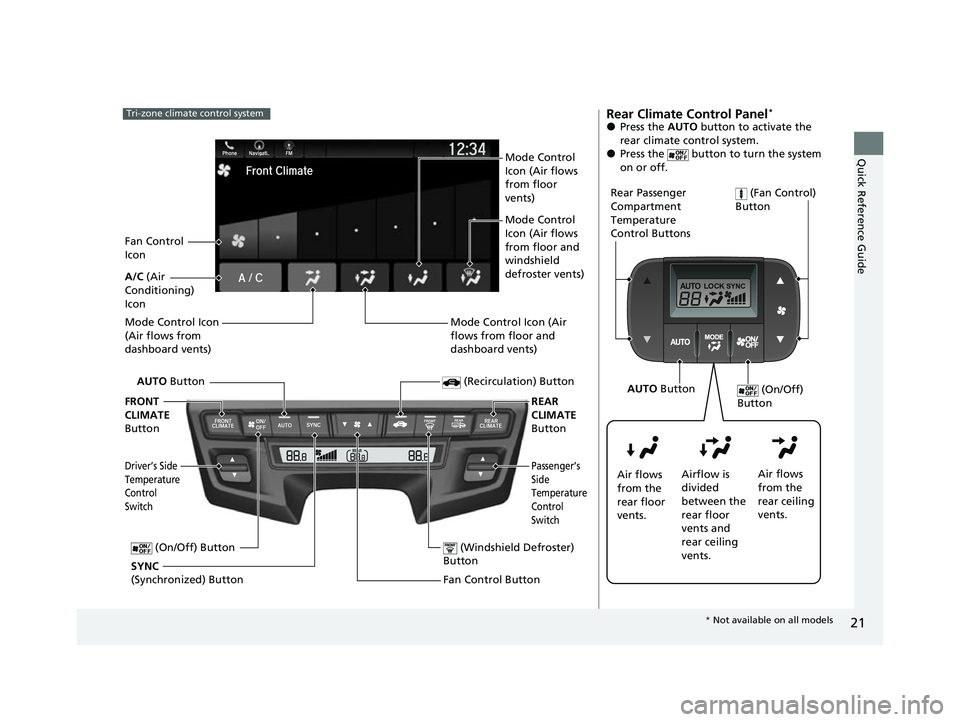

Tri-zone climate control system
Fan Control Button (Windshield Defroster)
Button
A/C (Air
Conditioning)
Icon
(Recirculation) Button
Passenger’s
Side
Temperature
Control
Switch
AUTO Button
Driver’s Side
Temperature
Control
Switch
Mode Control Icon
(Air flows from
dashboard vents)
SYNC
(Synchronized) Button (On/Off) Button
FRONT
CLIMATE

Button REAR
CLIMATE

Button
Fan Control
Icon Mode Control
Icon (Air flows
from floor
vents)
Mode Control
Icon (Air flows
from floor and
windshield
defroster vents)
Mode Control Icon (Air
flows from floor and
dashboard vents)
Rear Climate Control Panel*
●Press the AUTO button to activate the
rear climate control system.
●Press the button to turn the system
on or off.
Rear Passenger
Compartment
Temperature
Control Buttons (Fan Control)
Button
Air flows
from the
rear floor
vents. Airflow is
divided
between the
rear floor
vents and
rear ceiling
vents. Air flows
from the
rear ceiling
vents. (On/Off)
Button
AUTO Button
* Not available on all models
22 US ODYSSEY-31THR6400.book 21 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

22
Quick Reference Guide

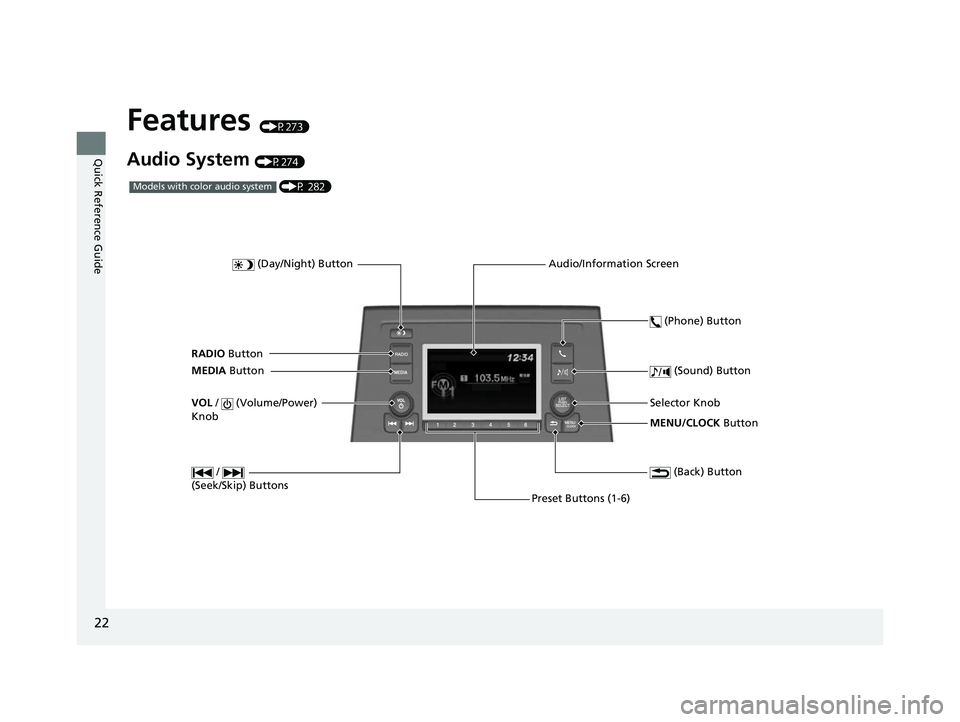

Features (P273)
Audio System (P274)
MENU/CLOCK Button
Selector Knob
(Day/Night) Button
(Back) Button
(Sound) Button
VOL
/ (Volume/Power)
Knob
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Seek/Skip) Buttons
MEDIA Button Audio/Information Screen

(P 282)Models with color audio system
22 US ODYSSEY-31THR6400.book 22 ページ ２０２０年１１月１６日　月曜日　午後１時４１分

23
Quick Reference Guide

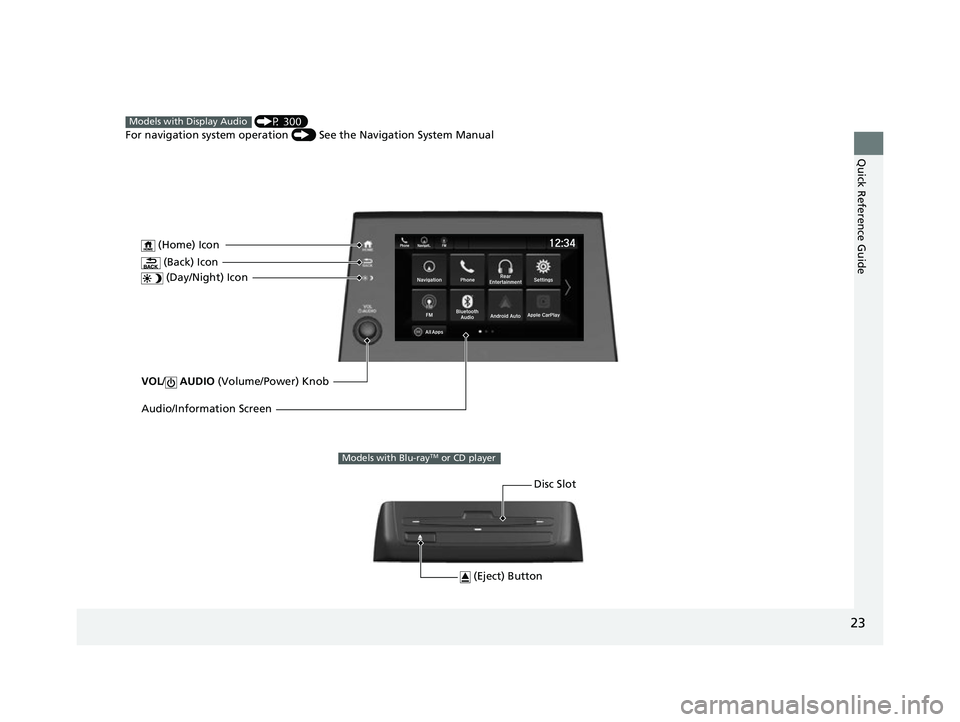

VOL/ AUDIO (Volume/Power) Knob
(Home) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
(P 300)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(Eject) Button
Disc Slot
Models with Blu-rayTM or CD player
22 US ODYSSEY-31THR6400.book 23 ページ ２０２０年１１月１６日　月曜日　午後１時４１分
